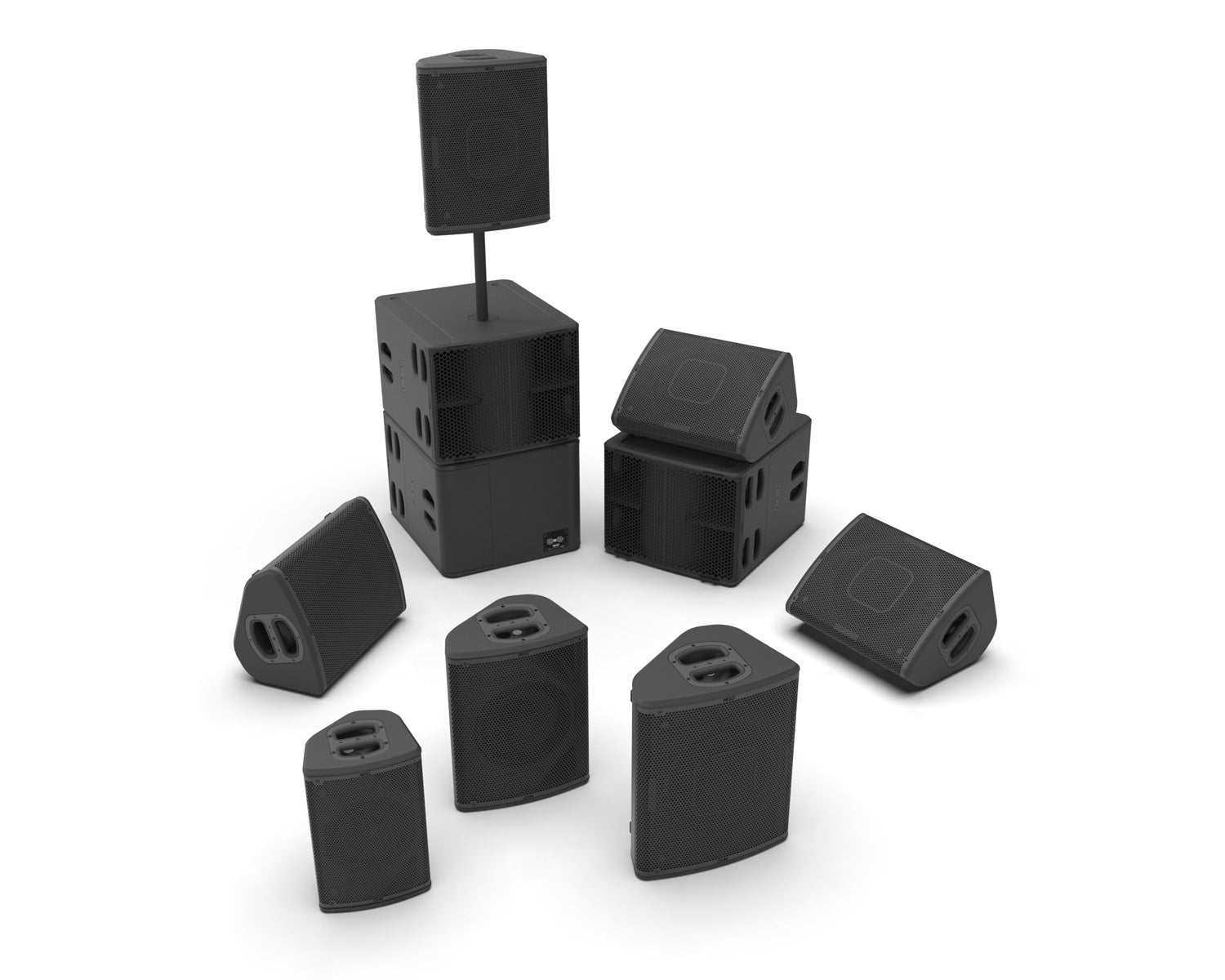

Available in mobile and install versions, the curved, low profile P8, P10 and P12 cabinets can be deployed both vertically or horizontally (as a wedge monitor). Dispersion angles can be changed quickly to match precisely the application, and versatility is further expanded by a comprehensive range of accessories.

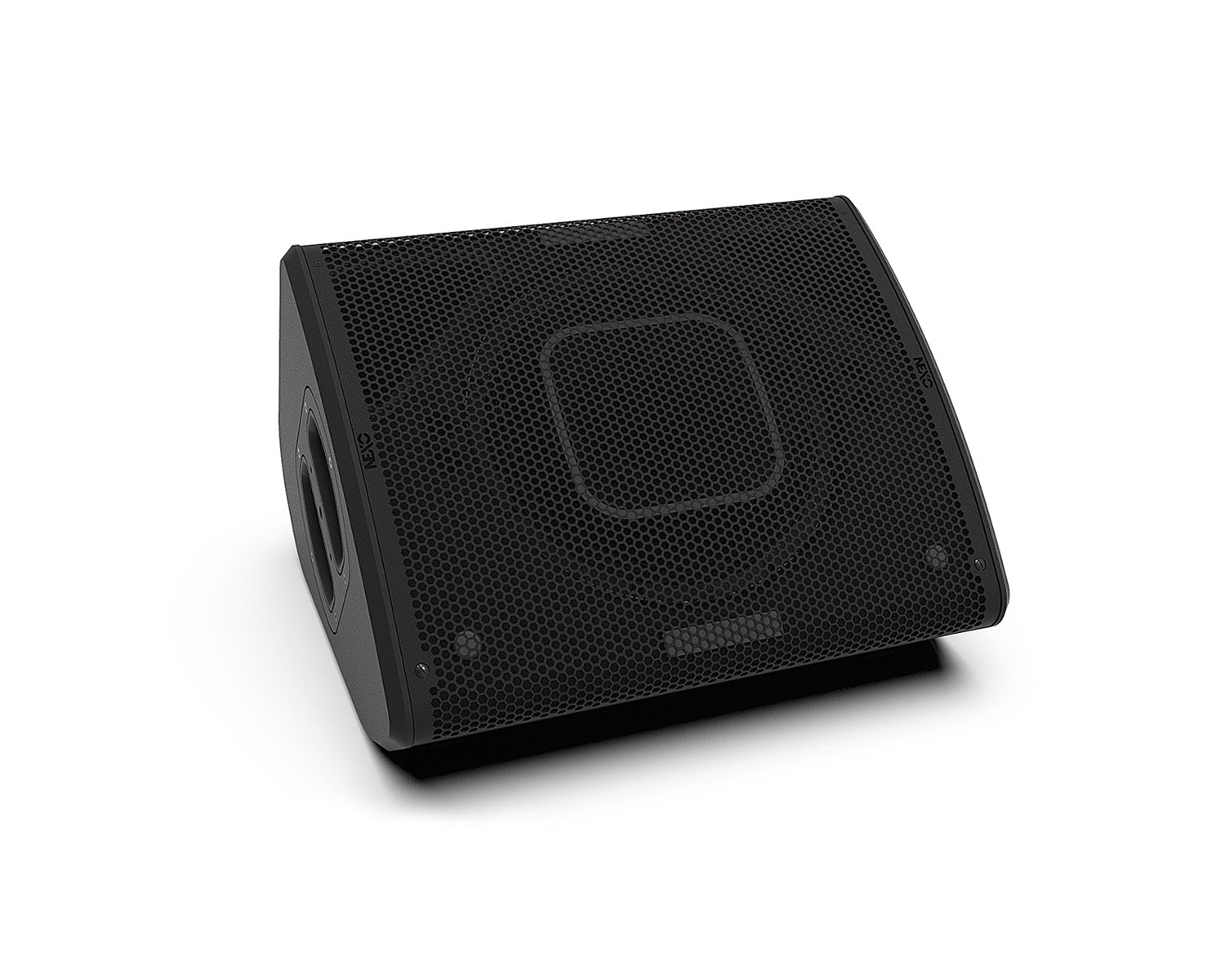

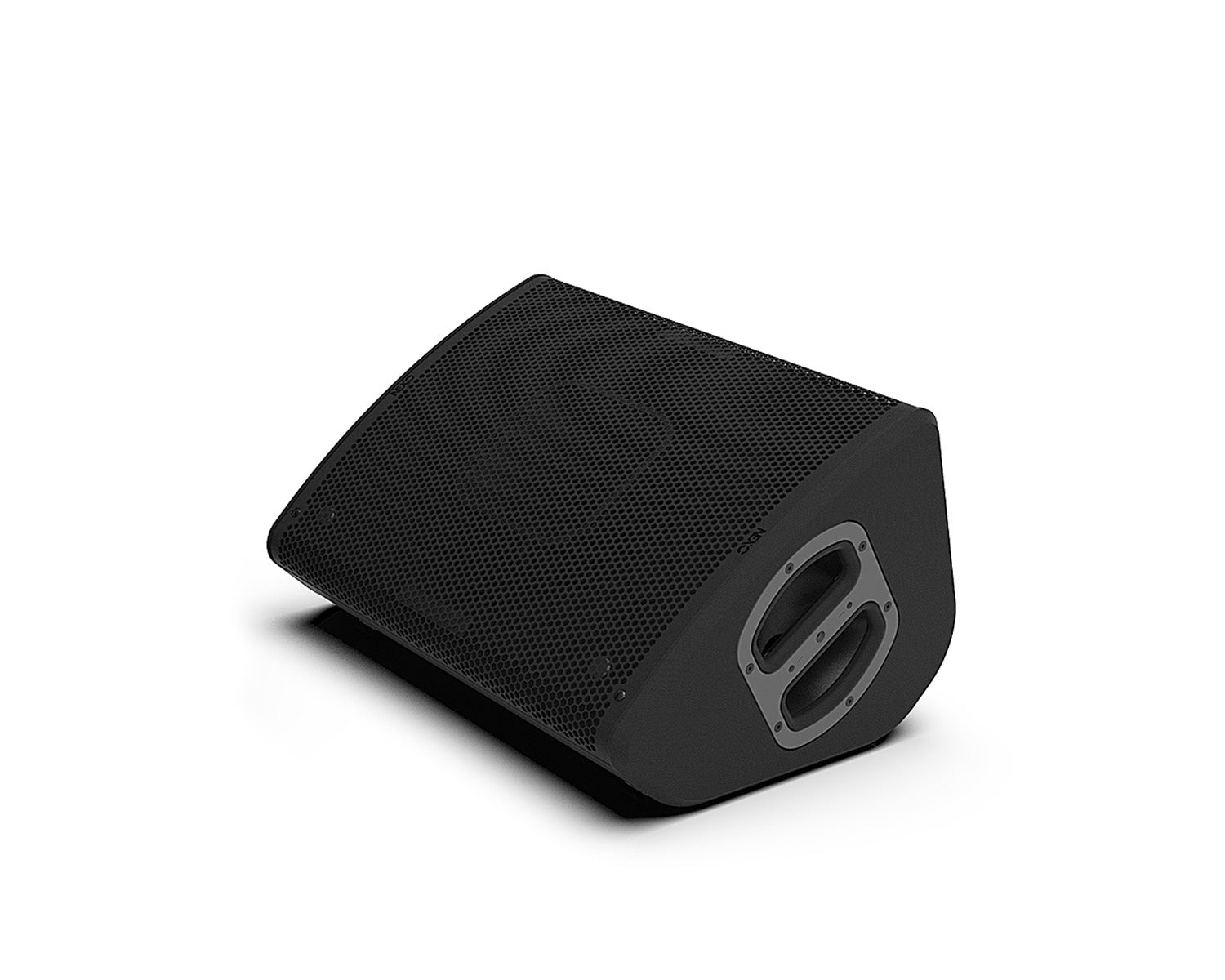

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 531mm x 432mm x 317mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode.

Also available in white and custom colours, please contact our sales team for more details and to place an order.

Product Features

Compact, low-profile, curvilinear enclosure
12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
Variable HF directivity
Switchable Active/Passive modes
140dB peak SPL (Active Mode)
Threaded inserts on the back and on both sides for connection of mounting accessories
Stand fitting on both sides
4x NL4, 4 poles connectors; 2 on the back and 1 on both sides

Also available in white and custom colours, please contact our sales team for more details and to place an order.

Product Specifications

Frequency Response (+6 dB) 60 Hz - 20 kHz
Sensitivity 1W@1m 107 dB
Peak SPL Level (1m) 138dB Peak (Passive mode) / 140dB Peak (Active mode)
Recommended Amplifiers 800 to 1250 Watts / 8Ω
HF Dispersion (according to horns) 60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40°
Crossover Frequency 60 Hz, 85 Hz, 120 Hz
Nominal Impedance Active mode (8Ω LF, 8Ω HF), Passive mode: 8Ω
Recommended Power Active: (800 to 1270 W LF + 400 to 630 W HF) / Passive: 800 to 1270 W
Components LF: 1x12" - 8Ω; HF : 1x3" - 8Ω - Neodymium driver
Number of ways (Touring/TIS versions) 2 ways passive (2+/2- P12) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
Number of ways (Install version) 2 ways passives
Connectors (Touring/TIS versions) 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version) 1 x Cable gland with 2 cores cable
Rigging points 1 x universal accessory ﬁt on each side + 1 x on the bottom
Material Custom made bent plywood of baltic birch and poplar
Finish Black or White structural paint
Front Finish (Touring version) Steel front grille + back mesh
Front Finish (Install/TIS versions) Acoustic fabric ﬁtted front gril
Weight : Net 20 kg (44 lbs)
Height x Width x Depth 534mm x 432mm x 314 mm (21.0” x 17.0” x 12.3”)
Operating Temperature Range 0°C - 40°C (32°F - 104°F)
Storage Temperature Range -20°C - 60°C (-4°F - 140°F)
