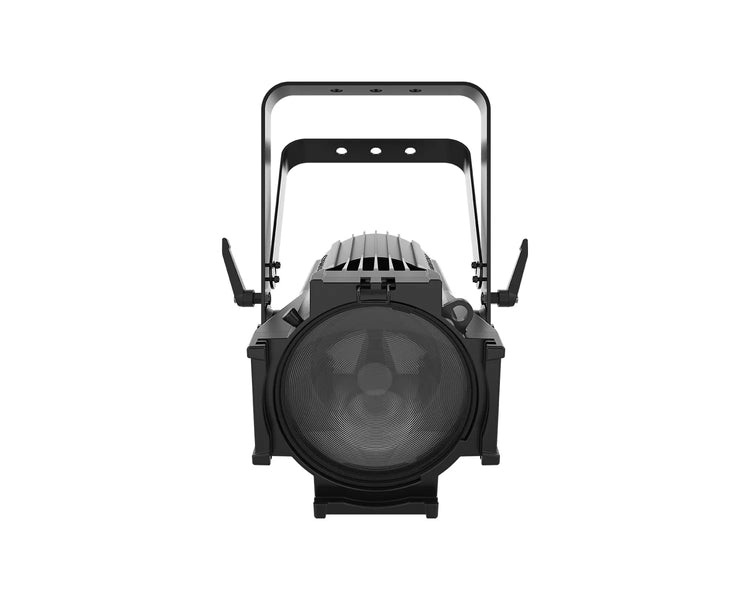

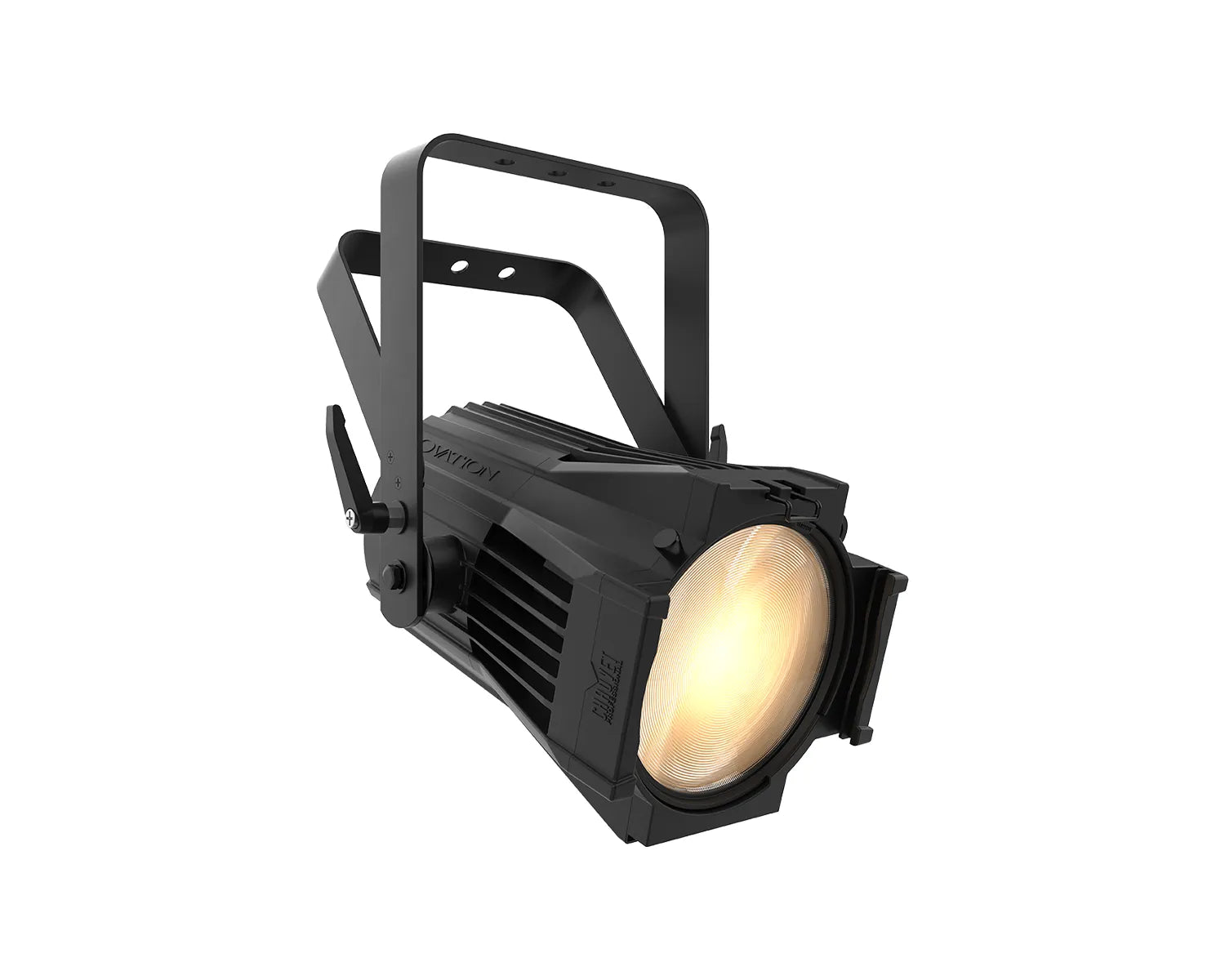

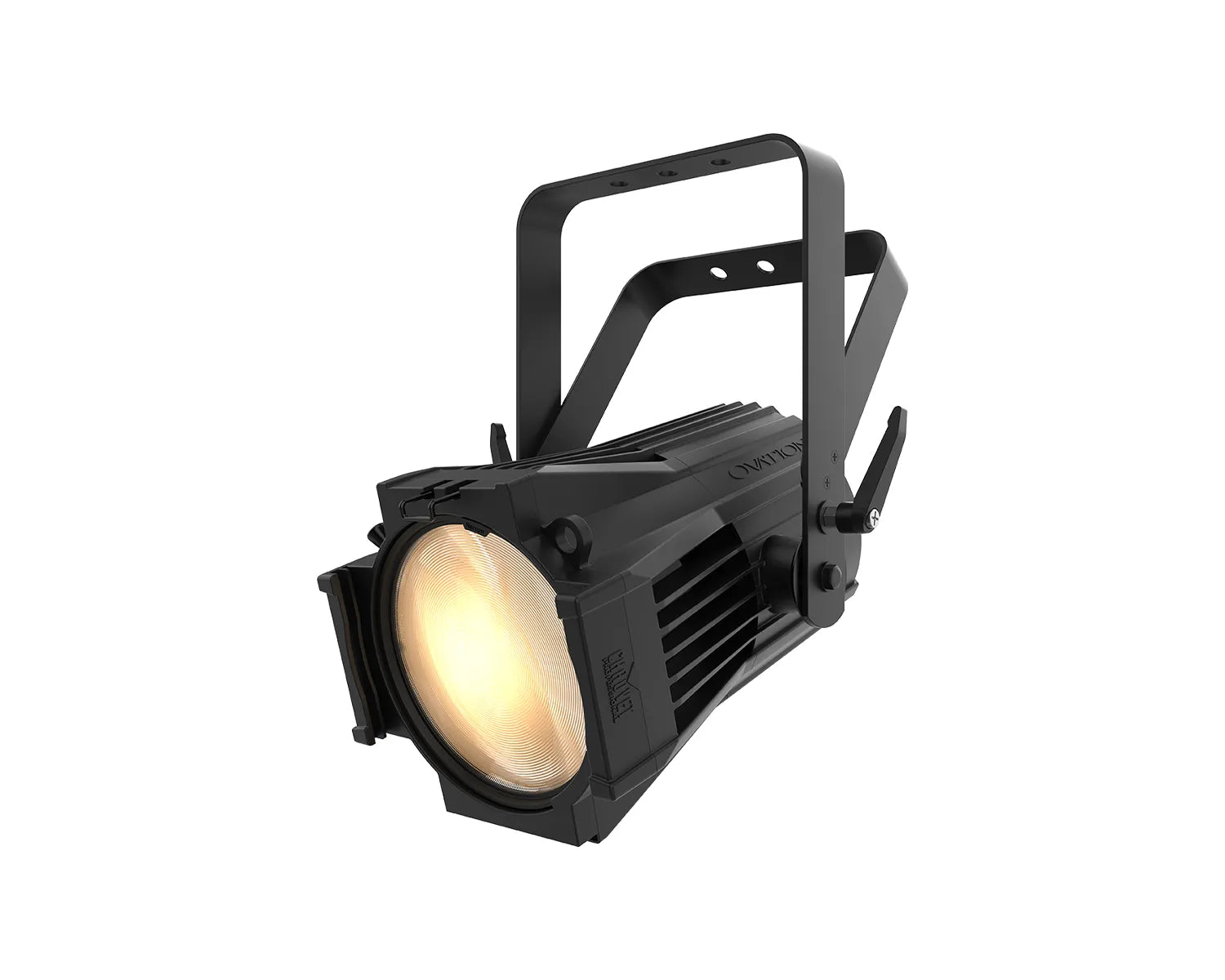

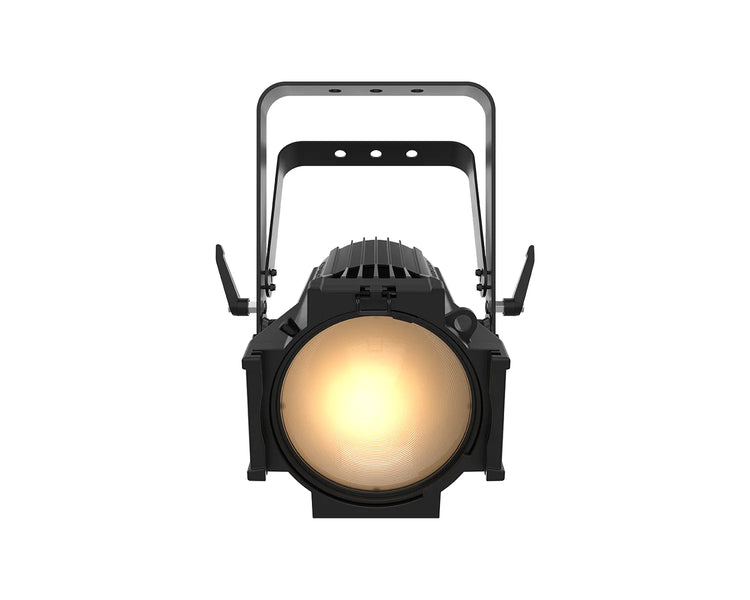

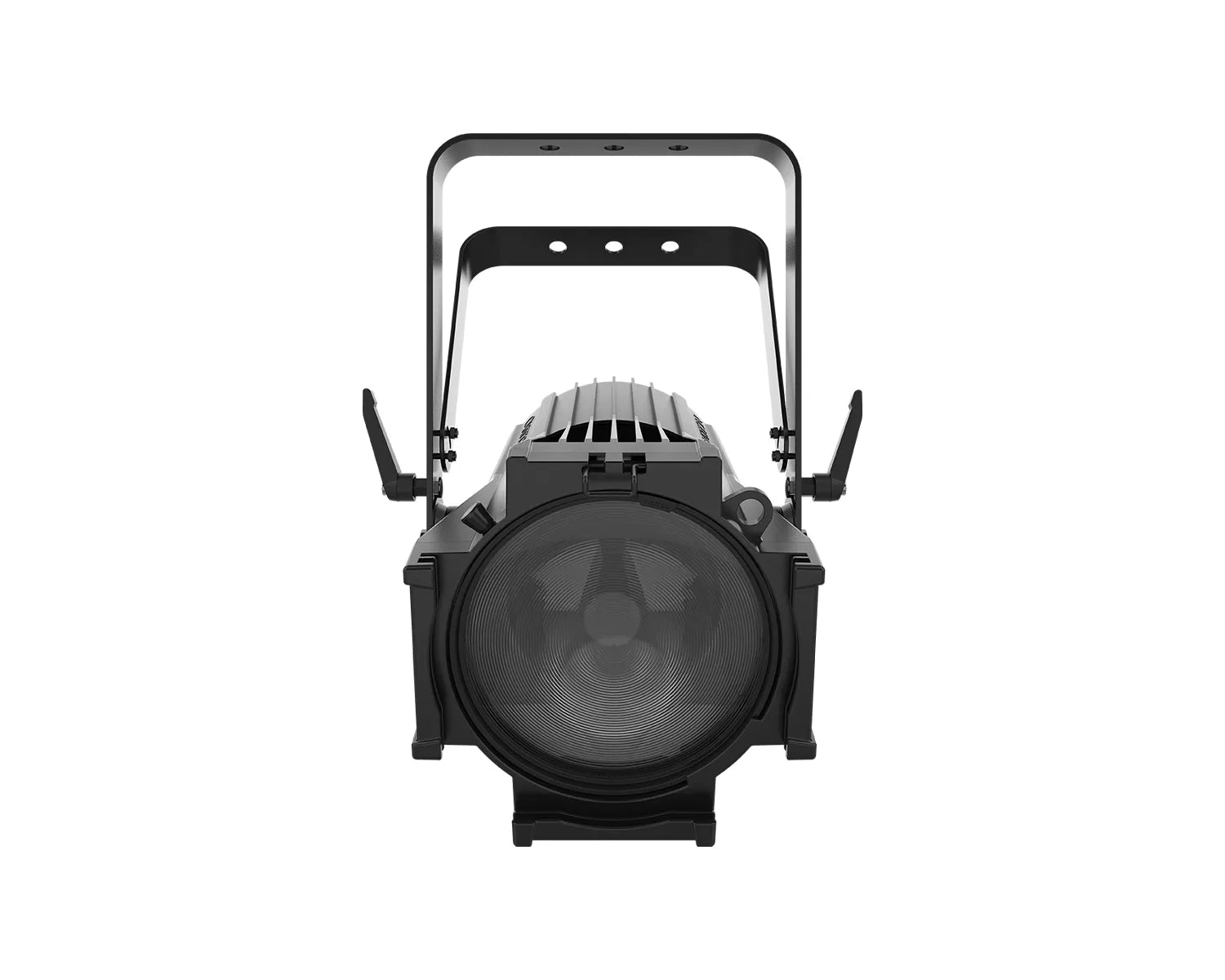

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenised, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.

Product Features

• New Model: Now with powerCON® TRUE1
• Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
• 16-bit dimming resolution for smooth fades
• Compact design with homogenous single source of light
• Flat, even field of light
• Quiet operation for use in any situation
• Interchange lens plates included for narrow, medium and wide beam angles

Product Features

Optical

• Light Source:  1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
• Colour Temperature (at full):  3228 K
• CRI:  97.9
• Beam Angle (Narrow lens):  11.8°
• Beam Angle (Medium lens):  23.9°
• Beam Angle (Wide lens):  70.9°
• Beam Angle (Wide lens w/ egg crate) :  37°
• Field Angle (Narrow lens):  26.6°
• Field Angle (Medium lens):  40°
• Field Angle (Wide lens):  106°
• Field Angle (Wide lens w/egg crate):  68°
• Lumens (w/Narrow lens):  10,326
• Lumens (w/Medium lens):  10,728
• Lumens (w/Wide lens):  10,687
• Illuminance (w/Narrow Lens):  5,468 lux @ 5 m
• Illuminance (w/Medium Lens):  2,264 lux @ 5 m
• Illuminance (w/Wide Lens):  363 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 29 Hz
• Dim Modes:  4
• Built-in Automated Programs:  Yes

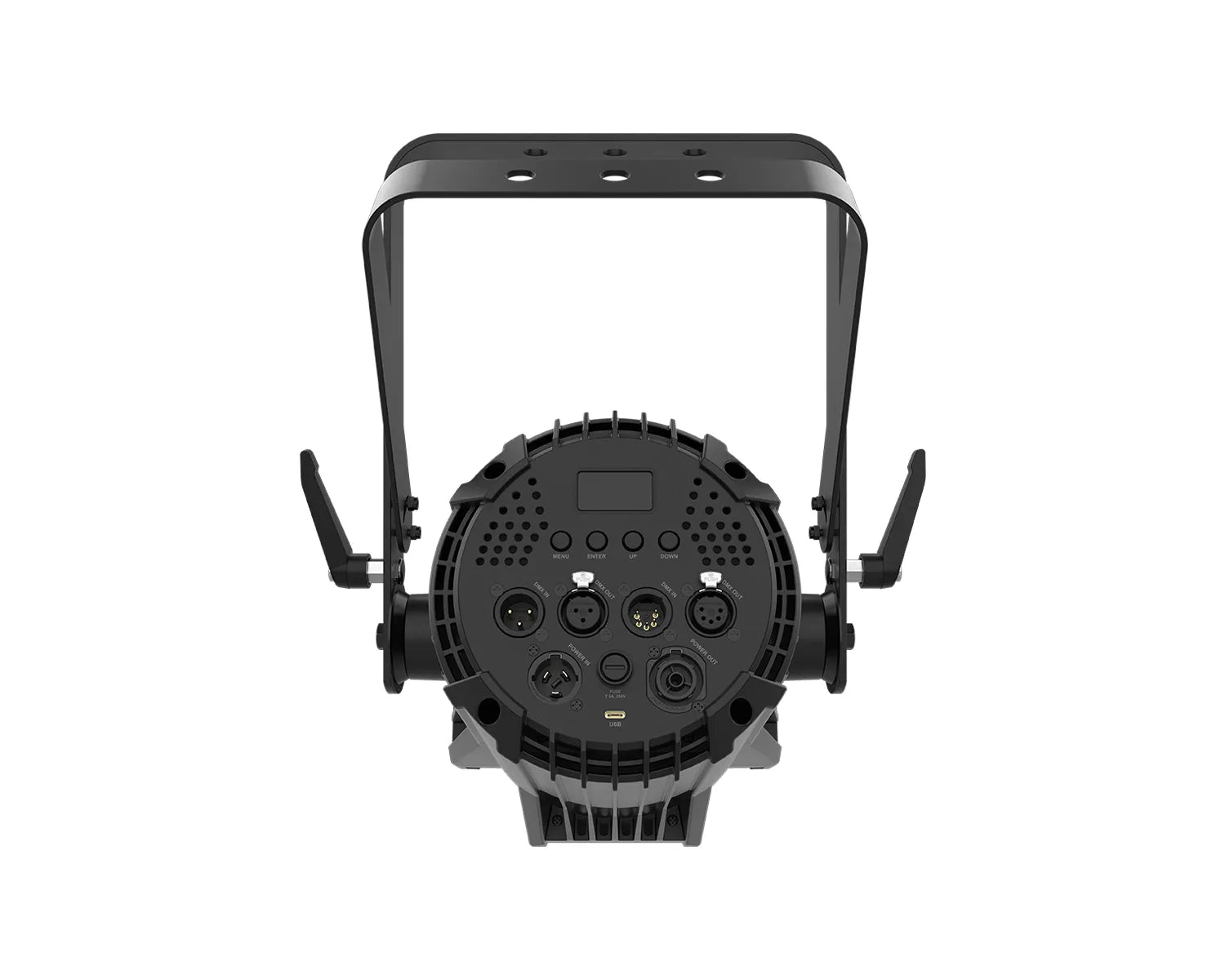

Connections

• Power Connection:  Edison (Local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)
• Software Connection:  USB-C

C\ontrol

• Control Protocol:  DMX, RDM
• DMX Channels:  1, 2, 3 or 6
• Modes/Personalities:  4 personalities (1, 2, 3, 6)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
• Power and Current:  210 W, 2.278 A @ 100 V, 60 Hz
• Power and Current:  205 W, 1.806 A @ 120 V, 60 Hz
• Power and Current:  197 W, 1.023 A @ 208 V, 60 Hz
• Power and Current:  195 W, 0.916 A @ 230 V, 50 Hz
• Power and Current:  194 W, 0.886 A @ 240 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating:  IP20, dry location

Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
• Weight:  11.6 lb (5.3 kg)
• Exterior Colour:  Black
• Accessory Holder/Gel Frame Size:  7.5 in (191 mm)

What's in the Box?

• Ovation P-56WW
• Seetronic Powerkon IP65 power cord
• Gel Frame (7.5 in/191 mm accessories)
• Wide, medium and narrow lenses
