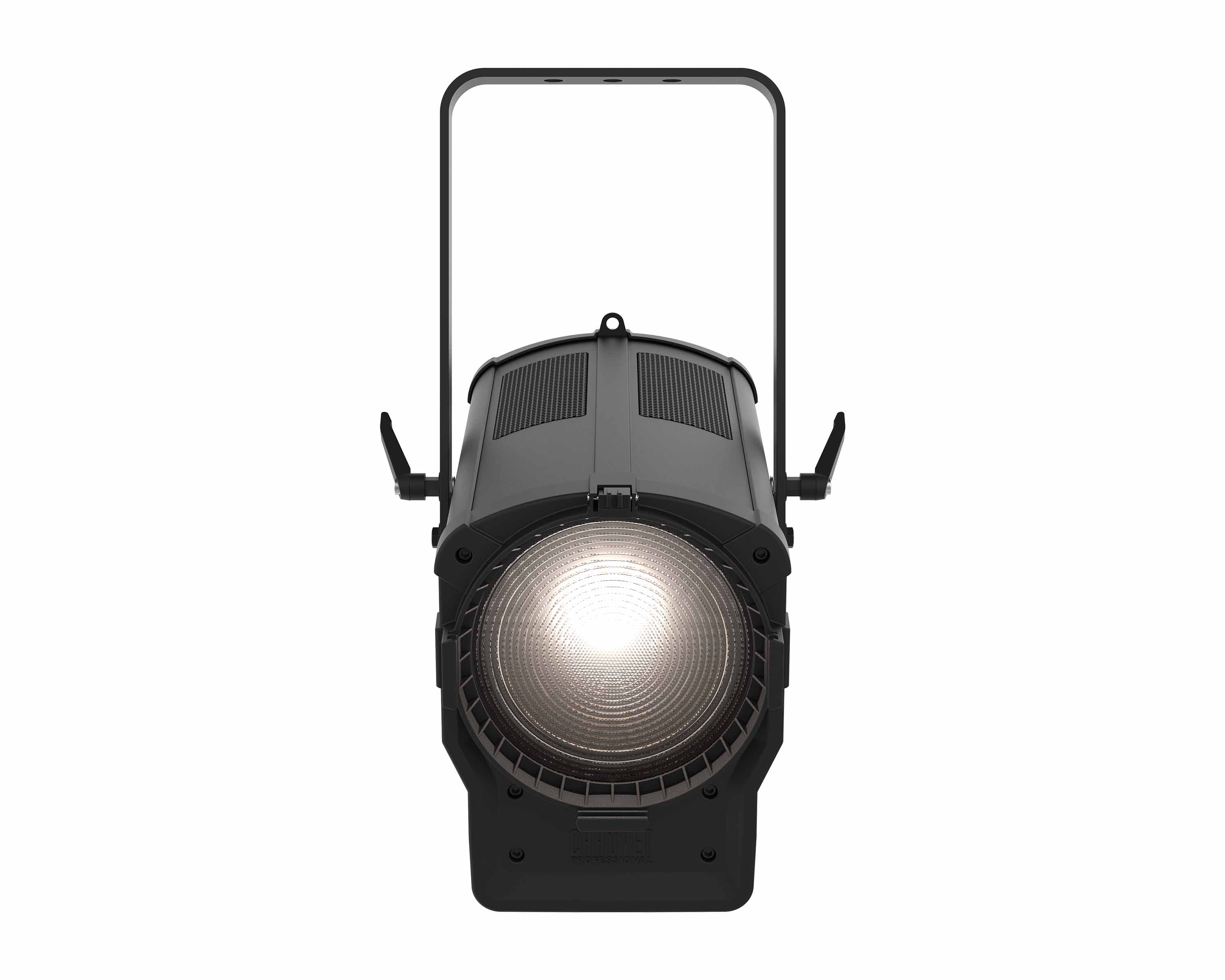

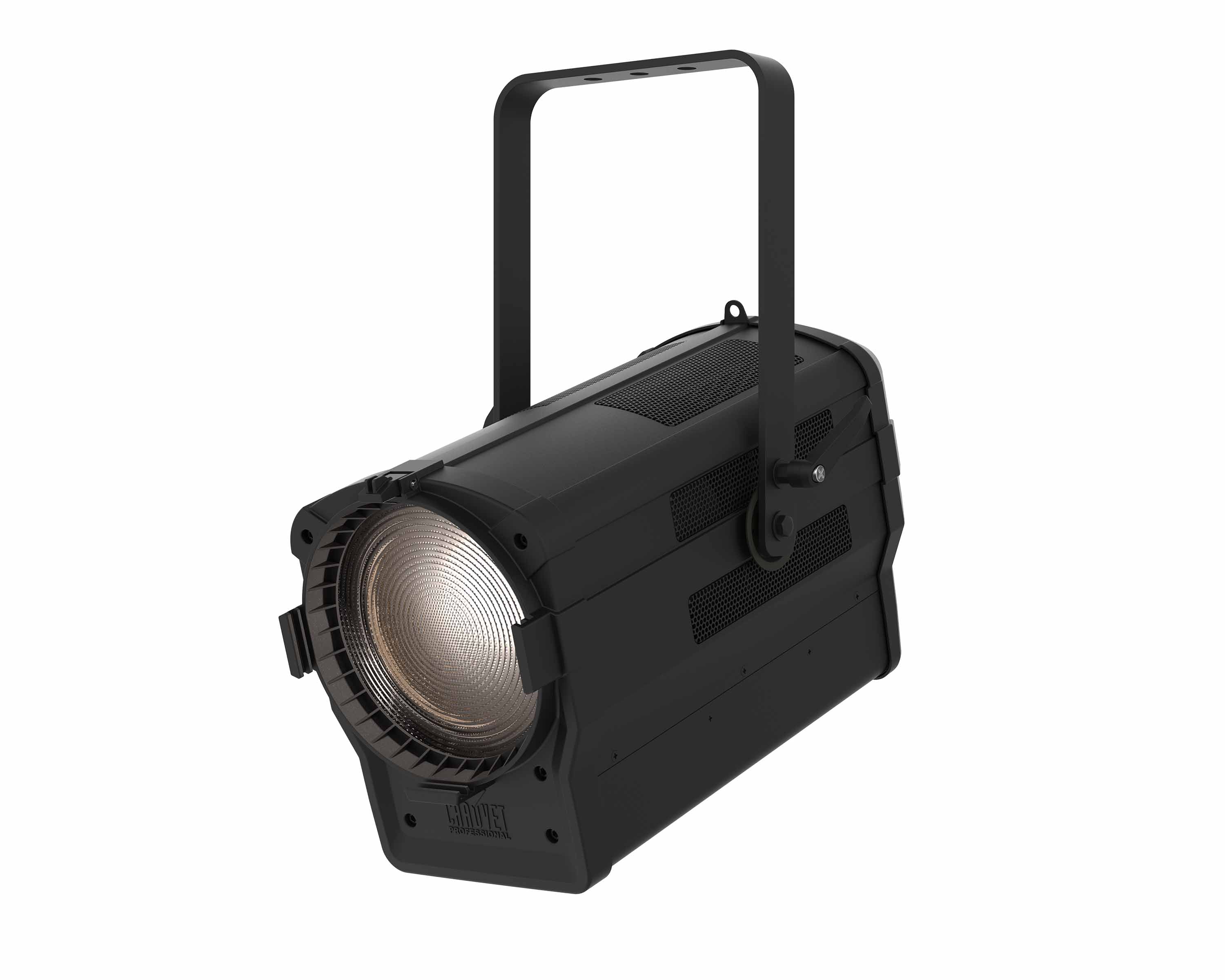

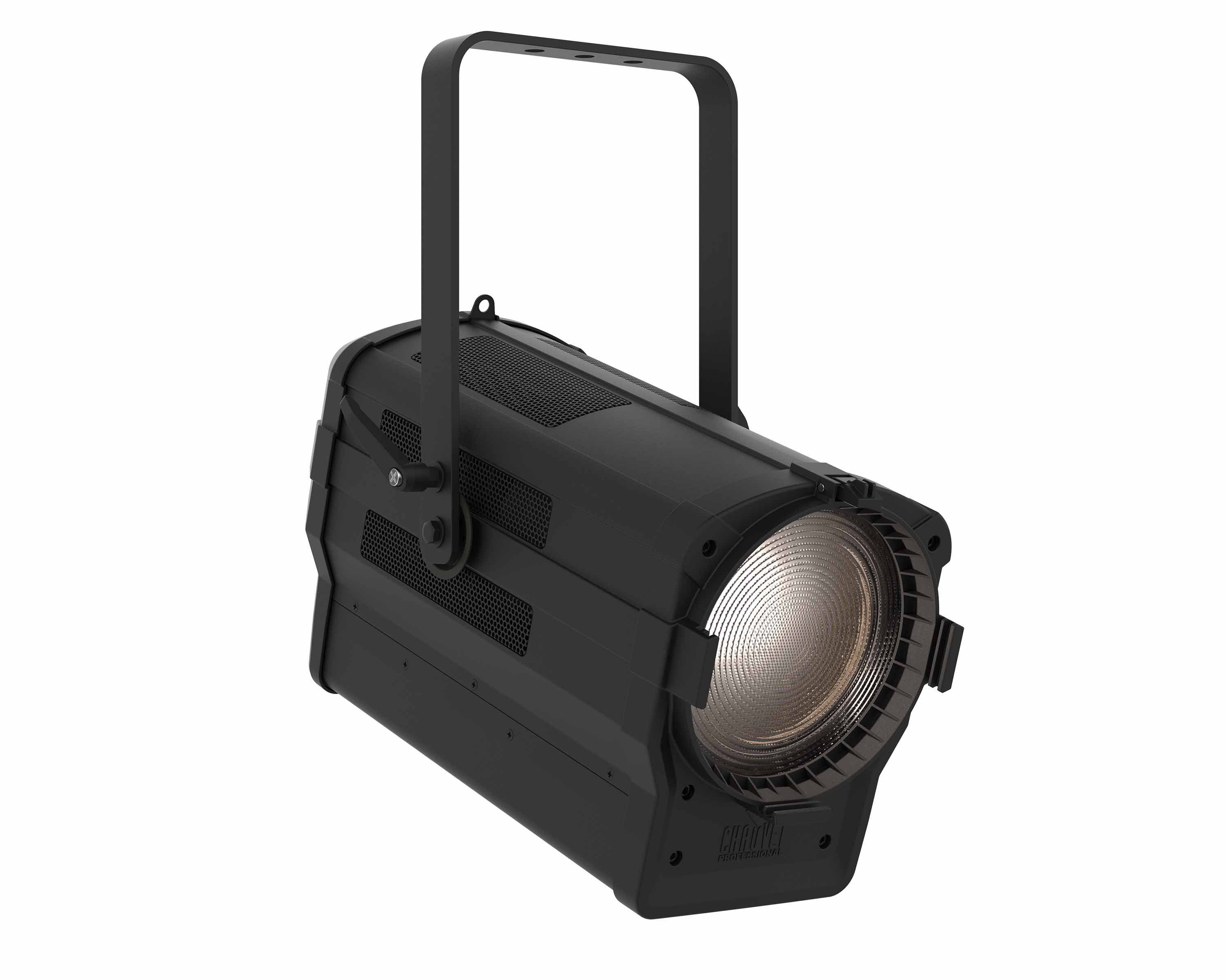

Ovation F-915VW is a high-power, variable white Fresnel-style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each colour temperature can be further adjusted for +/- green and a motorized zoom with a 30° – 85° field angle allows you to add light where it is needed. The colour temperature and hue along with zoom and output can be controlled via DMX or on-board dials.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Variable white LED Fresnel lighting fixture for theatre, film and production
• Smooth, motorized zoom from 16° to 42° beam angle
• Colour Temperature Presets from 2800 K to 8000 K with high CRI and CQS
• Beautiful 16-bit dimming
• Proprietary LED engine delivers tremendous, equal output at all colour temperatures

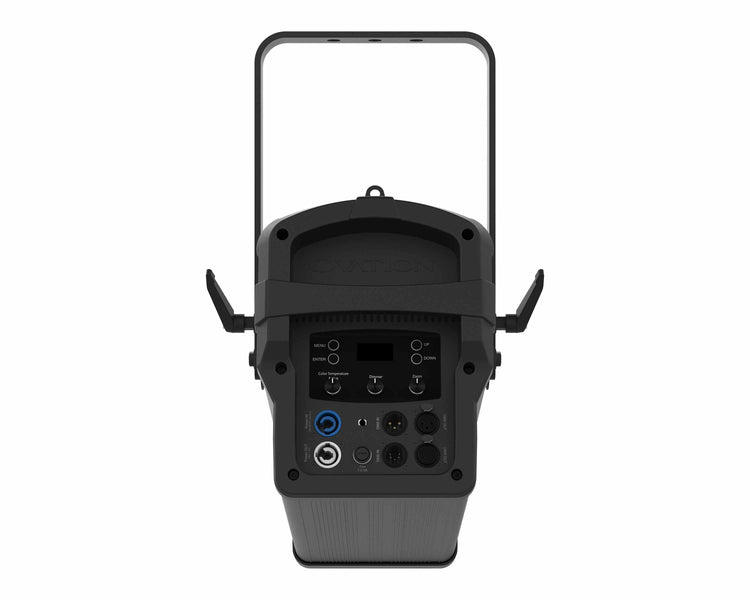

• Easy to use on board control of colour temperature, zoom and dimming
• +/- Green adjustment via DMX or on-board control
• Independent colour control over the 6-color engine when a splash of colour is needed
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications

Product Specifications

Optical

• Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 88-92Beam Angle: 17° to 54°
• Field Angle: 30° to 85°
• Zoom Angle: 30° to 85°
• Lumens (30°): 4,143
• Lumens (85°): 6,792
• Illuminance (30°): 1,748 lux @ 5 m
• Illuminance (85°): 414 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: No

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Control
• Control Protocol: DMX, RDM
• DMX Channels: 4, 6, 7, 9, 13, 16 or 18
• Modes/Personalities: 6 personalities (4, 6, 7, 9, 13, 16, 18)
• Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current: 216 W, 1.8 A @ 120 V, 60 Hz [7 A inrush]
• Power and Current: 220 W, 1.1 A @ 208 V, 60 Hz [7 A inrush]
• Power and Current: 223 W, 1 A @ 230 V, 50 Hz [7.8 A inrush]
• Power and Current (resting): 6 W, 0.050 A @ 120 V, 60 Hz
• Power and Current (resting): 11 W, 0.054 A @ 208 V, 60 Hz
• Power and Current (resting): 9 W, 0.036 A @ 230 V, 50 Hz

Certifications

• CE, MET
• IP Rating: IP20, dry location
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

Physical & Dimensions

• Height: 320mm
• Width: 275mm
• Depth: 569.44mm
• Weight: 8.5kg
• Housing Material: Aluminium alloy, Aluminium die-cast

What's in the Box?

• Neutrik® powerCON® power cord
• Gel frame (7.5 in/191 mm accessories)
