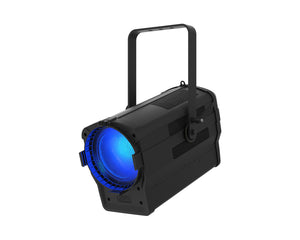

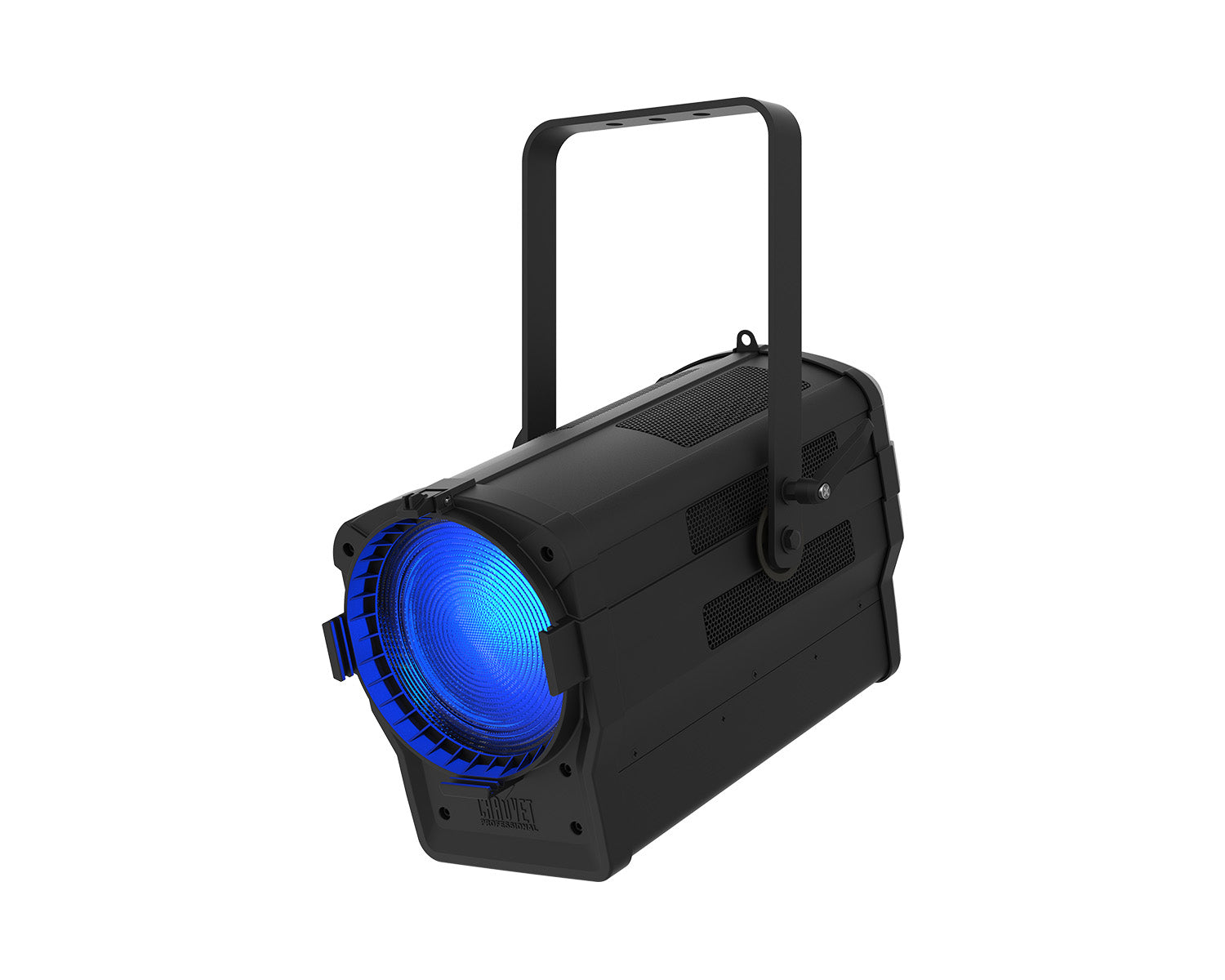

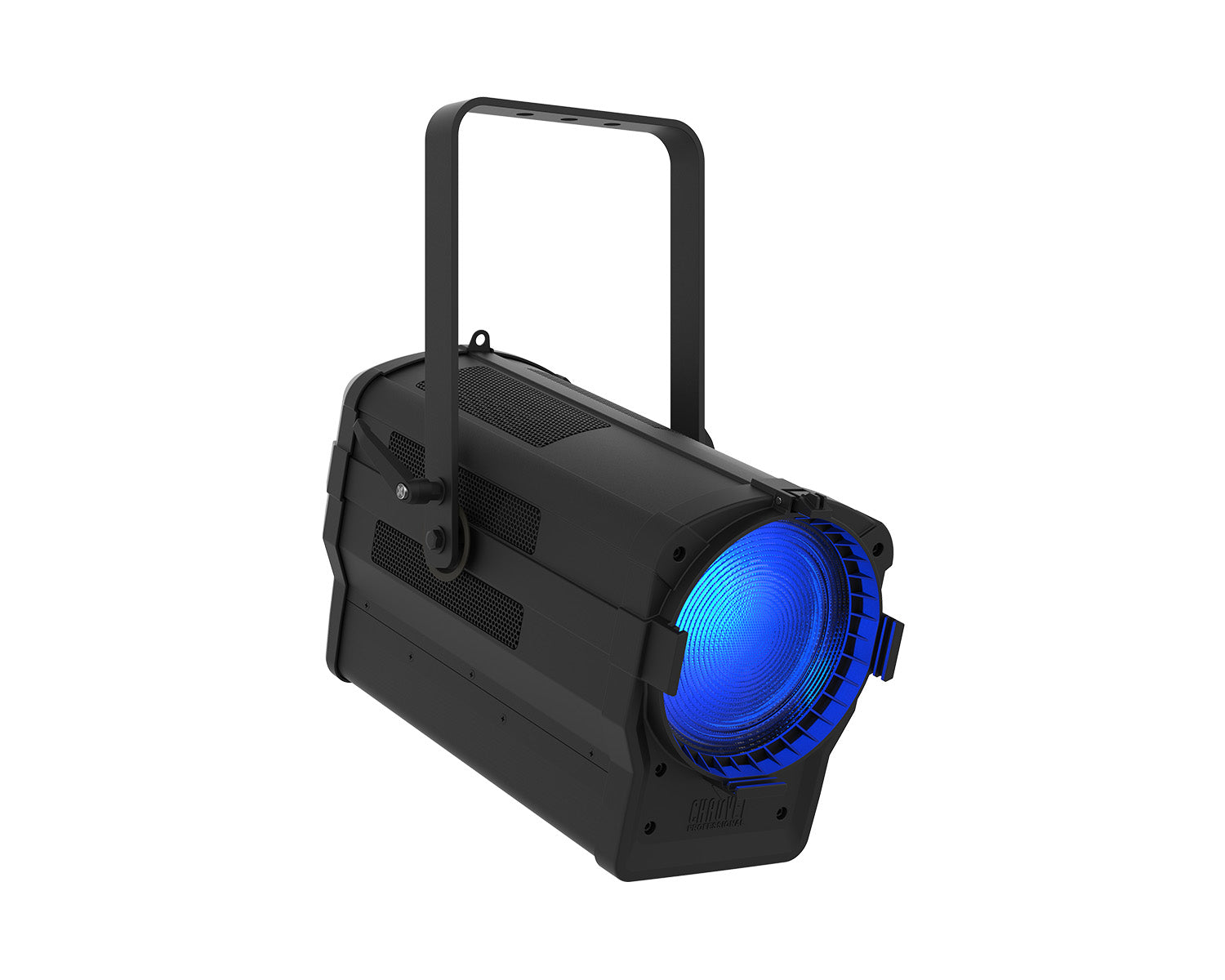

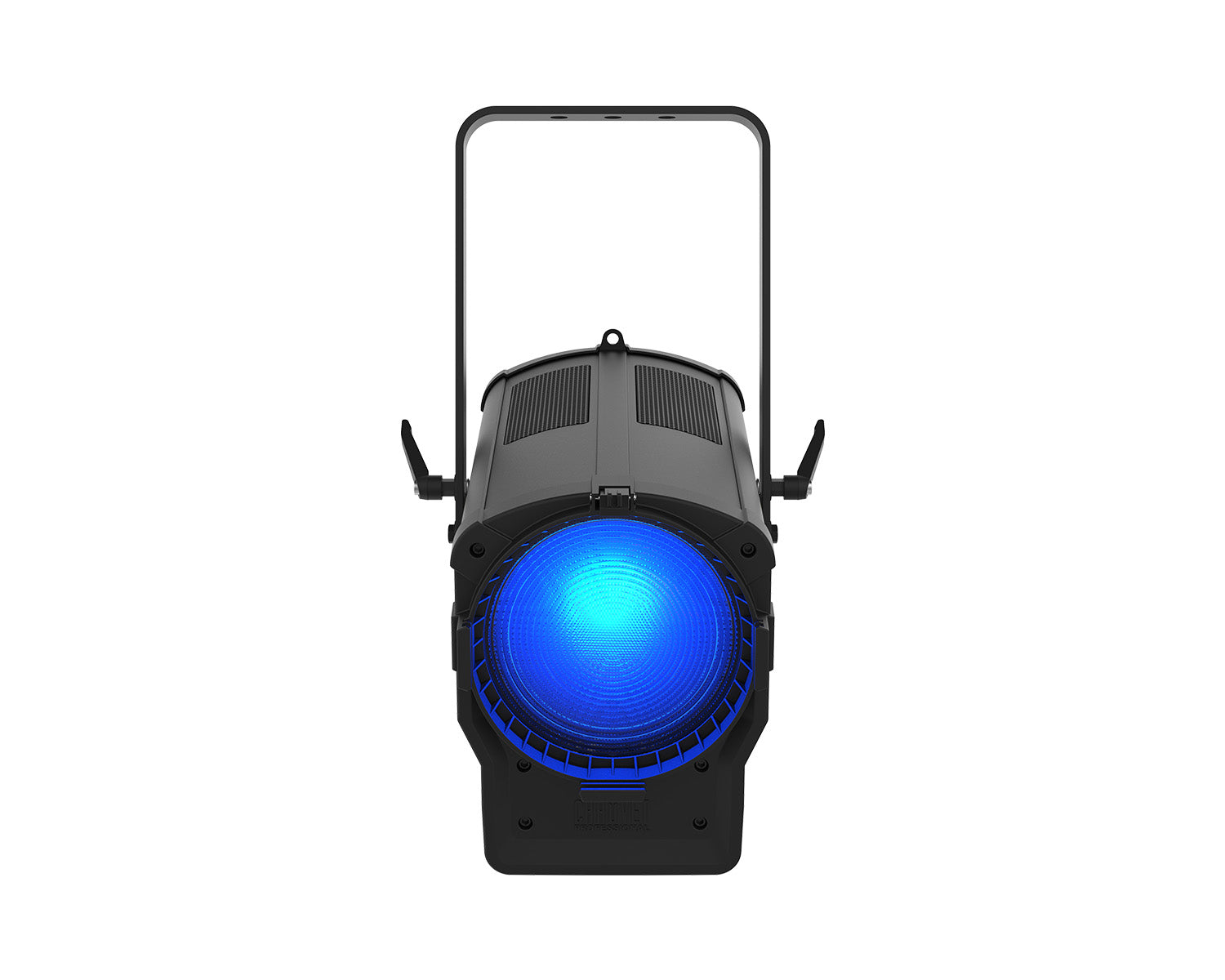

Ovation F-915FC is a high-power, full colour mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 17° – 85° field range allows you to add light where it is needed. Control of the virtual colour wheel, zoom and output can be via DMX or on-board dials.

Product Features

• New Model: Now with powerCON® TRUE1
• Full Colour LED (RGBAL) Fresnel lighting fixture for theatre, film and production
• Soft and even field of light
• Smooth, motorized zoom from 17° to 85°
• Beautiful 16-bit dimming of master dimmer and individual colours
• Easy to use on board control of color, zoom and dimming
• Virtual Color wheel with colour matched to popular gel colours
• Color Temperature Presets from 2800 K to 6500 K
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications

Product Specifications

Optical

• Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
• Colour Temperature (range): 2800 to 6500 K
• CRI (3200 K): 90
• Beam Angle: 17° to 54°
• Field Angle: 30° to 85°
• Zoom Angle: 30° to 85°
• Lumens (30°): 4,294
• Lumens (73°): 6,661
• Illuminance (30°): 1,450 lux @ 5 m
• Illuminance (73°): 312lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 3, 5, 7, 11, 13, 14 or 17
• Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
• Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
• Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
• Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz

Certifications

• CE, MET
• IP Rating: IP20, dry location

Connections

• Power Connection: Edison (Local) plug to powerCON® TRUE1
• Power Input: powerCON® TRUE1
• Power Output: powerCON® TRUE1
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Physical & Dimensions

• Height: 320mm
• Width: 275mm
• Depth: 569.44mm
• Weight: 8.6kg
• Exterior Colour: Black
• Housing Material: Aluminium alloy, Aluminium die-cast

What's in the Box?

• Neutrik® powerCON® power cord
• Gel frame (7.5 in/191 mm accessories)
