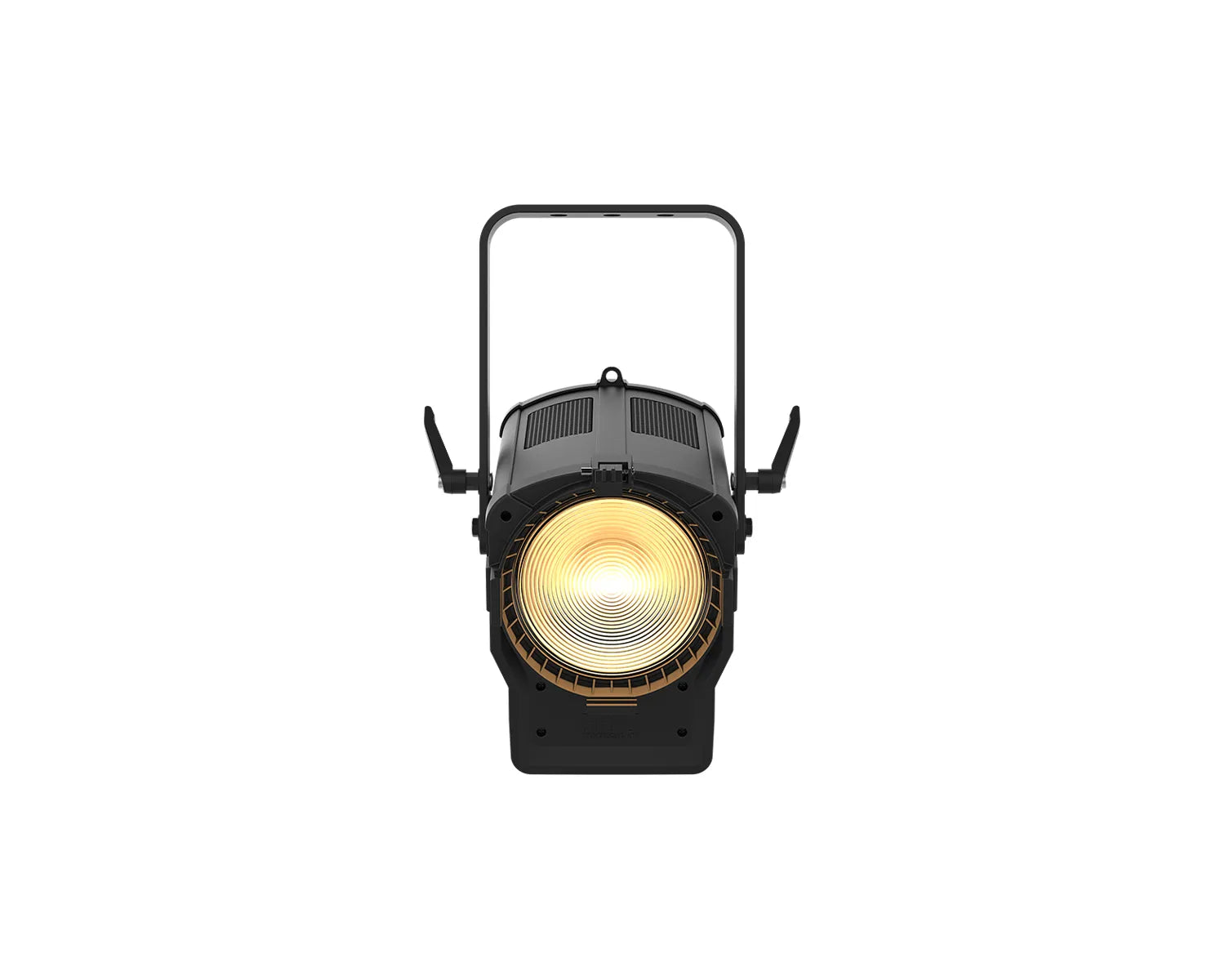

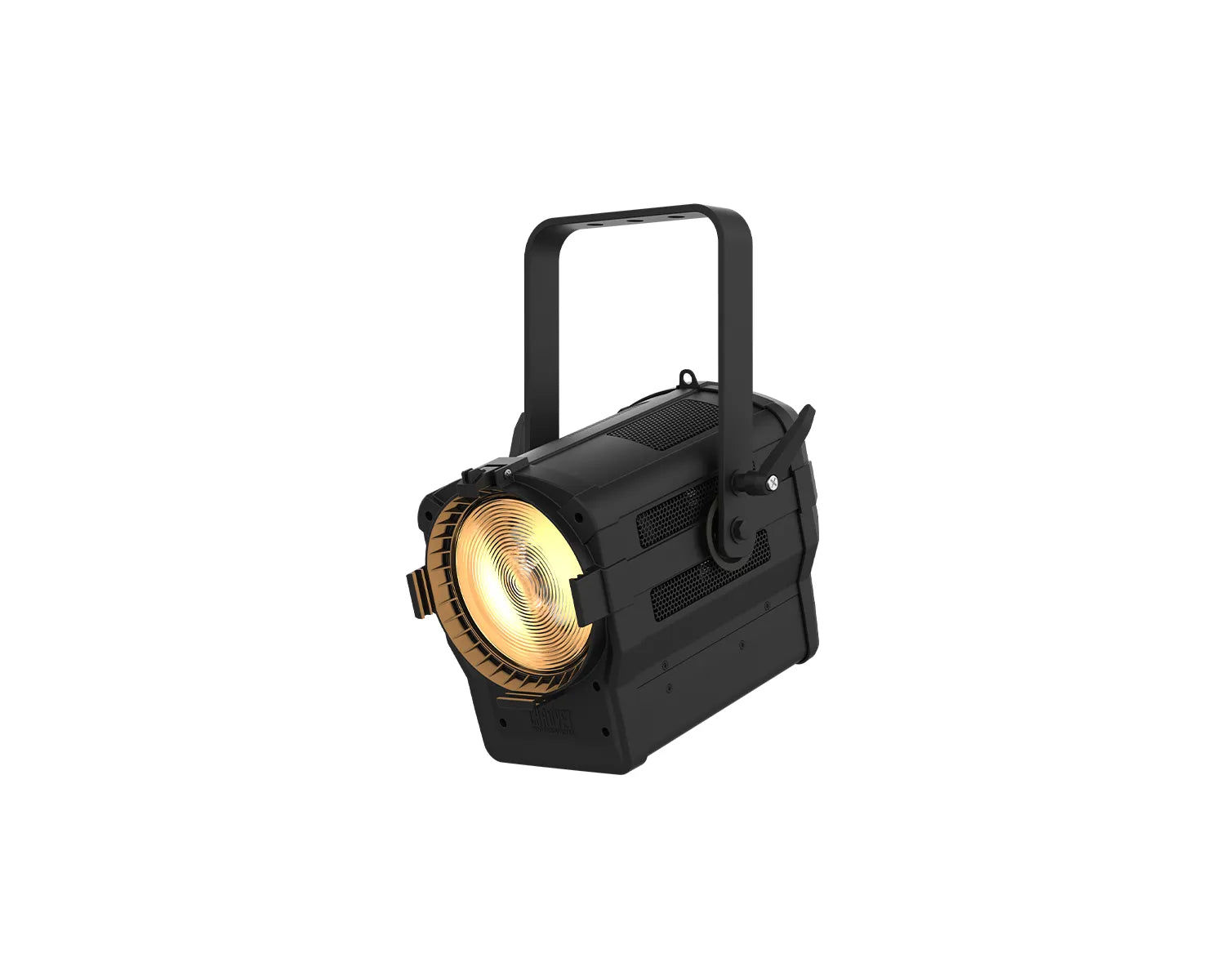

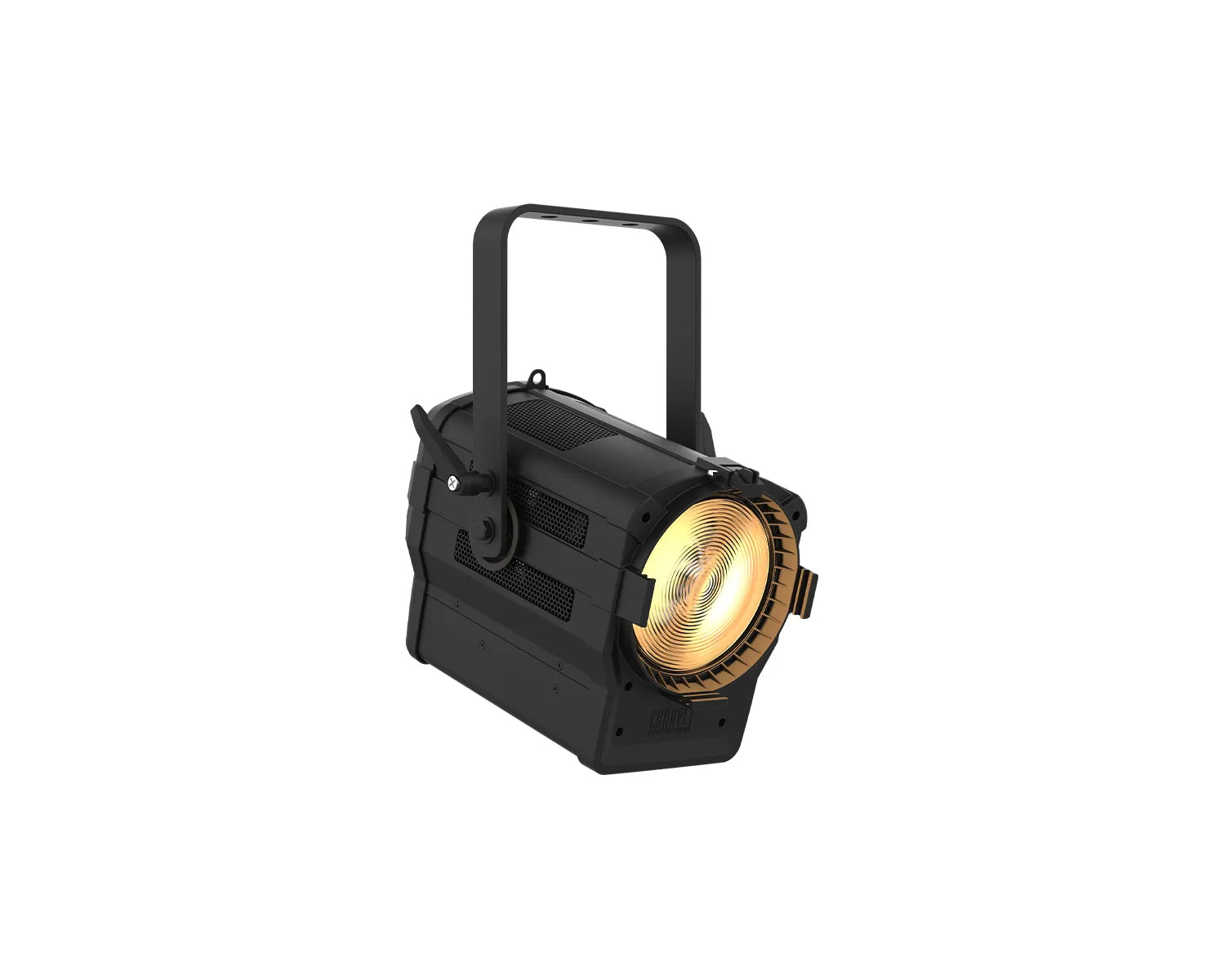

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorised zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

Product Features

• Warm white Fresnel with output comparable to a 6”, 650 W Fresnel
• Soft and even field of light
• 16-bit dimming resolution for smooth fades
• Virtually silent operation for use in any situation
• Motorised zoom range between 16° to 65°, manually or via DMX

Product Specifications

Optical

• Light Source:  1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
• Colour Temperature (at full):  3096 K
• CRI:  97
• Beam Angle:  16° to 48°
• Field Angle:  25° to 65°
• Zoom Range:  16° to 65°
• Lumens (25°):  2,787
• Lumens (65°):  4,266
• Illuminance (25°):  1,290 lux @ 5 m
• Illuminance (65°):  252 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Strobe Rate:  0 to 30 Hz
• Dim Modes:  4

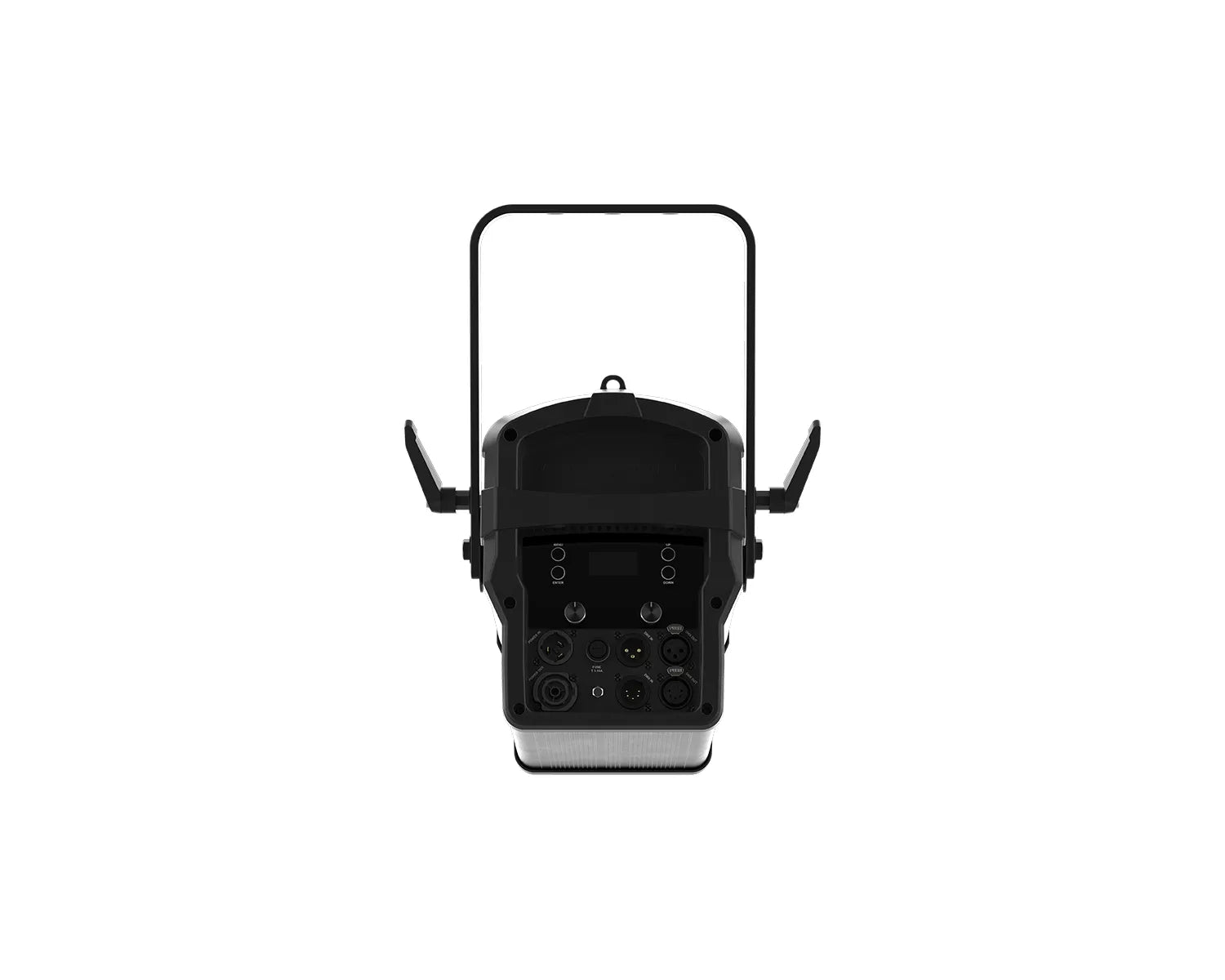

Connections

• Power Connection:  Edison (local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  3- and 5-pin XLR
• Cable Length (power):  5 ft (1.5 m)

Control

• Protocol(s):  DMX, RDM
• DMX Channels:  1, 2, 2 or 5
• Modes/Personalities:  4 personalities (1, 2, 2, 5)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  18 units @ 120 V; 32 units @ 208 V; 35 units @ 230 V
• Power and Current:  75 W, 0.635 A @ 120 V, 60 Hz
• Power and Current:  73 W, 0.373 A @ 208 V, 60 Hz
• Power and Current:  73 W, 0.337 A @ 230 V, 60 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating:  IP20, dry location
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
• Weight:  11 lb (5 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium alloy, Aluminium die-cast
• Accessory Holder/Gel Frame Size:  6.25 in (158.75 mm)

What's in the Box?

• Ovation F-145WW
• Seetronic Powerkon IP65 power cord
• Gel Frame
