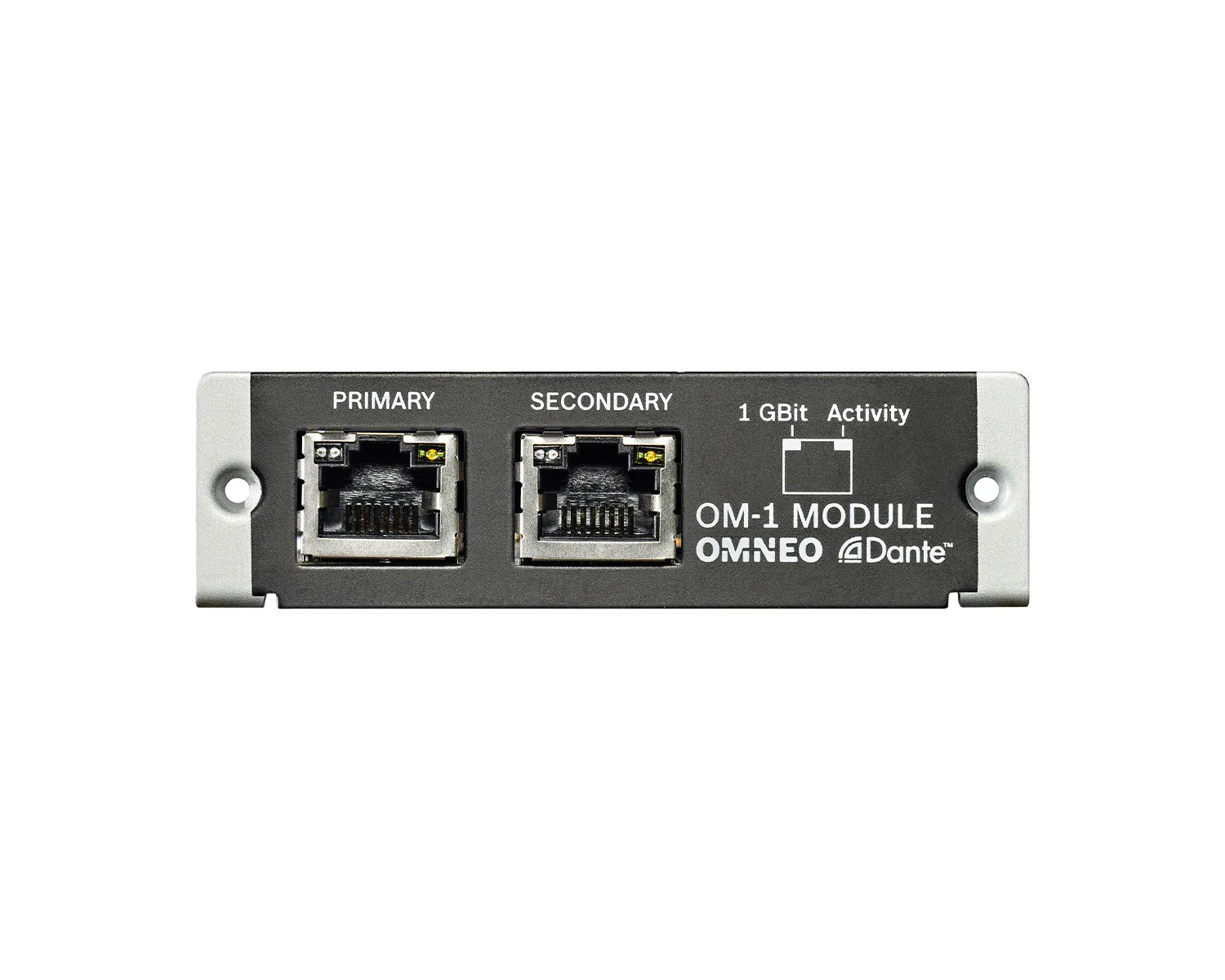

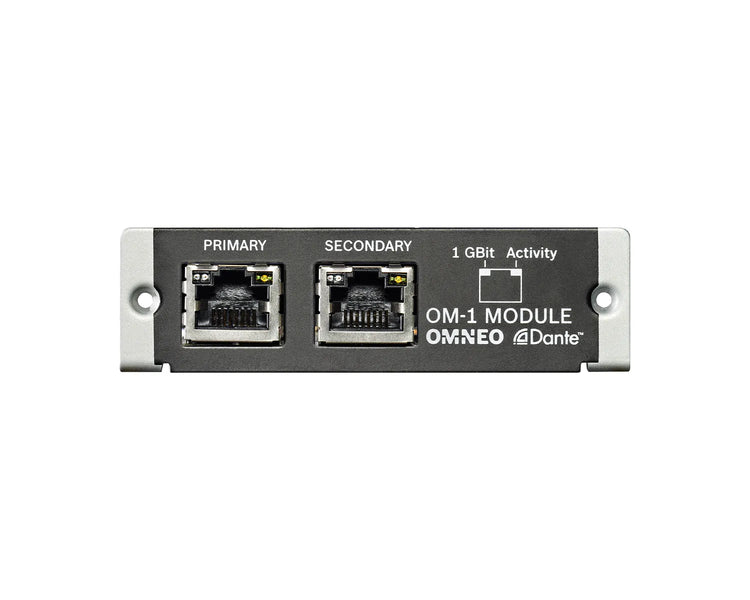

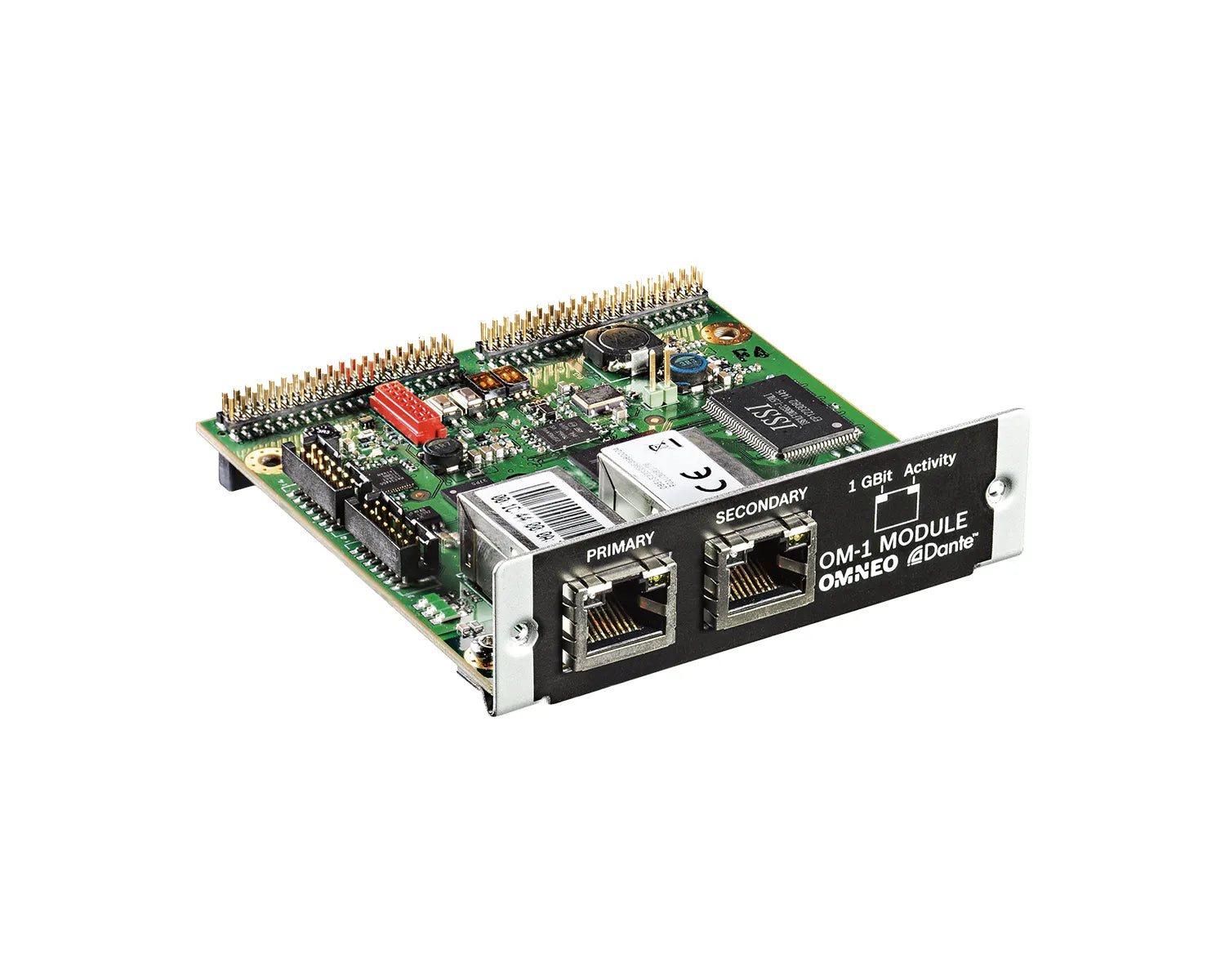

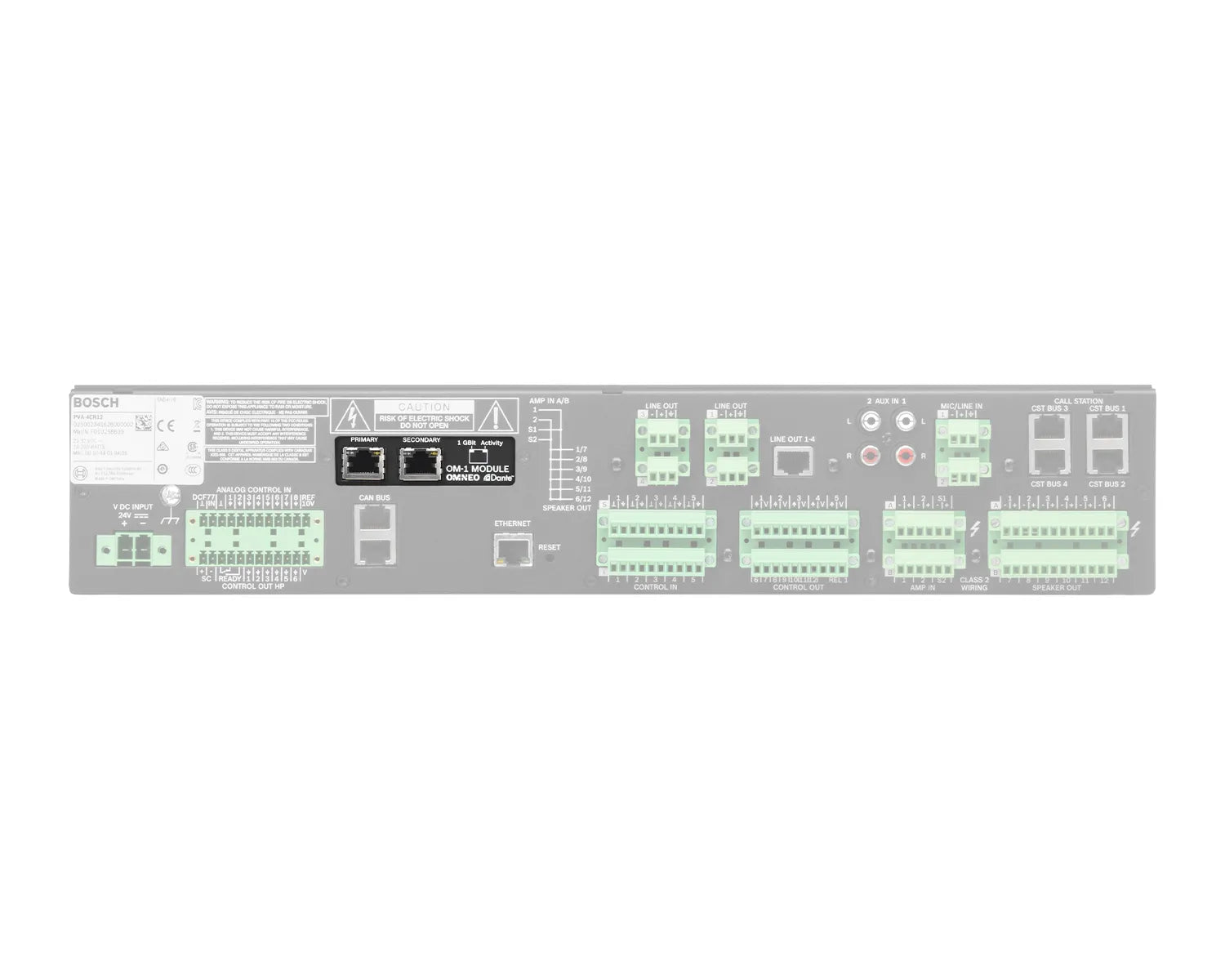

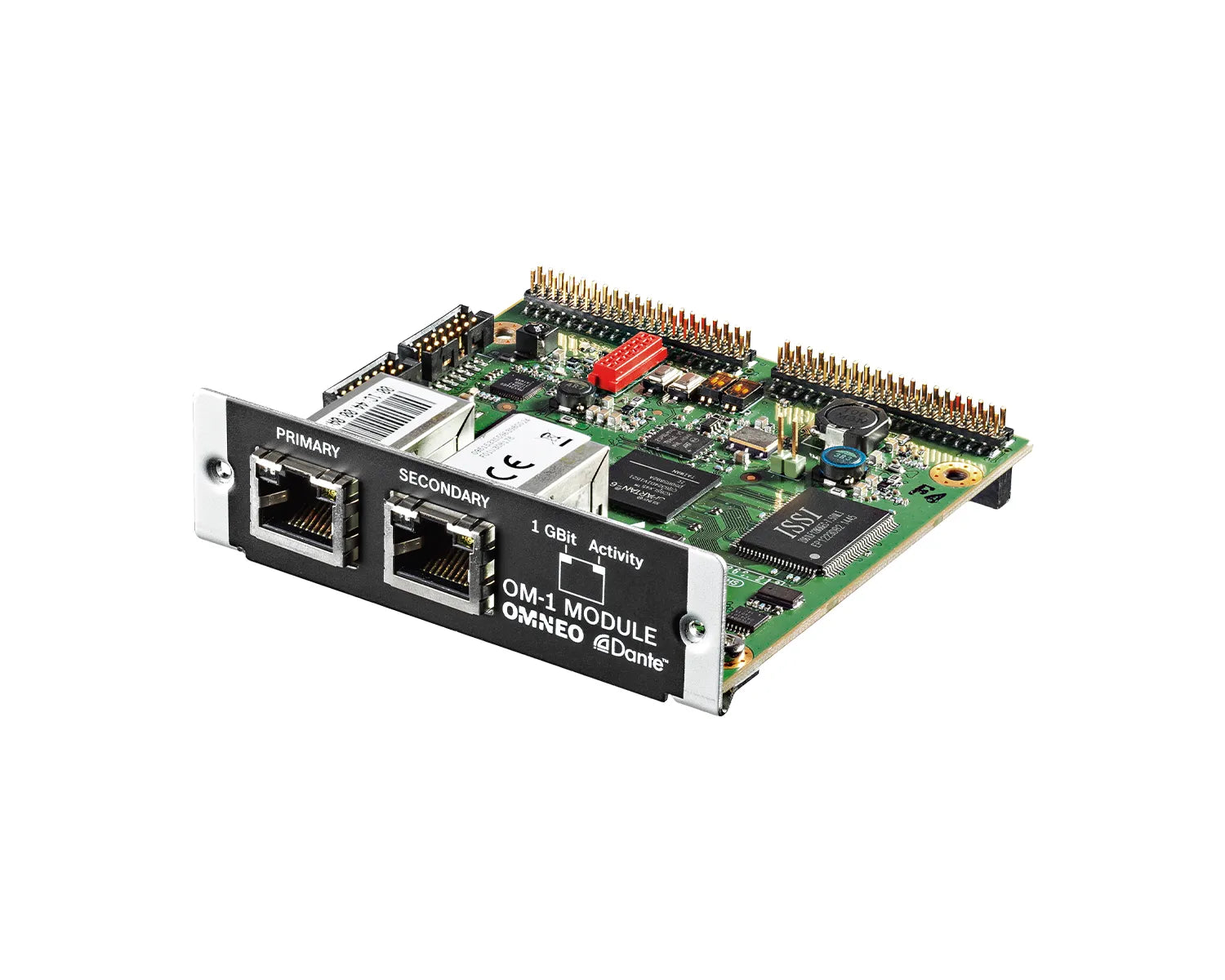

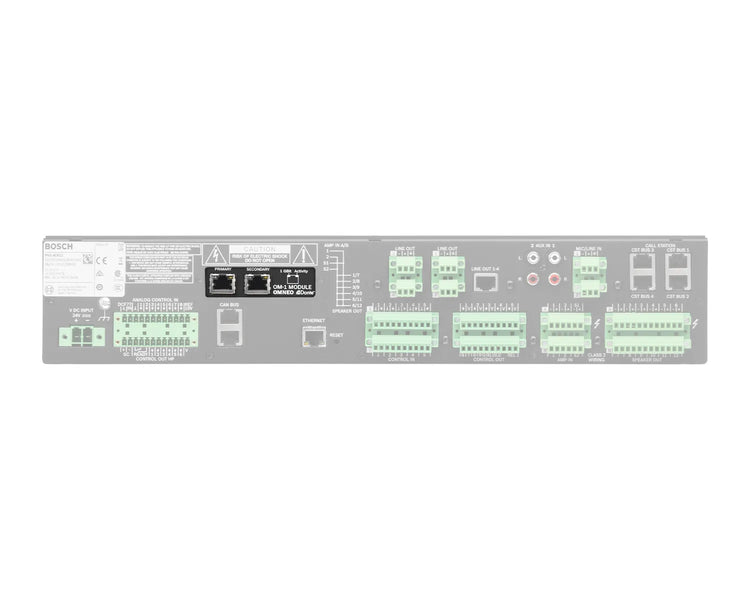

The OM‑1 is a compact interface module which is prepared for a connection to an OMNEO network. The OM‑1 is able to send and receive Dante audio to and from other PAVIRO Controllers with an OM‑1 Interface Module. The transmission of up to 16 digital audio input signals and 16 digital audio output channels with low latency is possible with the OM‑1.

Product Features

Gigabit Ethernet Interface - 1000 Mbit/s full duplex Ethernet Interface, IEEE 802.3u compatible
Secondary Gigabit Ethernet Interface - Second Ethernet Interface for the connection of a redundant network to establish fault-tolerant systems
Status LEDs - Link, Activity and Gigabit active status indication for each Ethernet interface
EN 54-16 system certification

Product Specifications

Certifications and Approvals
- Emergency standard certifications
  - Europe: EN 54‑16
- Emergency standard compliance
  - UK: BS 5839-8
  - Austria: ÖNORM F 3033
- Environmental directive compliance
  - Safety: EN 62368-1
  - Immunity: EN 50130-4
  - Emissions:
    - EN 61000-6-3
    - ICES-003
    - FCC-47 part 15B class A
  - Environment: EN 50581
  - Maritime: EN 60945
- Conformity
  - Europe: CE/CPR
  - USA: FCC
  - Canada: ICES
  - Australia: RCM
  - Korea: KCC
  - Russian Federation: EAC
  - Environment: RoHS
Electrical
- Supply voltage/current:
  - +3.3 V DC / 860mA
  - +5 V DC / 60mA
- Ethernet connectors (Primary / Secondary): 100/1000 Mbit/s, RJ-45, integrated transformer isolation
- Sampling rate: 48 kHz
- Data format: 24 Bit
- Audio channels: Up to 16 x 16 at 48 kHz
- Audio flows: Up to 16 x 16 simultaneous audio streams
- Latency across network: 5 ms (typically)
Environmental
- Operating temperature: -5 °C to +45 °C (+23 °F to +113 °F)
- Storage and transport temperature: -20 °C to +70 °C (-4 °F to +158 °F)
- Humidity (non-condensing): 5% to 90%
- Altitude: Up to 2000 m
Mechanical
- Product dimensions (WxHxD): 89 mm x 27 mm x 92 mm
- Net weight: 75 g
