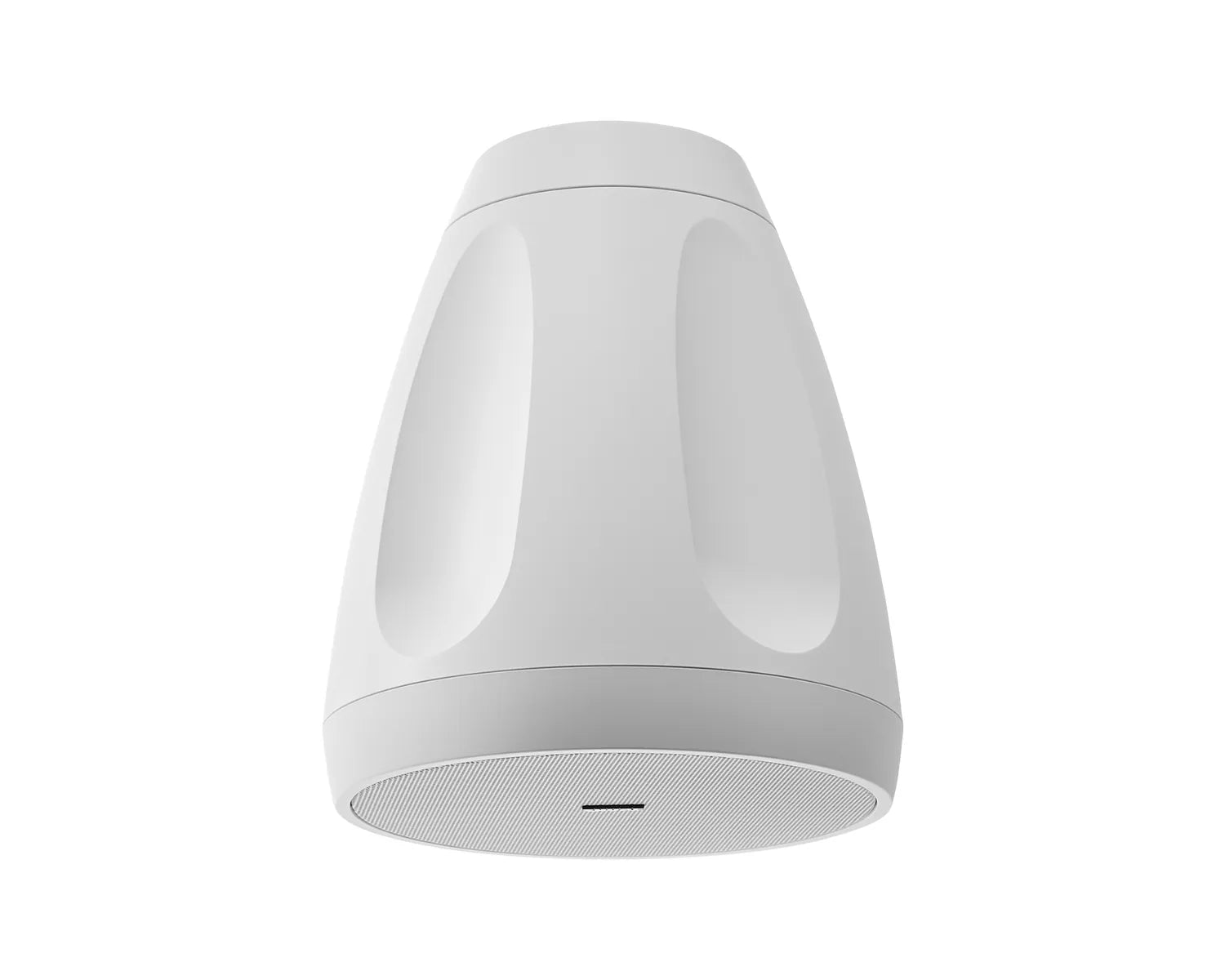

Pendant-style passive loudspeaker for speech and program audio reproduction in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-source solution.

Product Features

Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility
The 4-inch main driver features a large, well-vented motor for increased power handling; the 1-inch tweeter features a neodymium magnet and heatsink fins for high efficiency
Identical voicing to MXP-5 Pendant Loudspeaker for consistent tonality in blended installations

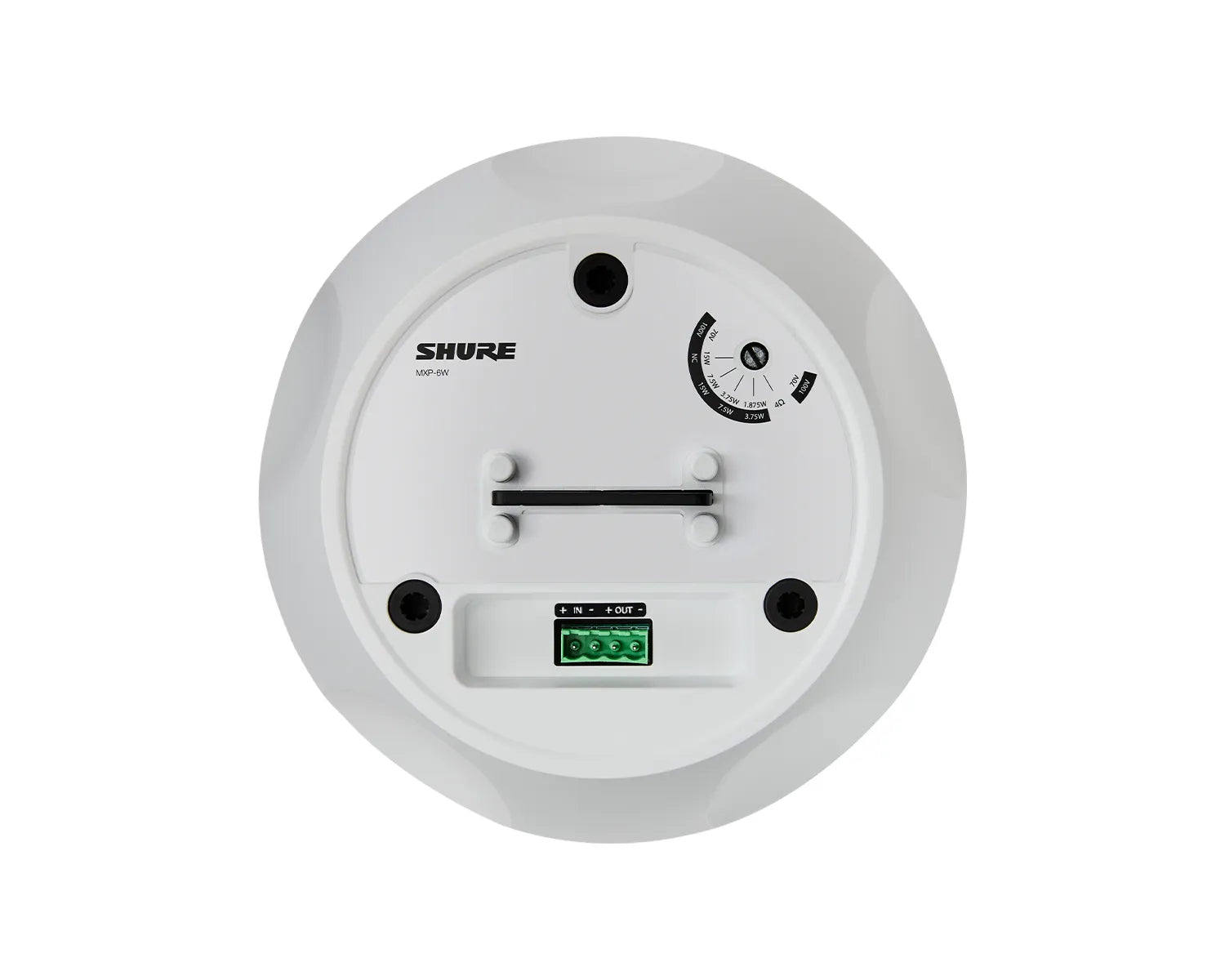

Rear switch allows for quick adjustment between 70/100v transformer or 4 ohm operation
Utilise multiple pendants to easily meet the audio coverage needs of almost any room size. (Note: Shure recommends the use of an additional safety tether for overhead components)
Sleek industrial design available in white or black finish, paintable to match room décor.
Up to 10 MXP-6 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode
MXN-AMP provides optimised presets and user-configurable EQ for each speaker output
Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room
Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams

Product Specifications

Connector Type: 4-pin connector, 0.2 in. (5.08 mm) pitch
Coverage Angle: 95°
Frequency Response: ~90Hz – 20kHz
Nominal Impedance: 4Ω
Maximum Input Power: 28W
Maximum SPL at an RMS input level of 23 dBV: AES75 max linear sound levels: 98 dBz, 113 dbZpk, 97 dBA
Sensitivity at 2.83 V/1m: 93 db SPL
Operating Temperature Range: -7 to 40°C (19.4 to 104°F)
Storage Temperature Range: -29 to 74°C (-20 to 165°F)
Transformer Taps
- 70V: 4Ω, 1.875 W, 3.75 W, 7.5 W, 15 W
- 100V: 4Ω, 3.75 W, 7.5 W, 15 W
Weight: 5.5 lbs (2.5 kg)
Dimensions: 10.96 x 9.06 x 9.06 in. (278.5 x 230.2 x 230.2 mm)
