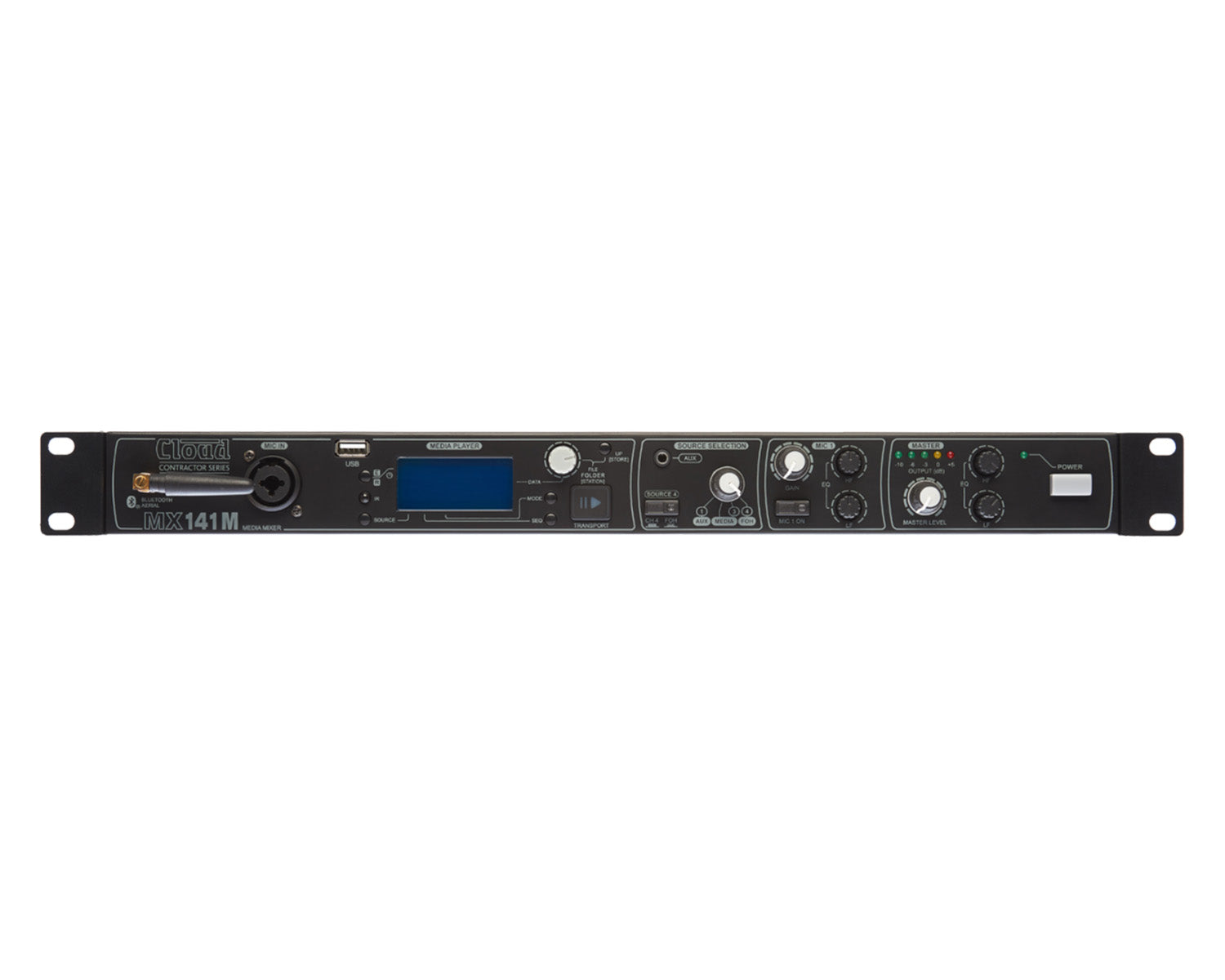

The Cloud MX141M is a cost-effective, rack mounting (1U) stereo audio mixer/media player ideal for use in all types of commercial premises. It is simple to install and operate and provides a useful range of features and configuration options. It combines an audio mixer for one of four stereo music sources plus a microphone: one of the music sources is an on-board media player which incorporates both Bluetooth® wireless technology and an FM tuner. The MX141M is supplied with an infrared remote control for the media player functions and is the perfect centrepiece for commercial sound systems in hospitality and fitness centre applications.

Product Features

• Industrial quality music player for commercial installations
• Three unbalanced line inputs (RCA jack pairs) for external stereo music sources
• Front panel 3.5 mm jack socket for laptop, tablet, phone, etc.
• Balanced stereo line input on multipin connector for interfacing with external audio system
• Internal media player: plays MP3 files from USB stick or streamed via Bluetooth wireless technology from compatible devices
• Integral FM tuner (87 to 108 MHz) with station presets
• Combi microphone input with on/off, level and HF/LF EQ controls, all on front panel
• 12 V phantom power available at mic input (enabled by internal jumper)
• Media player/FM tuner functions controlled through LCD display and data entry wheel
• Sequential and random play modes
• Emergency Input (balanced) with separate level control – mutes programme for critical announcements
• Balanced stereo output available on multipin connector and ¼” TRS jacks
• Unbalanced stereo output on phono sockets
• Unbalanced post-mix stereo auxiliary output
• Output level, HF/LF EQ controls and LED bargraph on front panel
• Maximum output level can be defined to protect downstream equipment
• Music mute control input
• Infra-red remote control included – operates most media player functions
• 230 V or 115 V operation (selectable)

Product Specifications

Inputs

• Mic input: Balanced, 40 dB gain; Combi-type connector
• Line inputs (Chs1, 3 & 4): Unbalanced stereo, 0 dB gain, 2 x RCA jacks (phonos)
• Aux input (Ch 1 only): Unbalanced stereo, 0 dB gain, 3.5 mm TRS jack
• FOH input: Balanced stereo, 0 dB gain; 2 x ¼” TRS jacks
• Emergency input: Balanced mono, 0 dB gain; plug-in multipin connector

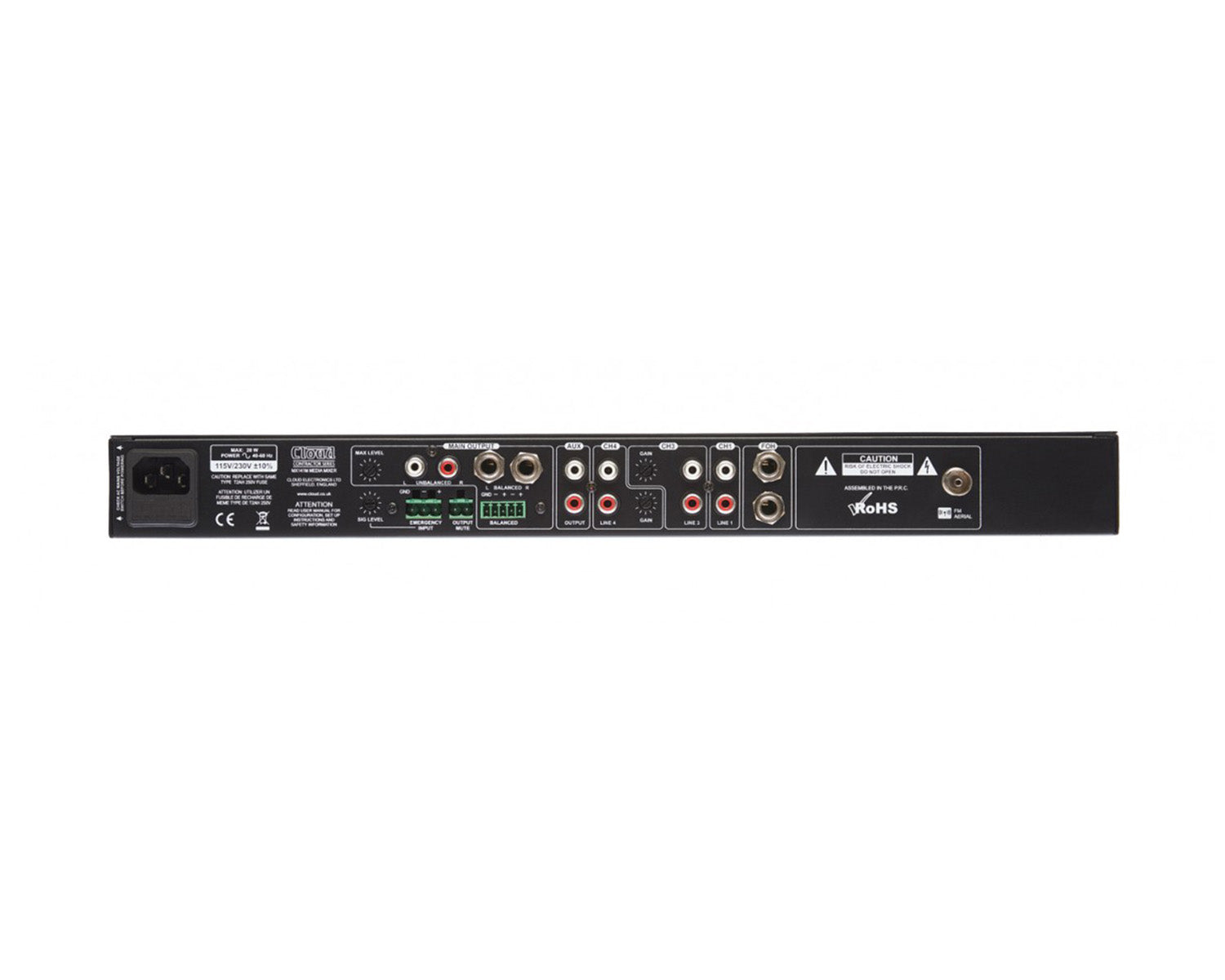

Outputs

• Main output:
  • Balanced stereo: max. output level +18 dBu, plug-in multipin connector and 2 x ¼” TRS jacks
  • Unbalanced stereo: max output level +18 dBu, 2 x RCA jacks (phonos)
• Aux output: Unbalanced stereo, 0 dBu typical, 2 x RCA jacks (phonos)

Equalisation (outputs)

• LF: +/-10 dB @ 50 Hz
• HF: +/-10 dB @ 10 kHz

Mic equalisation

• LF: +/-12 dB @ 60 Hz
• HF: +/-12 dB @ 12 kHz

Performance

• Signal-to-noise ratio: >80 dB (line inputs)
• Crosstalk: >70 dB (line inputs)
• THD: <0.07% (output <+18 dBu)
• Frequency response: 20 Hz to 22 kHz, +0/-3 dB
• Channel balance: <3 dB

General

• Power input: Selectable 115 VAC or 230 VAC; 50/60 Hz
• Power consumption: 13 W max.
• Fuse details: 5 x 20 mm, 2 A, type T2AH

Physical

• Dimensions (W x H x D)
• Net:
  • 483 mm (427 mm without rack ears) x 44.5 mm (1U) x 152 mm
  • 19” (16.8” without rack ears) x 1.75” (1U) x 6.0”
• Shipping (Gross):
  • 540 mm x 90 mm x 260 mm
  • 21.3” x 3.5” x 10.3”
• Weights:
  • Net: 2.6 kg (5.83 lb)
  • Shipping (Gross): 4.7 kg (10.4 lb)
