The Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

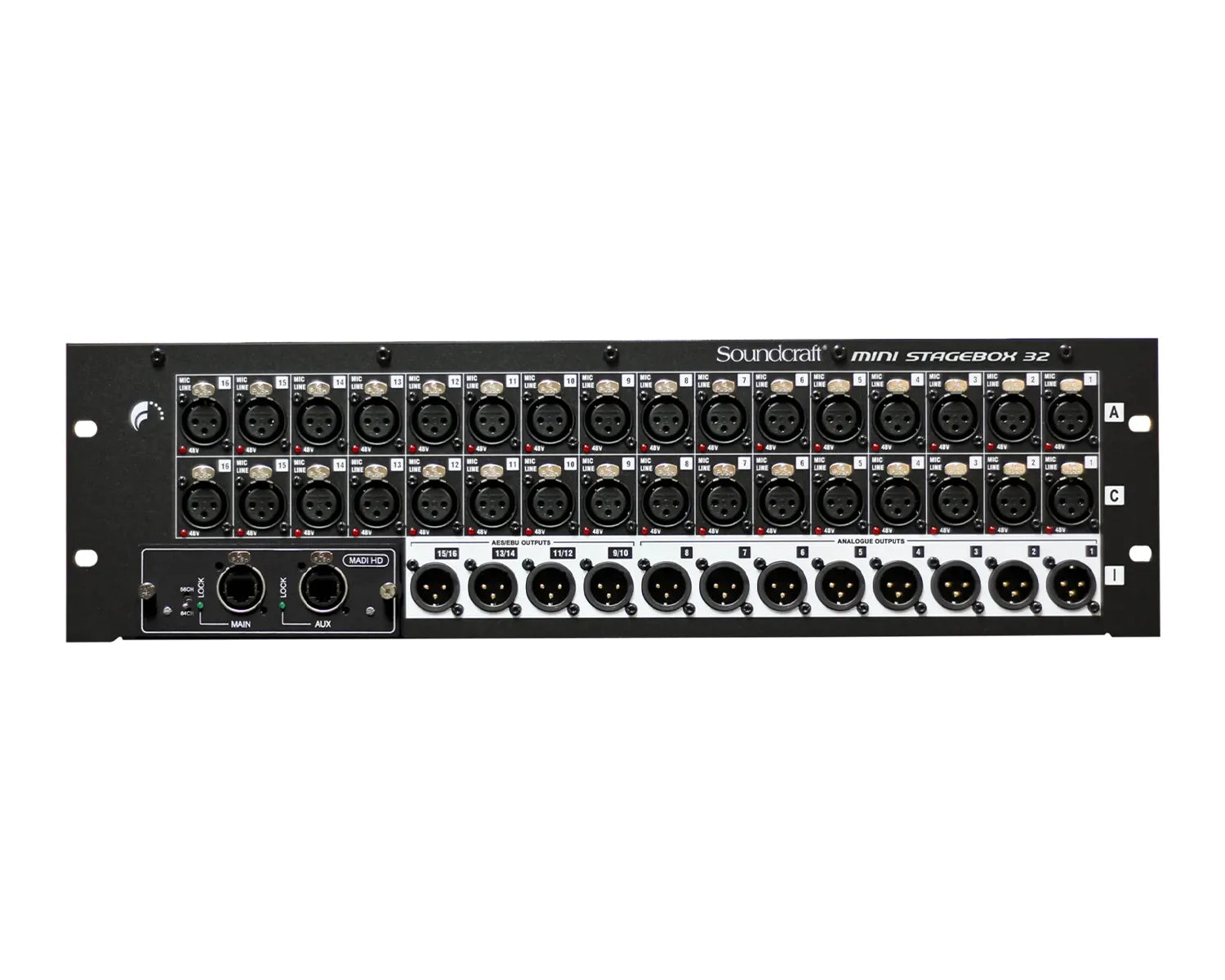

The Mini Stagebox 32R (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16R (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

Product Features

• Expands I/O capabilities for any Soundcraft Vi or Si series console
• Suitable for local use or remote deployment up to hundreds of metres away
• 3U rackmount design
• Provides 32 recallable mic/line inputs
• Offers 8 balanced line outputs
• 4 pairs of AES outputs
• I/O lifted directly from the Vi1 and larger Compact Stagebox
• Includes built-in single-cable Cat 5 MADI HD interface
