For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Product Features

• Superior craftsmanship and innovation exemplified
• MG Series embodies this pursuit of design excellence
• Incorporates some of the same technologies developed for use in high-end professional consoles
• Including studio-quality preamps, powerful digital processing, and a rugged, reliable construction
• It has an intuitive, easy-to-use interface
• Boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels

Product Specifications

General

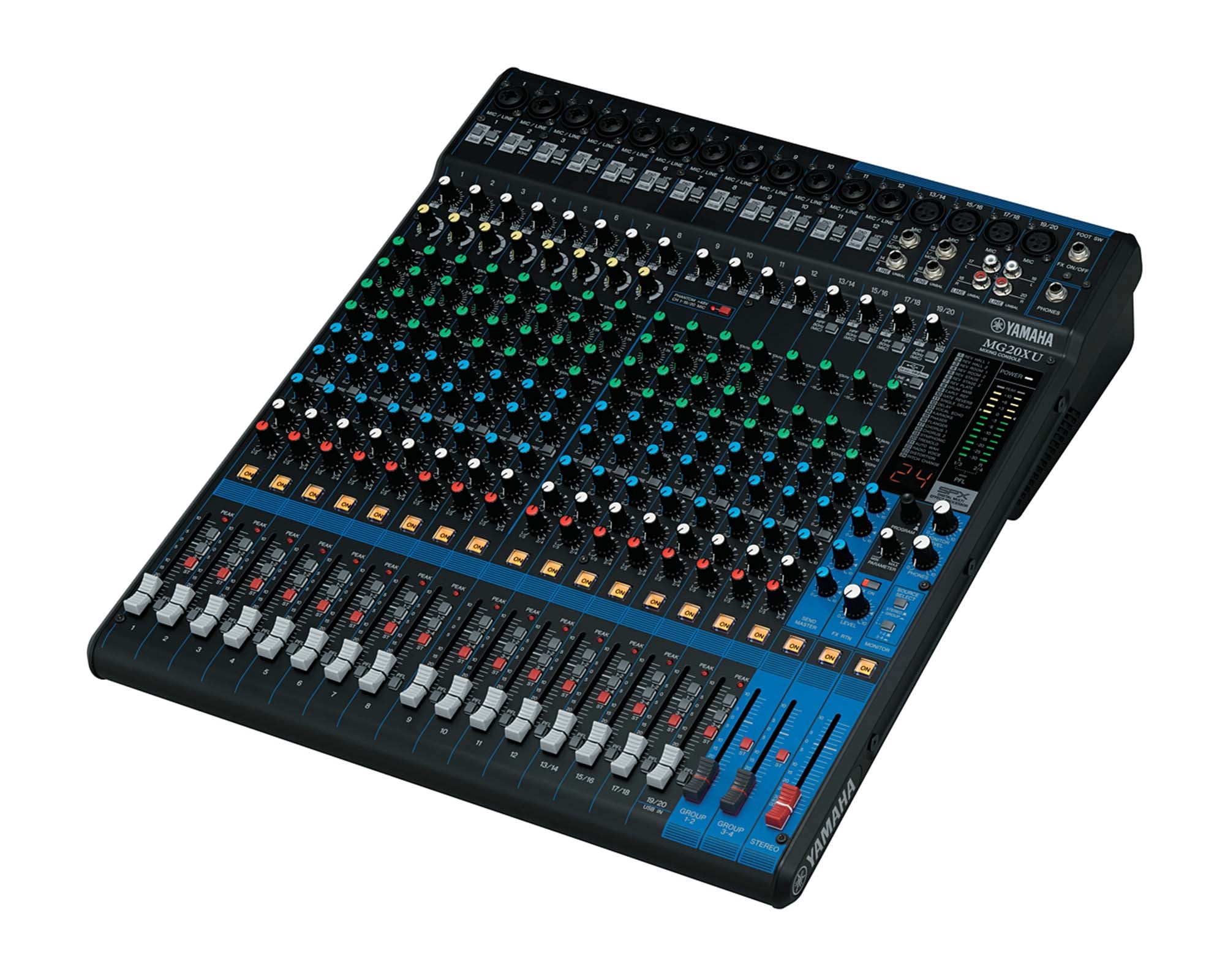

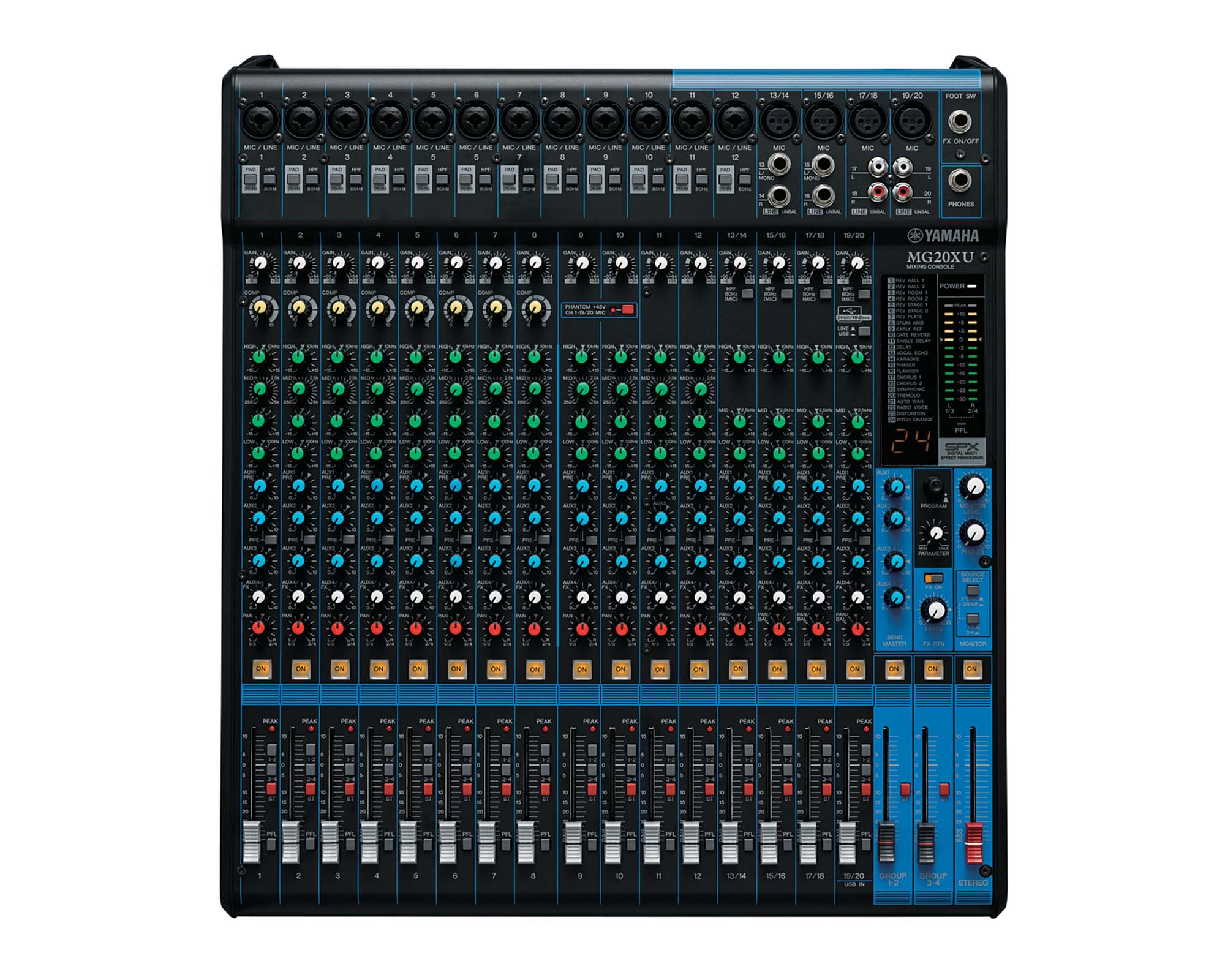

• 20-Channel Mixing Console
• Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit/192kHz 2in/2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power

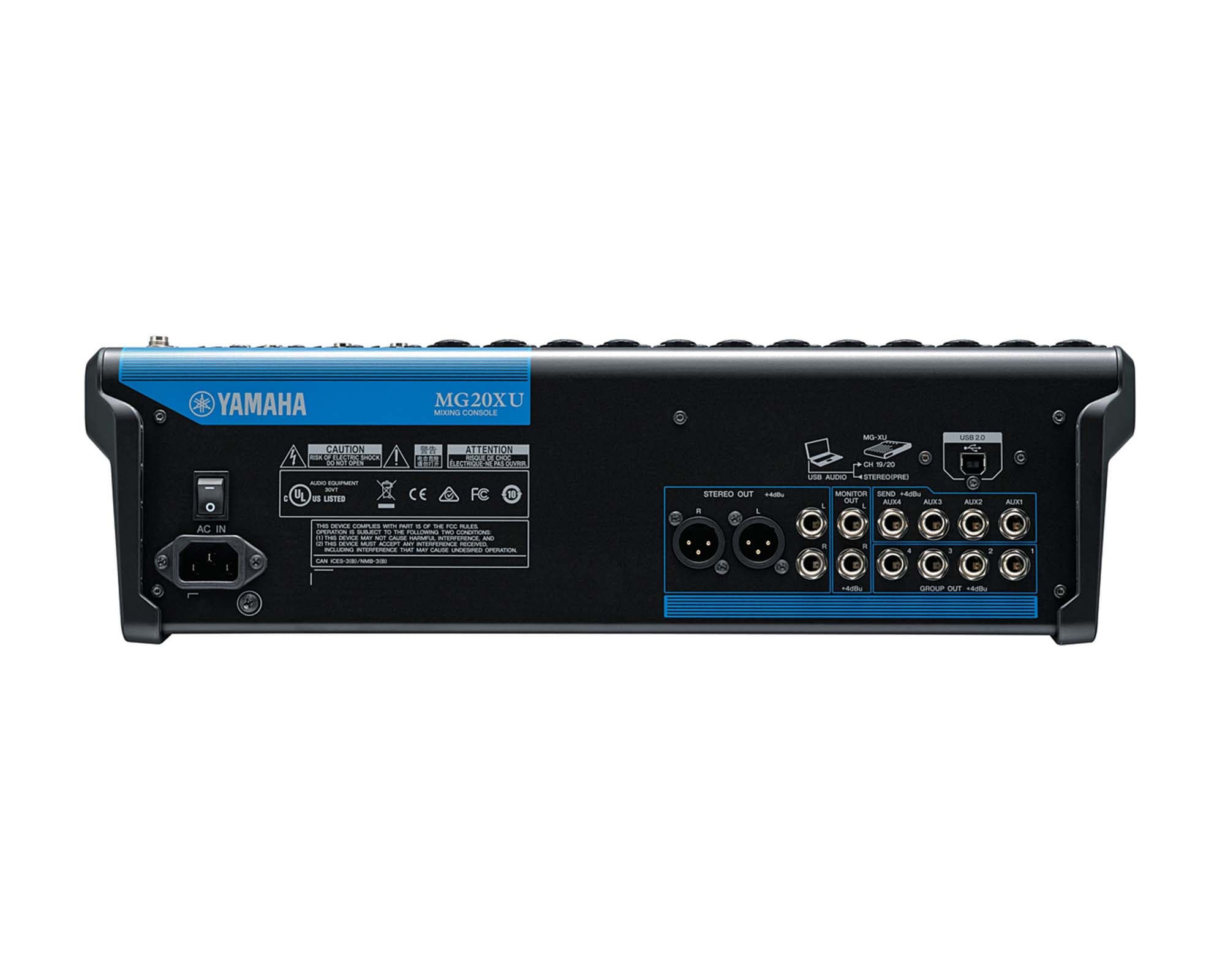

• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included

Physical & Dimensions

• Metal chassis
• Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5" x 5.1" x 19.7")
• Net Weight: 7.1kg (15.7 lbs.)

What's in the Box?

• AC Power Adaptor
• Technical Specifications
• User Manual
