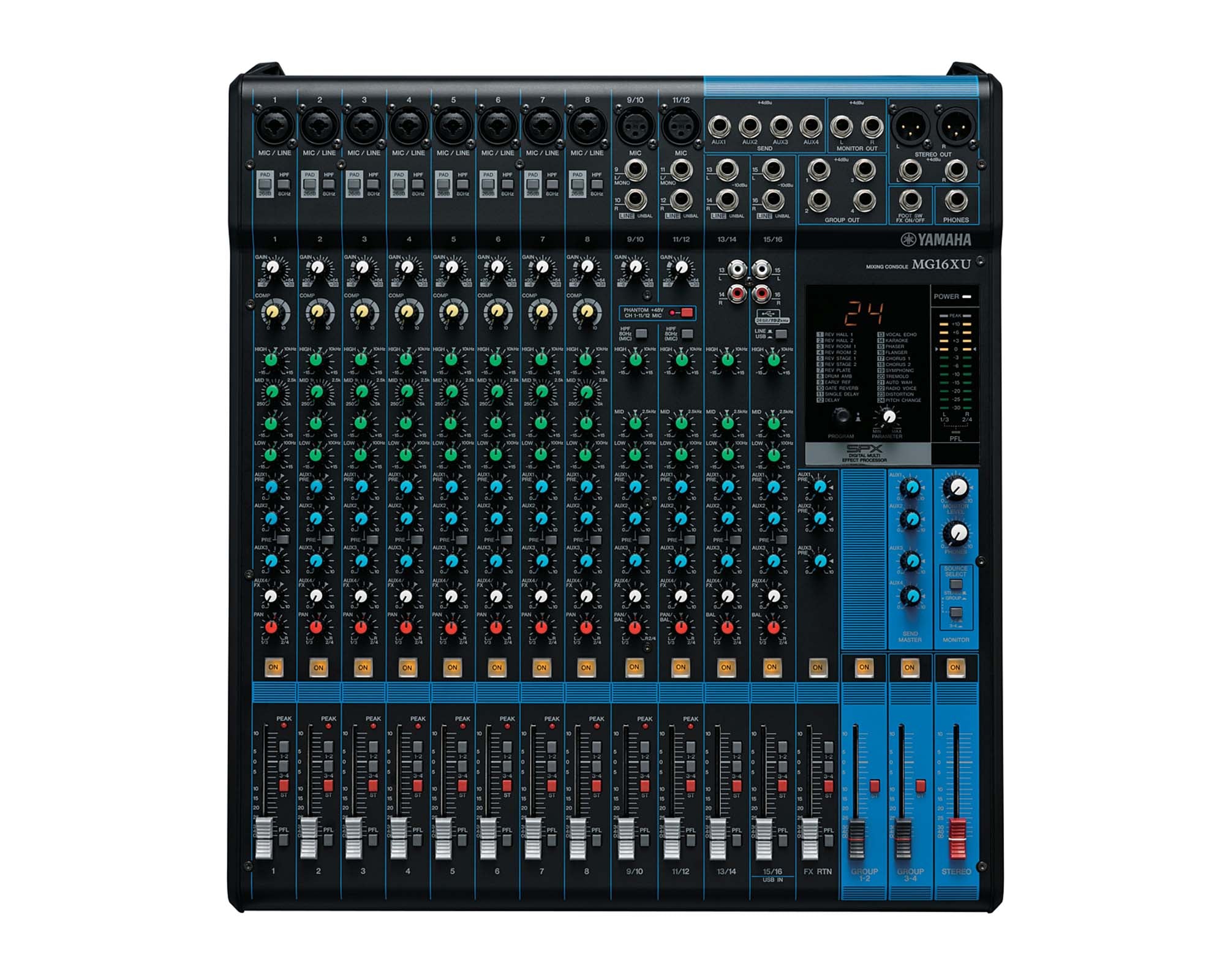

YAMMG16XU - Yamaha MG16XU 16 Ch Mixing Console 10 Mic or 16 Line and SPX with Faders Image 1

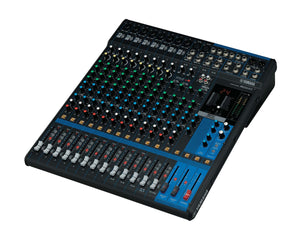

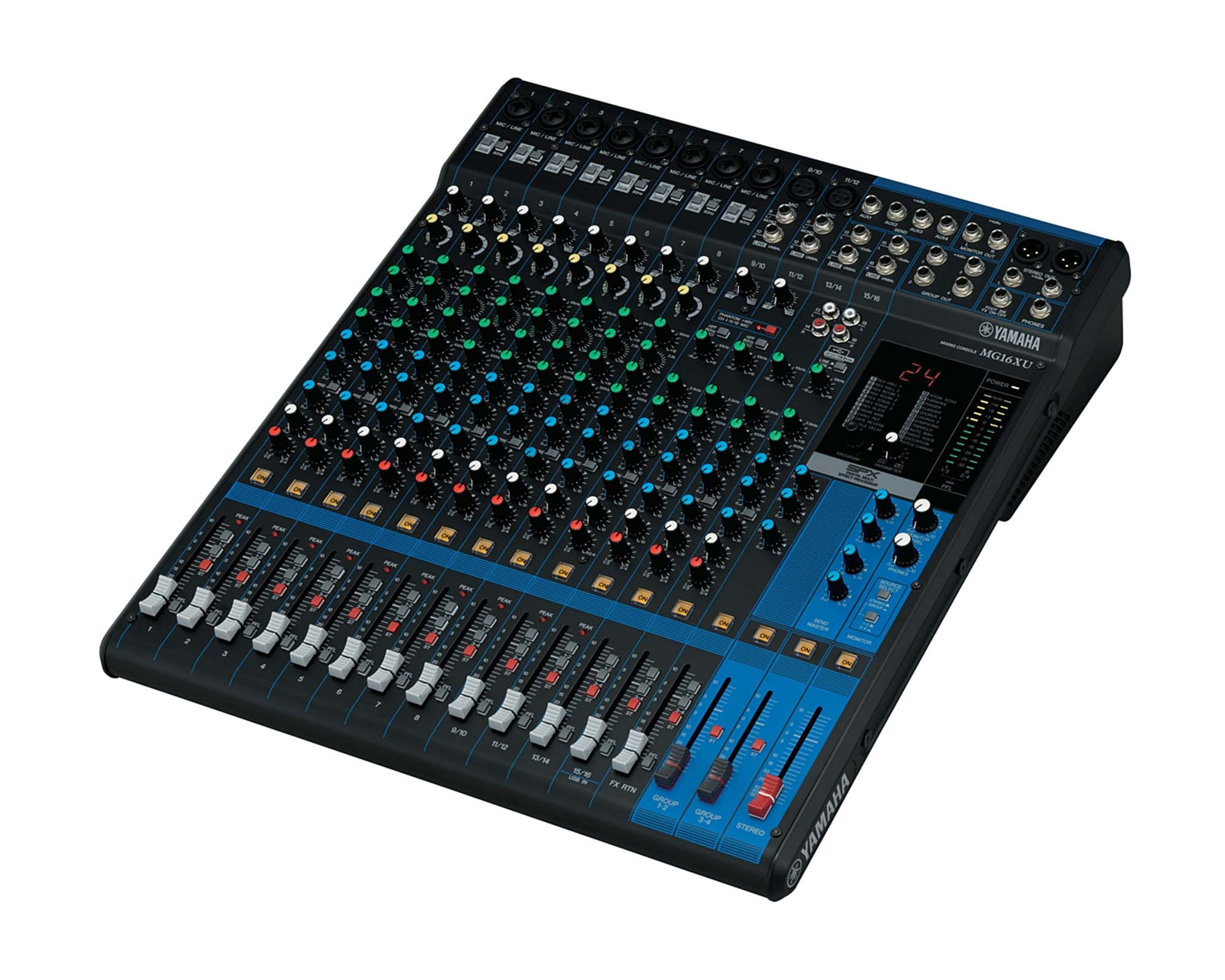

YAMMG16XU - Yamaha MG16XU 16 Ch Mixing Console 10 Mic or 16 Line and SPX with Faders Image 2

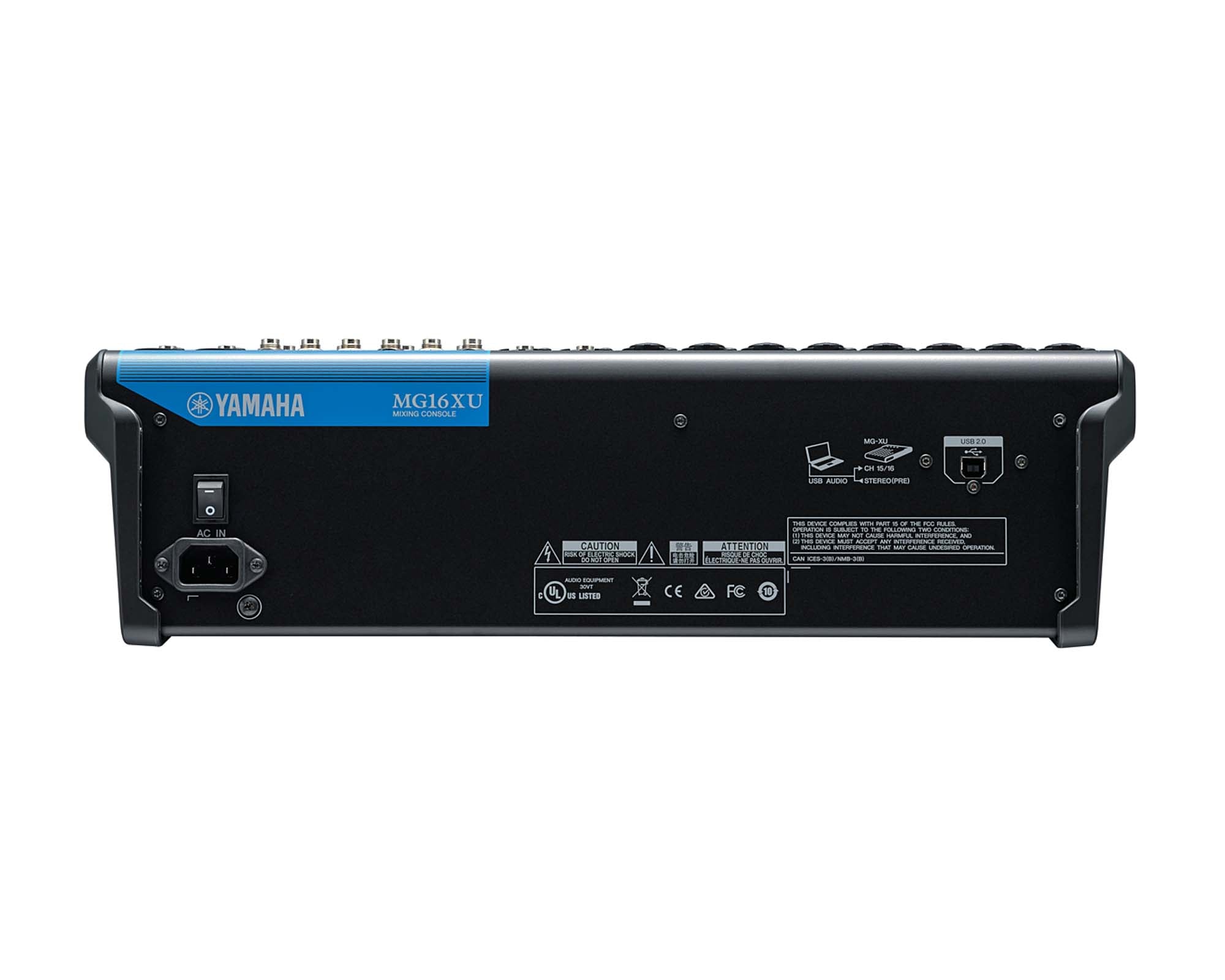

YAMMG16XU - Yamaha MG16XU 16 Ch Mixing Console 10 Mic or 16 Line and SPX with Faders Image 3

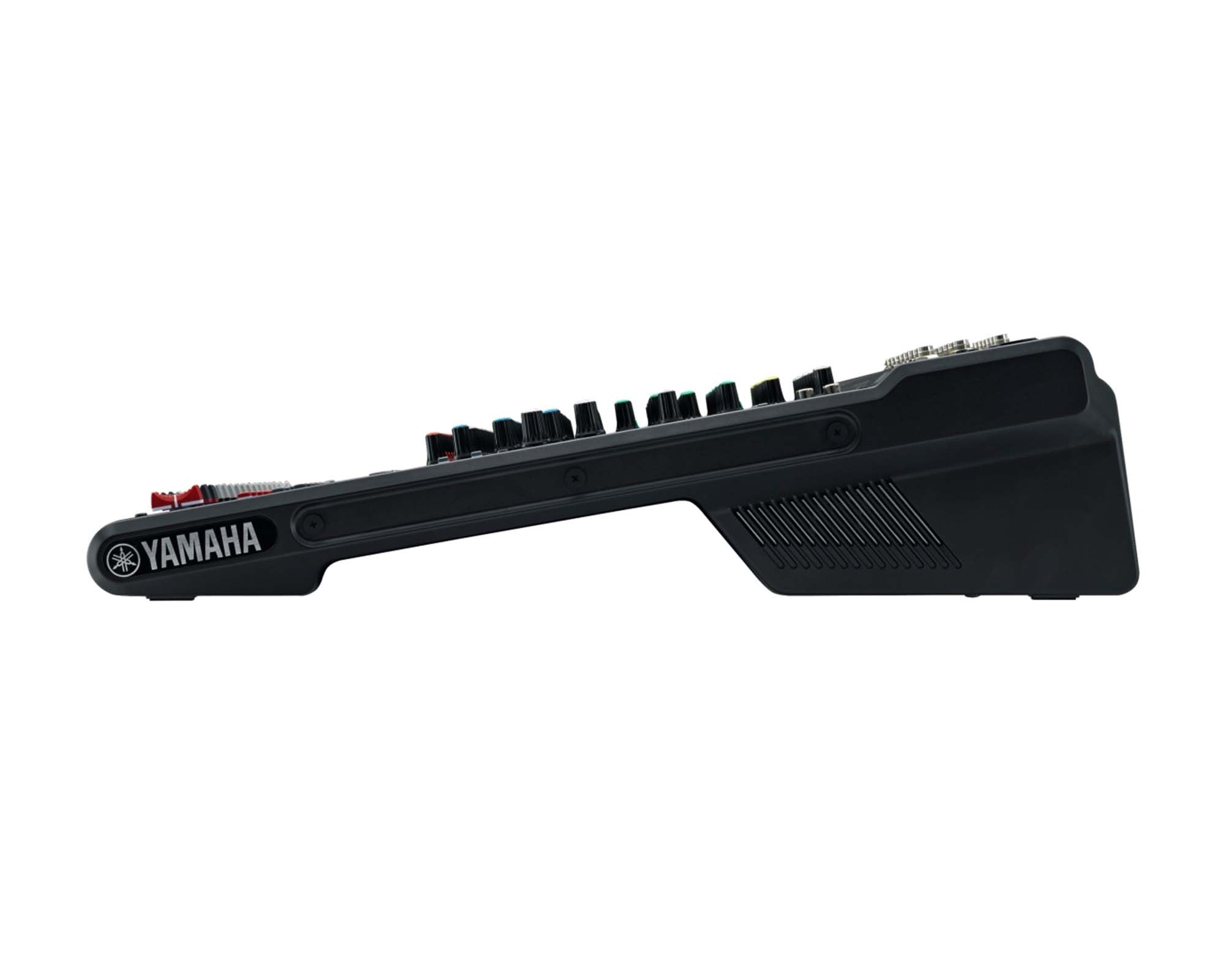

YAMMG16XU - Yamaha MG16XU 16 Ch Mixing Console 10 Mic or 16 Line and SPX with Faders Image 4

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Product Features

Superior craftsmanship and innovation exemplified
MG Series embodies this pursuit of design excellence
Incorporates some of the same technologies developed for use in high-end professional consoles
Including studio-quality preamps, powerful digital processing, and a rugged, reliable construction
It has an intuitive, easy-to-use interface
Boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels

Product Specifications

General

16-Channel Mixing Console
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
