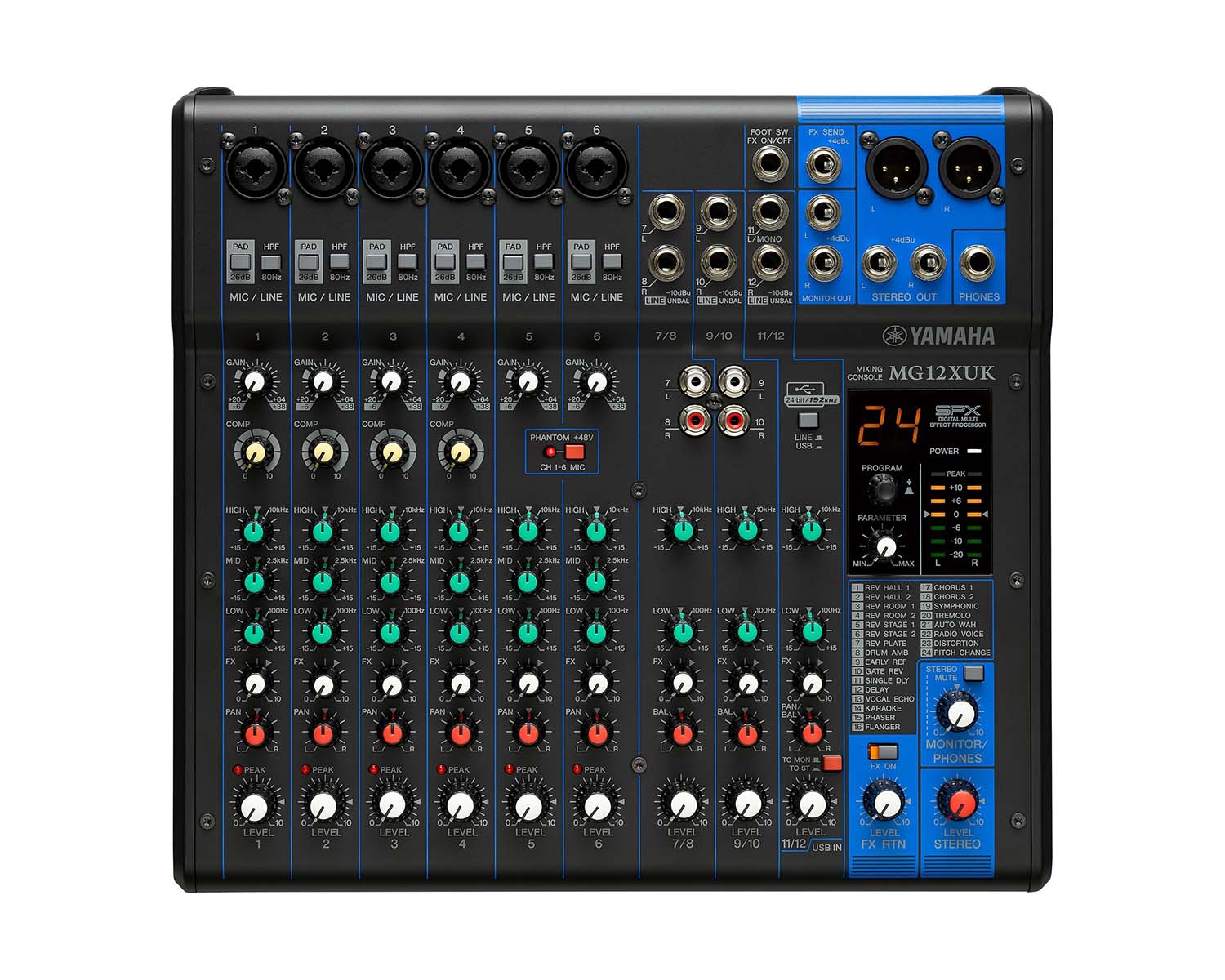

YAMMG12XUK - Yamaha MG12XUK 12 Ch Mixing Console 6 Mic or 12 Line and SPX with Knobs Image 1

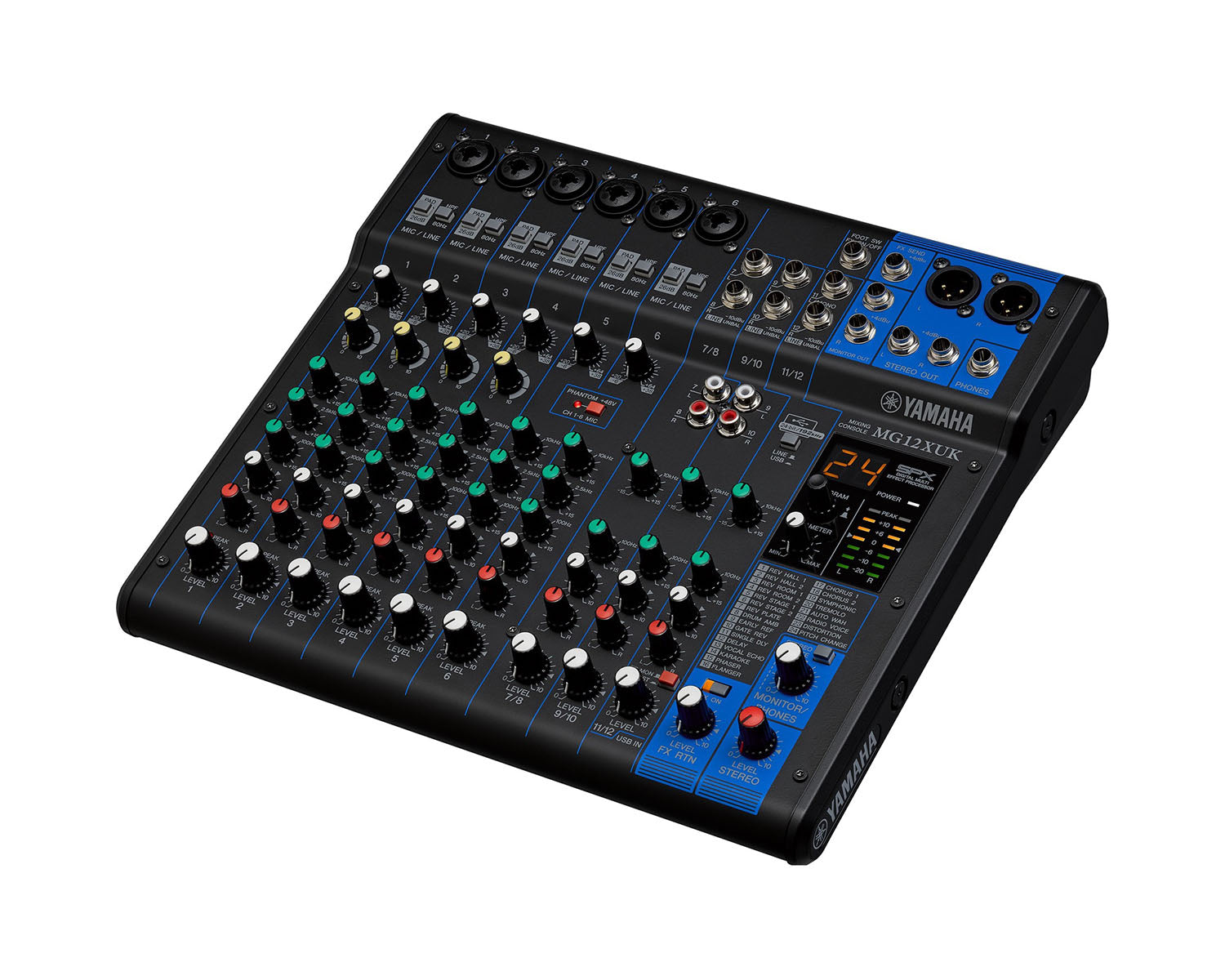

YAMMG12XUK - Yamaha MG12XUK 12 Ch Mixing Console 6 Mic or 12 Line and SPX with Knobs Image 2

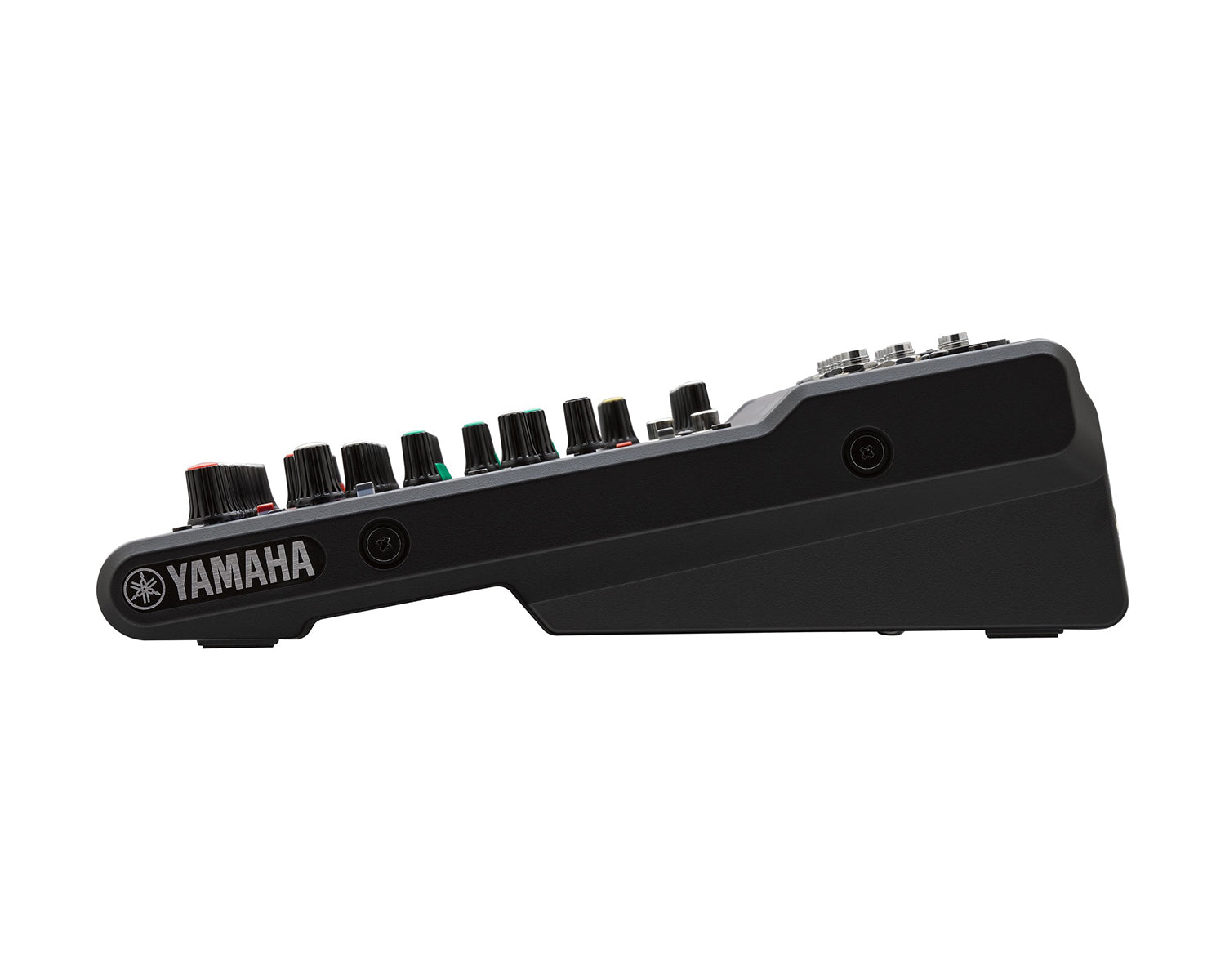

YAMMG12XUK - Yamaha MG12XUK 12 Ch Mixing Console 6 Mic or 12 Line and SPX with Knobs Image 3

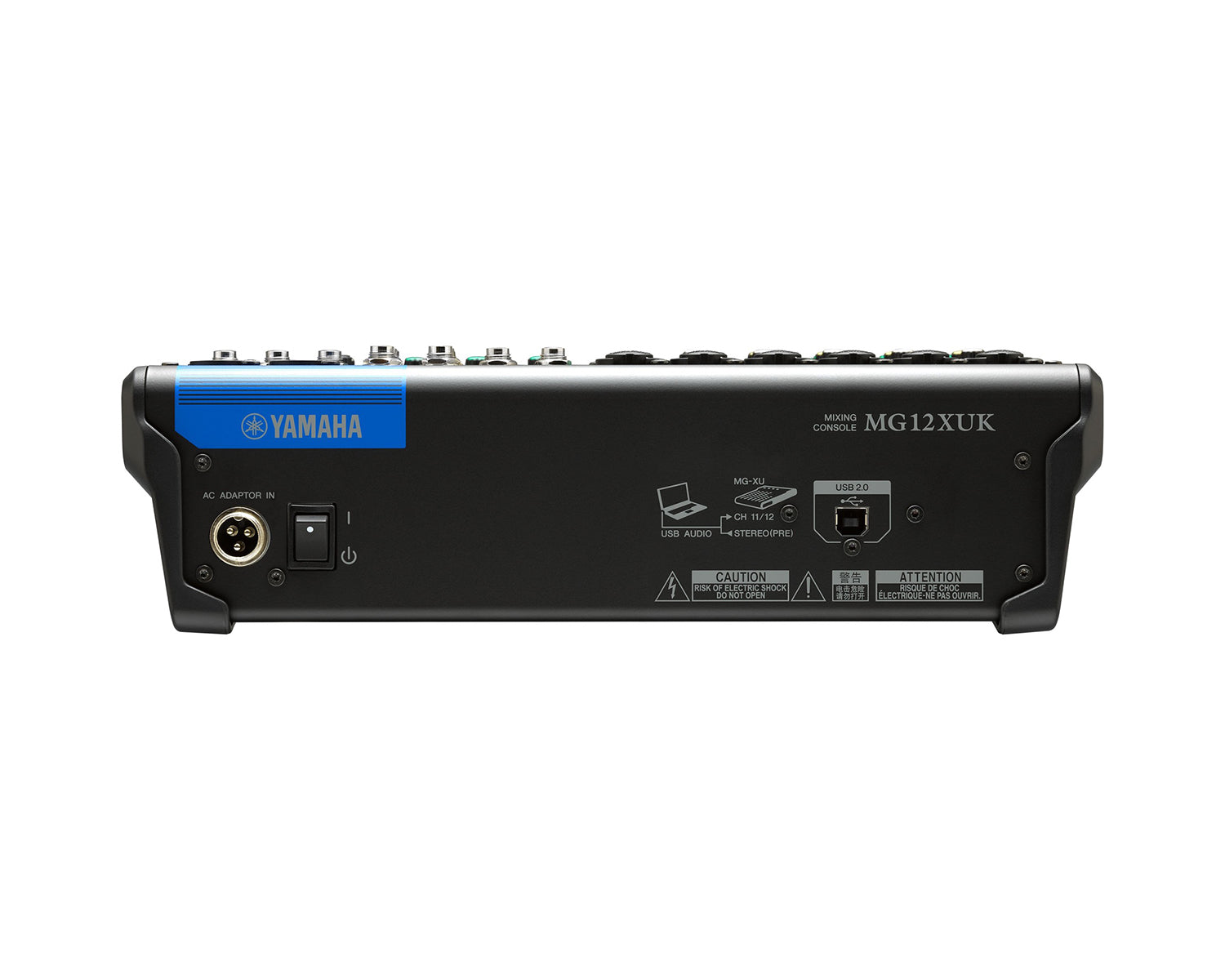

YAMMG12XUK - Yamaha MG12XUK 12 Ch Mixing Console 6 Mic or 12 Line and SPX with Knobs Image 4

Now in its third incarnation, Yamaha MG Series mixers embody design excellence incorporating some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Product Features

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
Cubasis LE for iPad available at App Store
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis

Product Specifications

Outline

Mixing capability
- On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O
- Phantom power: +48 V
- Digital I/O: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels
- Mono[MIC/LINE]: 6
- Stereo[LINE]: 3
Output Channels
- STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 1

Bus: Stereo: 1, AUX[FX]: 1

Input Channel Function
- PAD: 26 dB (Mono)
- HPF: 80 Hz, 12 dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

General specifications

Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
- Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -83 dB
Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption: 22.9 W

Physical & Dimensions

Dimensions (W x H x D): 315 mm (12.4") x 91 mm (3.6") x 297mm (11.7")
Net weight: 3.0kg(6.62 lbs)

What's in the Box?

AC Adaptor
Owner’s Manual
Cubase AI Download Information
Technical Specifications

Yamaha

MG12XUK 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Knobs

Name: MG12XUK 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Knobs
Brand: Yamaha
SKU: YAMMG12XUK
Price: 446.4 GBP
Availability: InStock
