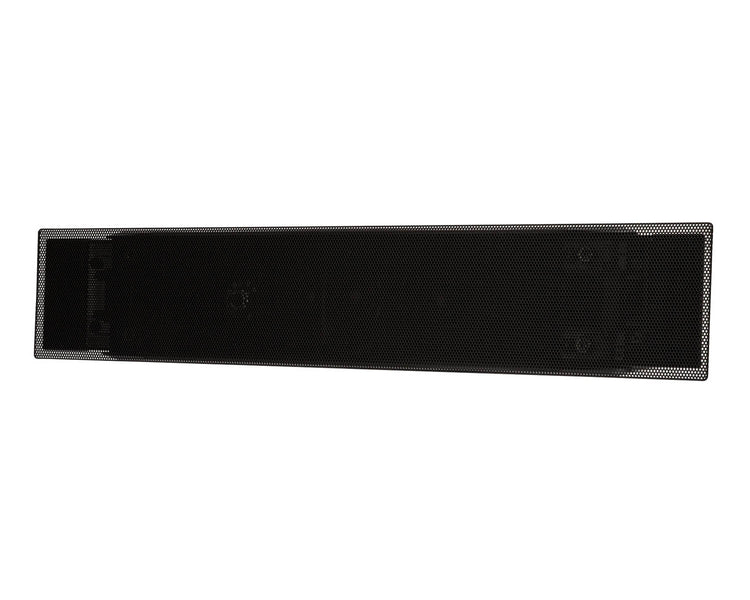

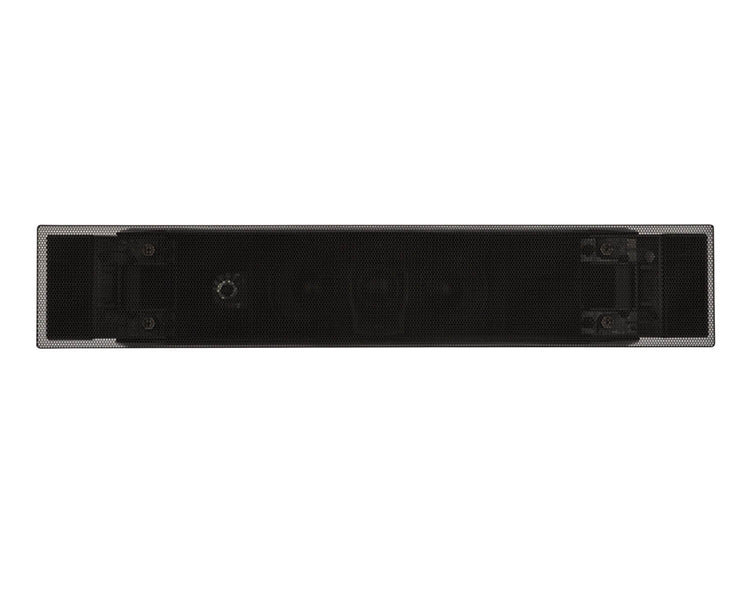

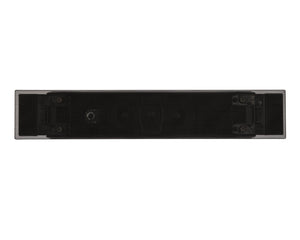

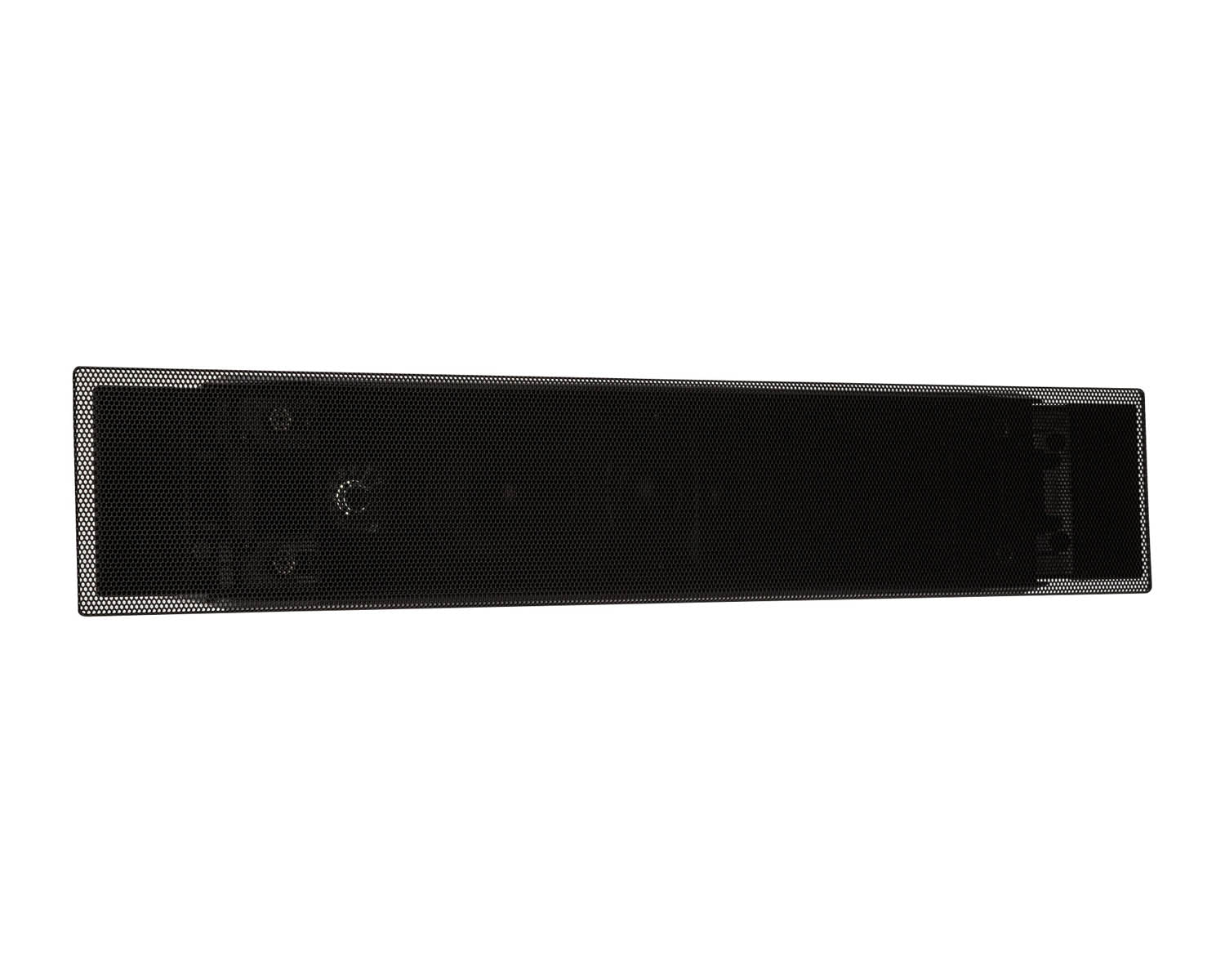

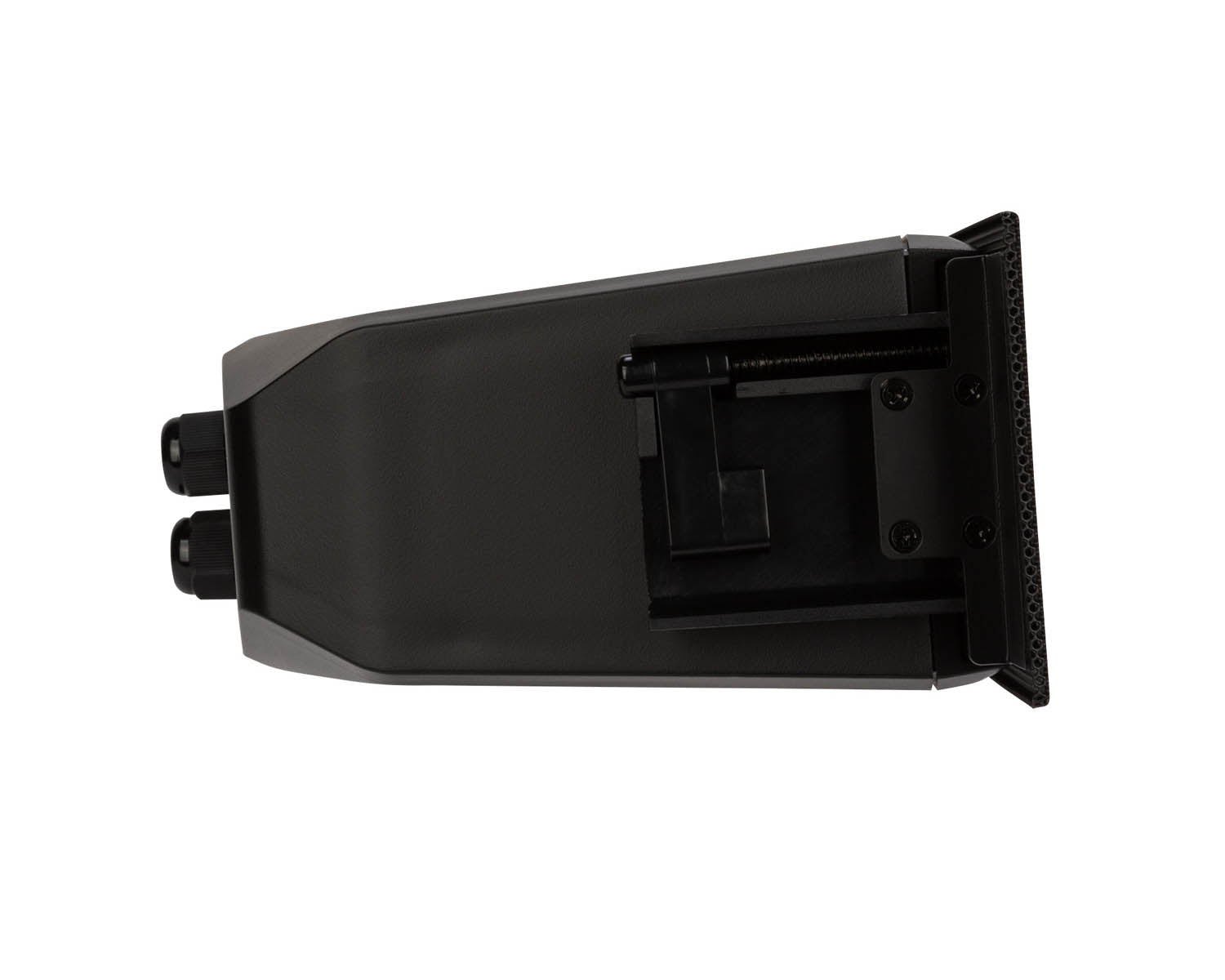

MF 33EN is a two-way ceiling speaker designed for recess installation into ceilings or panels. It is especially suitable for broadcasting background music into commercial spaces, but also alarm messages thanks to the highly intelligible voice reproduction and the EN 54-24 certification. It features a plastic cabinet with steel magnetic grille and is extremely easy to install. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.

Product Features

• Two-way ceiling speaker

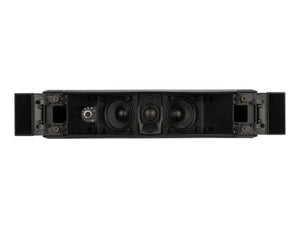

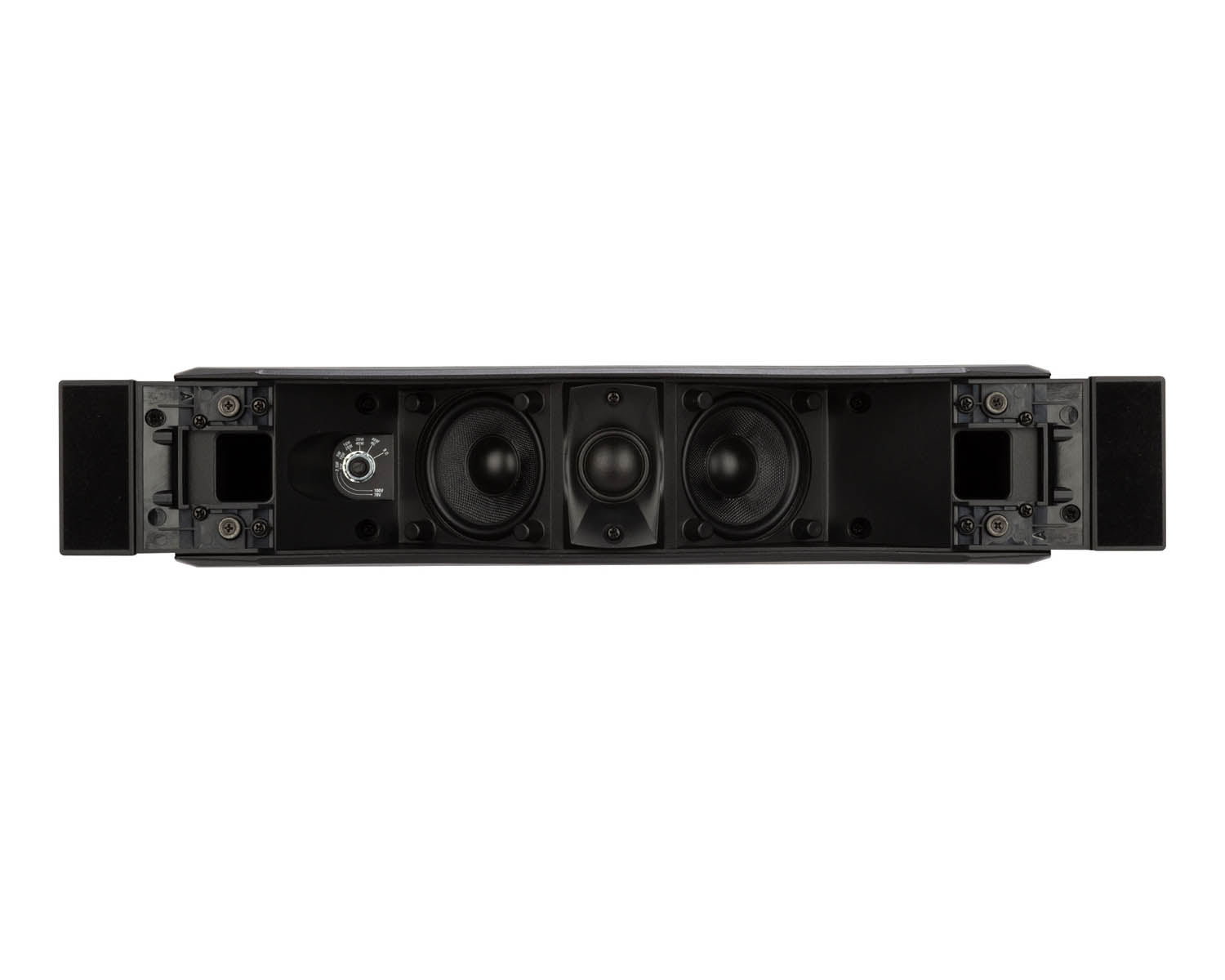

• 2 x 3" fullrange transducers with 1" dome tweeter
• Power selectable (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
• 88 dB sensitivity
• Colour: black RAL 9005
• Flameproof ABS body, steel grilled
• In/out ceramic terminal block
• Thermal fuse protection

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 80 Hz ÷ 22000 Hz
• Max SPL @ 1m: 105 dB
• Max SPL @ 4m: 93 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 160°
• System Sensitivity: 88 dB
• System Sensitivity 1W @ 4m: 76 dB

Power section

• Nominal Impedance (ohm): 8 ohm
• Power Handling: 40 W RMS
• Peak Power Handling: 160 W PEAK
• Recommended Amplifier: 80 W
• Protections: Thermal fuse - PTC
• Crossover Frequencies: 2500

Transducers

• Dome Tweeter: 1.0\'\' neo, 1.0\'\' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 15 W AES, 30 W PROGRAM POWER
• Sensitivity: 90 dB, 1W @ 1m
• Woofer: 2 x 3.0\'\', 1.0\'\' v.c
• Nominal Impedance (ohm): 16 ohm
• Input Power Rating: 20 W AES, 40 W PROGRAM POWER
• Sensitivity: 85 dB, 1W @ 1m

Input/Output section

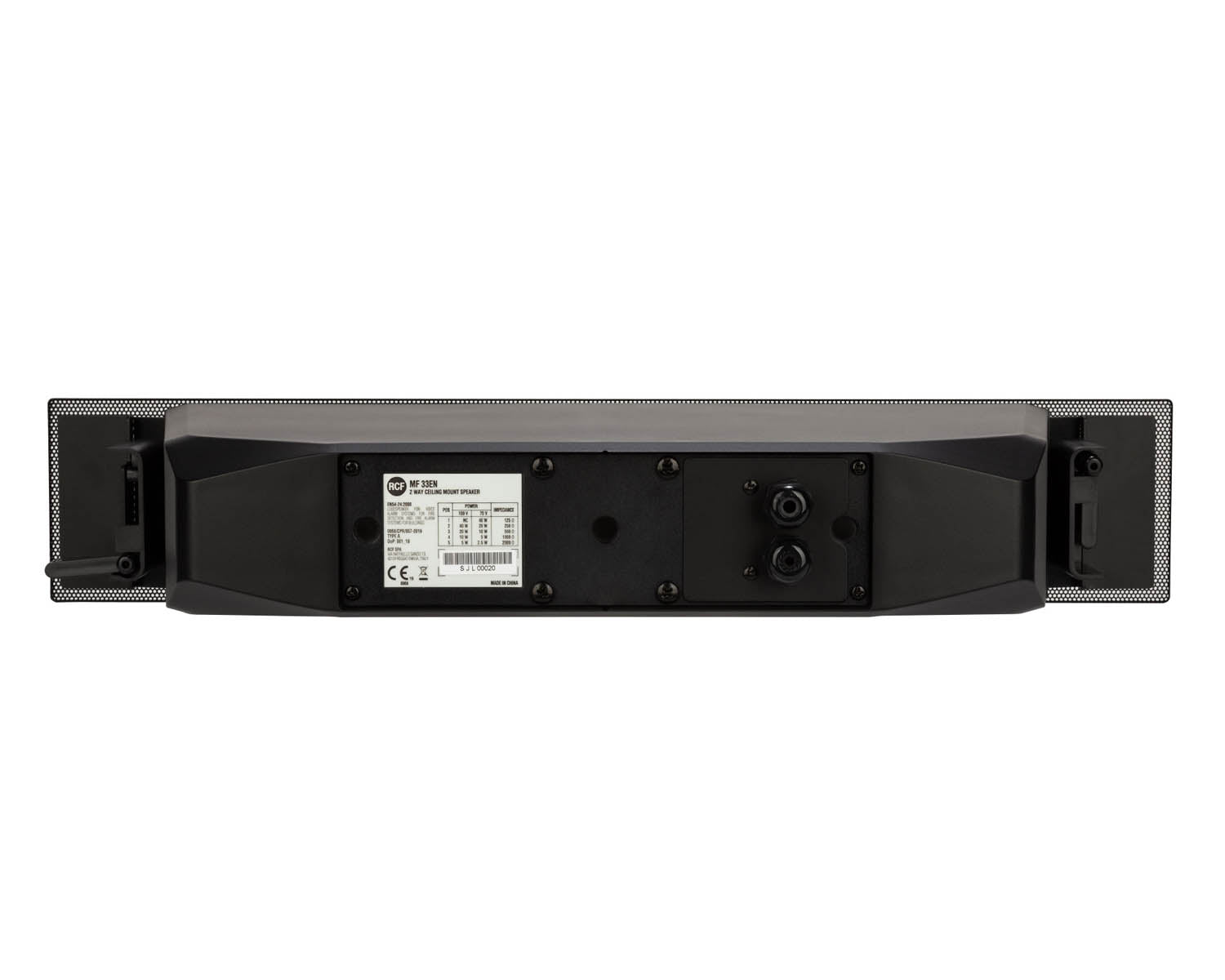

• Input connectors: Ceramic screw terminals
• Output connectors: Ceramic screw terminals
• Constant Voltage Transformer: 70/100 V
• Power selection 1: 40 W - 250 ohm
• Power selection 2: 20 W - 500 ohm
• Power selection 3: 10 W - 1000 ohm
• Power selection 4: 5 W - 2000 ohm
• Power selection 5: 2.5 W - 4000 ohm

Standard compliance

• EN54-24 certified: Yes
• CE marking: Yes
• CPR number: 0068/CPR/057-2019

Physical specifications

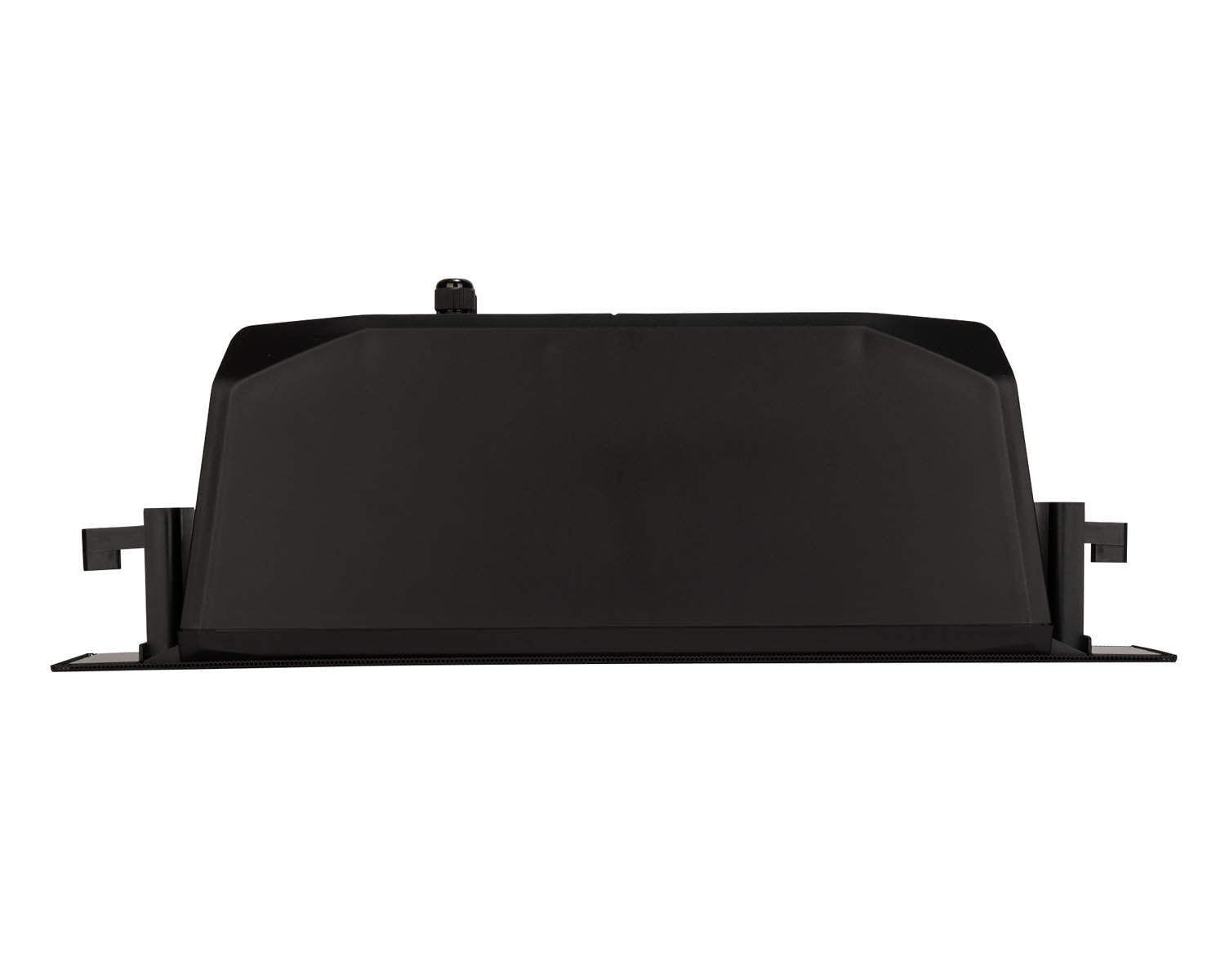

• Cabinet/Case Material: ABS
• Hardware: Ceiling mount brackets
• Grille: Steel
• Colour: Black - RAL 9005

Size

• Height: 516 mm / 20.31 inches
• Width: 94 mm / 3.7 inches
• Depth: 181 mm / 7.13 inches
• Recessed Depth: 178 mm / 7.01 inches
• Weight: 3.4 kg / 7.5 lbs

Shipping information

• Package Height: 186 mm / 7.32 inches
• Package Width: 596 mm / 23.46 inches
• Package Depth: 276 mm / 10.87 inches
• Package Weight: 7 kg / 15.43 lbs
