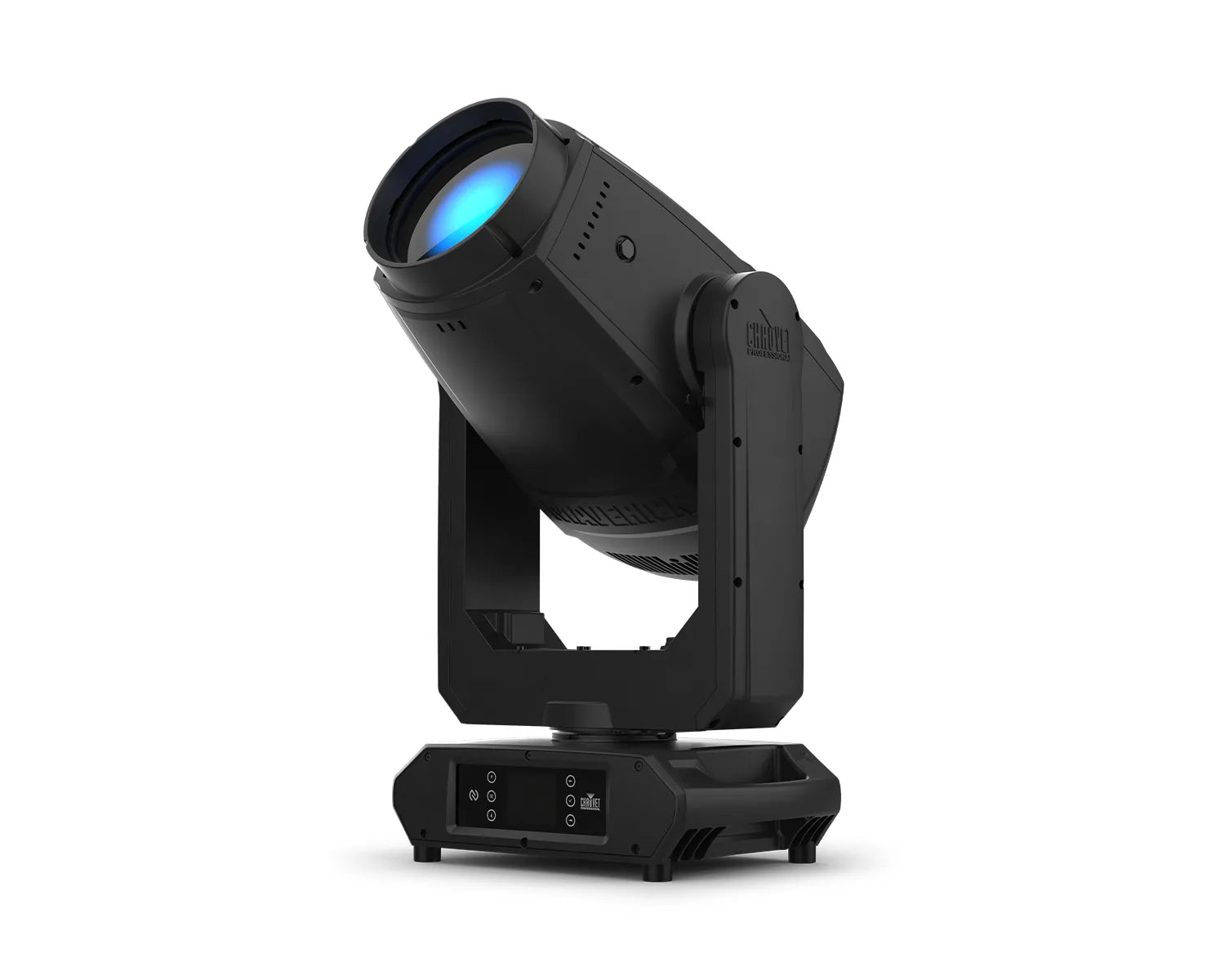

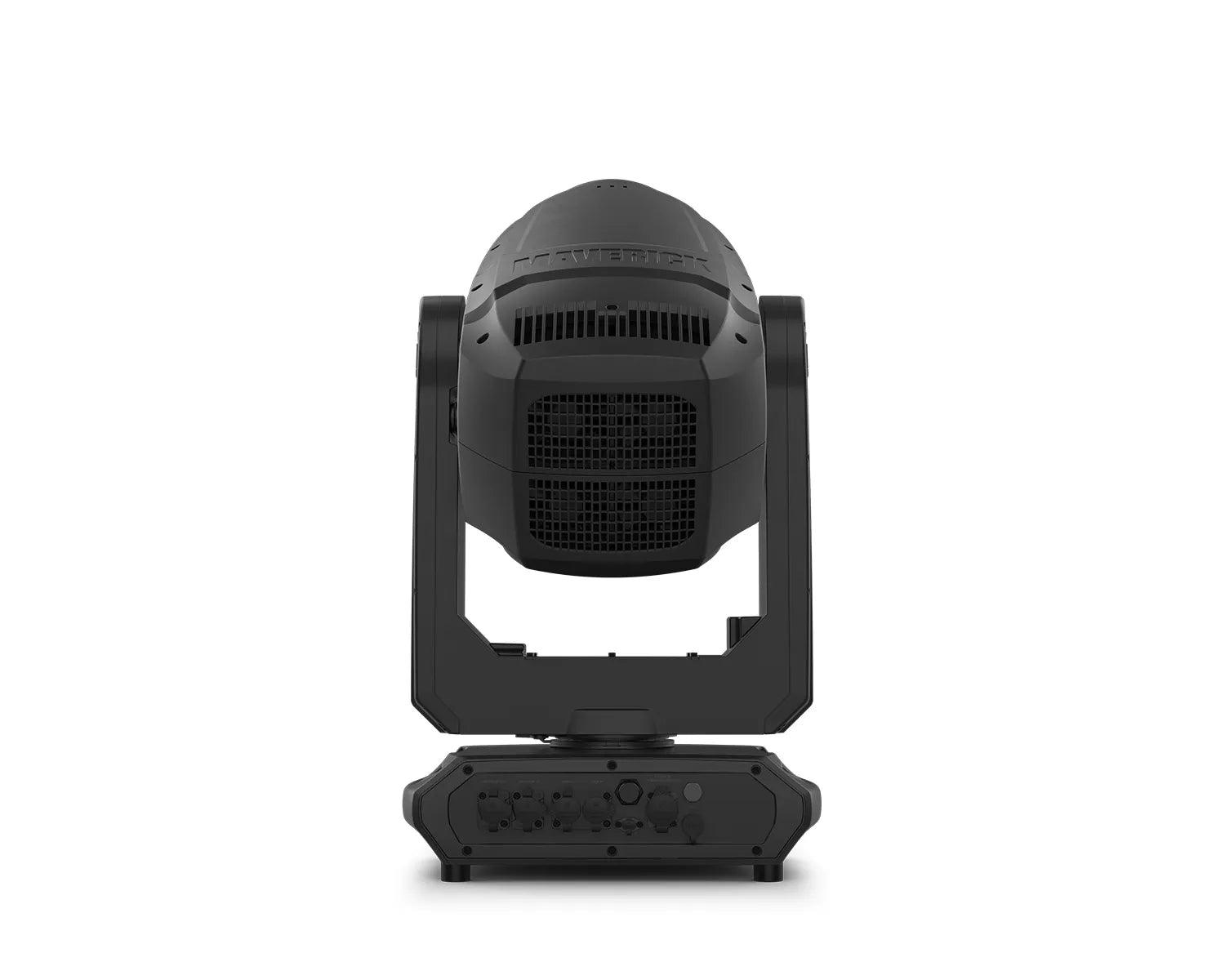

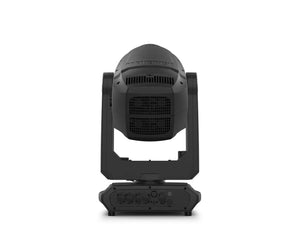

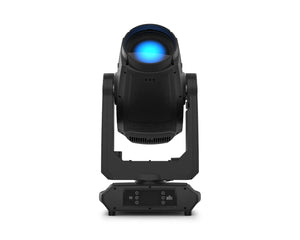

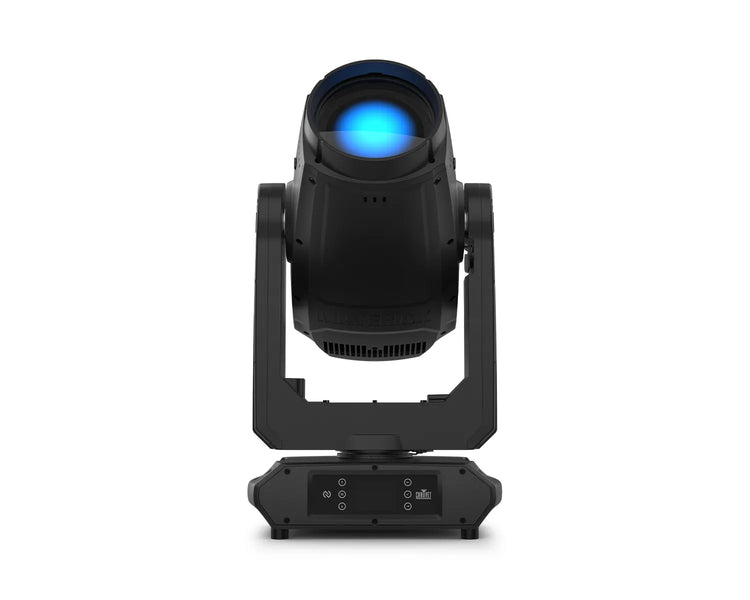

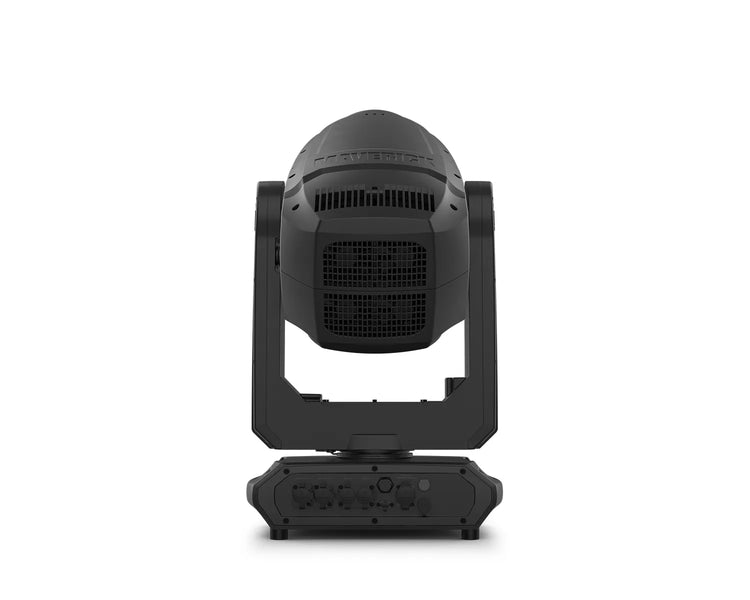

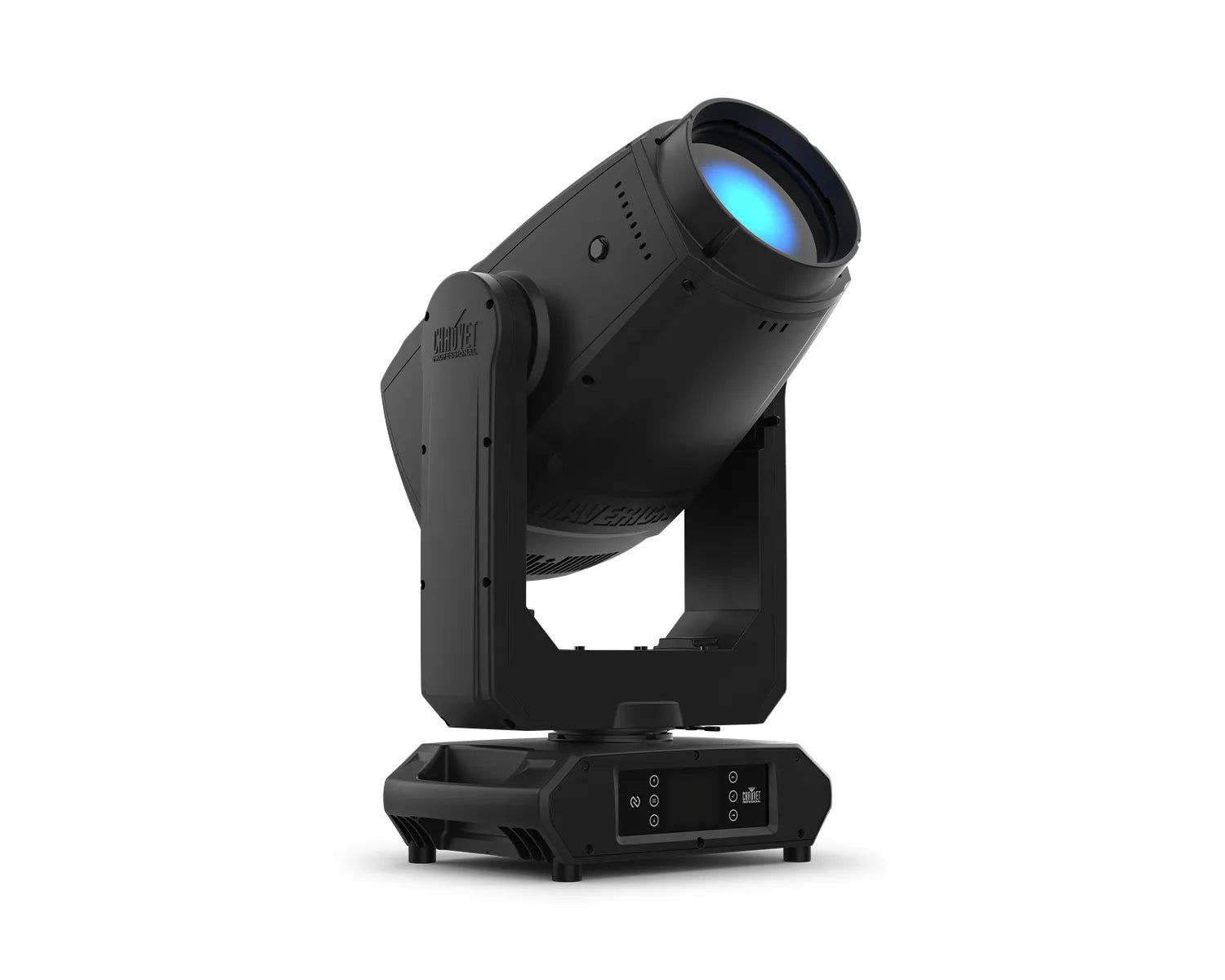

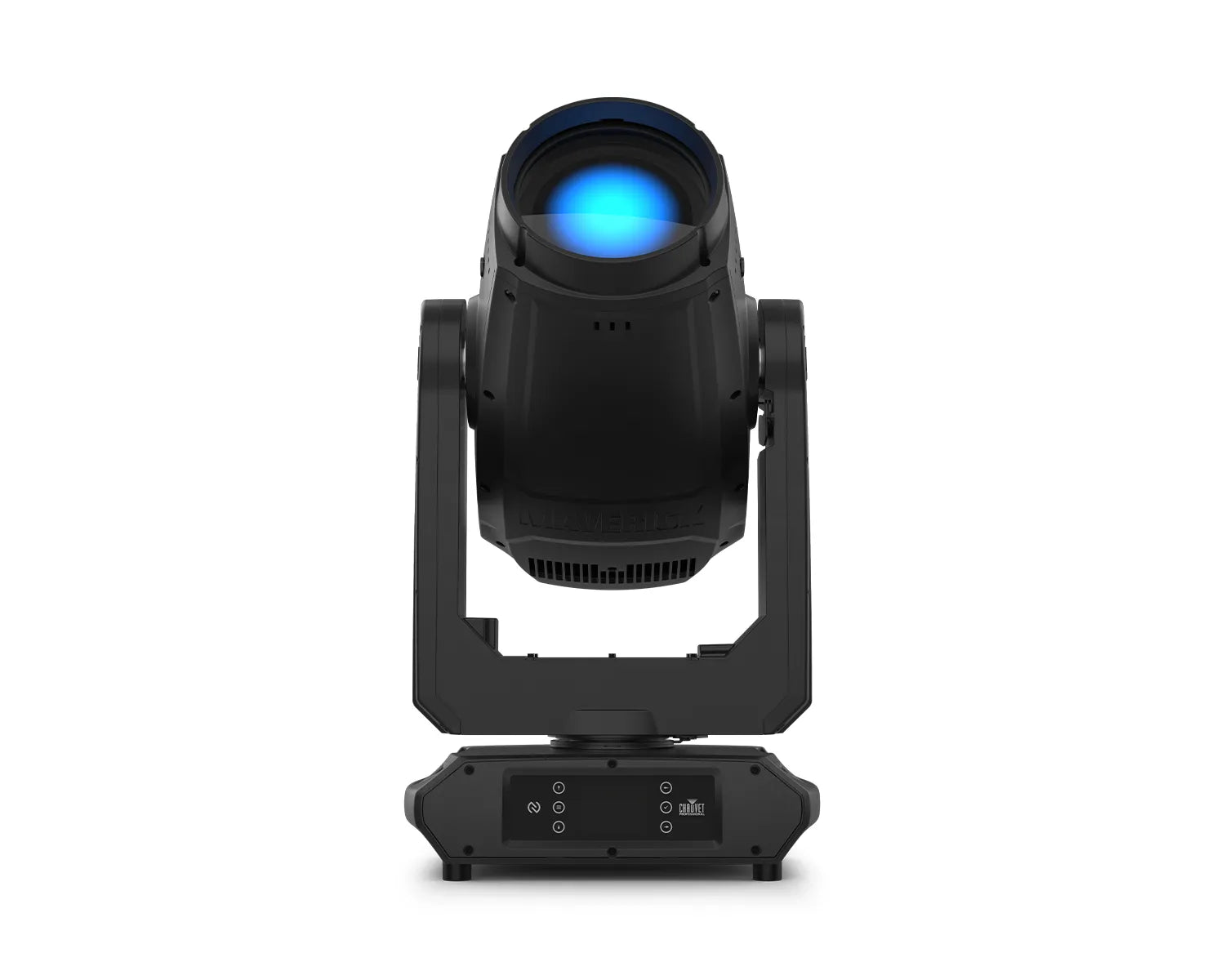

With an 18:1 zoom and a full armoury of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.4° beam to a wide 56.7° spot. Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO colour mixing, colour wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down

Product Features

• Fully-featured, compact, and lightweight IP65 620 W LED yoke profile fixture including CMY + CTO colour mixing, a 4-blade framing shutter system with rotation, a colour wheel, 18:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, and integrated sun shield
• 16-bit dimming of master dimmer for smooth control of fades
• 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• CRI and CTB filters on colour wheel for added flexibility
• One rotating, indexing, and interchangeable slot and lock gobo wheel
• One static gobo wheel
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 3.4° to 56.7° (18:1) zoom range for variable beam sizes
• Iris, 5-facet prism and frost for beam control
• True 1 compatible power input
• Integrated sun shield for protecting the optical path from sunlight when the fixture is off
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
• NFC for quick and easy fixture setup in the shop or in the field

Product Specifications

Optical

• Light Source:  1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
• Colour Temperature (at full):  7062 K
• CRI:  72.3
• CRI with CRI Filter:  90.2
• Front Lens Diameter:  165 mm
• Beam Angle:  3.4° to 51.6°
• Field Angle:  3.7° to 55.8°
• Cutoff Angle:  3.8° to 56.7°
• Zoom Range:  3.4° to 56.7°
• Lumens – Output:  33,007 lm
• Illuminance (3.4°) 168,194 lux @ 5 m
• Illuminance (56.7°) 19,177 lux @ 5 m
• PWM Frequency:  600Hz, 1500Hz, 2000Hz, 65,000Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  7 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours:  CMY wheel, CTO wheel
• Gobos (1):  7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2):  9 + open (glass), continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel 1 (rotating):  25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
• Framing Shutters:  4 Blades, each with dual axis movement, Full blackout.
• Framing Shutter rotation:  +/- 60° rotation.
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Focus:  Motorised
• Frost: Motorised
• Iris:  Motorised
• Animation: Motorised
• Prism:  5 Facets, motorised, rotating
• Strobe Rate:  0 to 25 Hz
• Move-in-Black:  Yes
• Dim Curves:  4

Construction / Physical

• Dimensions:  15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
• Weight:  69 lb (31.3kg)
• Exterior Colour:  Black
• Housing Material: Aluminium diecast, High-impact flame-retardant polymer, Steel

Connections

• Power Connection:  Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Data Connectors:  5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels:  34 or 50
• Art-Net Channels:  34 or 50
• Modes/Personalities:  2 personalities (34, 50)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  878 W, 7.28 A @ 120 V, 60 Hz
• Power and Current:  850 W, 4.14 A @ 208 V, 60 Hz
• Power and Current:  841 W, 3.76 A @ 230 V, 50 Hz
• Fuse:  F15 AL, 250 V

Battery

• Battery type:  Lithium Ion
• Rechargeable:  Yes
• Battery Charge Time:  5 hours
• Battery Life:  12 hours

Certifications / Qualifications

• CE, MET, FCC, CB, UKCA
• IP Rating:  IP65, temporary outdoor/wet use, with pressure equalising M12 GORE valve

What's in the Box?

• Maverick Storm 3 Profile
• Seetronic Powerkon IP65 power cord to Edison
• Omega bracket with mounting hardware
