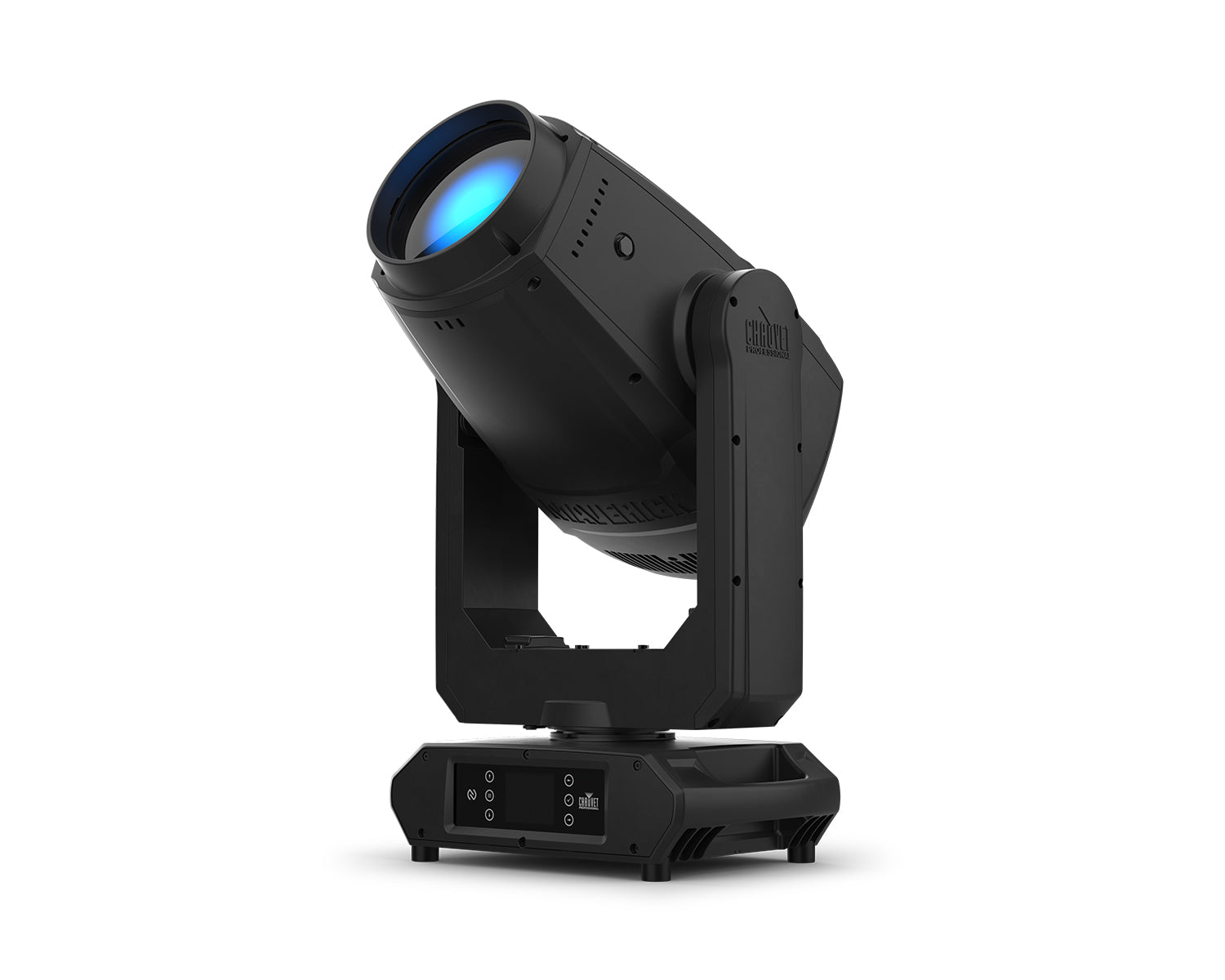

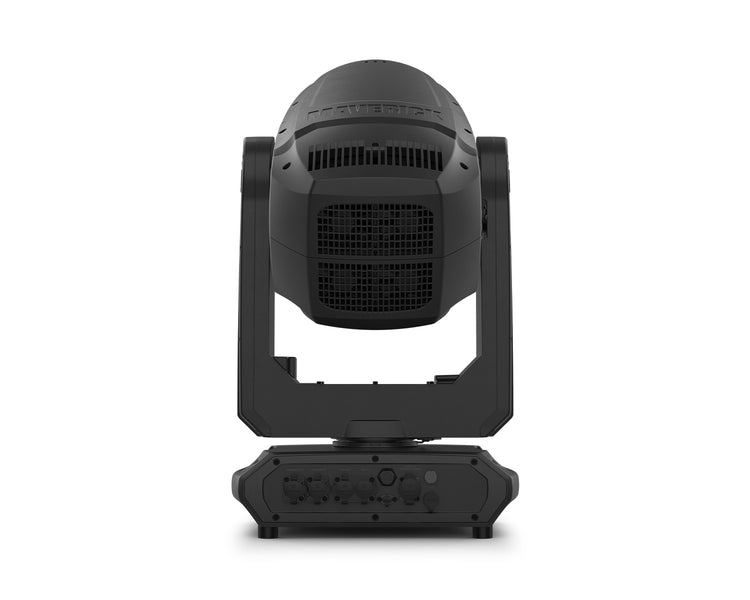

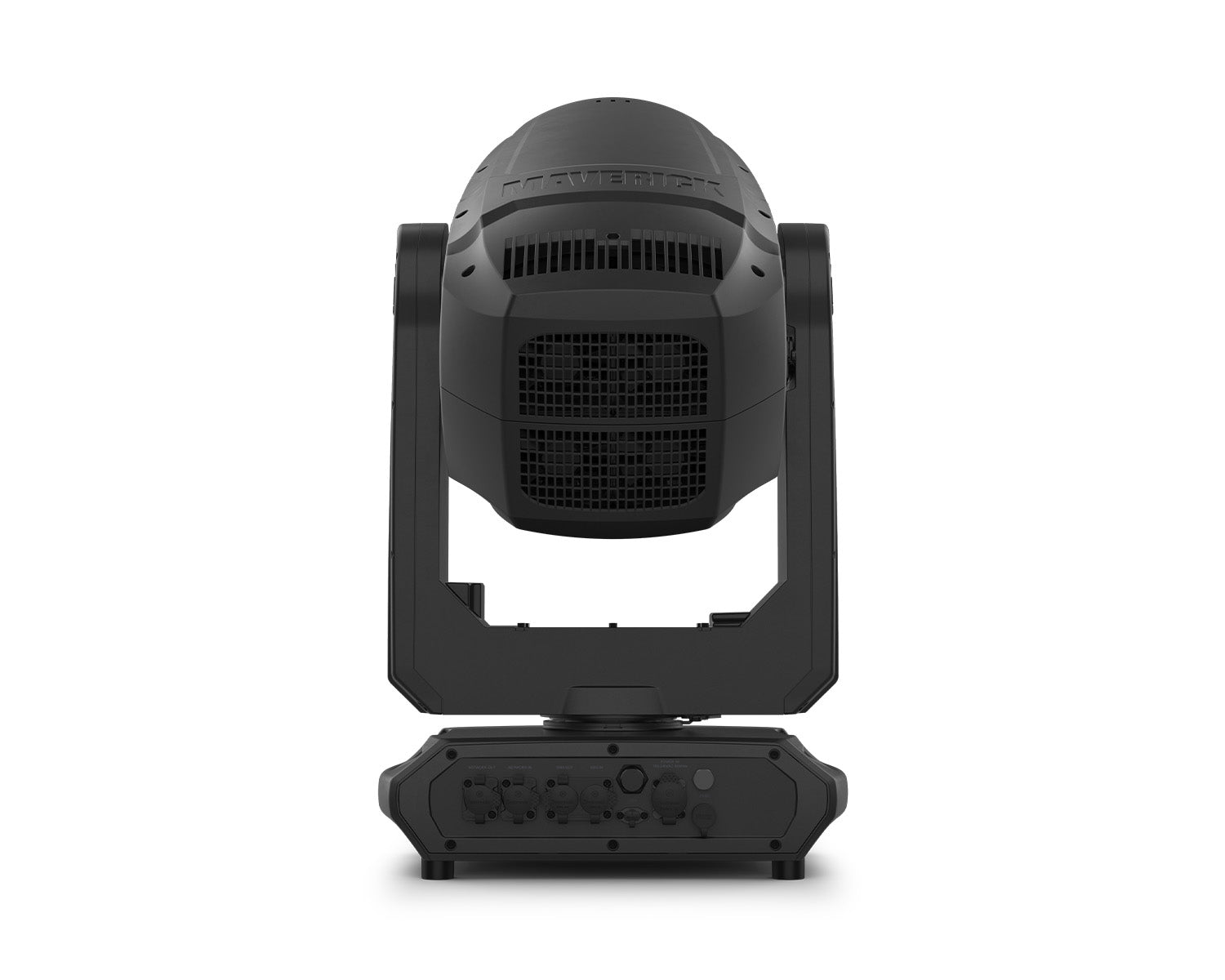

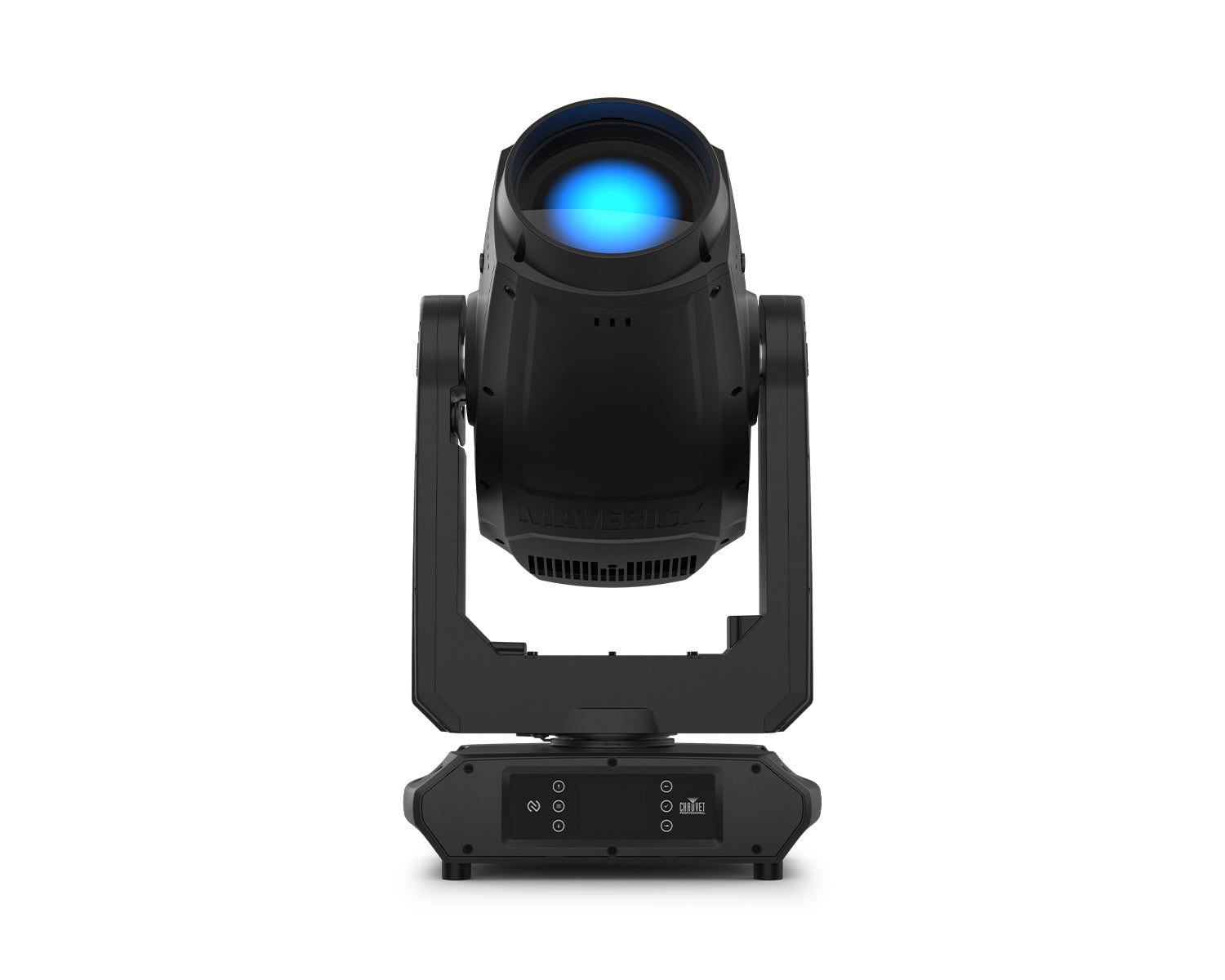

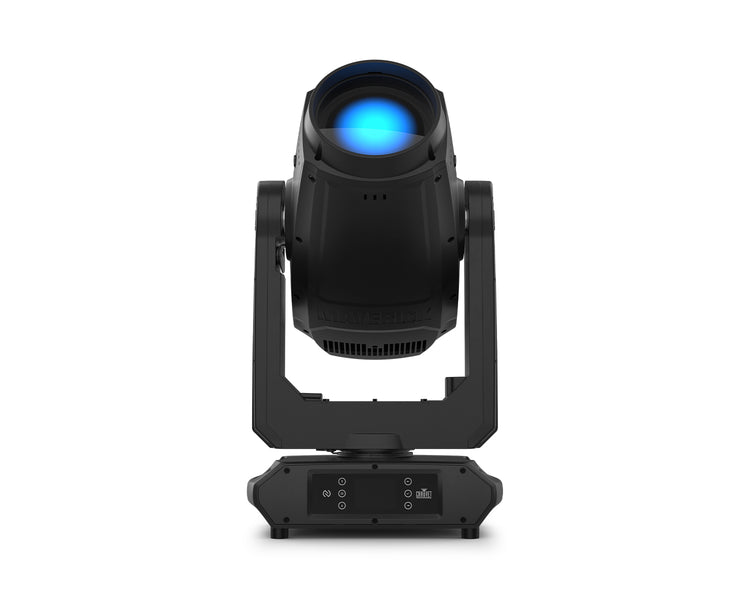

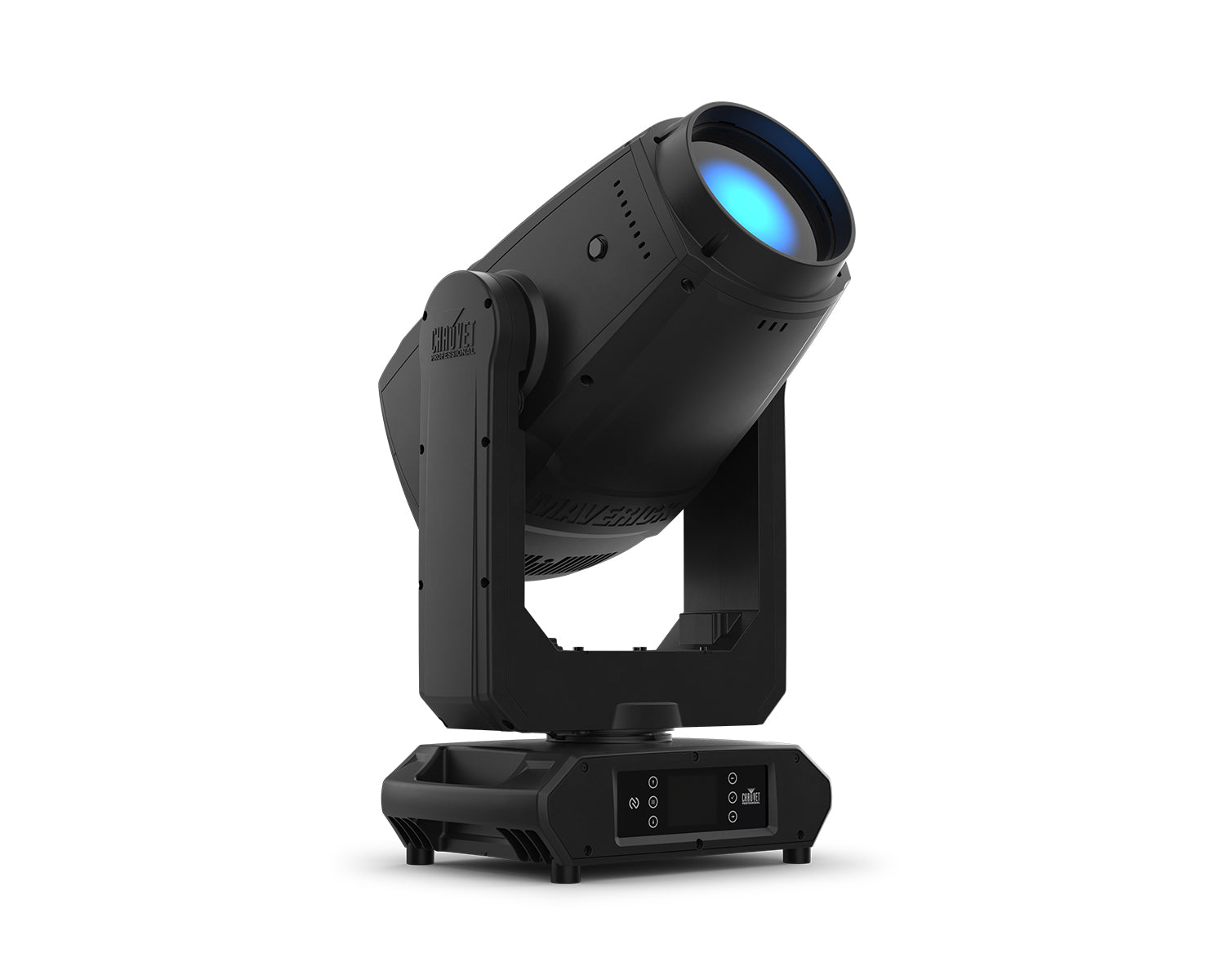

Outperform expectations with the intense brightness of this compact member of our Maverick Storm family of lighter, brighter, stadium-power moving heads built to rugged IP65 standards. No lamp. No hot spot. Only perfectly even output at every angle from a multifunctional LED powerhouse. Maverick Storm 1 Flex goes flat out from narrow beams to wide spots, while producing excellent color rendering and offering lighting designers a full effects wheelhouse for layering gobo, prism and animation effects. Draw on Maverick Storm 1 Flex to release stunning textured looks, send totally solid beams and hit the deepest colours.

Product Features

Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with a 520W LED source, CMY+CTO colour mixing, an animation wheel, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO colour mixing system to create a wide palette of colours
CRI and CTB filters on the colour wheel for added flexibility
1 rotating and 1 static gobo wheel
An animation wheel for kinetic textured effects
Tight 2.6° narrow beam angle for focused air effects
7 rotating and 11 static gobos for massive visual effect
DMX, CRMX, sACN, and Art-Net for full flexibility of control options
RDM control over DMX for fixture reporting
True 1 compatible power input
Integrated sun shield for protecting the optical path from sunlight when the fixture is off
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB-C slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation
Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
Built in Sky Tracker mode allows for up to 4 fixtures to work together to create sky tracker effects

Product Specifications

Optical

Light Source: 1 Led, 6595K, up to 50,000 hours life expectancy*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
Colour Temperature (at full): 6595 K
Front lens diameters: 165 mm
Beam Angle: 3.1° to 46.6° (Spot mode)
Field Angle: 4.1° to 57.9° (Spot mode)
Cutoff Angle: 4.5° to 55.5 ° (Spot mode)
Beam Angle: 2.6° to 43 ° (Beam mode)
Field Angle: 3° to 47.3° (Beam mode)
Cutoff Angle: 3.4° to 50.7° (Beam mode)
Beam Angle: 2.8° to 45.8 ° (Wash mode)
Field Angle: 3.7° to 53.1° (Wash mode)
Cutoff Angle: 3.9° to 57° (Wash mode)
Zoom Range: 3.1° to 55.5° (Spot mode)
Zoom Range: 2.6° to 50.7° (Beam mode)
Zoom Range: 2.8° to 57° (Wash mode)
Lumens: 33587 lm
Illuminance: (3.1 °) 154,697 lux @ 5 m (Spot mode)
Illuminance: (55.5 °) 2,675 lux @ 5 m (Spot mode)
Illuminance: (2.6°) 17,538 lux @ 15 m (Beam mode)
Illuminance: (50.7 °) 295 lux @ 15 m (Beam mode)
Illuminance: (2.8°) 146,171lux @5 m (Wash mode)
Illuminance: (57 °) 2478 lux @ 5 m (Wash mode)

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colours: 14 + white, split colours, continuous scroll at variable speeds
Colours: CMY flags
Gobos (1): 8 + open (1 empty slot + 7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos Static: 11 + open (11 metal), rotating, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 23.9 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
Animation Wheel: 1
Dimmer: Motorised
Shutter/Strobe: Motorised
Zoom: Motorised
Focus: Motorised
Frost: Motorised
Prism (1): 6 Facets, Motorised, rotating
Prism (2): 8 Facets, Motorised, rotating
Move-in-Black: Yes
Built in Sky Tracker Mode: Yes

Connections

Power Connection: Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Software Connection: Type-C USB

Control

Control Protocol: Art-Net, sACN, RDM, DMX, CRMX
DMX Channels: 26 or 33
Art-Net/sACN Channels: 26 or 33
Modes/Personalities: 2 personalities (26, 33)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 754 W, 6.25 A @ 120 V, 60 Hz
Power and Current: 734 W, 3.60 A @ 208 V, 60 Hz
Power and Current: 738 W, 3.30 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, CB, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Construction / Physical

Dimensions: 15.27 x 10.55 x 10.55 in (388 x 268 x 738 mm)
Weight: 66.6 lb (28.8 kg)
Exterior Colour: Black
Housing Material: Aluminium die-cast, High-impact flame-retardant polymer, Steel
