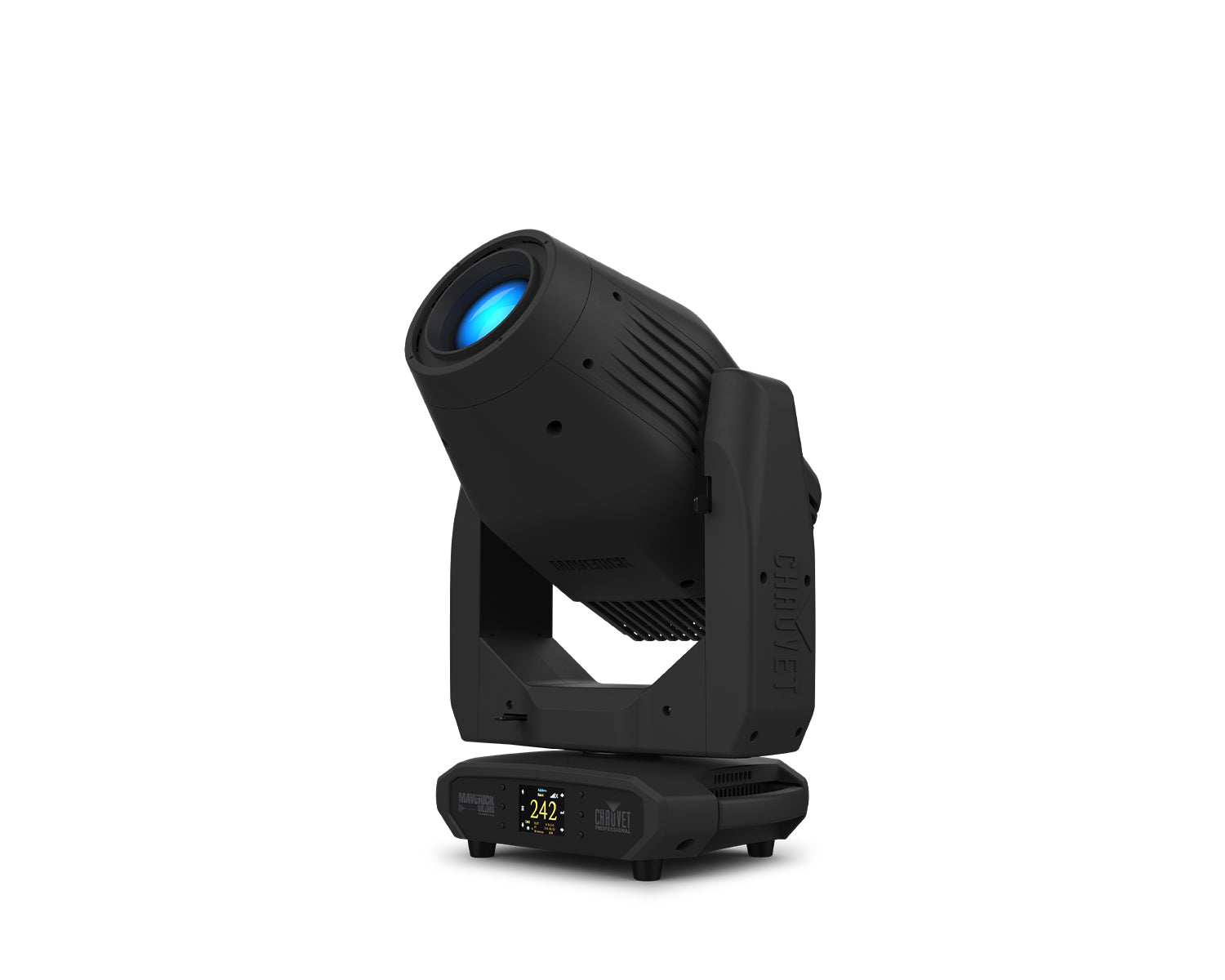

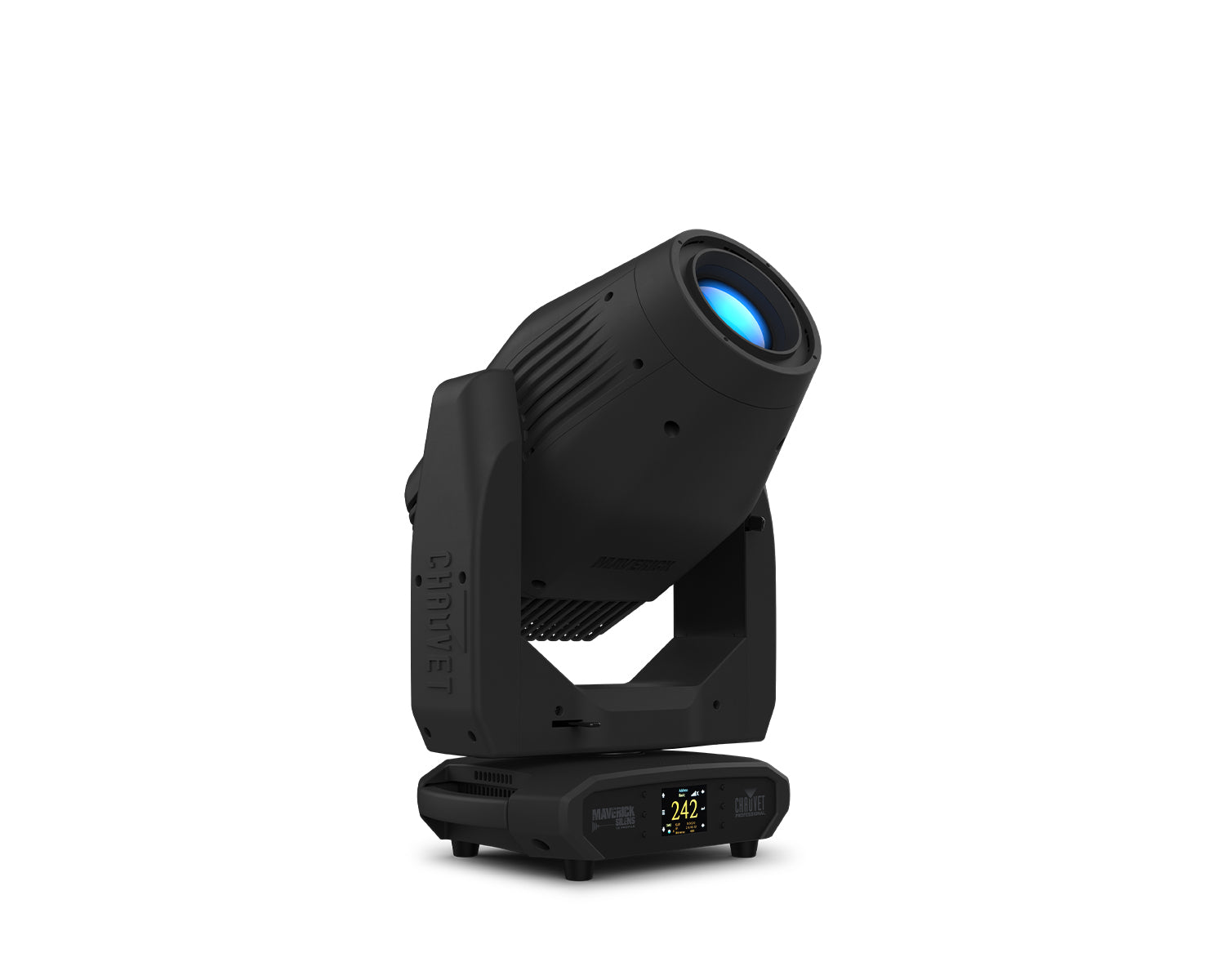

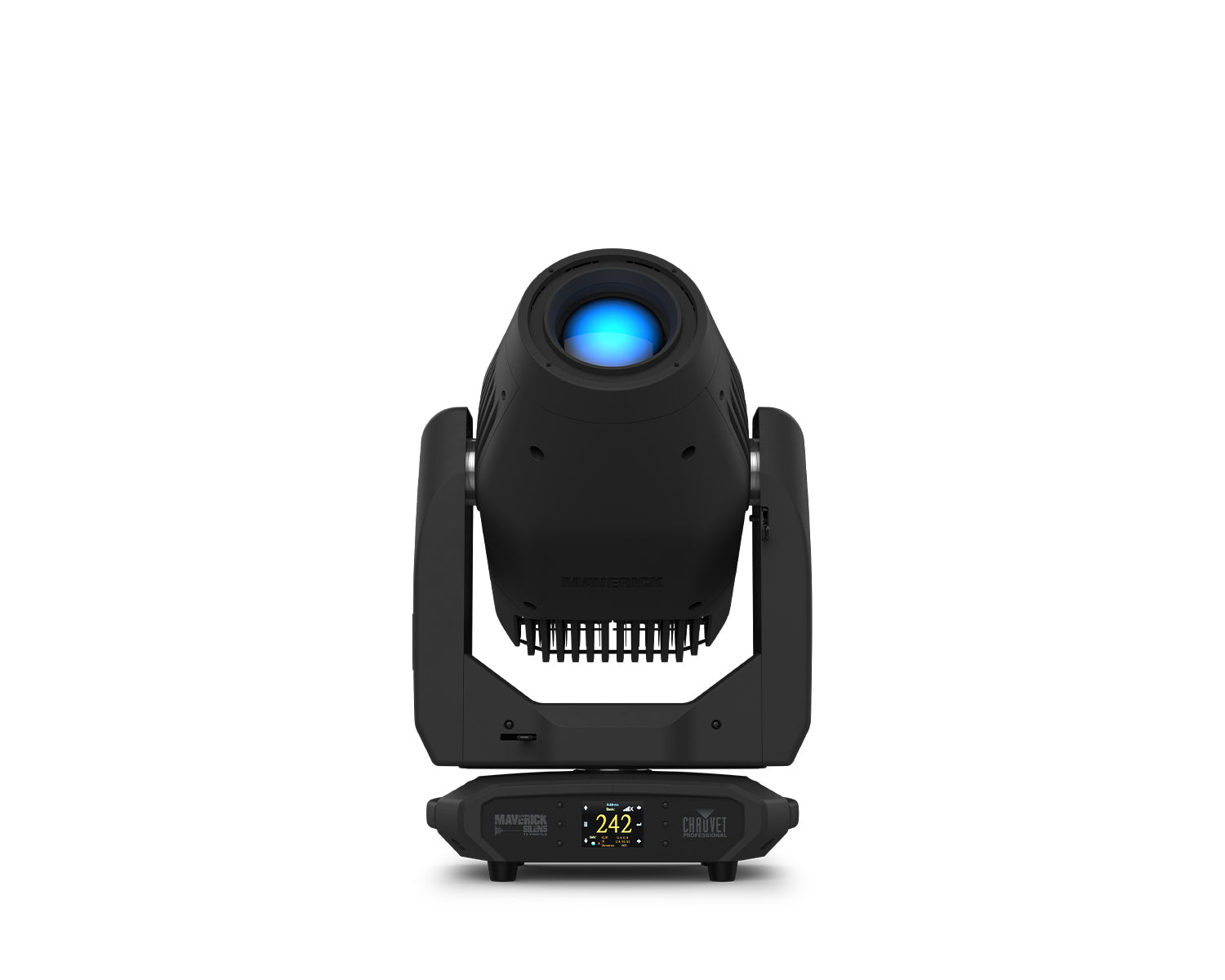

Compact member of the award-winning Silens range. 430W 96+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate colour rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring a single rotating gobo wheel, variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

Product Features

• Completely silent, fully featured 430 W 96+ CRI LED yoke profile fixture including CMY+CTO colour mixing, a four-blade framing shutter system with rotation, a colour wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and a rotating gobo wheel.
• 100% convection cooled for zero fan noise along with silent motion and effects
• 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• One rotating gobo wheel with unique, theatrical based designs
• Variable frost system
• + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 6° to 57°zoom angle for variable beam sizes
• True 1 compatible power input and throughput
• Battery backup display with auto-rotate depending on fixture orientation

Product Specifications

Optical

• Light Source: 1 LEDs (CW) 420 W, (12A), 50,000 hours life expectancy
• Light Source: 1 LEDs (RGB) 13 W, (2.091A), 50,000 hours life expectancy
• Colour Temperature (range): 2569 to 6126 K
• Colour Temperature (at full): 6126 K
• Front lens diameters: 106 mm
• CRI: 97.1
• Beam Angle: 6° to 48.4°
• Field Angle: 7° to 53.4°
• Cutoff Angle: 7.5° to 56.2°
• Zoom Range: 6° to 56.2°
• Lumens – Output: 6081
• Illuminance (6°): 18,525 lux @ 5 m
• Illuminance (56.2°): 398 lux @ 5 m
• Selectable PWM: 20,000, 40,000

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180°, 90° pan/270°, 180°, 90° tilt
• Colours: 6 + white, split colours, continuous scroll at variable speeds
• Colours: CMY flags, CTO flag, colour correction
• Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 22.9 mm (outside), 15.5 mm (image), 1.1 mm (max. thickness)
• Effect Wheel: 1 effect
• Framing Shutters: Yes
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorised
• Focus: Motorised
• Frost: Motorised
• Iris: Motorised
• Prism: 5 Facets, round, motorized, rotating
• Strobe Rate: 0 to 28.8 Hz
• Move-in-Black: Yes
• Dim Curves: 4

Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, CRMX, RDM
• DMX Channels: 31 or 39
• Art-Net Channels: 31 or 39
• Modes/Personalities: 2 personalities 31, 39)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
• Power and Current: 441 W, 3.31 A @ 120 V, 60 Hz
• Power and Current: 425 W, 1.91 A @ 208 V, 60 Hz
• Power and Current: 422 W, 1.70 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions: 15.75 x 9.68 x 24.25 in (400 x 246 x 616 mm)
• Weight: 56.2 lb (25.5 kg)
• Exterior Colour: Black
• Housing Material: High-impact flame-retardant polymer

What's in the Box?

• Maverick Silens 1X Profile
• Seetronic Powerkon IP65 power cord
• 2 x Omega brackets with mounting hardware
• Gel Frame Holder and Gel Frame
