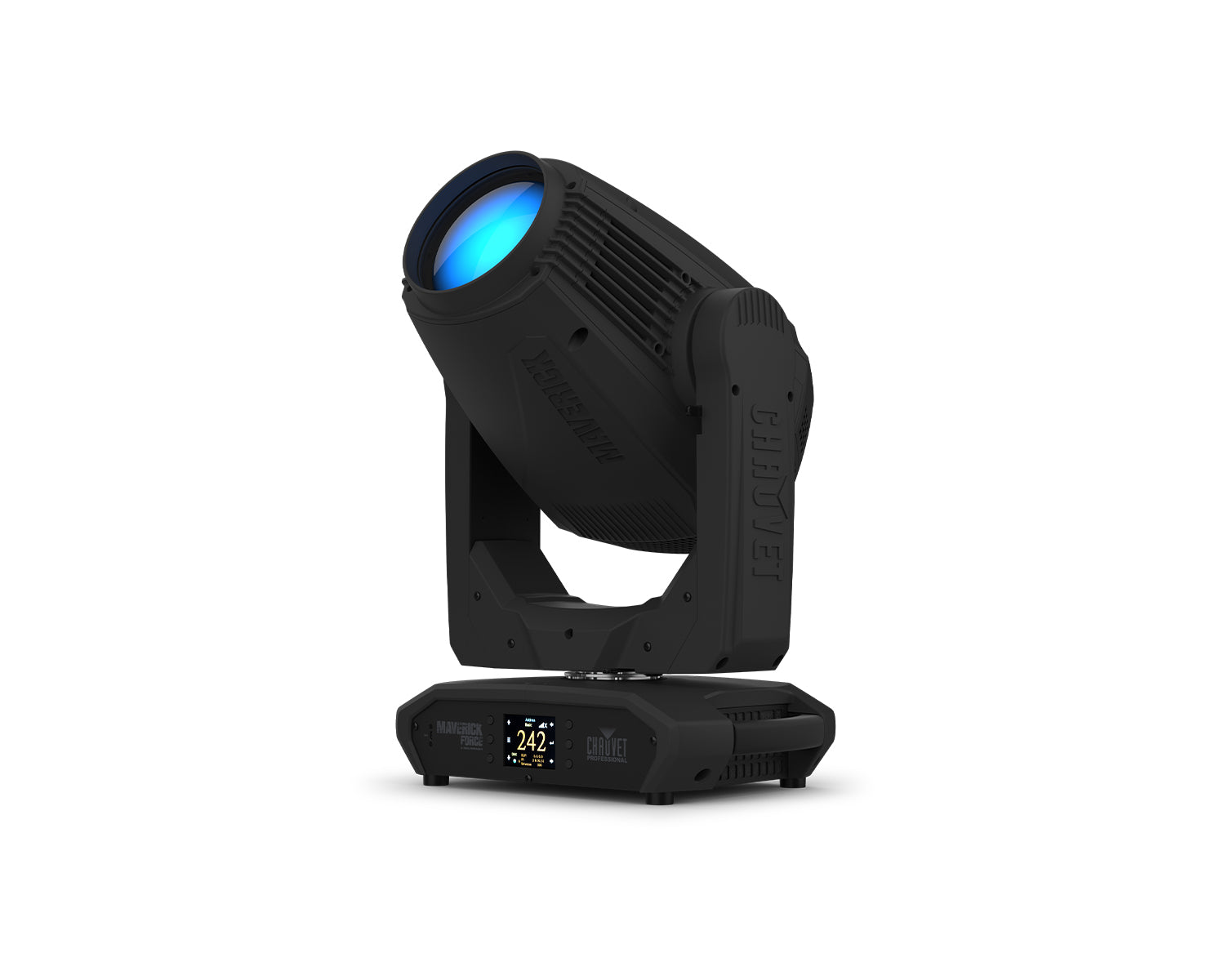

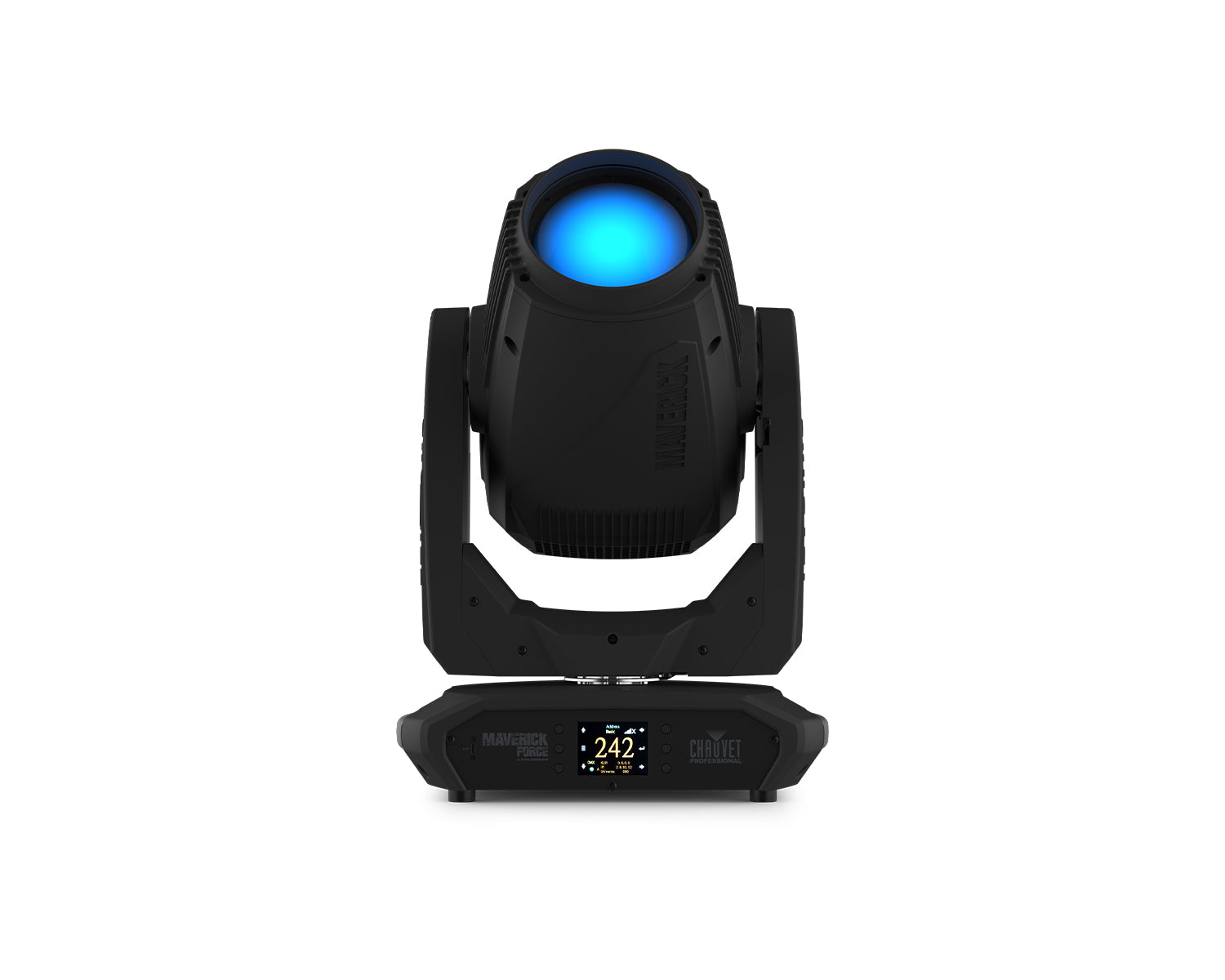

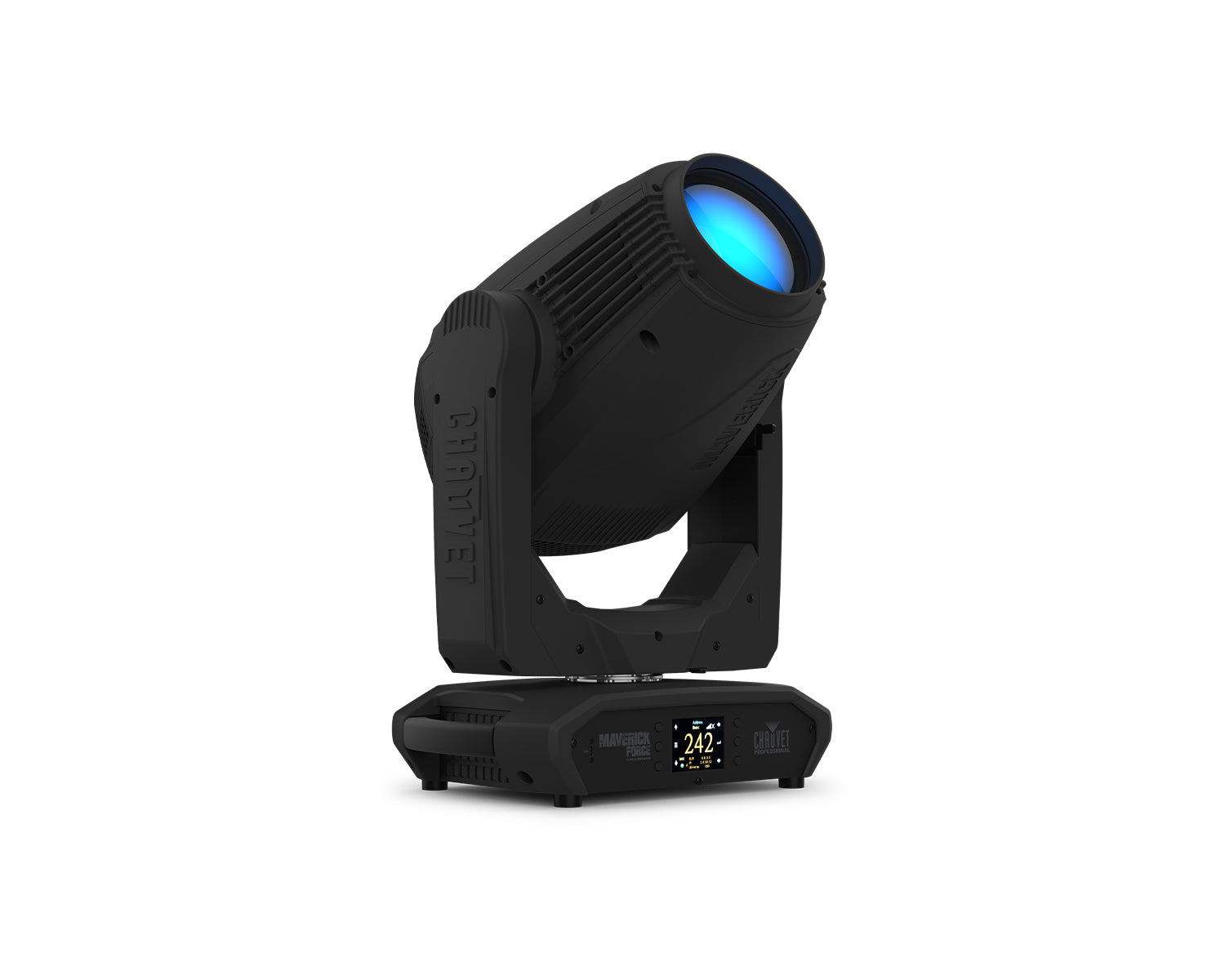

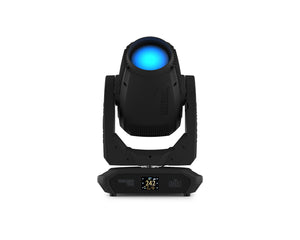

A powerful single source 480W LED wash engineered to meet lighting designer demand for classic stage wash looks with the modern features LDs expect: CMY + CTO colour mixing system offering a wide colour palette, independent colour wheel with CRI and CTB filters, expansive 8:1 zoom, rotating gobo wheel with interchangeable geometric gobos, linear 5-facet prism, and frost. Housed in a compact and lightweight design and calibrated to match the colours of other Force fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

Product Features

• Fully featured, compact and lightweight 480 W LED yoke single source wash fixture including CMY + CTO colour mixing, a colour wheel, zoom optics, and one rotating gobo wheel
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• CRI and CTB filters on the colour wheel for added flexibility
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM enabled for remote addressing and trouble shooting
• 14.8° to 56.9°zoom range for variable beam sizes
• Linear 5-facet prism, geometric gobos and frost for beam control
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost

Product Specifications

Optical

• Light Source: 1 LED (CW) 480 W (15 A), 50,000 hours life expectancy
• Colour Temperature (at full): 7308 K
• Colour Temperature (range): 7308 to 3007 K
• CRI: 70.4 (with filter: 87.7)
• Front Lens Diameter: 178 mm
• Beam Angle: 6.3° to 32.8°
• Field Angle: 9.3° to 49.5°
• Cutoff Angle: 11.2° to 55.7°
• Zoom Range: 6.3° to 49.5°
• Lumens – Source: 39,200
• Lumens – Output: 30,967
• Illuminance (6.3°): 91,362 lux @ 5 m
• Illuminance (49.5°): 3989 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours: 7 + open, split colours, continuous scroll at variable speeds
• Colours: CMY flags, CTO flag
• Gobos: 7 + open (7 Metal), rotating, interchangeable, indexing, slot n-lock, continuous scroll at variable speeds
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 5

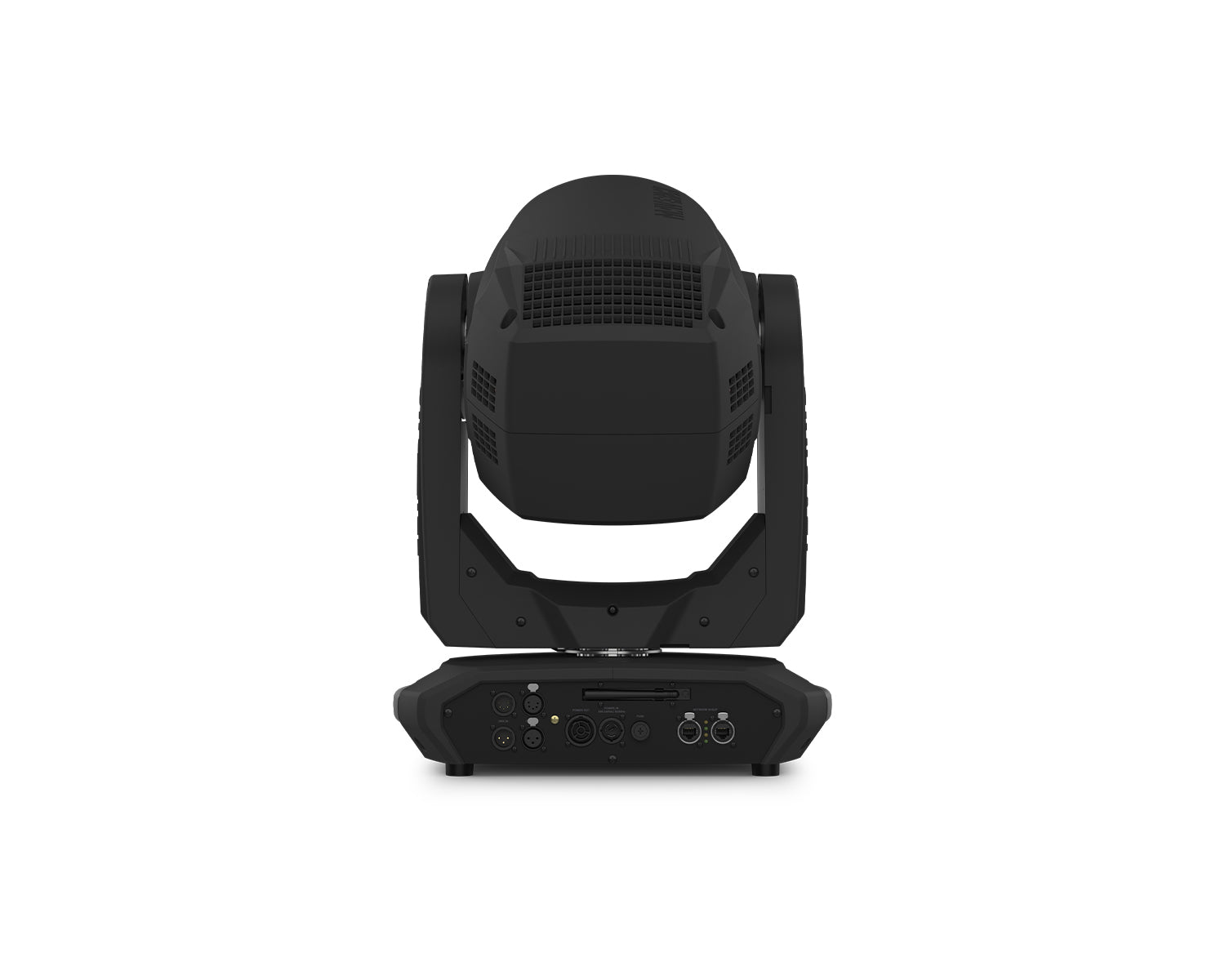

Connections

• Power Connection: Seetronic Powercon IP65
• Power Input/Output: Seetronic Powercon IP65
• Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: Type-C USB

Control

• Control Protocol: Art-Net, sACN, RDM, DMX, W-DMX
• DMX Channels: 21ch or 27ch
• Art-Net/sACN Channels: 21ch or 27ch
• Modes/Personalities: 2 personalities (21ch or 27ch)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3units @ 230 V
• Power and Current: 660 W, 5.57 A @ 120 V, 60 Hz
• Power and Current: 649 W, 3.24 A @ 208 V, 60 Hz
• Power and Current: 641 W, 3.07 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Operating): 14 °F to 113 °F (-10 °C to 45 °C)

Construction / Physical

• Dimensions: 16.8 x 10.7 x 25.8 in (426 x 272 x 656 mm)
• Weight: 53.4 lb (24.2 kg)
• Exterior Colour: Black
• Housing Material: Aluminium diecast, High-impact flame-retardant polymer, Steel

What's in the Box?

• Maverick Force 2 SoloWash
• Seetronic Powercon IP65 power cord
• (2) 140mm Omega brackets with mounting hardware
