MAR1470 - Martin Professional Martin IP66 PSU 240W Power Supply for Martin Creative LED Image 1

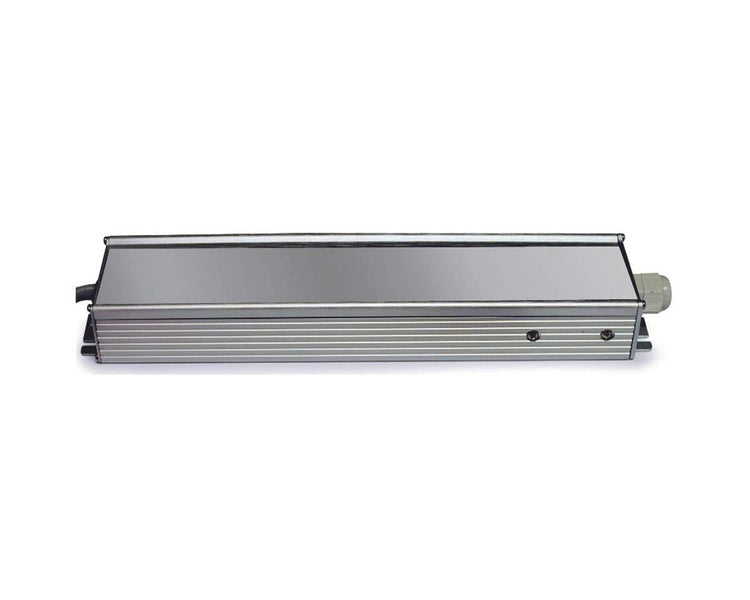

The Martin™ IP66 PSU 240W is an IP66-rated external power supply unit that can supply 48 VDC power to various Martin™ lighting and LED Video products, including the Exterior PixLine, Exterior Dot-HP and VC-Dot.

It provides an alternative to the P3 PowerPort in supplying power to fixtures in a DMX-controlled system.

Product Features

IP66-rated
Wall-mountable
Can be located up to 50 m (164 ft.) away from the creative LED video products
No configuration or addressing required

Product Specifications

PHYSICAL

Length: 314 mm (12.4 in.)
Width: 68 mm (2.7 in.)
Height: 39 mm (1.5 in.)
Weight: 1.5 kg (3.3 lbs.)

SYSTEM INTEGRATION

Exterior PixLine™ family
Exterior Dot-HPTM family
VDO Sceptron™ family
VC-Dot™ family via VC-Feeder™
VC-Grid™ family (indoor product)
VC-Strip™ family (indoor product)
Tripix family

CONSTRUCTION

Housing: Aluminium
Finish: Clear anodized
Protection rating: IP66, NEMA 4X
RoHS compliant

INSTALLATION

Mounting: Fixation points for surface-mounting
Orientation: Any
Maximum cable length: See connected product user manuals
Maximum number of connected fixtures: See connected product user manuals

CONNECTIONS

AC power input: 100-240 V nominal, 50/60 Hz
48 VDC power output:
To Tripix: Power Inserter Cable, Martin™ IP66 PSU 240 W to Tripix system, 0.25 m (9.8 in.), P/N 91611339
To VDO Sceptron: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To Exterior PixLine: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To Exterior Dot-HP: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
To VC-Grid: Input Y-Cable, XLR5 + Martin™ IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
To VC-Strip: Input Y-Cable, XLR5 + Martin™ IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
To VC-Feeder (VC-Dot): Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to IP65 connector, 0.25 m (9.8 in.), P/N 11840195

ELECTRICAL

AC mains power input: Hard-wired (terminal block) via cable gland
Power supply unit: Auto-sensing multi-voltage switch-mode
DC power output: 48 V
Maximum DC output power: 240 W
Maximum DC output current draw: 5 A
Protection: Overvoltage, overcurrent, short circuit, over-temperature, all with auto-recovery

THERMAL

Cooling: Convection
Maximum ambient temperature (Ta max.): 45° C (113° F)
Minimum ambient temperature (Ta min.): -30° C (-22° F)
Maximum surface temperature, steady state, at 45° C ambient: 80° C (176° F)
Total heat dissipation (calculated, including max. number of connected devices, all at full load): 820 BTU/hr.
