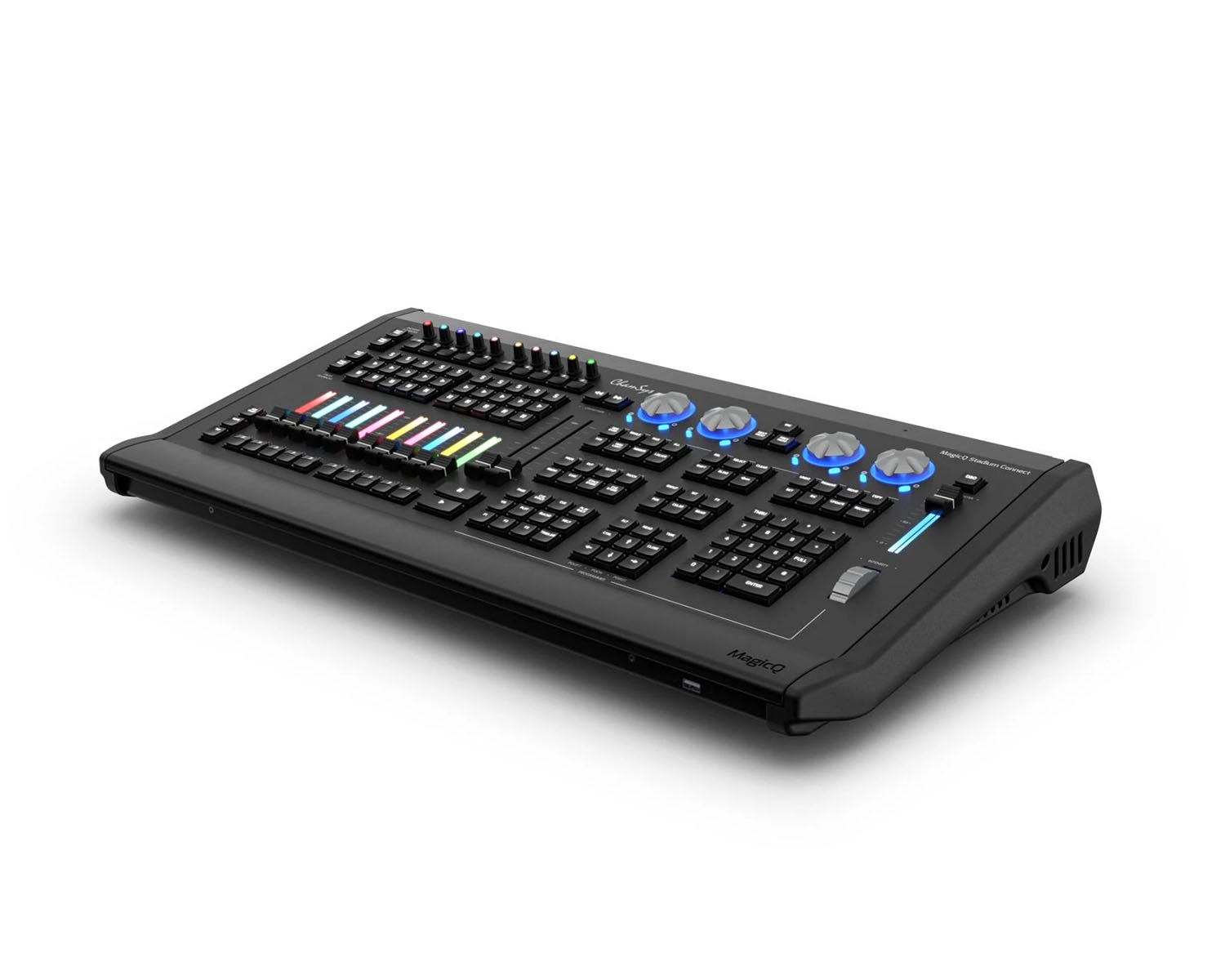

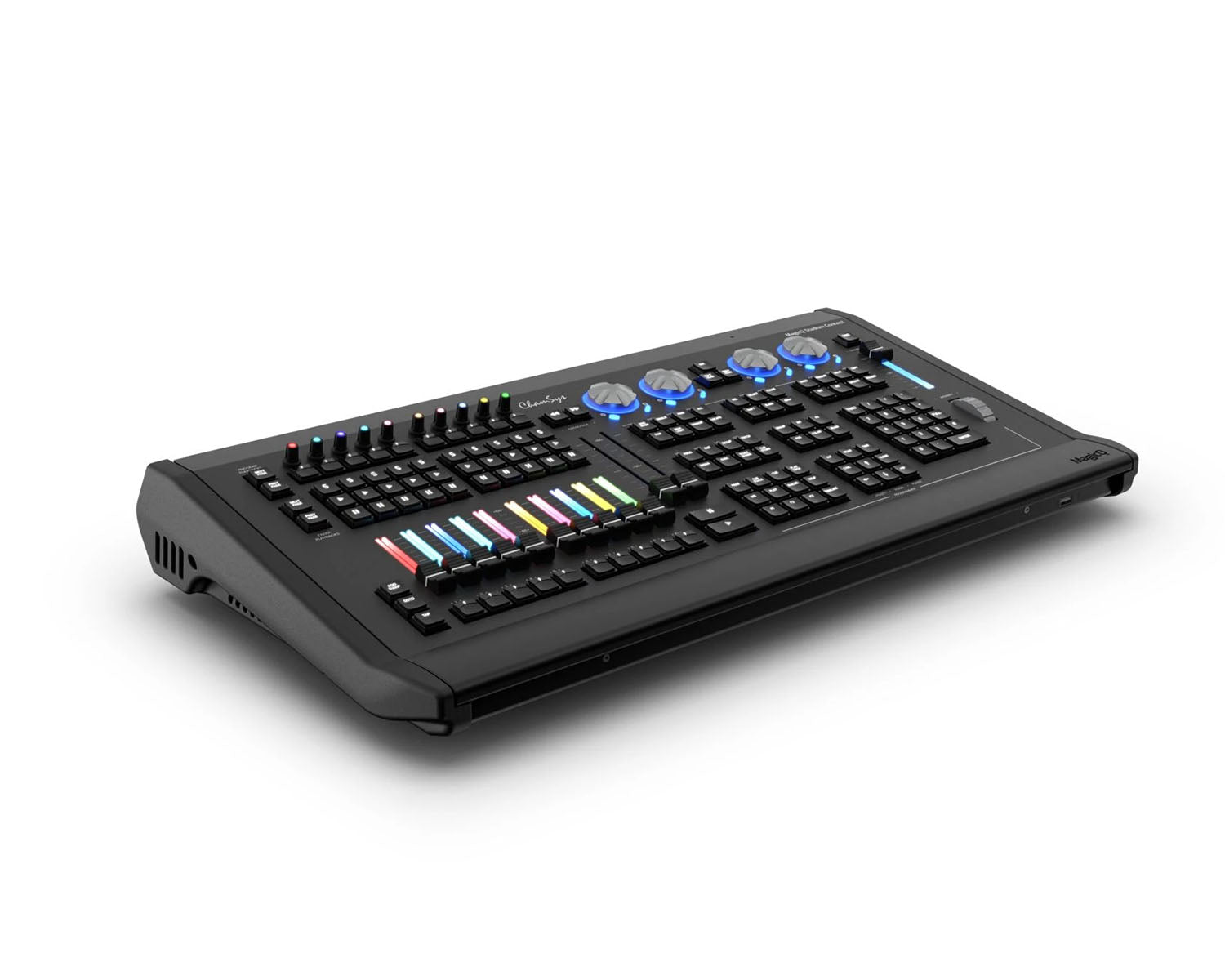

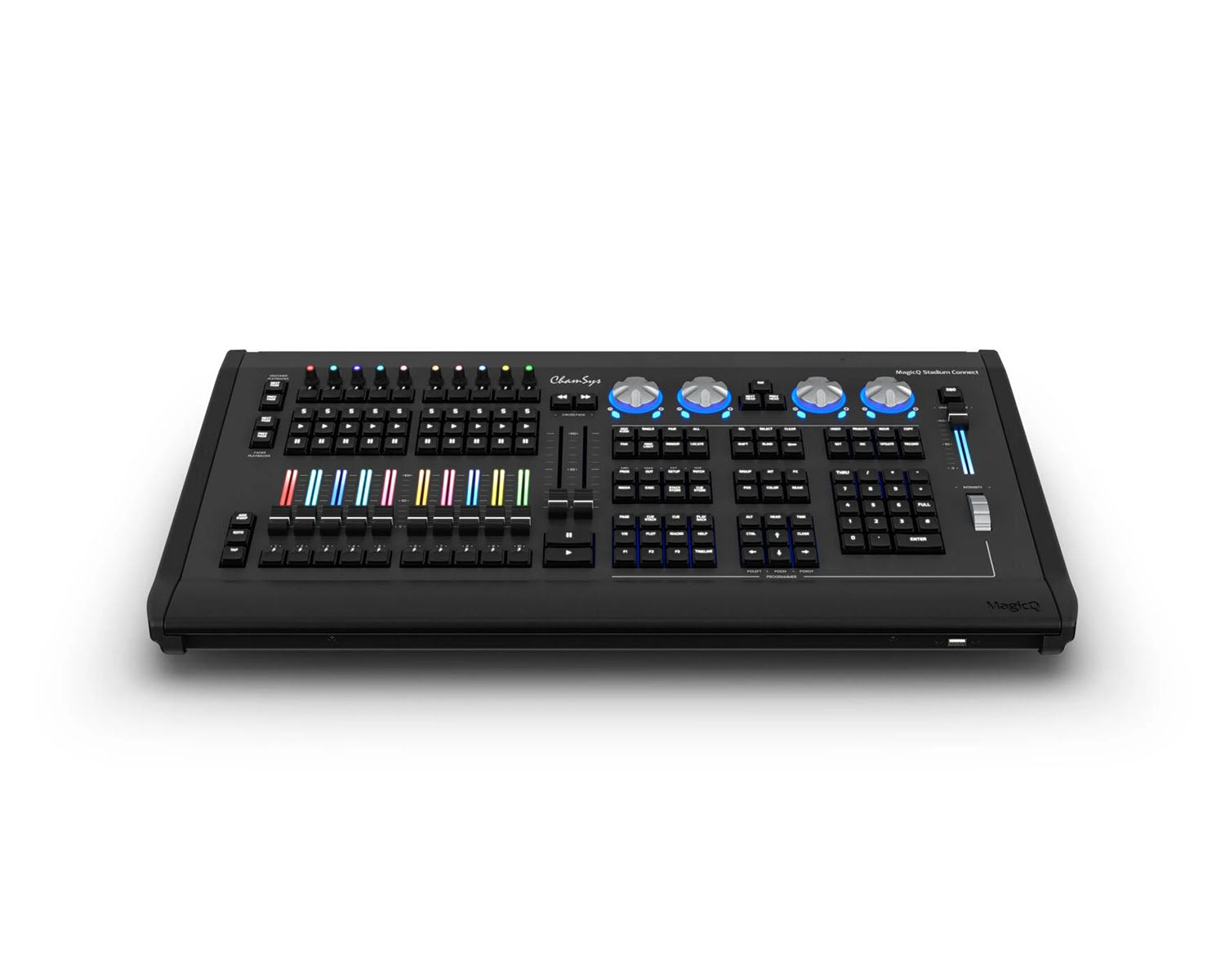

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the wing, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors with plenty of programmable real estate for your show.

Product Features

• 10 fully motorised fader playbacks
• 10 encoder playbacks
• RGB illumination of playbacks
• Backlit buttons
• 64 universes direct from MagicQ for Artnet/sACN output
• 256 visualisation universes for pre-programming
• Network port acts as network interface for PC
• Dual 100mm Manual Cross Faders
• 2 dedicated high power USBs for charging of phones/tablets

Product Specifications

Hardware Specifications:

• Direct DMX Outputs: 4
• Motorised Playbacks: 10
• Encoder Playbacks: 10
• Total no of Playbacks: 20 (10+10)
• Dual Cross Faders: Yes
• Attribute Encoders: 4
• Backlit Keys: Yes
• Illuminated Playback/Encoders with RGB control: Yes
• Intensity Wheel: 1
• Network Ports: 1
• USB Ports : 4
• Audio Input Sound to Light: Yes
• MIDI Ports 1 in and out: Yes
• LTC Timecode Ports in and out: Yes
• 10Scene Port: 1
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

• Universes direct from software (via Artnet/sACN/Pathport): 64
• Visualisation Universes: 256
• Max Number of DMX Channels: 32,768
• Max Number of Fixtures Supported: 32,768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)

Stadium Connect Weights and Dimensions:

• Width: 680mm (26.8")
• Depth: 364mm (14.3")
• Height: 85mm (3.3")
• Weight: 8.7kg (19.1bs)

Flight Cased Weights and Dimensions:

• Width: 761mm (29.9")
• Depth: 467mm(18.3")
• Height: 197mm (7.7")
• Weight (stadium connect in flightcase): 20.0kg (44.1lbs)

What's in the Box?

• Dual Colour Desk lights: 2
• Dust cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1
• USB Cable: 1
