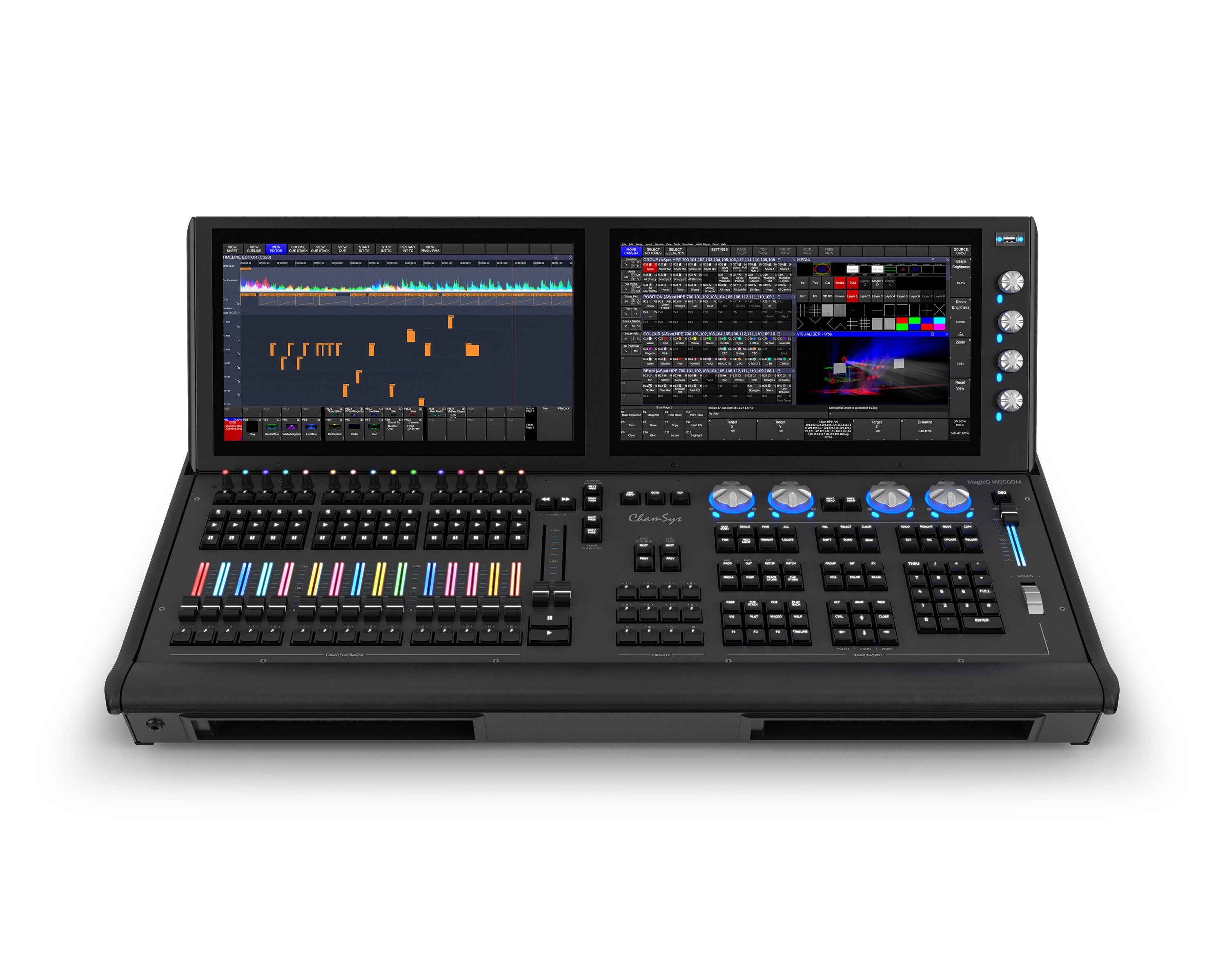

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 1

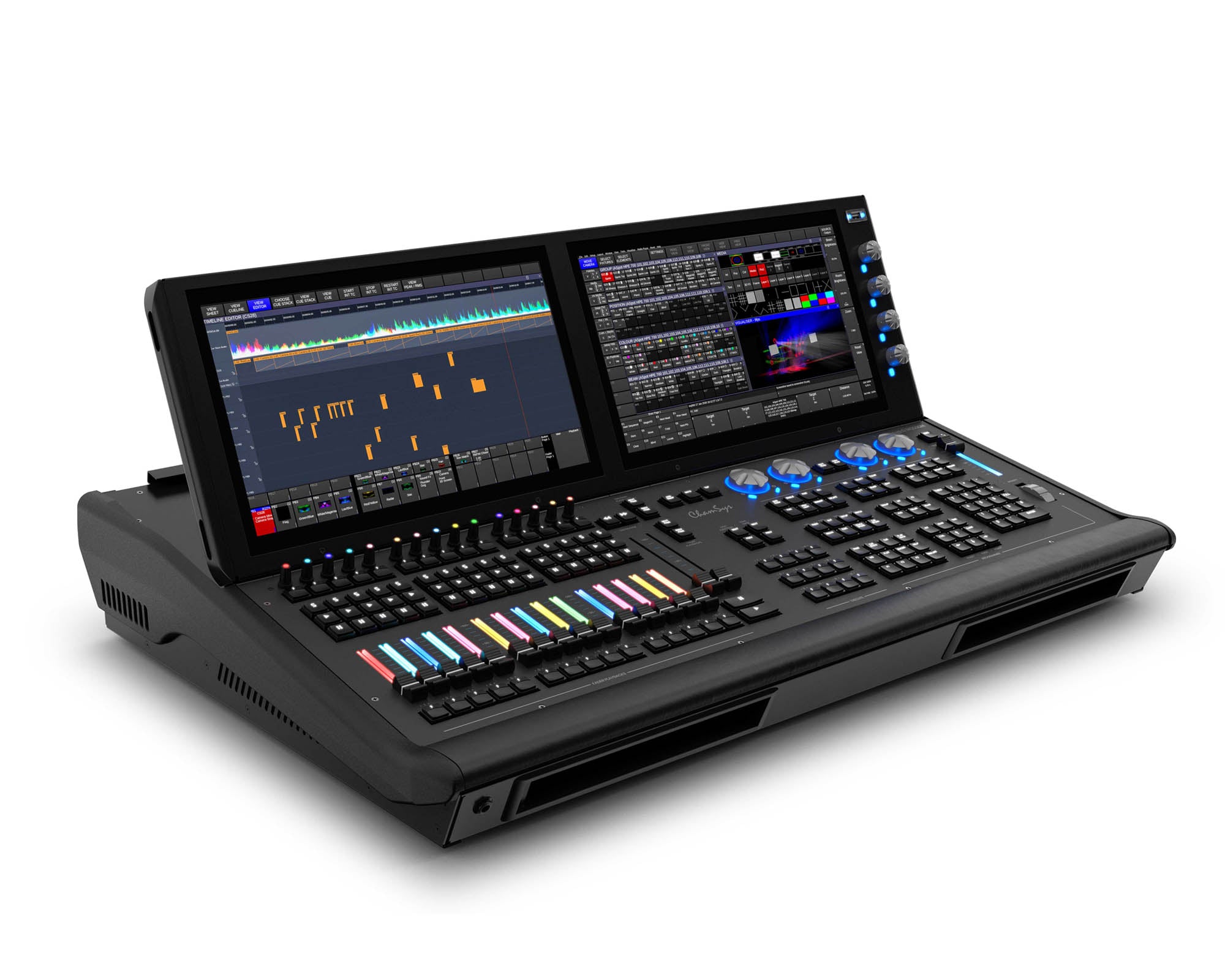

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 2

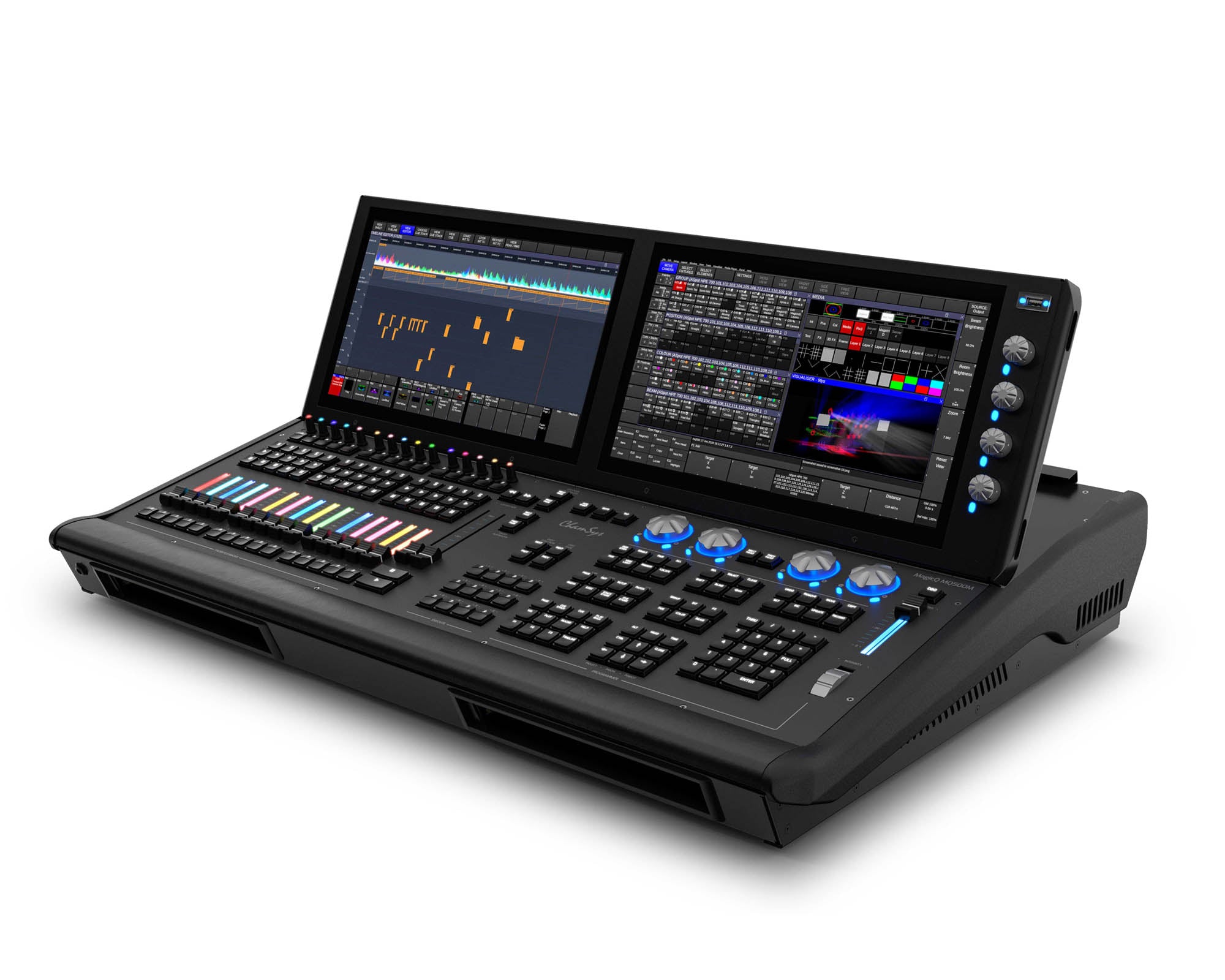

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 3

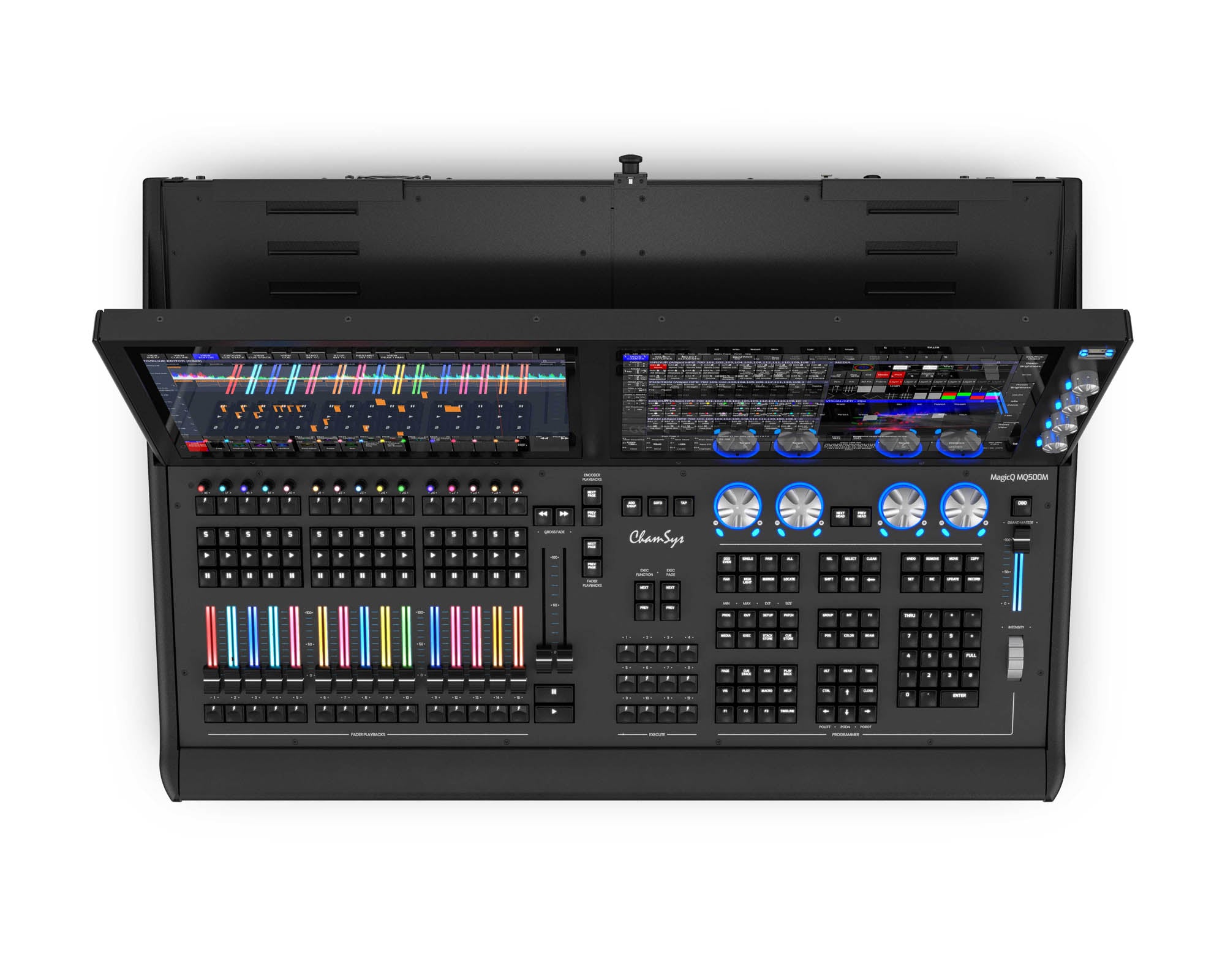

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 4

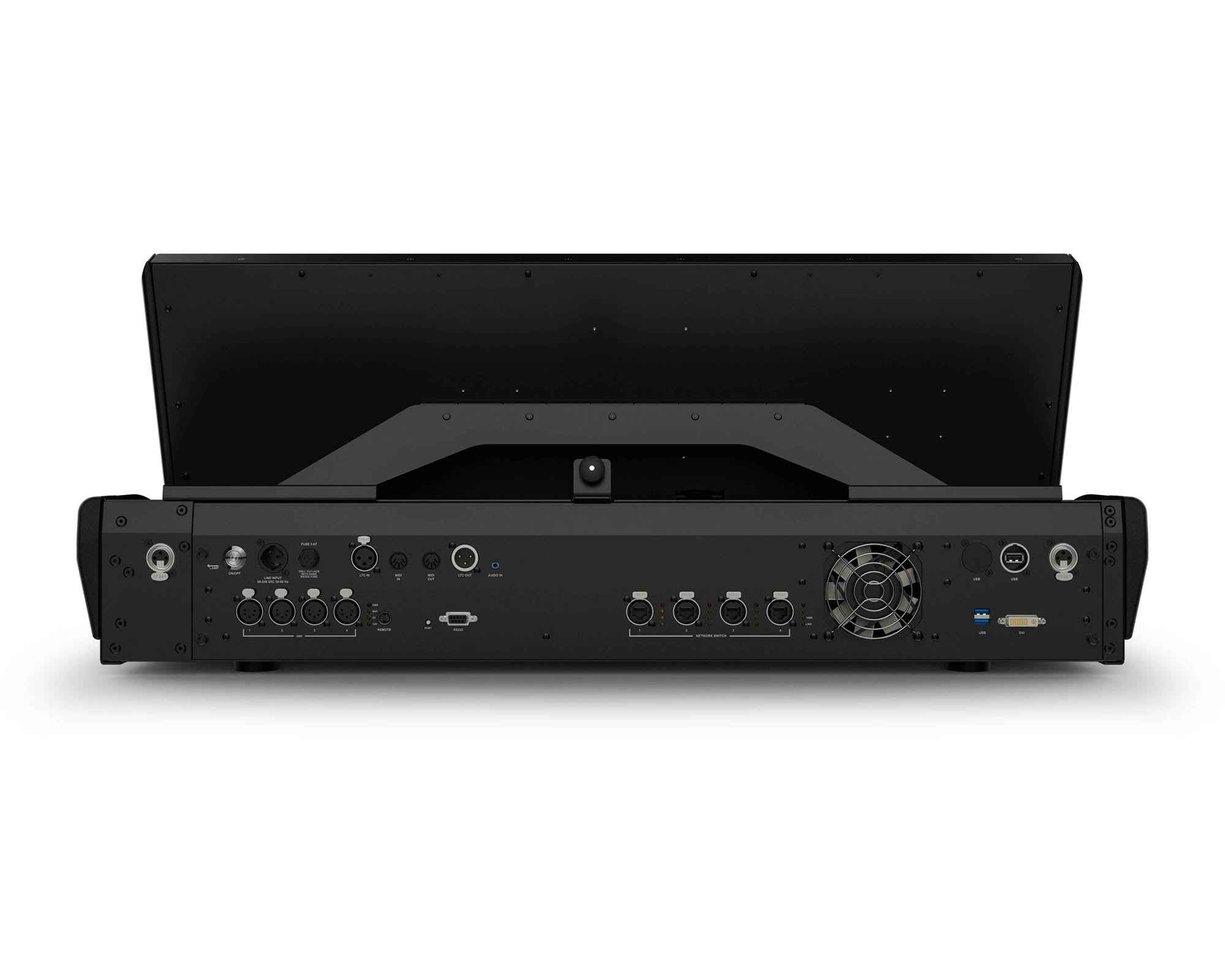

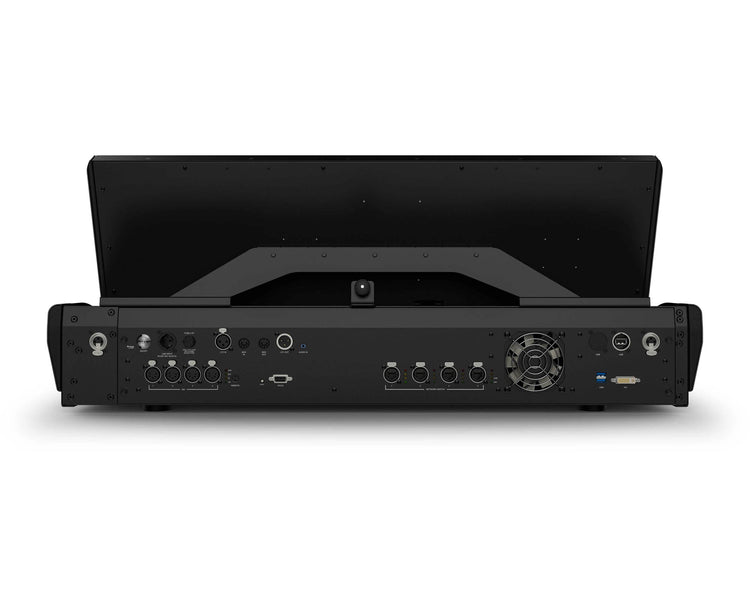

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 5

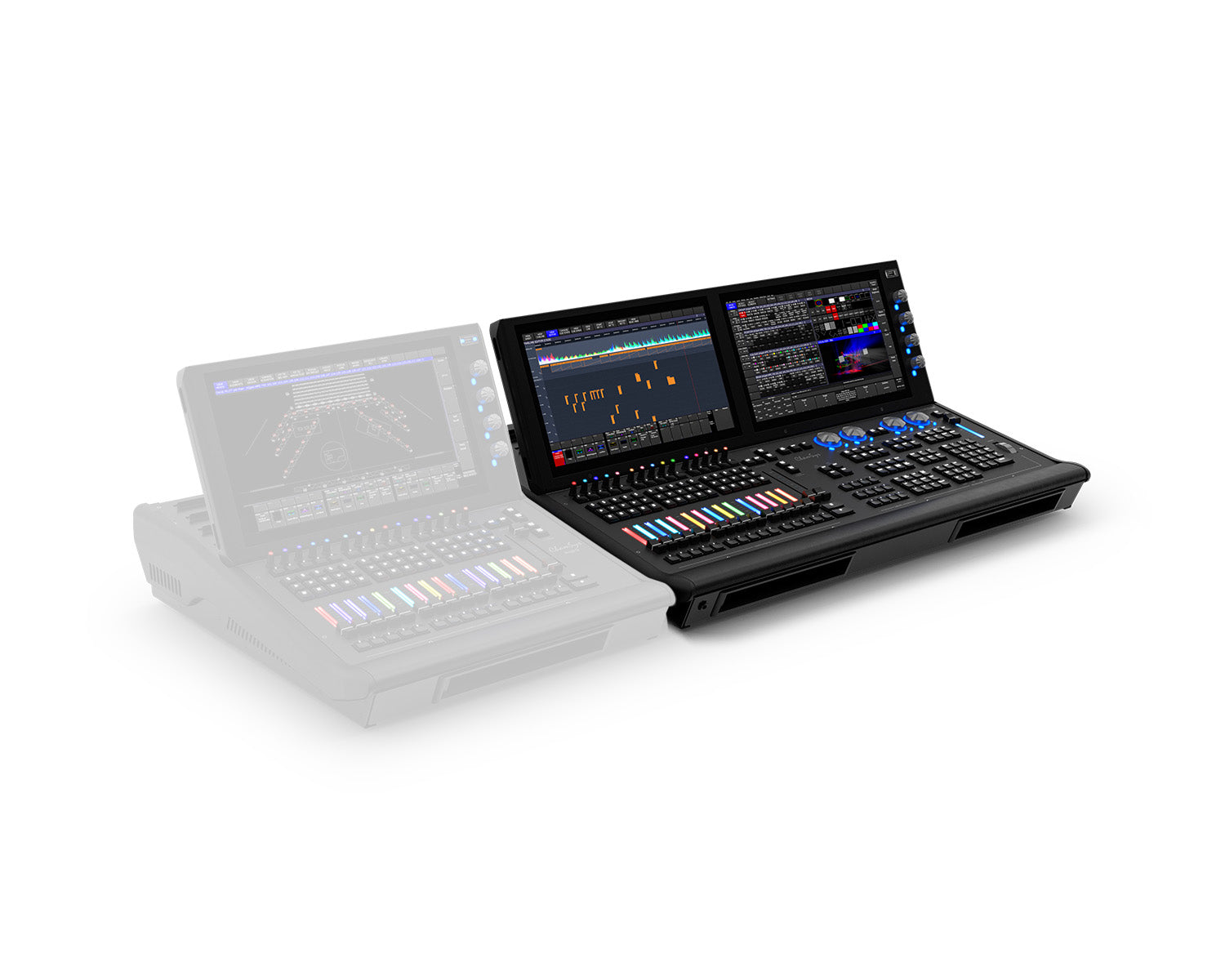

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 6

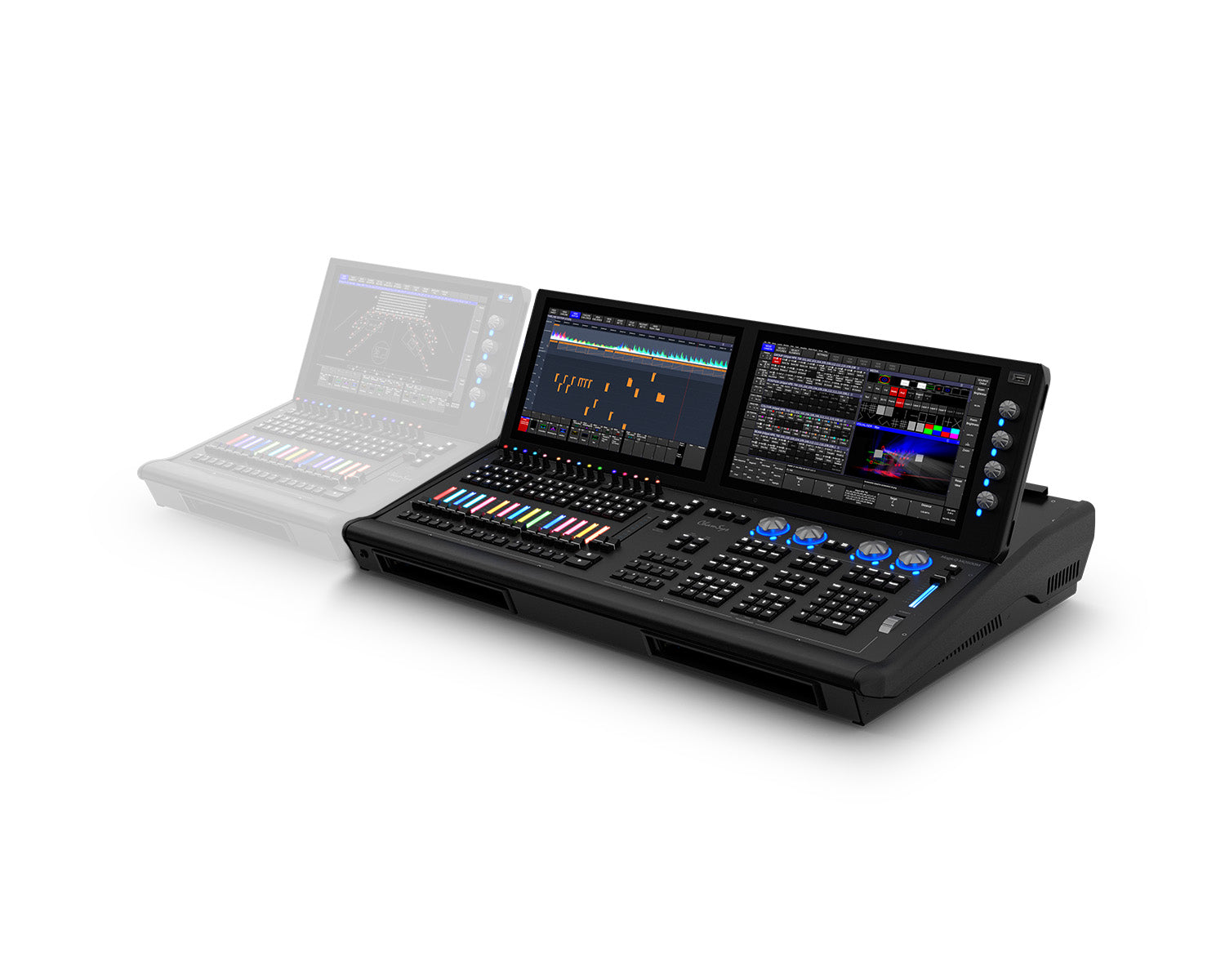

CHSMQ500M - ChamSys MagicQ MQ500M Stadium Lighting Console 256 Universe Image 7

MagicQ MQ500M Stadium offers the highest level of show control, supporting 256 universes directly from the console without need for external processors. RGB illuminated, fully motorised faders and encoders provide 42 playbacks, along with backlit keys for upgraded programming. Connect MagicQ MQ500M Wing for even greater control, 30 playbacks in total: 15 motorised faders and 15 encoder playbacks all with RGB illumination.

Product Features

256 universes direct from the console
15 fully motorised fader playbacks
15 encoder playback with RGB indicators
12 multi-purpose Macro/Executes/Playbacks keys
RGB illumination of playbacks
Backlit buttons
Dual Inbuilt 15" Multi HD touch displays
Up to 8 touch displays support (5 via remote network)
Dual motorised 100mm crossfaders ideal for Theatre
Inbuilt MagicVis Visualiser with full rendering of beams and gobos

Product Specifications

Hardware Specifications

Universes direct from the console (via Artnet/sACN/Pathport): 256
Direct DMX Outputs: 4
Motorised Playbacks: 15
Encoder Playbacks: 15
Macro/Execute/Playback Section keys: 12
Total no of Playbacks: 42 (15+15+12)
Dual Motorised Cross Faders: Yes
Attribute Encoders: 8
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 4
Inbuilt 15" HD Multi-Touch Displays: 2
External Monitor up to 1920x1200 Resolution - DVI-D Port: 1
USB Ports, including 2 High Power USBs: 6
Audio Input (1 channel, 7 band): Yes
Audio Output: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
Remote Input: Yes
Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
Front Storage Pockets: 2
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications

Max Number of DMX Channels: 131,072
Max Number of Fixtures Supported: 131,072
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Numbers of Shows: Virtually unlimited (500GB SSD)

Console Weights and Dimensions

Width: 860mm (33.8 inches)
Depth: 585mm (23 inches)
Height: 90mm high at front (3.5 inches), 175mm high at rear (screens stored) (6.9 inches)
Weight: 32kg (70.5 lb)
