The MAC Ultra Wash is a colossal return to everything that an incredible wash light should be. Pure and simple in concept, it’s a bold, no-nonsense workhorse and the brightest wash we’ve ever developed. Via it’s 1150 W, 6000 K proprietary LED light engine, the MAC Ultra Wash delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features incredibly fast 1:10 zoom range.
Its 50,000+ hour light engine is the latest in a long line of Martin feats of innovation. No matter what the application, you can reliably count on consistent quality of light and output - show after show for many years to come. The MAC Ultra Wash also includes a powerful feature set, including uniform colour mixing, variable CTO, additional colour and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing.
Ideal for touring, concerts, TV shows and performing arts, the MAC Ultra Wash supports the broader production market all the way up to the most demanding stage lighting events. Martin set the standard for managing the ratio of weight, size, and power and the MAC Ultra Wash surges ahead with even superior performance.
When it comes to delivering drop-dead wash light performance and workhorse reliability, nothing comes remotely close. MAC Ultra Wash exceeds the boundaries of design as an undeniable, class-leading fixture that sets a steep bar on wash light innovation.
Product Features
Light Source
- 1150 W proprietary LED light engine
- 84 x 20 W white LEDs
- Minimum LED lifetime: >50,000 hours (see specs for further details)
Photometric Data
- Light Engine Luminous Output: 90,000 lumens
- Fixture Luminous Output: 63,500 lumens
- Peak Luminous Intensity: 5,000,000 cd
- CCT: 6000 K (+/- 250 K)
Optics
- 220 mm Front Lens
- 1:7 zoom range (6.8° - 47.5° beam angle)
Dynamic Effects
- 0 - 100% continuous dimming and strobe effects
- Choice of four dimming curves
- CMY colour mixing
- Colour temperature control (6000 - 2850 K)
- Colour wheel with six interchangeable dichroic filters, including a Spectral Enhancement Filter
- 1:10 Zoom (hyper zoom); 1:7 Zoom (native zoom)
- Motorized frost
- Iris
- Variable edge control
- Pan: 540°
- Tilt: 268°
- P3 videomapping of fixture colour and/or intensity (10 segments)
- Pre-programmed effects: Two ranges of pre-programmed FX
Cooling and Noise
- Low noise cooling system
- User-selectable output vs. sound level control
Construction
- Height (head straight up): 848 mm (33.4 in.)
- Height (maximum): 867 mm (34.2 in.)
- Weight: 39.0 kg (86.0 lbs.)
Control
- DMX-512 in/out
- Ethercon in/out for P3, Art-Net, sACN
- Built in Ethernet switch with fail-safe bypass
Product Specifications
Dynamic Effects
- Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
- Colour mixing: CMY, independently variable 0 - 100%
- Colour wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random colour
- Iris: Variable 0 - 100%, pulse effects
- Frost: Motorized
- Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
- Colour temperature control: Variable 6000 - 2850 K
- Dimming options: Choice of four dimming curves
- Zoom: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 268°, coarse & fine control and speed
- P3: Videomapping of fixture colour and/or intensity with variable crossfade between DMX control and video control
- Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
- CONTROL AND PROGRAMMING
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol detection: Automatic
- DMX channels: 29
- Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
- DMX Modes: One
- 16-bit Controllable Parameters: Dimming, Colour Mixing + CTC, Zoom, Focus, Pan and Tilt
- Fixture Identification: User-settable ID number
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
- Local User Interface: Backlit LCD Display with battery-powered operation
Optics
- Front lens diameter: 220 mm
- Light source: 84 x 20 W White LEDs in a custom Martin engine
- Zoom Range Beam (half-peak): 6.8° - 47.5° (1:7)
- Zoom Range Field (tenth-peak): 9° - 62° (1:7)
- Maximum Total LED Engine Power: 1150 W
- Minimum LED Lifetime: >50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*
- *Figure obtained under manufacturer test conditions
Photometric Data
- Light engine luminous output: 90,000 lumens
- LED refresh rate : 3000 Hz
- Standard
- Fixture luminous output: 63,500 lumens
- CRI (Colour Rendering Index): 66 (+/- 3)
- TM-30 Rf (IES TM-30-15 Fidelity Index): 66
- TM-30 Rg (IES TM-30-15 Gamut Index): 95
- CCT: 6000 K (+/- 250 K)
- Peak Luminous Intensity: 5,000,000 cd
- With Spectral Enhancement Filter at 5300 K
- Fixture luminous output: 49,000 lumens
- CRI (Colour Rendering Index): 78 (+/- 3)
- With CTO and Cyan at 3200 K
- Fixture luminous output: 19,500 lumens
- CRI (Colour Rendering Index): 90 (+/- 3)
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP20
- INSTALLATION
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) centre-to-centre omega brackets
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)

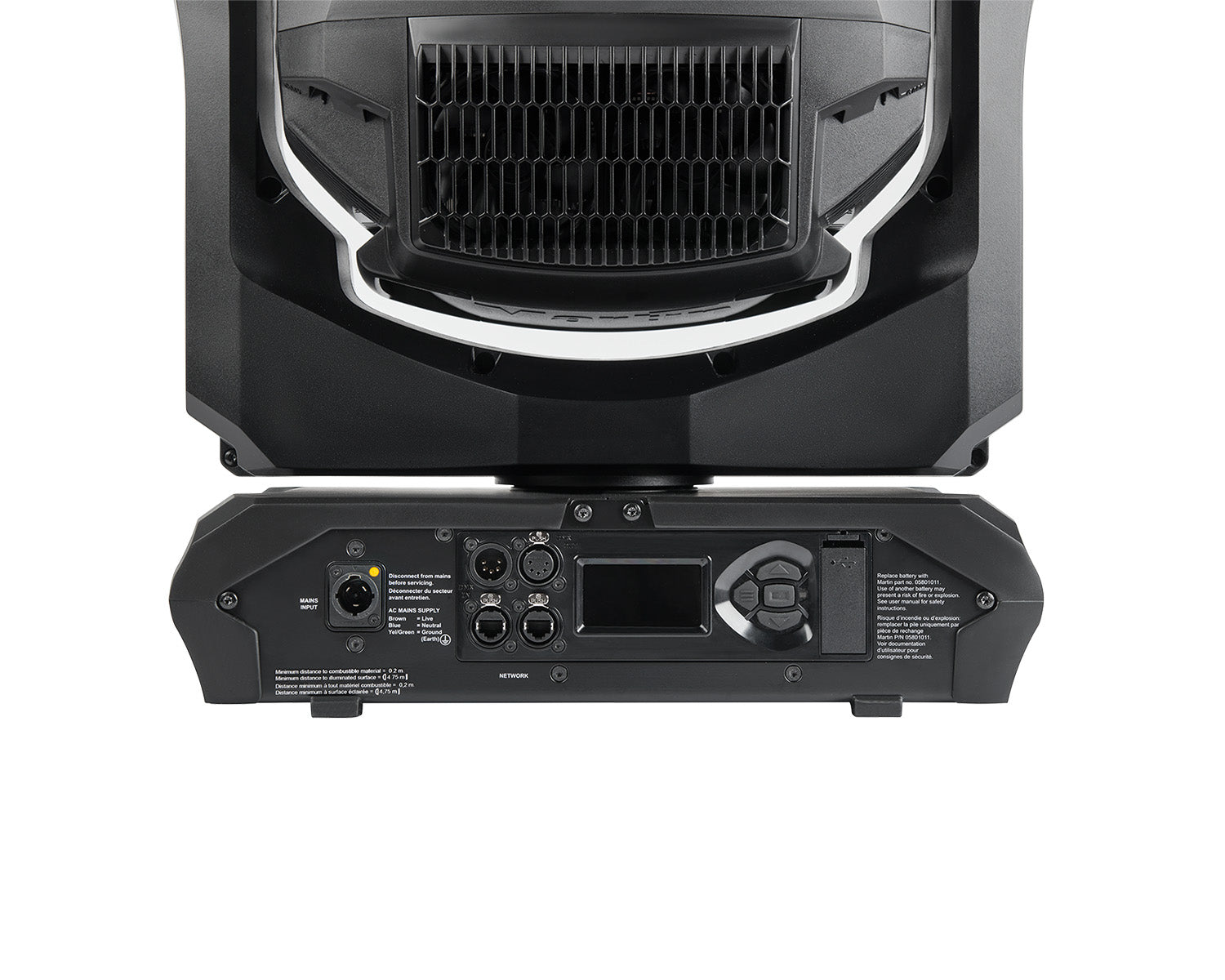

Connections
- DMX and RDM data in/out: 5-pin locking XLR
- AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
- Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON
- Firmware from flash memory: USB 2.0 port
- Electrical
- AC power: 200-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 1450 W
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
- Maximum total current at 200 V: 8.0 A
- Maximum total current at 240 V: 6.7 A
- Power consumption, all effects static, zero light output: 100 W
Typical Power and Current
- 208 V, 60 Hz: 6.6 A, 1360 W, PF 0.99
- 230 V, 50 Hz: 6.0 A, 1350 W, PF 0.99
- 240 V, 50 Hz: 5.7 A, 1350 W, PF 0.99
- Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- PF = power factor.
Thermal
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 5° C
- Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F)
- Total heat dissipation (calculated, +/- 10%): 4950 BTU/hr.
Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.6 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.5 db(A)
Physical
- Weight: 39.0 kg (86.0 lbs.)
- Minimum centre-to-centre distance in side-by-side installation: 810 mm (31.9 in.)
- Length (head): 642 mm (25.3 in.)
- Length (base): 468 mm (15.5 in.)
- Width (base): 312 mm (12.3 in.)
- Width (across yoke): 520 mm (20.5 in.)
- Height (head straight up): 848 mm (33.4 in.)
- Height (maximum): 867 mm (34.2 in.)
what's in the Box?
- Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
- Safety and Installation Manual
