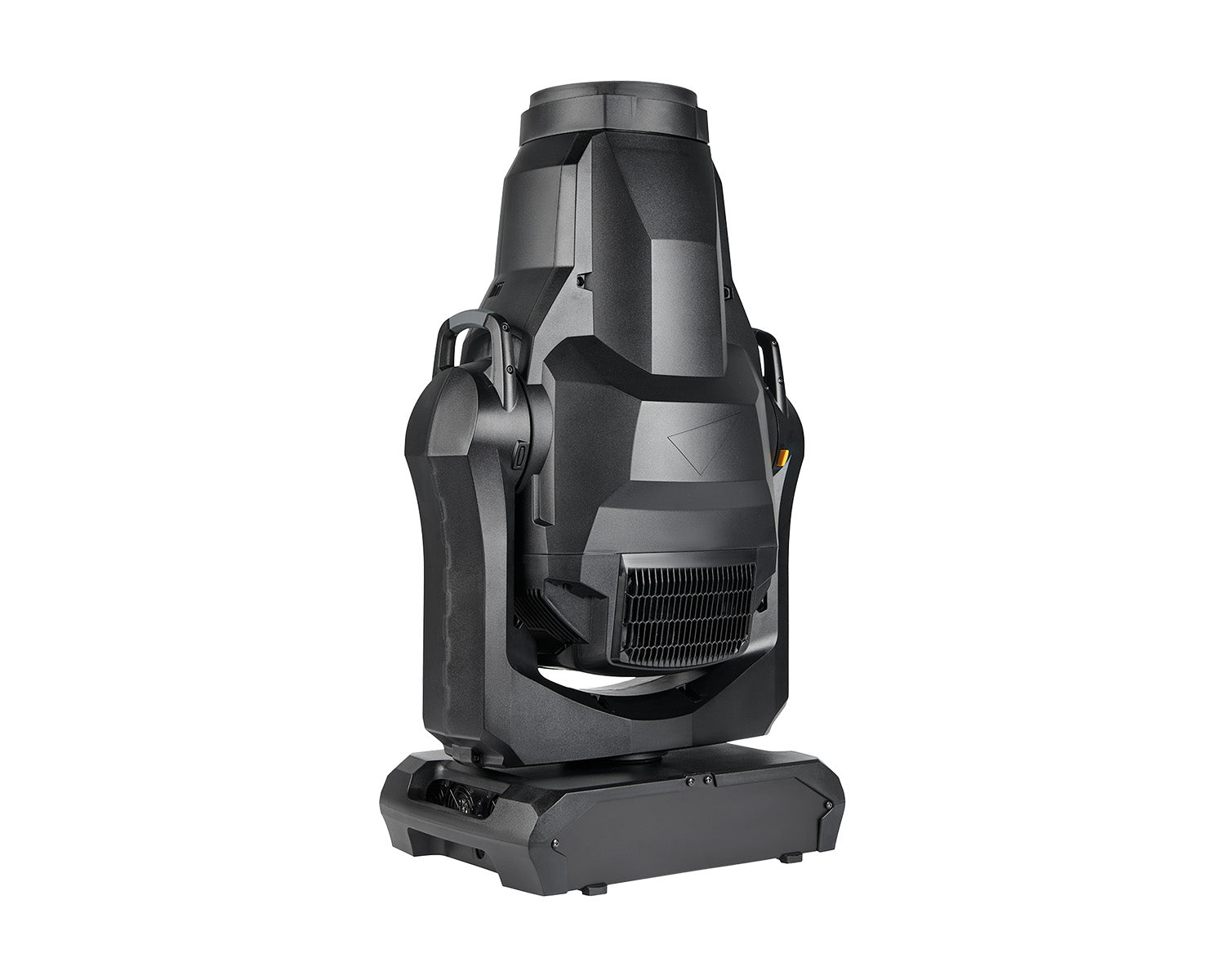

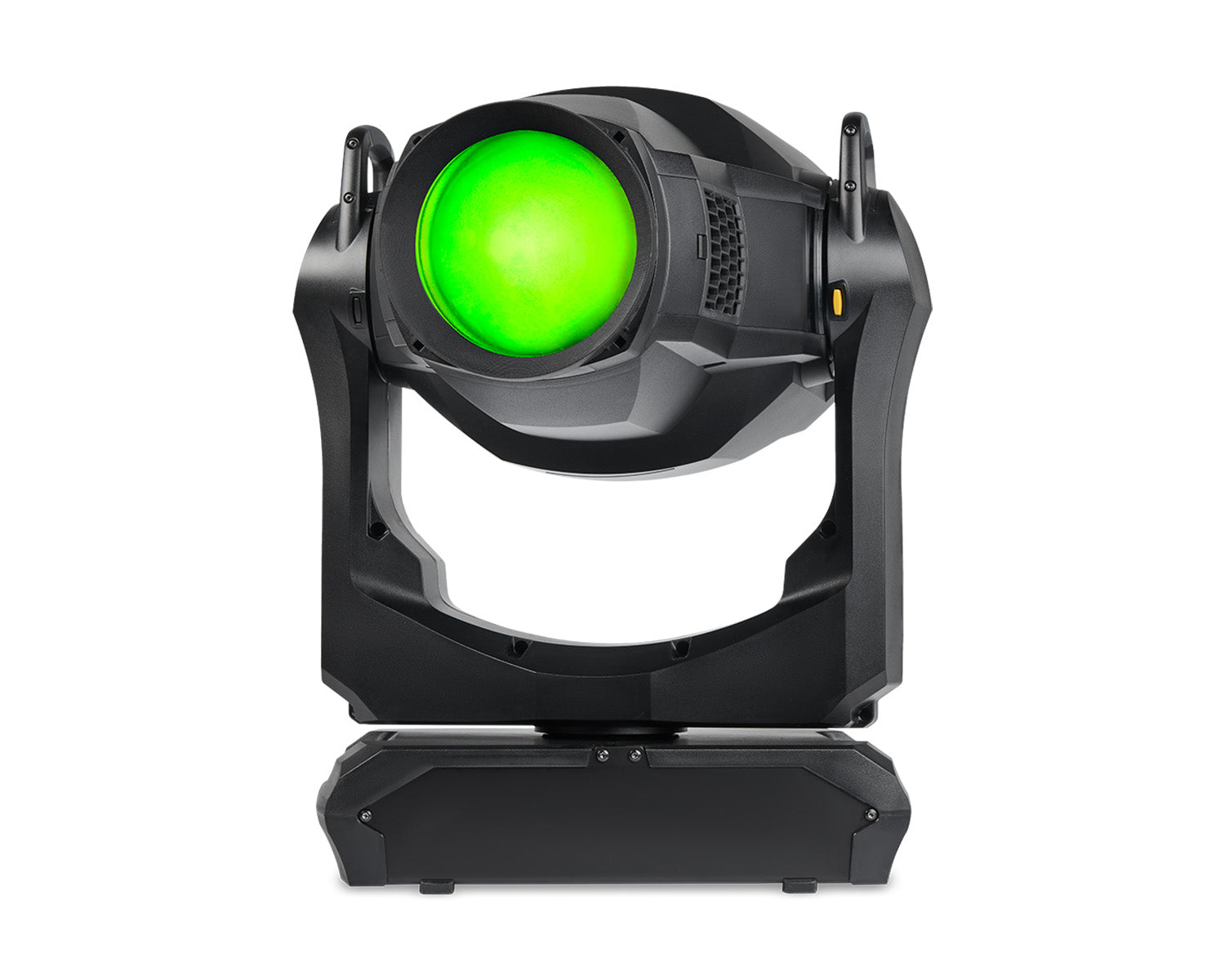

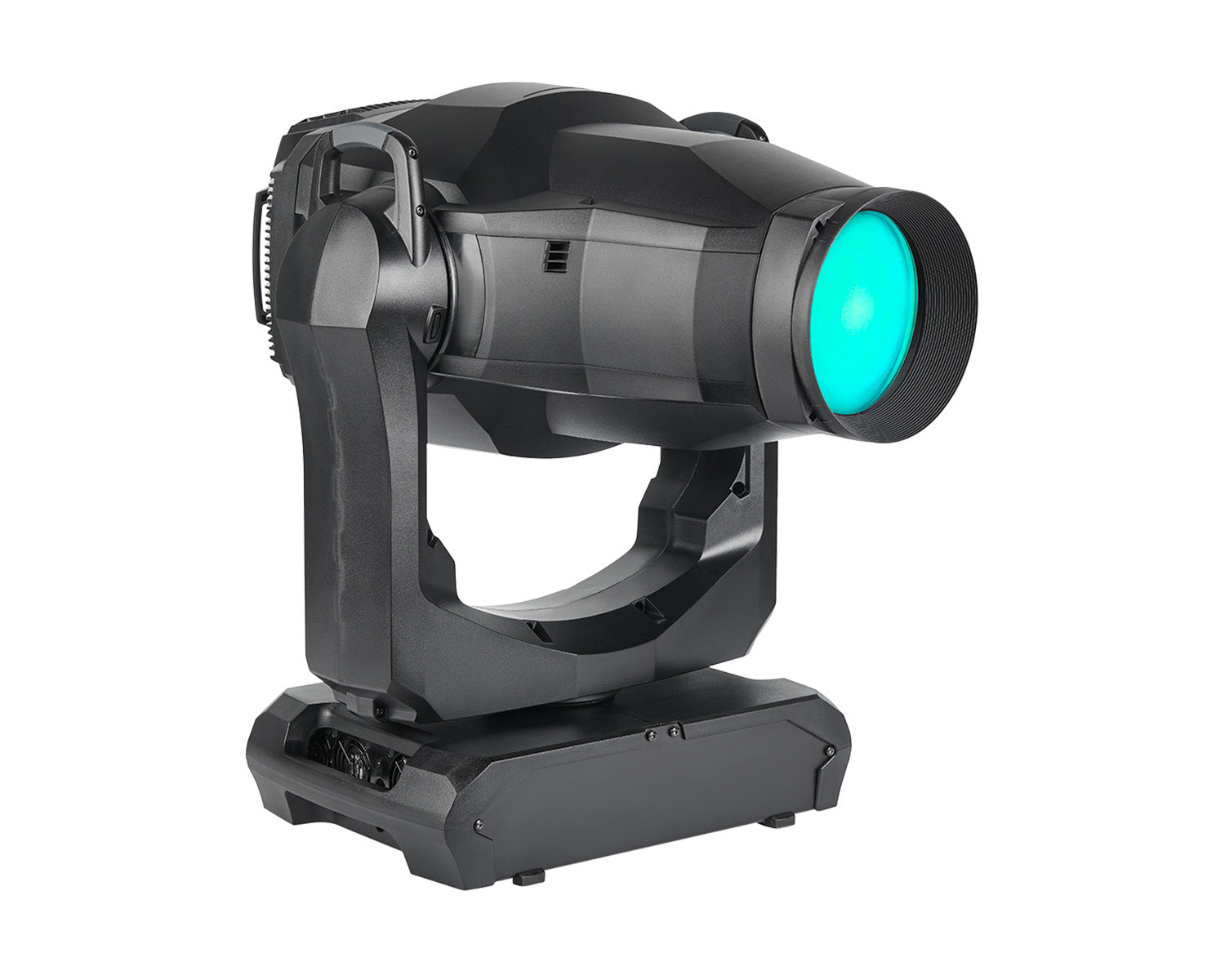

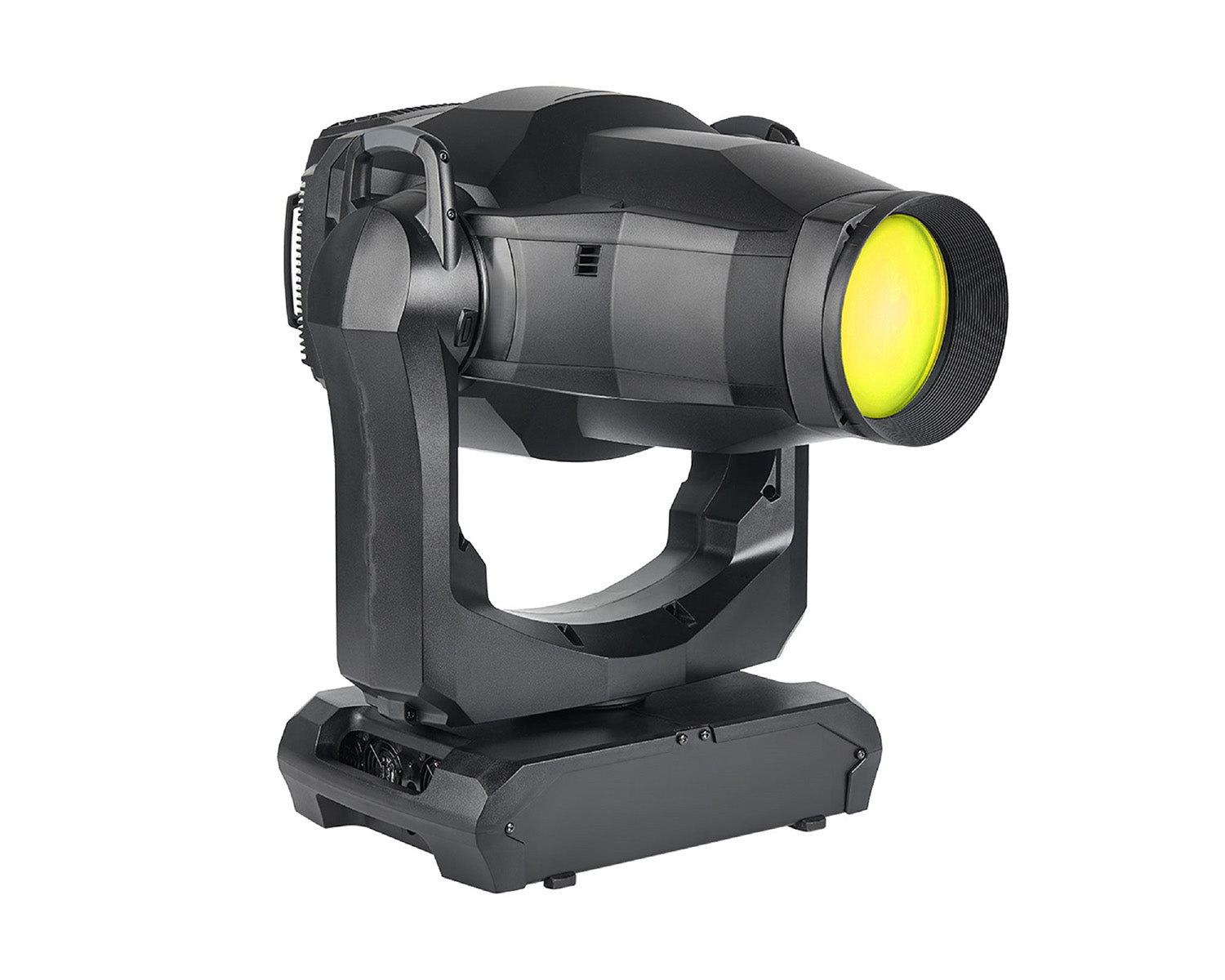

The MAC Ultra Performance has raised the bar for extremely bright moving lights and features benchmark output across the zoom range, a true next generation framing system, higher definition optics and astoundingly low noise levels.
Built to support the biggest live events, this powerful workhorse is based on our all new 1150 W, 6000 K proprietary LED light engine and the fixture pushes an incredible 46,500 lumens in projection. The 50,000+ hour light engine also provides high resolution dimming, strobing and Martin’s unique Animotion™ effect.

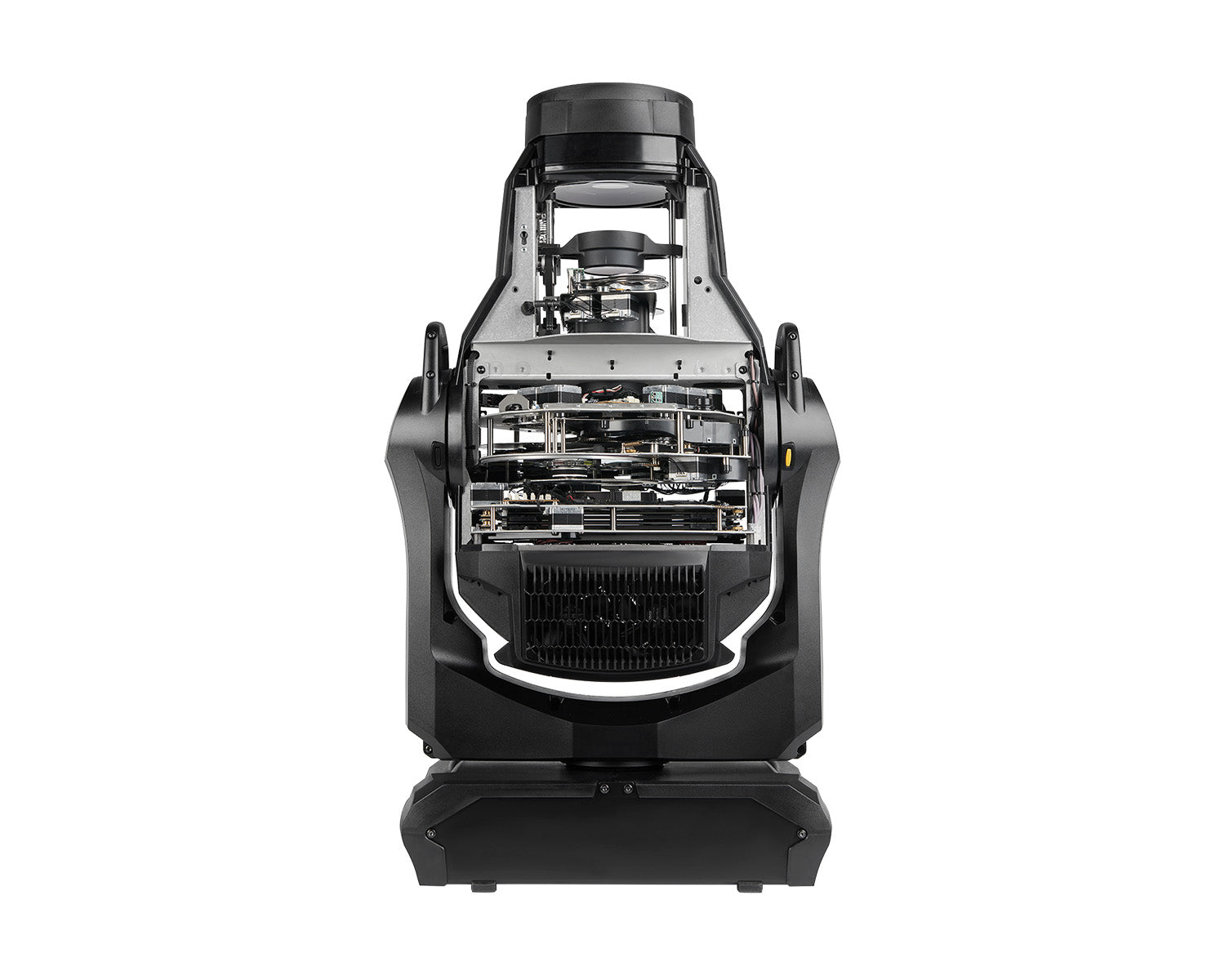

A 1:7 zoom-range and precision focus-control is provided from the refined optical system. The extensive feature package includes uniform colour mixing, variable CTO, additional colour and spectral correction filters, Martin’s innovative Extended Framing system, two layers of rotating gobos, full function animation wheel, iris, frost and prism effects, and truly responsive and accurate pan and tilt. And, these features are all packed into a compact, sturdy and legendary Martin design.
The MAC Ultra Performance is perfect for a wide range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theatre stage lighting applications. Simply put, when it comes to workhorse fixtures that push the boundaries of output and performance execution, the MAC Ultra Performance stands boldly in a class all its own.
Product Features
Light Source
- 1150 W proprietary LED light engine
- 84 x 20 W white LEDs
- Minimum LED lifetime: >50,000 hours (see specs for further details)
Photometric Data
- Light Engine Luminous Output: 90,000 lumens
- Fixture Luminous Output: 46,500 lumens
- Peak Luminous Intensity: 3,000,000 cd
- CCT: 5800 K (+/- 250 K)
Optics
- 160 mm front Lens
- 1:7 zoom range (8.0° - 54° field angle)
- High resolution projection system
Dynamic Effects
- 0 - 100% continuous dimming and strobe effects
- Choice of four dimming curves
- CMY colour mixing
- Colour temperature control (5800 - 2850 K)
- Colour wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
- Rotating gobo wheel 1 includes 5 interchangeable gobos + open
- Rotating gobo wheel 2 includes 5 interchangeable gobos + open
- Gobo animation wheel, indexing, continuous rotation with variable angle
- Frost (fade in)
- 4-facet prism
- Iris
- Zoom
- Focus with auto tracking
- Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
- Pan: 540°
- Tilt: 268°
- P3 videomapping of fixture colour and/or intensity (10 segments)
- Pre-programmed effects: Two ranges of pre-programmed FX
Cooling and Noise
- Low noise cooling system
- User-selectable output vs. sound level control
Construction
- Height (head straight up): 864 mm (34.1 in.)
- Height (maximum): 876 mm (34.5 in.)
- Weight: 44.0 kg (97.0 lbs.)
Control
- DMX-512 in/out
- Ethercon in/out for P3, Art-Net, sACN
- Built in Ethernet switch with fail-safe bypass
Product Specifications
Dynamic Effects
- Pre-programmed effects: Two ranges of FX, independent or synchronised/combined
- Colour mixing: CMY, independently variable 0 - 100%
- Colour wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random colour
- Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
- Iris: Variable 0 - 100%, pulse effects
- Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
- Prism: 4-facet, indexing and continuous rotation
- Frost: Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism
- Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
- Colour temperature control: Variable 5800 - 2850 K
- Dimming options: Choice of four dimming curves
- Zoom: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 268°, coarse & fine control and speed
- P3: Videomapping of fixture colour and/or intensity with variable crossfade between DMX control and video control
- Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
- Rotating gobo wheel 1: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
- Rotating gobo wheel 2: 5 x interchangeable gobos + open, indexing, continuous rotation and shake
- Gobo Color Temperature Correction: Automatic
Control and Programming
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol detection: Automatic
- DMX channels: Standard 48, Extended 58
- Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
- DMX Modes: Two
- 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Gobo Rotation/Indexing, Framing, Iris, Zoom, Focus, Pan and Tilt
- Fixture Identification: User-settable ID number
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
- Local User Interface: Backlit LCD Display with battery-powered operation
Optics
- Front lens diameter: 160 mm
- Zoom range: 8.0° - 54° (1:7 field angle)
- Light source: 84 x 20 W White LEDs in a custom Martin engine
- Minimum LED lifetime: >50,000 hours (to >80% luminous output)/ >20,000 hours (to >90% luminous output)*
- Maximum Total LED Engine Power: 1150 W
- *Figure obtained under manufacturer test conditions
Photometric Data
- Light engine luminous output: 90,000 lumens
- LED refresh rate : 3000 Hz
- Standard
- Fixture luminous output: 46,500 lumens
- CRI (Color Rendering Index): 66 (+/- 3)
- TM-30 Rf (IES TM-30-15 Fidelity Index): 66
- TM-30 Rg (IES TM-30-15 Gamut Index): 95
- CCT: 5800 K (+/- 250 K)
- Peak Luminous Intensity: 3,000,000 cd
- With Spectral Enhancement Filter at 5300 K
- Fixture luminous output: 23,500 lumens
- CRI (Color Rendering Index): 83 (+/- 3)
- With CTO and Cyan at 3200 K
- Fixture luminous output: 12,000 lumens
- CRI (Color Rendering Index): 90 (+/- 3)
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP20
Gobos
- Maximum image diameter: 30 mm (1.181 in.)
- External diameter: 37.5 mm +0 / -0.2 mm (1.476 in. +0 / -0.008 in.)
- Maximum gobo thickness: 1.1 mm (0.04 in.)
- Coating: Heavy matted aluminium
- Material: Borofloat 33
Installation
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) centre-to-centre omega brackets
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)

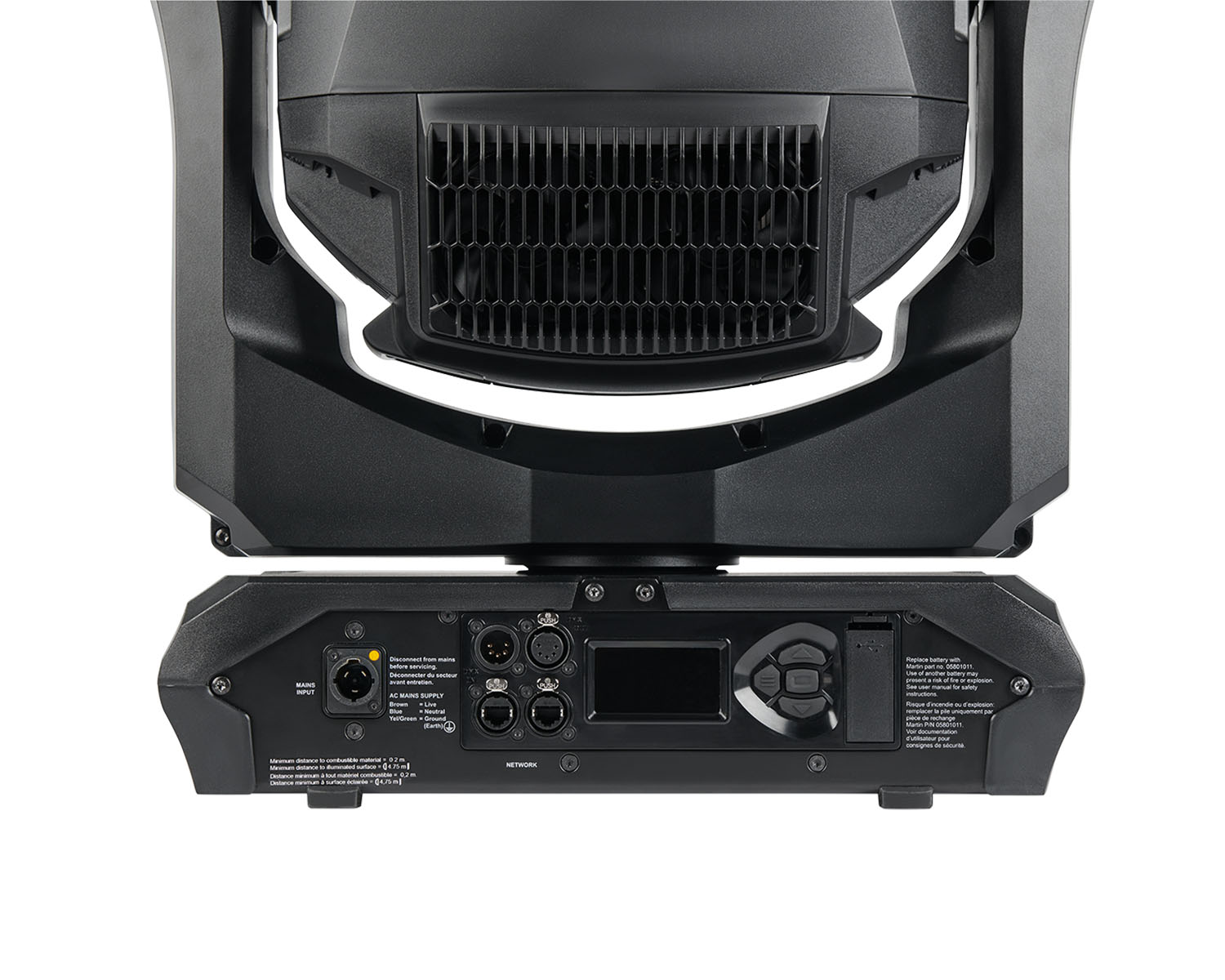

Connections
- DMX and RDM data in/out: 5-pin locking XLR
- AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
- Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON
- Firmware from flash memory: USB 2.0 port
Electrical
- AC power: 200-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 1450 W
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
- Maximum total current at 200 V: 8.0 A
- Maximum total current at 240 V: 6.7 A
- Power consumption, all effects static, zero light output: 100 W
- TYPICAL POWER AND CURRENT
- 208 V, 60 Hz: 6.8 A, 1380 W, PF 0.99
- 230 V, 50 Hz: 6.0 A, 1380 W, PF 0.99
- 240 V, 50 Hz: 5.8 A, 1380 W, PF 0.99
- Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- PF = power factor.

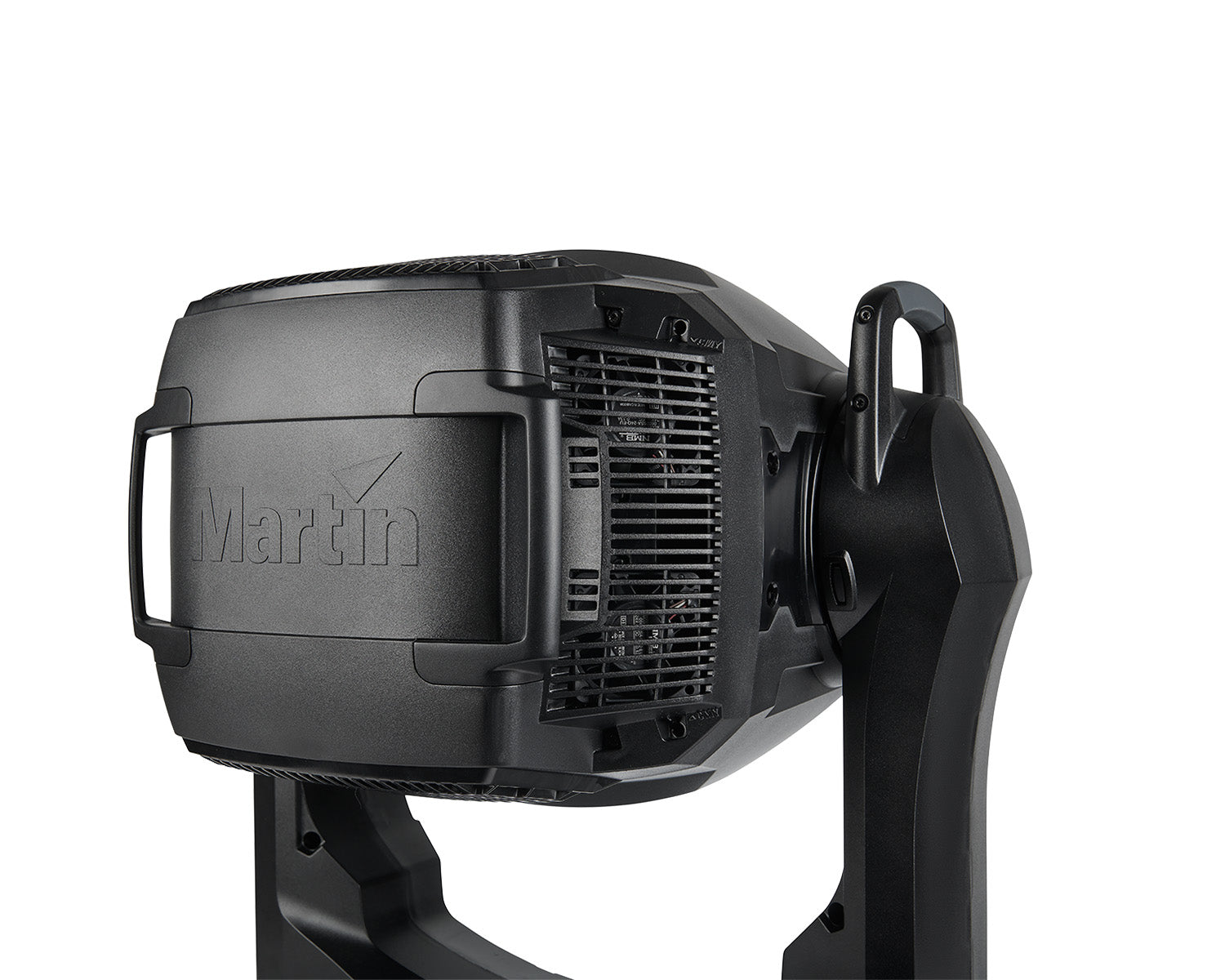

Thermal
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 5° C
- Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F)
- Total heat dissipation (calculated, +/- 10%): 4950 BTU/hr.
Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 36.5 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 35.1 dB(A)
Physical
- Weight: 44.0 kg (97.0 lbs.)
- Minimum centre-to-centre distance in side-by-side installation: 830 mm (32.7 in.)
- Length (head): 660 mm (26.0 in.)
- Length (base): 468 mm (15.5 in.)
- Width (base): 312 mm (12.3 in.)
- Width (across yoke): 520 mm (20.5 in.)
- Height (head straight up): 864 mm (34.1 in.)
- Height (maximum): 876 mm (34.5 in.)
\n
what's in the Box?
- Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
- Safety and Installation Manual
- Heavy-frost/wash filter (prism replacement): P/N MAR-91614060HU
