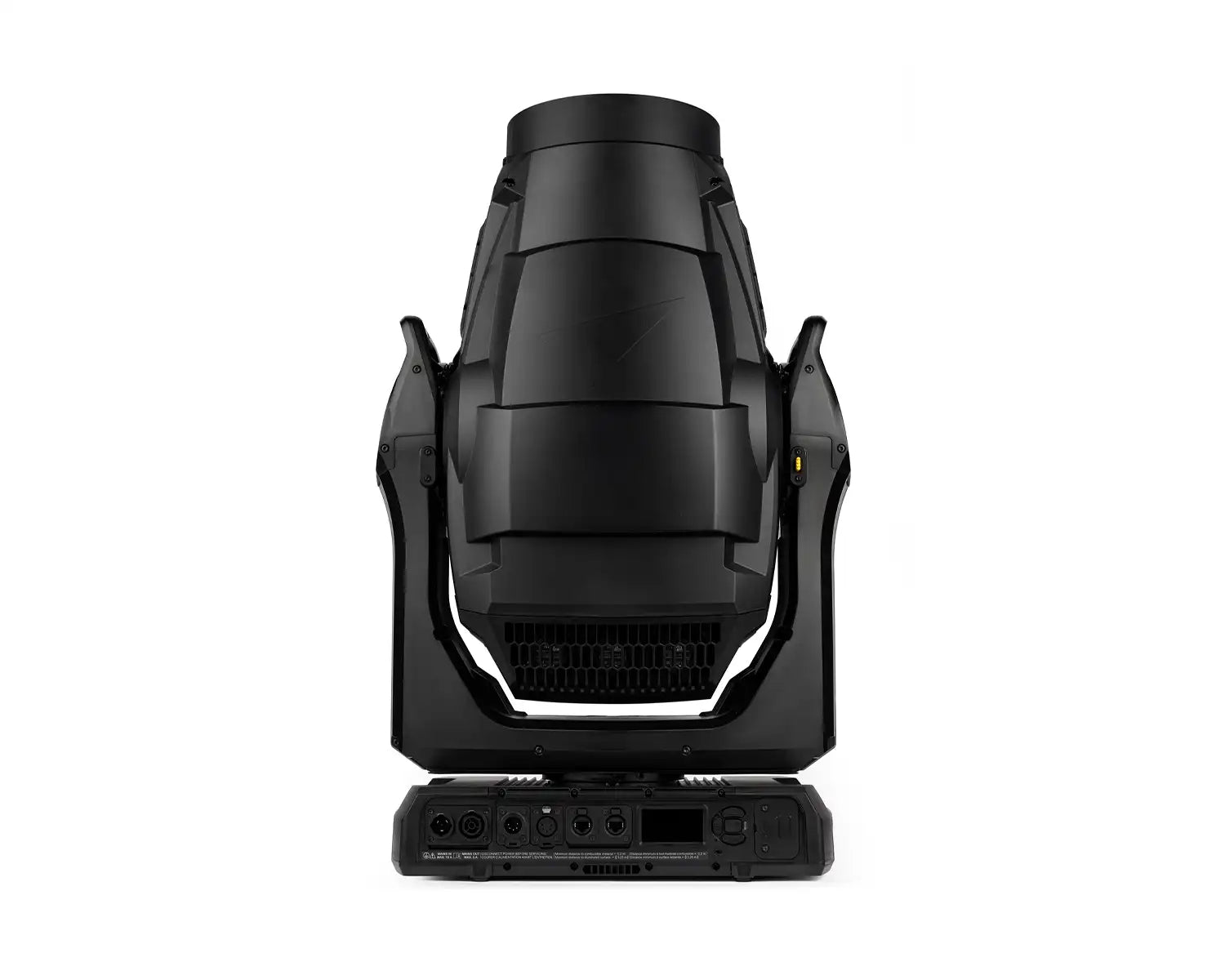

MAC Encore Two from Martin Professional redefines performance lighting for contemporary stage, broadcast, and touring environments. More than just a fixture, it’s a storyteller—breathing life into every scene, gesture, and emotion. Whether illuminating the subtle contours of a performer’s face or painting a set with true to life colour, MAC Encore Two captures skin tones and scenic detail with breathtaking realism, making it an essential fixture when every nuance matters.
As a single, fully featured evolution of the Martin MAC Encore lineup, MAC Encore Two maximises ROI and streamlines inventory management for installed and rental applications alike. It features a proprietary 760 W LED white light engine, producing 21,000 lumens—a 75% increase over its predecessor. This translates to advanced optical performance and a beautifully rich 5,600 K neutral white output.
Despite its remarkable output, MAC Encore Two is quieter than MAC Encore, making it ideal for noise-sensitive theatre, broadcast, and corporate environments. Selectable output levels with noise optimisation ensure performance can be tailored to demanding acoustic conditions.
Native CRI, TM-30, and TLCI of 90 (boosted to 95 with Spectrum Enhancement Filter)—MAC Encore Two’s enhanced CMY system produces saturated colours with superior depth, especially in amber and yellow, while maintaining pure white on the blackbody curve.
The 1:10 zoom system (5°–54°) and 150 mm front lens deliver up to six times the intensity of MAC Encore at its narrowest beam, making MAC Encore Two a perfect choice for long throw applications. High lumen maintenance, razor sharp optics, and precise gobo framing ensure consistent, high definition projection.
MAC Encore Two includes two gobo wheels (7 rotating and 11 static) plus a dual frost system available throughout the zoom range. Highly responsive and smooth pan/tilt movement and high resolution, low level dimming make it ideal as a key light or automated followspot. Despite its expanded capabilities, MAC Encore Two’s 36 kg footprint integrates easily into existing rigs, offering a best in class weight to size to output ratio. An array of control options includes DMX, Art-Net, sACN, and Martin P3.
Whether the moment calls for powerful lumen output, precision colour rendering, or whisper quiet operation, MAC Encore Two doesn’t just light the stage—it elevates the story, helping creators shape atmosphere, emotion, and unforgettable experiences.
Product Features

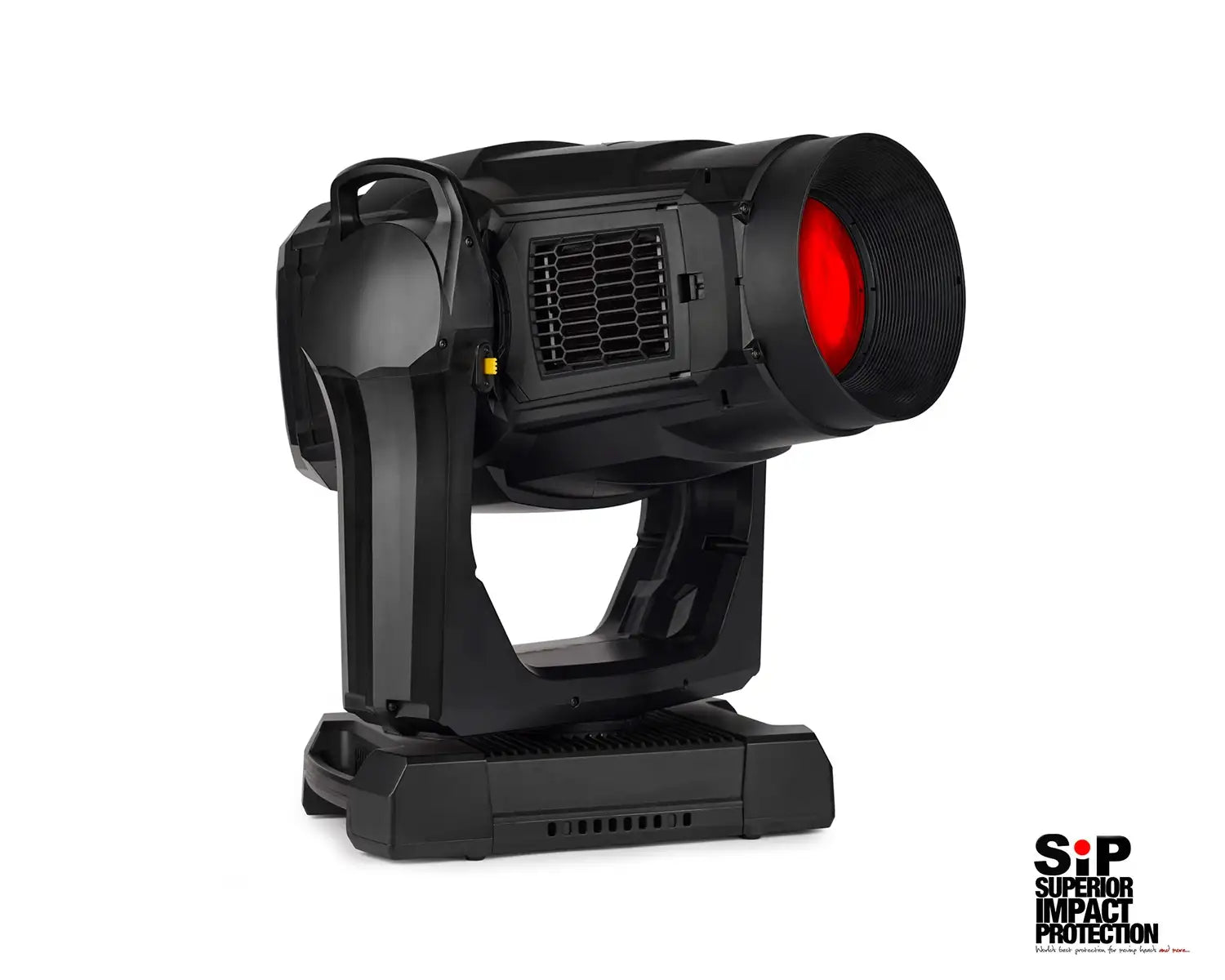

- Includes SiP flightcase insert
- 21,000 Lumen Output at 5,600 K
- Proprietary 760 W LED White Light Engine
- Native CRI, TM-30, and TLCI of 90 (boosted to 95 with Spectrum Enhancement Filter)
- Broad Colour Spectrum with Enhanced CMY Colour Mixing
- 5°–54° Zoom Range with 150 mm Front Lens
- High Lumen Maintenance Across Zoom Range (60% at Narrow)
- Precision Optics with Sharp Gobo Framing
- Two Gobo Wheels (7 Rotating, 11 Static)
- Dual Frost System with Heavy Frost Across Entire Zoom Range
- High Resolution Low Level Dimming (Tungsten Smooth)
- Pure White Output on Blackbody Curve
- Light Recycling Technology for ~25% Output Boost with Gobos
- Highly-responsive and Smooth Pan/Tilt, CMY, and Zoom
- Low Noise Operation with Selectable Output/Noise Modes
- Best in Class Weight to Size to Output Ratio (36 kg)
- DMX, Art-Net, sACN, and Martin P3 Control
Product Specifications
Dynamic Effects
- Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
- Dimming options: Choice of four dimming curves
- Colour Mixing: CMY, independently variable 0 - 100%
- Physical Colour Temperature Control: Variable 5,600 – 2,600 K
- Virtual Colour Temperature Control: Variable 2,000 – 12,850 K
- Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
- Colour Wheel: 5 dichroic filters (incl. Spectral Enhancement Filter) + open, indexing, shake, continuous wheel rotation & random colour
- Rotating Gobo Wheel: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
- Static Gobo Wheel: 11 gobos + open, indexing, shake, continuous wheel rotation & random gobo
- Gobo Colour Temperature Correction: Automatic
- Animation Wheel: Interchangeable animation wheel, indexing, shake, bounce, continuous rotation & variable wheel insertion angle
- Light Frost: Variable 0 - 100%
- Heavy Frost: Variable 0 - 100%
- Prism: 4 Facet, indexing, shake & continuous rotation
- Iris: Variable 0 - 100%, opening and closing pulse effects
- Zoom: Motorised with 1:10 zoom ratio
- Focus: Motorised, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity, including focus tracking
- Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
- Pan: Motorised 540°
- Tilt: Motorised 268°
- P3 Mix: Videomapping of fixture colour and/or intensity with variable crossfade between
- DMX control and video control
- PixelMapping: Individual control of each of the 6 LED Segments
- Pre-programmed effects: Two ranges of FX, independent or synchronised/combined
- LED Frequency control: Variable LED PWM control
Control and Programming
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
- Protocol Detection: Automatic
- DMX Modes: Basic, Extended & Ludicrous
- DMX Channels: 52, 62 & 68
- Multi-Universe Overflow: Yes, in all DMX Modes
- 16-bit Controllable Parameters: Dimming, Colour Mixing, CTO, Gobo Indexing and Rotation, Animation Wheel Indexing and Rotation, Prism Indexing and Rotation, Iris, Zoom,
- Focus, Framing Insertion and Angle, Framing Rotation, Pan and Tilt
- Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
- Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
- Fixture identification: User-settable ID number
- DMX Compliance: USITT DMX512-A
- RDM Compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2018
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- DMX/RDM Daisy-Chain Limit: 32 fixtures
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
- Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics

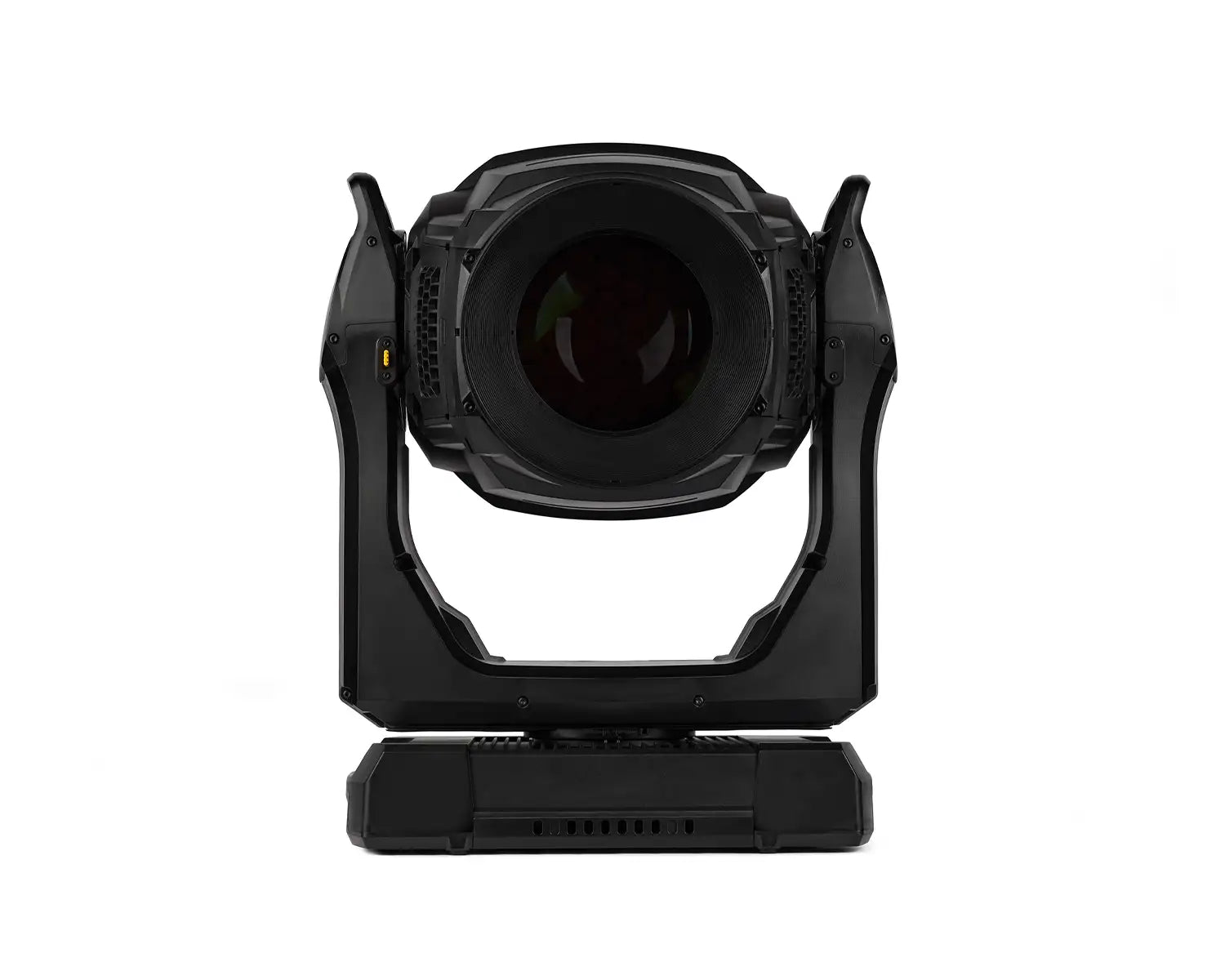

- Front Lens Diameter: 150 mm (5.9 in.)
- Zoom Range: 1:10
- Full Zoom Range at Tenth Peak (Field Angle): 5.7° - 54.0°
- Light Source: 55 x 18 W High Light Quality White LED in a custom Martin engine
- Max. Total LED Engine Power: 760 W
- Minimum LED lifetime: > 50.000 hours (to > 80% luminous output) / > 20.000 hours (to > 90% luminous output)
Photometric Data
- Light Engine Luminous Output: 57,000 lumens
-
Without Spectral Enhancement Filter
- Fixture Luminous Output Wide: 21,000 lumens
- Peak Luminous Intensity Narrow: 2,000,000 cd
- CCT: 5,600 K (+/- 300 K)
- CRI (Colour Rendering Index): 90 (+/- 3)
- CQS (Colour Quality Scale): 88 (+/- 3)
- TM-30 Rf (IES TM-30-15 Fidelity Index): 90 (+/- 3)
- TM-30 Rg (IES TM-30-15 Gamut Index): 100 (+/- 3)
- TLCI (Television Lighting Consistency Index): 90 (+/- 3)
-
With Spectral Enhancement Filter
- Fixture Luminous Output Wide: 13,600 lumens
- Peak Luminous Intensity Narrow: 1,300,000 cd
- CCT: 5,600 K (+/- 300 K)
- CRI (Colour Rendering Index): 95 (+/- 3)
- CQS (Colour Quality Scale): 91 (+/- 3)
- TM-30 Rf (IES TM-30-15 Fidelity Index): 95 (+/- 3)
- TM-30 Rg (IES TM-30-15 Gamut Index): 100 (+/- 3)
- TLCI (Television Lighting Consistency Index): 95 (+/- 3)
- LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and Hybrid mode (DMX controllable)
- Binning: Tight colour and flux binning
- Calibration: Full Gamut Colour Calibration
- Colour Modes: Direct Colour Mode, Extended Gamut Mode and Calibrated Colour Mode
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
- * All Photometric Data measured at 5,600 K white
Construction
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP20
Gobos
- Maximum image diameter: 22 mm (0.866 in.)
- External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ - in.)
- Maximum gobo thickness: 1.1 mm (0.04 in.)
- Coating: Heavy matted aluminium
- Material: Borofloat 33
Installation
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) centre-to-centre omega brackets
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)

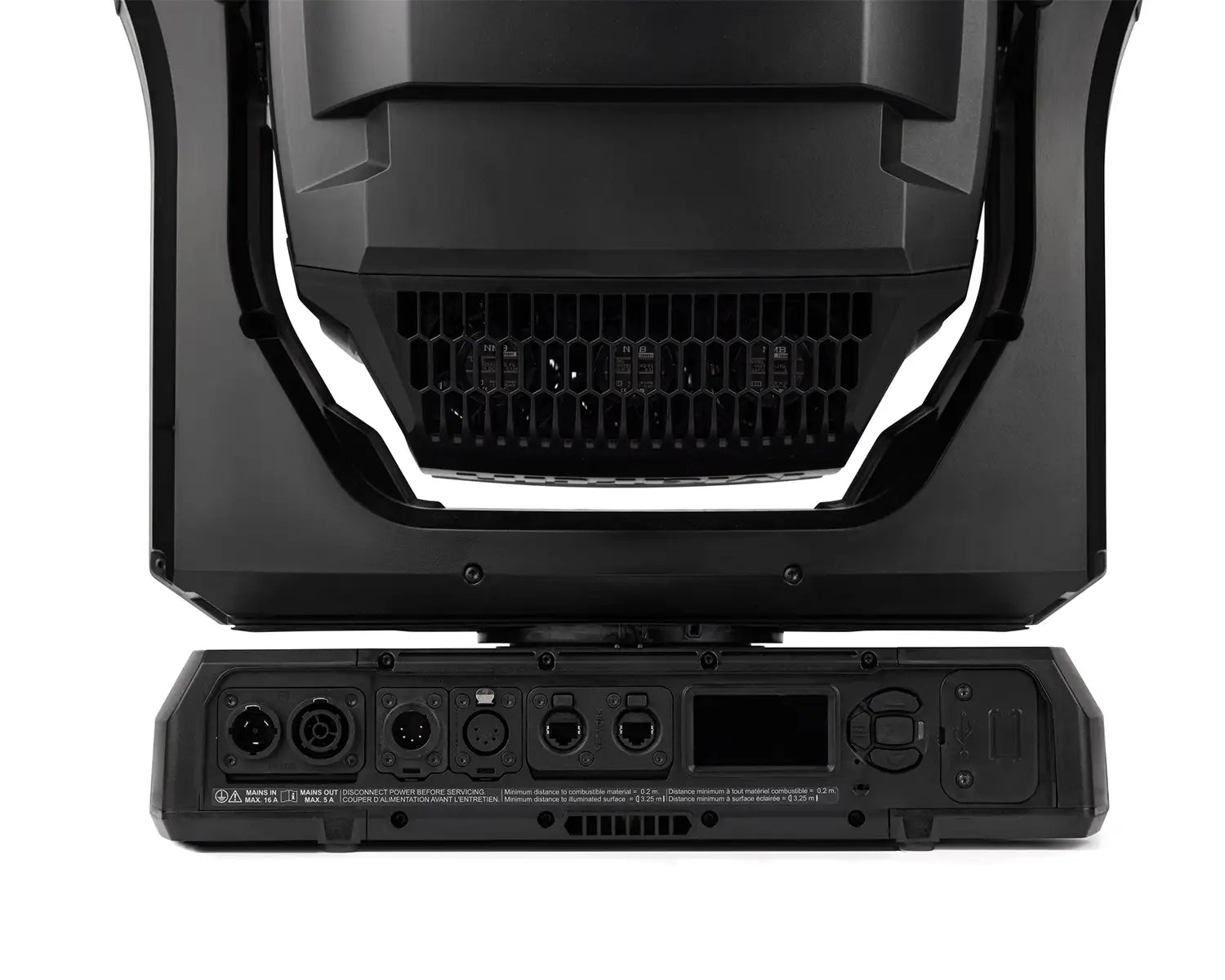

Connections
- AC mains power in/thru: Neutrik Rean powerCON TRUE1
- DMX and RDM data in/thru: Neutrik 5-pin locking XLR
- Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON
- Firmware from flash memory: USB 2.0 type C port
- Accessory Plug-In: Universal Connect Module Slot
Electrical
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
- Typical earth-leakage current: 0.7 mA
- Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
- Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 208 V , 4.6 A @ 230 V / 240 V
- Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
- Power Consumption
- Maximum: 1040 W
- Typical: 945 W *
- Idle: 68 W *
- Hibernation: 6 W *
- * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- Typical: full output white, no effects moving, regulated fan speed.
- Idle: no output, no effects moving, regulated fan speed.
- Hibernation: no output, motors de-energised, fans stopped, wake-up procedure to re-use fixture.
Thermal
- Cooling: Forced air (temperature regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
- Total heat dissipation (calculated, +/- 10%): 3550 BTU/hr.
Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (regulated high fan mode, full output): 36.2 dB(A)
- Sound Pressure Level (LpA) @ 1 m (regulated medium fan mode): 31.7 dB(A)
- Sound Pressure Level (LpA) @ 1 m (regulated low fan mode): 27.6 dB(A)
- Sound Pressure Level (LpA) @ 1 m (regulated ultra-low fan mode): 27.2 dB(A)
Warranty
- Fixture: 2 years
- Light Engine: 5 years
Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging
- Efficacy (max output): 22.2 lm/w
- LWR (Lumen-to-Weight Ratio): 580 lm/kg (262 lm/lbs.)
Approvals
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
- United Kingdom: UKCA
- Thailand: TISI 1955-2551
Physical
- Width (across yoke): 479 mm (18.9 in.)
- Width (base): 429 mm (16.9 in.)
- Height (head straight up): 758 mm (29.8 in.)
- Height (maximum): 776 mm (30.6 in.)
- Length (head): 596 mm (23.5 in.)
- Depth (base): 275 mm (10.8 in.)
- Minimum centre-to-centre distance in side-by-side installation: 720 mm (28 in.)
- Weight: 36.8 kg (81.1 lbs.)
Product Specifications
- 1 x MAC Encore Two
- 1 x SiP flightcase insert
- 2 x Omega brackets with 1/4 turn fasteners for rigging clamp attachment
- 1 x Multi-languageSafety and Installation Manual
