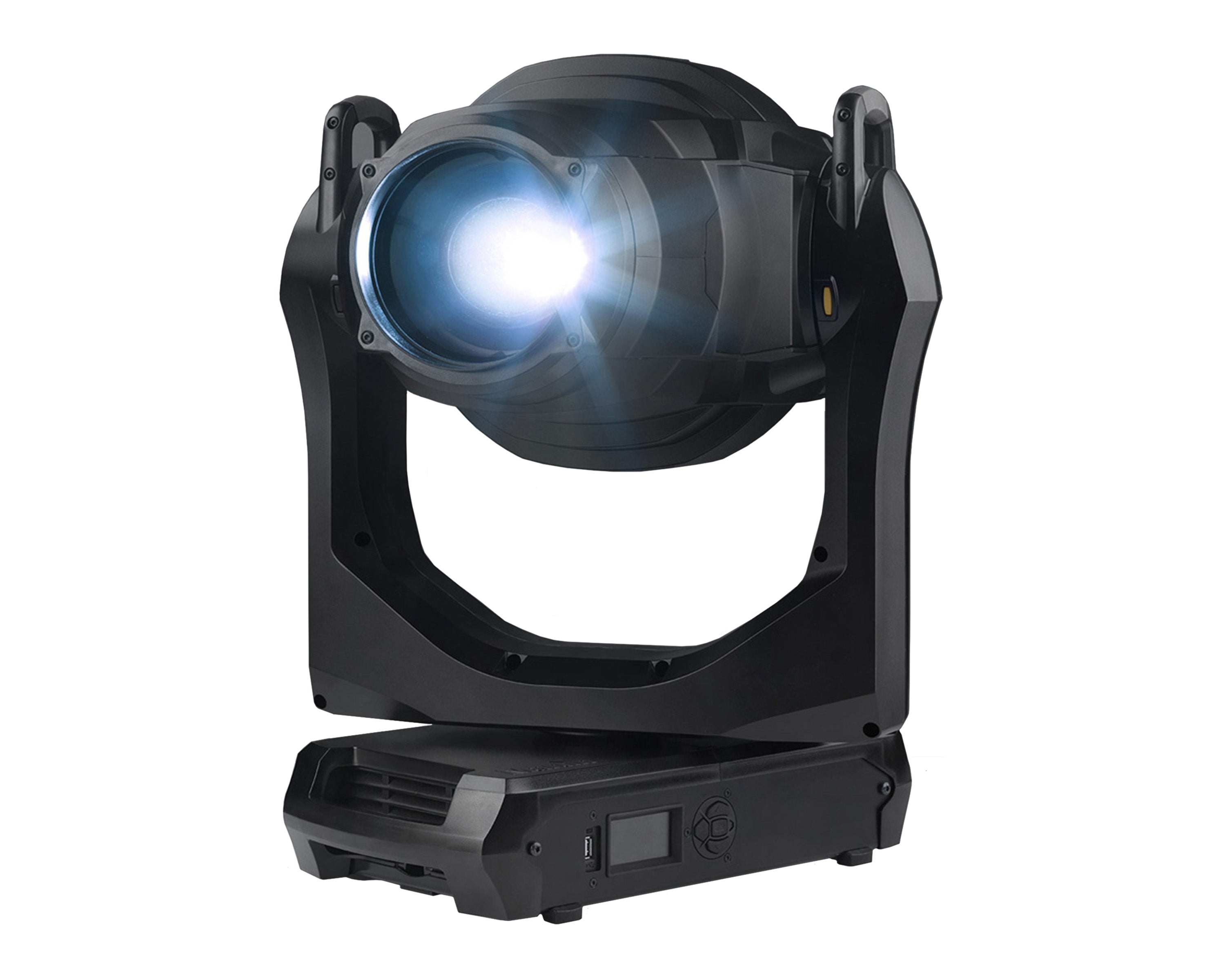

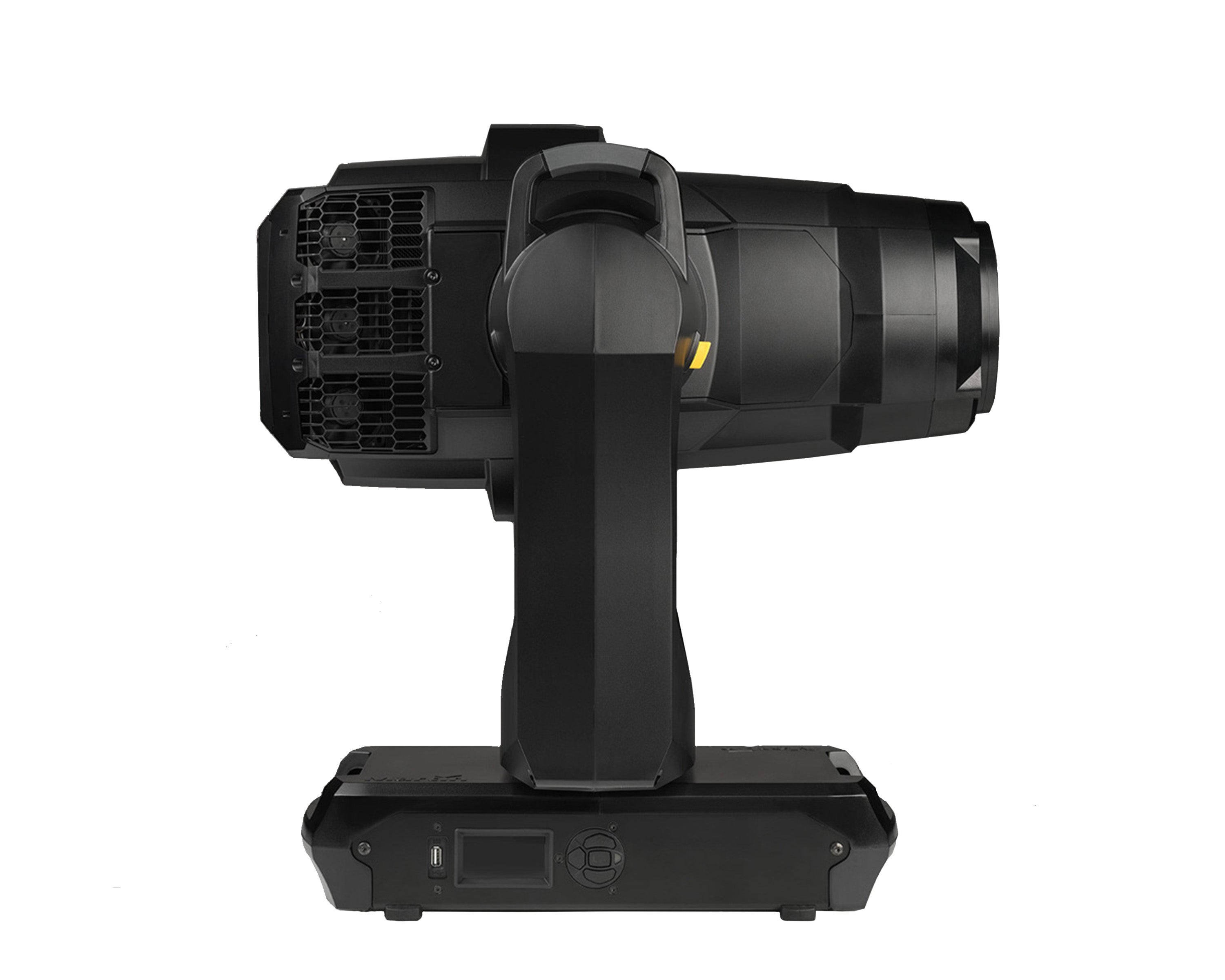

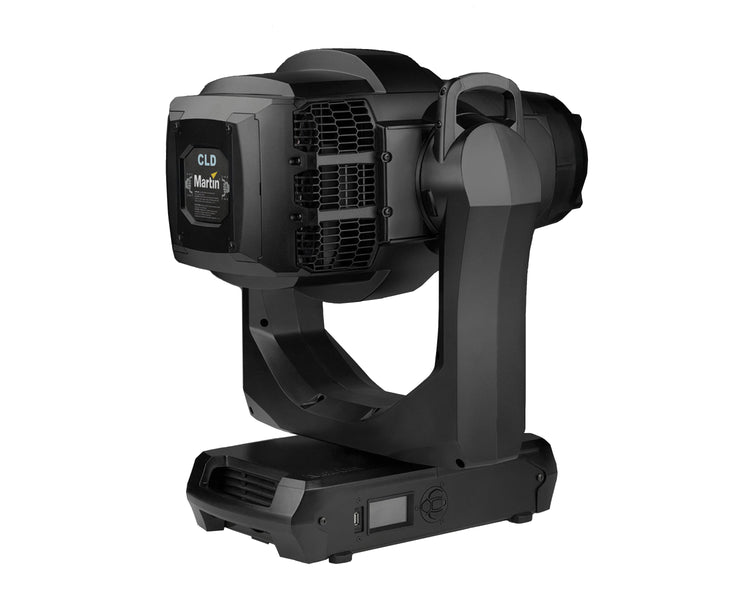

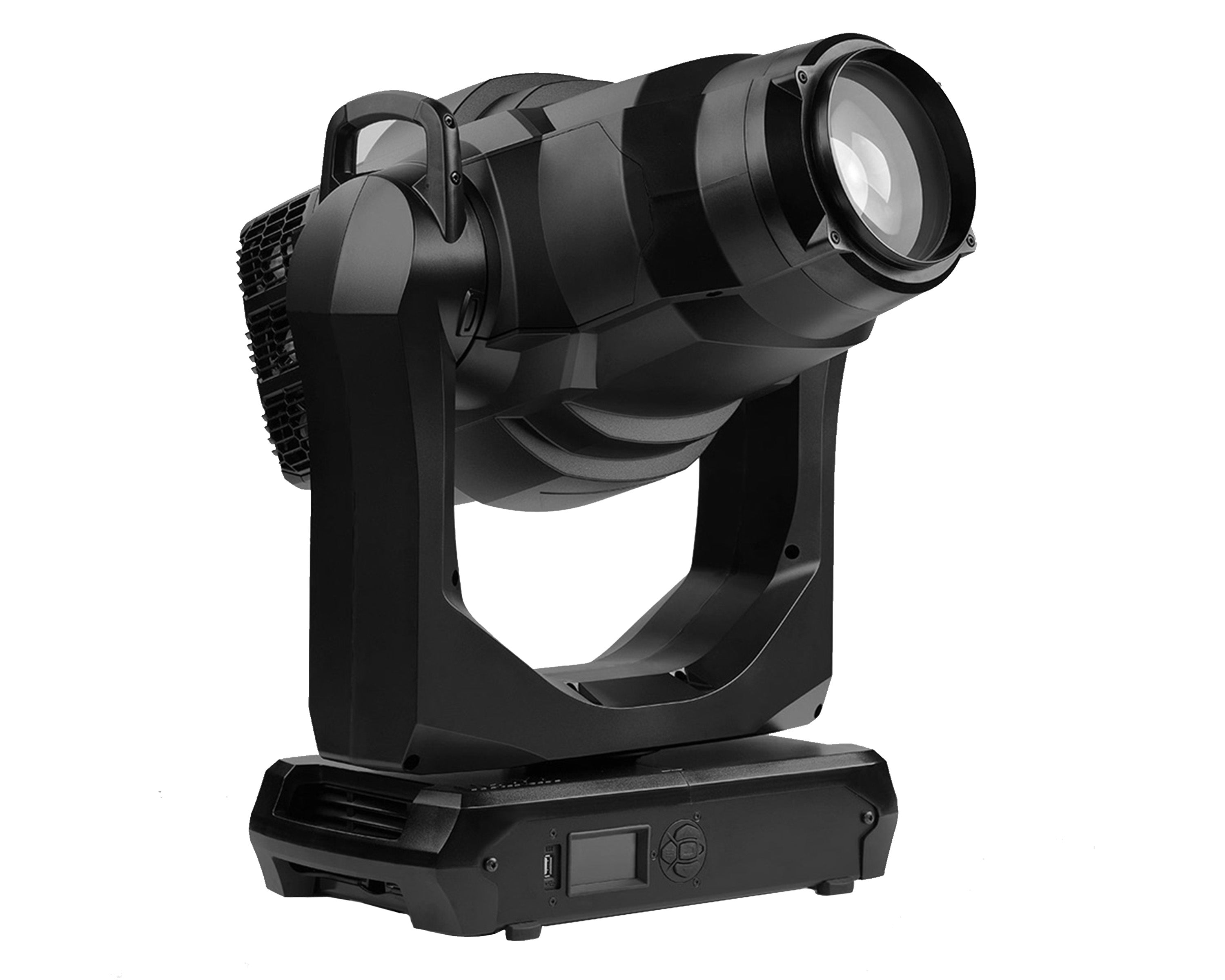

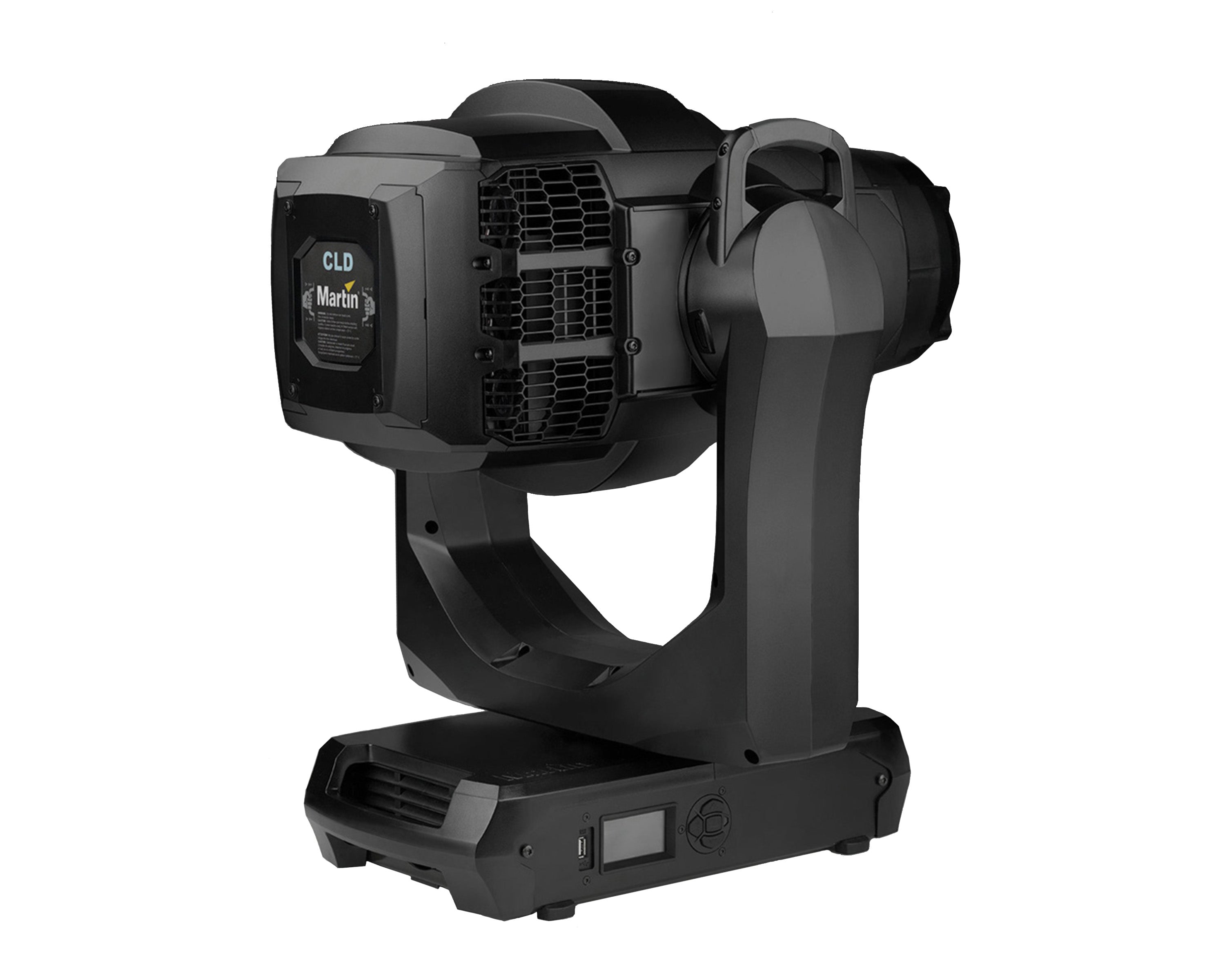

MAC Encore™ Performance CLD integrates cutting-edge LED technology with a proprietary and innovative light engine carefully engineered to generate pristine, full spectrum light with ultra-high color rendition. The feature-packed moving head offers unparalleled 6000 K crisp, neutral daylight. Its advanced color mixing system delivers the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Moreover, it offers a fully variable color correction to tungsten/orange.

Product Features

• Pure white LED engine with 6000 K CCT
• A flat field without color temperature variation during zoom and dimming.
• Flicker-free operation - LED driver frequency suitable for all camera applications.
• Ultra-low noise - Combines convection and forced air cooling with user-selectable output vs. sound level control.
• Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
• Vibrant CMY color mixing with a superior palette of colors ranging from light and smooth pastel shades to rich, saturated primaries.
• Variable CTO - daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
• Color wheel - 6 interchangeable dichroic filters + open.
• 1:4 zoom - precise and fast, silent zoom with auto-linked focus.
• Four framing shutter blades with individual +/- 30° adjustment and entire system rotation of +/- 55° allow for high-precision cue repeats.
• Five rotating glass gobos with next to zero focal separation from the framing system.
• Animation wheel with continuous multi-directional rotation and indexing with variable angle, speed and direction.
• Animotion™ FX System - internal dimming effect macros for stunning 3D mid-air and projection effects.
• Precise and tight iris with adjustable dynamic effects.
• Soft frost - a light frost that leaves gobo artwork and framed images visible with a beautiful soft edge.
• Heavy frost available as an optional accessory.
• Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.

Product Specifications

General

• Dynamic Effects
  • Color mixing: CMY, independently variable 0 - 100%
  • Color temperature control: Variable 2700 - 6000 K
  • Color wheel: 6 interchangeable dichroic filters + open, indexing, continuous rotation, random color
  • Rotating gobo wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
  • Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
  • Framing: Rotatable framing module, +/- 55°, 4 individually controllable blades with variable angle and position
  • Iris: Variable 0 - 100%
  • Frost: Variable 0 - 100%
  • Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
  • Dimming options: Choice of four dimming curves
  • Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
  • Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
  • Zoom: 12° - 48°
  • Pan: 540°
  • Tilt: 268°
  • Position correction system: Absolute position monitoring
• Control and Programming
  • DMX channels: 38
  • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
  • 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt
  • Movement control options: Tracking and vector
  • Fixture identification: User-settable ID number
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485
  • Fixture software update: USB memory device or over DMX link
• Optics
  • Light source: 6000 K white LEDs
  • Total LED engine power: 468 W
  • Minimum LED lifetime: 50 000 hours (to >80% luminous output)*

*Figure obtained under manufacturer test conditions

• Photometric Data
  • Light engine luminous output: ≥ 39 400 lumens
  • Fixture luminous output: 11 600 lumens
  • CRI (Color Rendering Index): >80
  • CQS (Color Quality Scale): >80
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >80
  • TM-30 Rg (IES TM-30-15 Gamut Index): >95
  • TLCI (Television Lighting Consistency Index): >70
• Construction
  • Color: Black
  • Housing: High-impact flame-retardant thermoplastic
  • Protection rating: IP20
• Installation
  • Mounting points: 4 pairs of 1/4-turn locks
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (8 in.)
  • Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
• Connections
  • AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
  • DMX and RDM data in/out: 5-pin locking XLR
• Electrical
  • AC power: 120-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Power consumption, all effects static, zero light output: 64 W
  • Half-cycle RMS inrush curent at 230 V, 50 Hz: 10.3 A
• Typical Power and Current
  • 120 V, 60 Hz: 5.0 A, 596 W, PF 0.998
  • 208 V, 60 Hz: 2.9 A, 581 W, PF 0.988
  • 230 V, 50 Hz: 2.6 A, 580 W, PF 0.981
  • 240 V, 50 Hz: 2.2 A, 585 W, PF 0.979

Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.

Allow for a deviation of +/- 10%.

PF = power factor

• Thermal
  • Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
  • Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)
  • Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

Physical & Dimensions

• Length: 452mm
• Width (across yoke): 480mm
• Height (maximum): 733mm
• Height (head straight up): 724mm
• Weight: 31kg
• Minimum center-to-center distance in side-by-side installation: 700 mm (27.6 in.)
