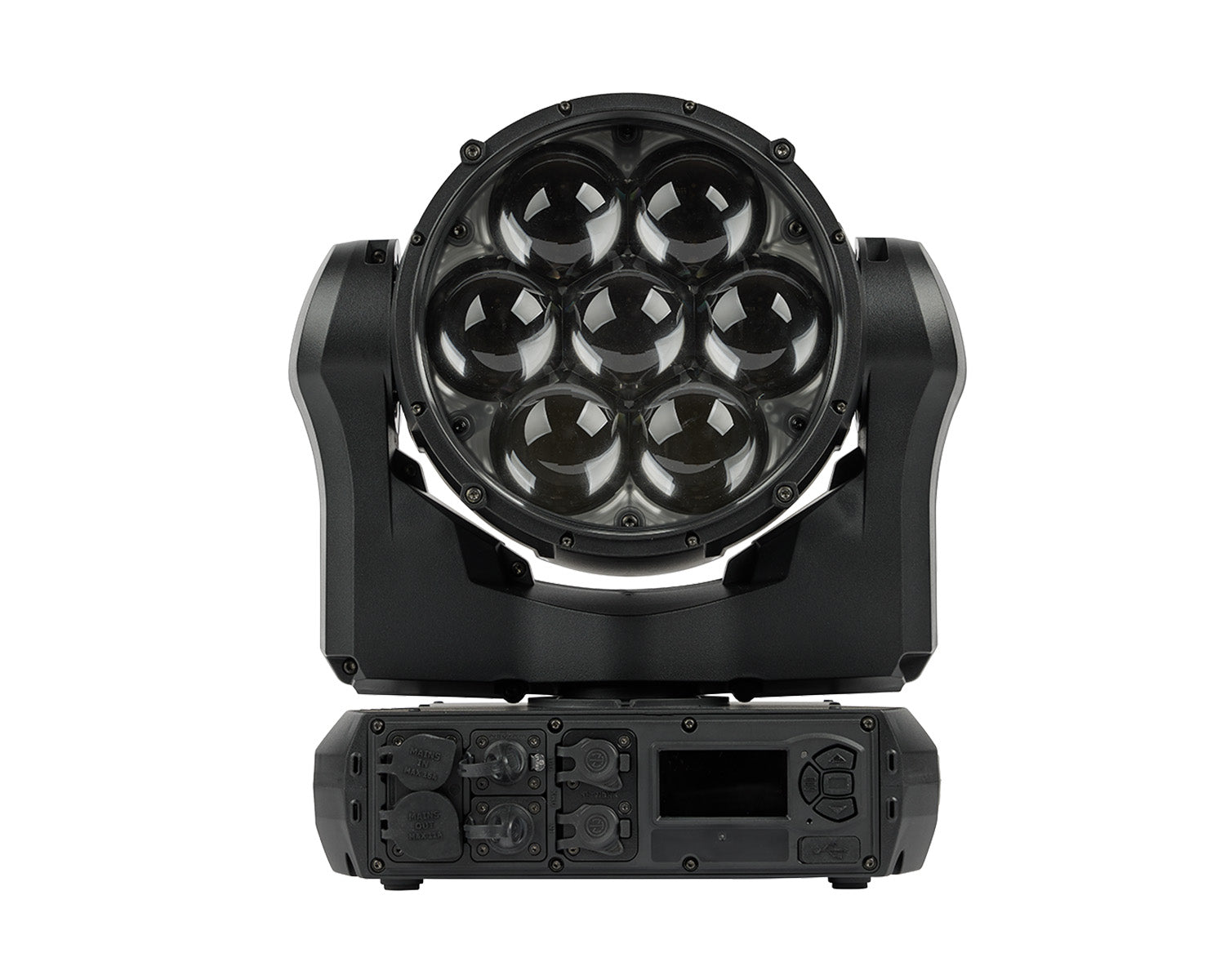

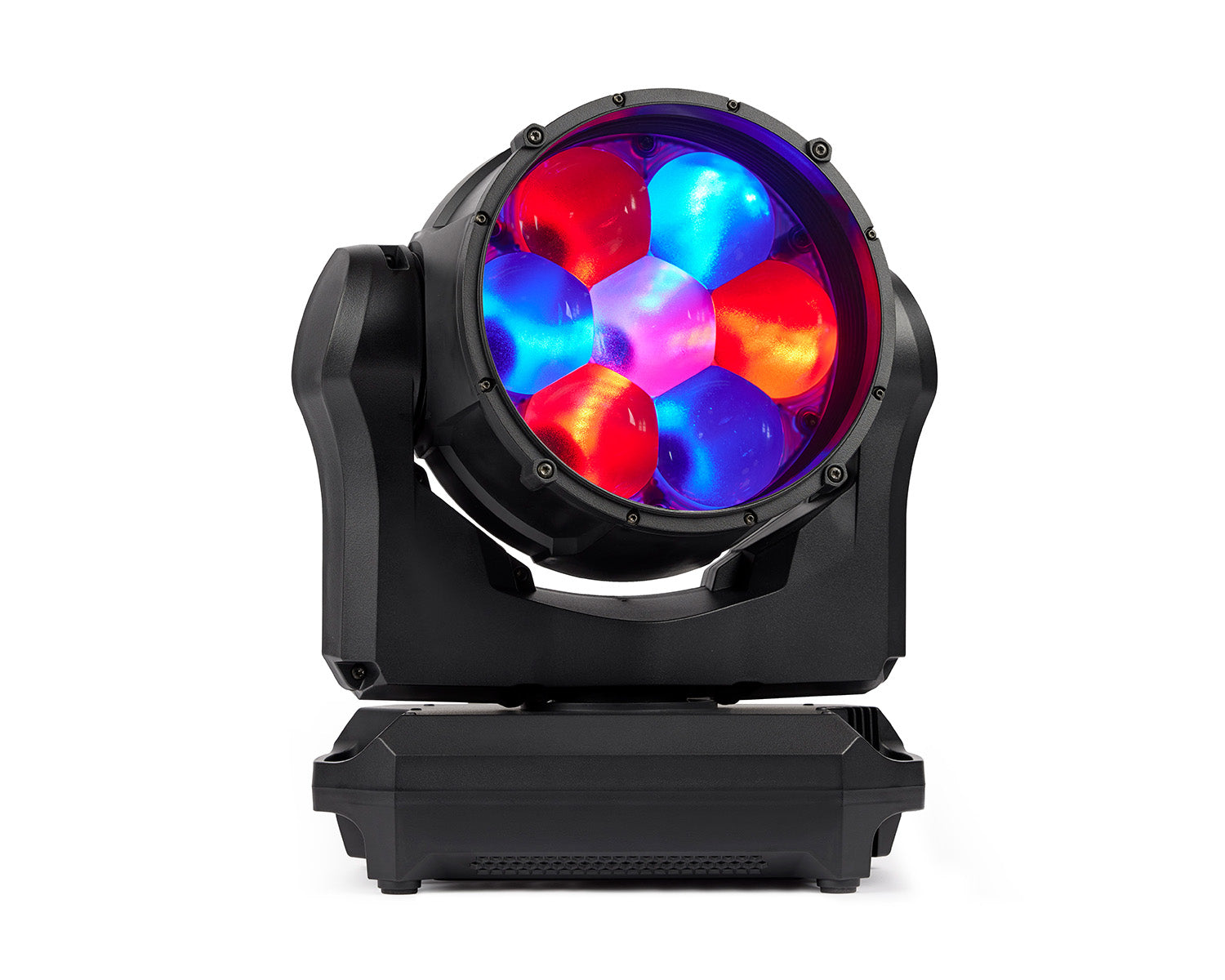

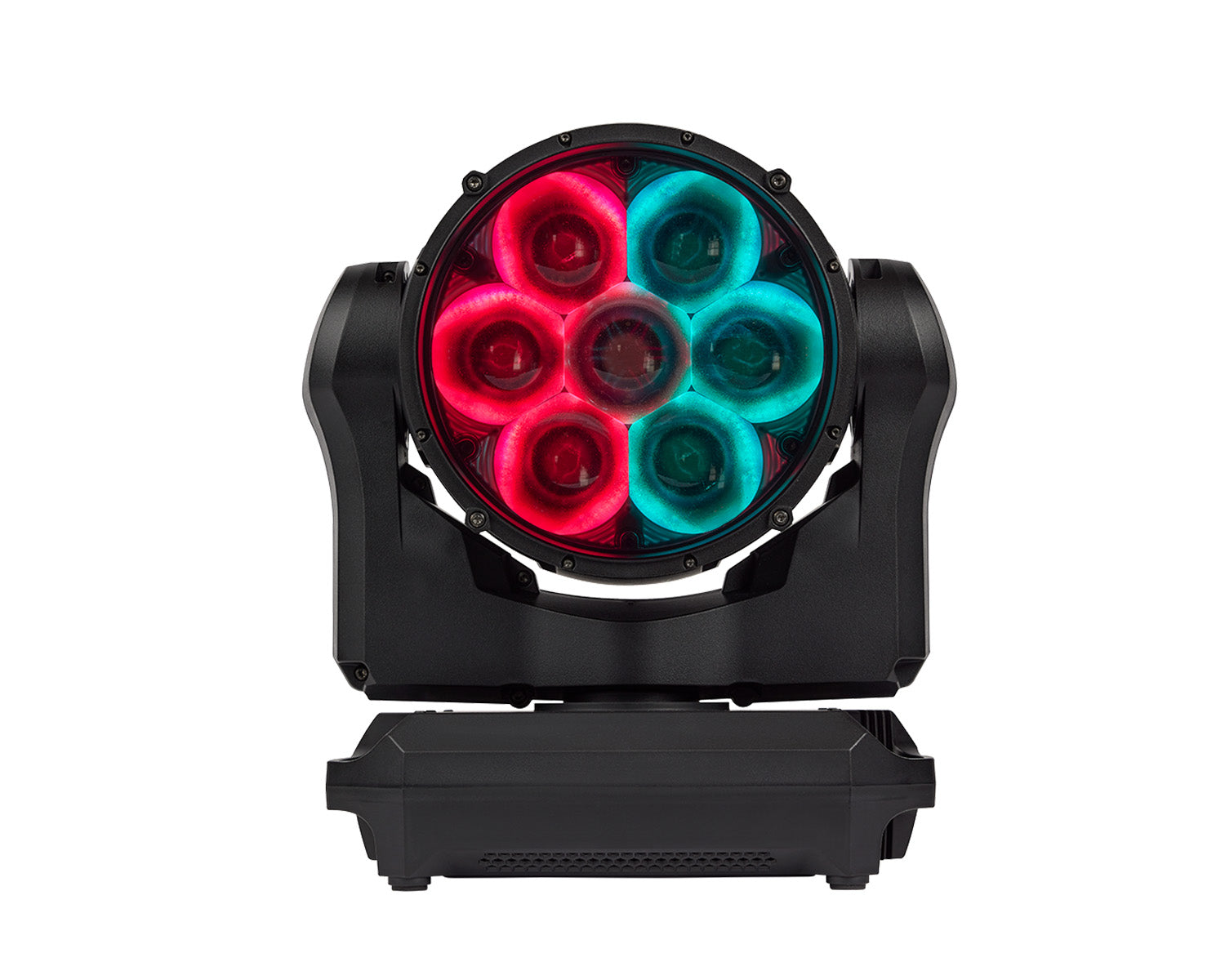

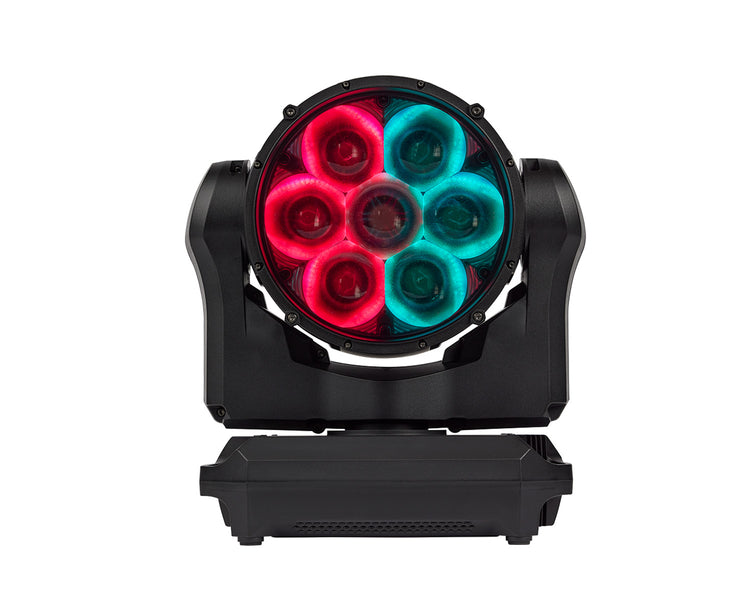

MAC Aura XIP is a premium moving head wash light with a radical aura filament effect and full pixel control with video mapping capabilities onto the beam, aura, or both. It’s Martin latest addition to the MAC Aura family of workhorse wash lights and the first fixture in its class to be rated for outdoor use, with close to zero compromises in weight, size, and aesthetics due to Martin’s smart outdoor-capable design. It raises the bar for optical quality, featuring an even wash field with soft edge, minimal stray light, and high intensity mid-air beams with improved light engine control.
Perfect for a wide range of concert and touring productions, MAC Aura XIP is equipped with a smart, outdoor design for festivals and events, while still being quiet and lightweight enough for theatre, television, corporate events and more.
While MAC Aura XIP offers lighting designers a range of possibilities with its aura filament effect, narrower beam and better wash quality with improved light engine control; rental customers will appreciate a workhorse that is lighter and more versatile with optical improvements and a sealed design, allowing the product to be used virtually anywhere and require less maintenance.
Product Features
- Light Engine: 7 x 60 W RGBW LEDs Beam +
- 12 x 4 W RGBW LEDs Aura
- High Output: 6,000 lumens
- High Intensity: 360,000 cd
- Pixelated Beam: 7x LEDs
- Pixelated Aura: 12x Filaments
- Tight beam and beautiful wash field
- Calibrated using Martin Full Gamut Color Calibration
- CTC Control: 1,000 - 12,850 K
- Green Magenta Shift Control
- Optional tungsten emulation mode
- High CRI / TM-30 / TLCI Mode
- Variable LED Frequency Control
- More than 200 built-in FX macros with control of foreground colour, background colour, speed and direction
- Ultra-quiet cooling system
- Smart outdoor rating for any weather condition (IP44)
- High-speed pan, tilt and zoom
- Zoom: 6.3 - 50.4˚
- Control: DMX, Art-Net, sACN & P3
Product Specifications
Dynamic Effects
- Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
- Beam Dimming options: Choice of four dimming curves
- Beam Color Mixing: RGB, independently variable 0 - 100%
- Beam Color Temperature Control: Variable 1,000 – 12,850 K
- Beam Tint Control: Variable green-magenta shift
- Beam Virtual Color wheel: 48 colour presets, continuous rotation & random colour
- Zoom: Motorized with 1:6 zoom ratio
- Pan: Motorized 540°
- Tilt: Motorized 220°
- Beam PixelMapping: individual RGB control of each of the 7 Beam pixels
- Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
- Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects, instant open and blackout
- Aura Dimming options: Choice of four dimming curves
- Aura Color Mixing: RGB, independently variable 0 - 100%
- Aura Color Temperature Control: Variable 1,000 – 12,850 K
- Aura Tint Control: Variable green-magenta shift
- Aura Virtual Color wheel: 48 colour presets, continuous rotation & random colour

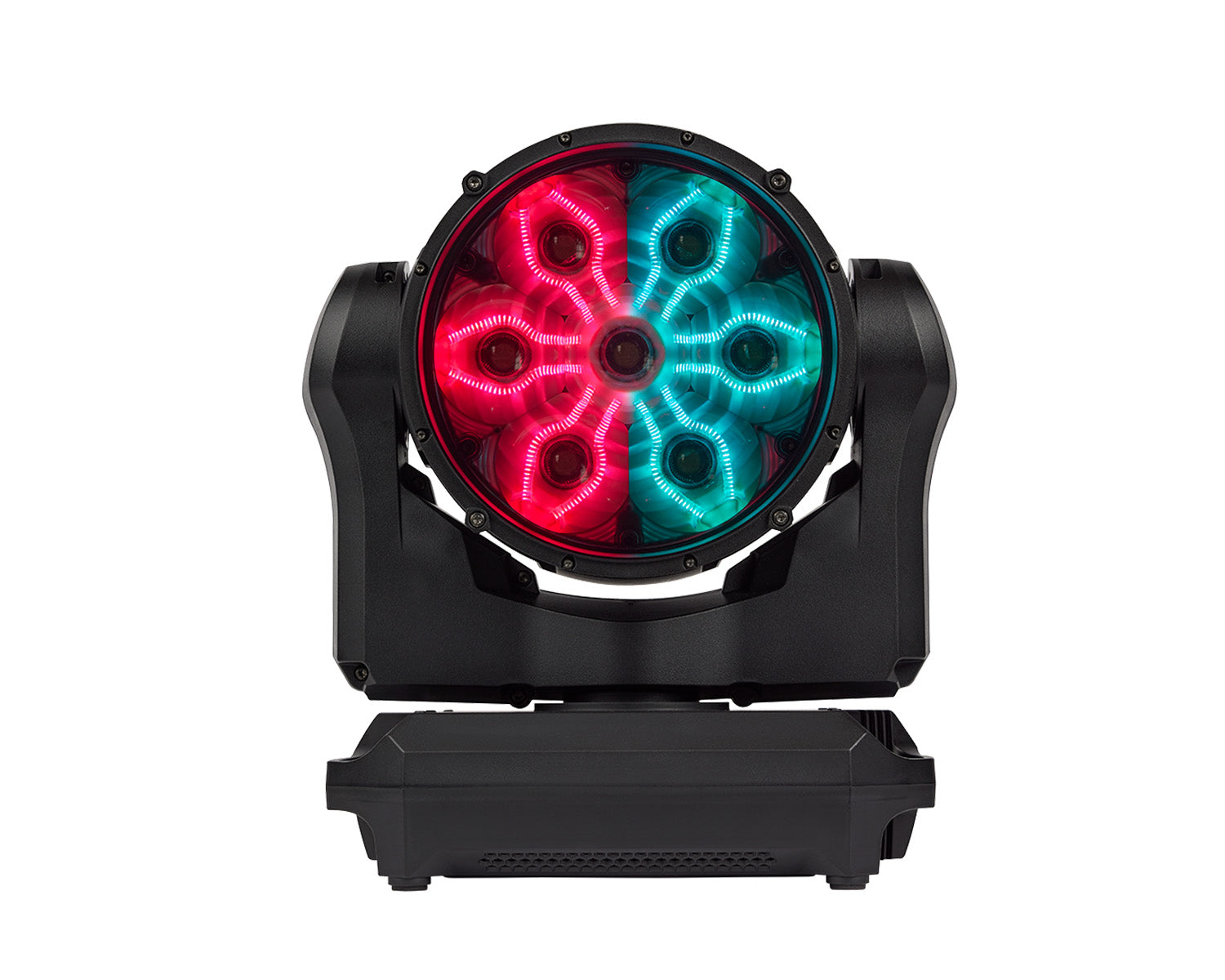

- Aura PixelMapping: individual RGB control of each of the 12 Aura filaments
- Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
- Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
- LED Frequency control: Variable LED PWM control
Control and Programming
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol Detection: Automatic
- DMX Modes: Compact, Basic, Extended & Ludicrous
- DMX Channels: 20, 36, 57 & 93
- 16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, Pan and Tilt
- Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
- Local User Interface: Backlit LCD Display with battery-powered operation
- Fixture identification: User-settable ID number
- DMX Compliance: USITT DMX512-A
- RDM Compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Optics
- Front Lens Diameter: 196 mm (7.72 in.)
- Zoom Range: 1:6
- Full Zoom Range at Half Peak (Beam Angle): 6.3° - 35.3°
- Full Zoom Range at Tenth Peak (Field Angle): 8.8° - 50.4°
- Beam Light Source: 7 x 60 W RGBW LED
- Aura Light Source: 12 x 4 W RGBW LED
- Max. Total Beam LED Engine Power: 296.5 W
- Max. Total Aura LED Engine Power: 35.1 W
- Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
- *Figure obtained under manufacturer test conditions
Photometric Data
- Light Engine Luminous Output: 11,000 lumens
- Fixture Luminous Output Wide: 6,000 lumens
- Fixture Luminous Output Narrow: 4,500 lumens
- Peak Luminous Intensity Narrow: 360,000 cd
- CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
- CRI (Color Rendering Index) high output mode: ≥ 71
- CRI (Color Rendering Index) high quality mode: ≥ TBC
- CQS (Color Quality Scale) high output mode: ≥ 80
- CQS (Color Quality Scale) high quality mode: ≥ TBC
- TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥ 78
- TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥ TBC
- TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥ 117
- TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥ TBC
- TLCI (Television Lighting Consistency Index) high output mode: ≥ 57
- TLCI (Television Lighting Consistency Index) high quality mode: ≥ TBC
- Beam LED Refresh Rate: variable 2,400 Hz - 3,000 Hz and 24,000 Hz mode
- Aura LED Refresh Rate: 1,200 Hz
- Binning: Tight colour and flux binning
- Calibration: Full Gamut Color Calibration of Beam and Aura
- Colour Modes: Extended Color Mode and Calibrated Color Mode
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP44
Installation

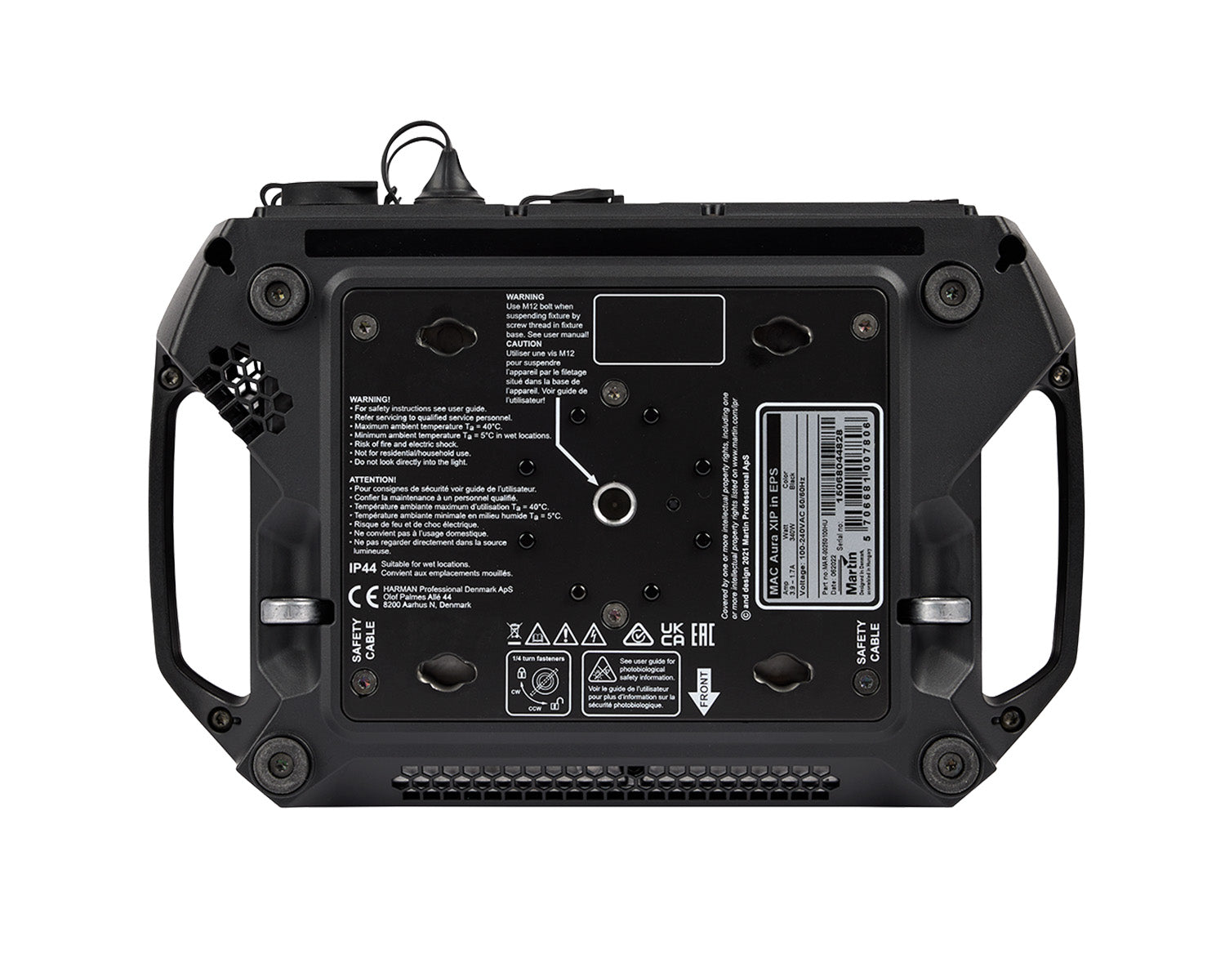

- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) centre-to-centre omega brackets and single M12 threaded hole for rigging clamp
- Location: Indoor or Temporary Outdoor use
- Orientation: Any, except with display facing upwards in outdoor application
- Minimum distance to combustible materials: 0.2 m (7.87 in.)
- Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)

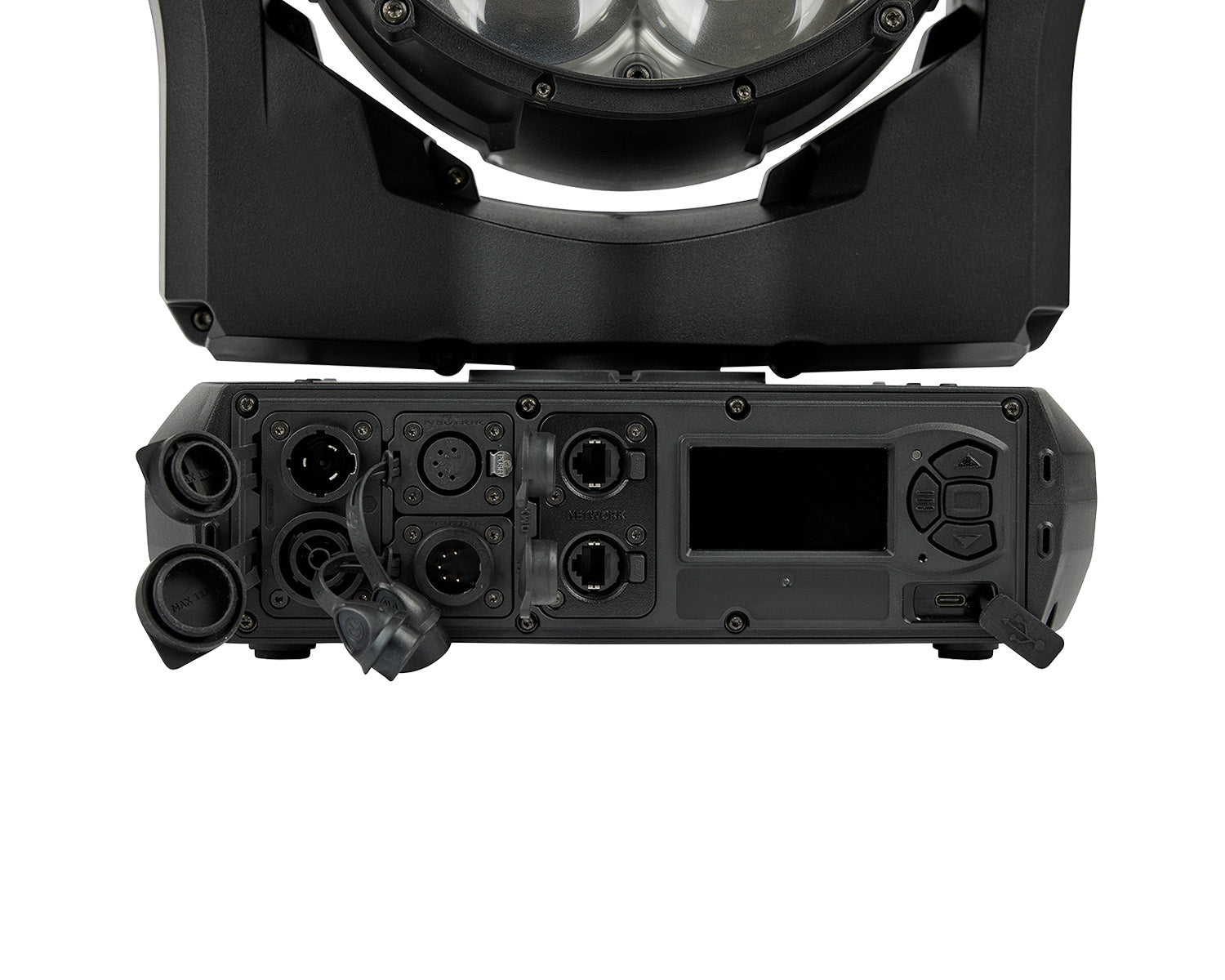

Connections
- Firmware from flash memory: USB 2.0 type C port
- AC mains power in/thru: Neutrik powerCON TRUE1 TOP
- DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
- Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Electrical
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 340 W
- Maximum total current at 100-120V: 3.9 A
- Maximum total current at 200-240V: 1.8 A
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 7.0 A
- Typical earth-leakage current: 0.431 mA
- Power consumption, all effects static, zero light output: 48 W
Typical Power and Current
- 100 V, 60 Hz: 285 W, 2.9 A, PF 0.99
- 120 V, 60 Hz: 285 W, 2.4 A, PF 0.99
- 208 V, 60 Hz: 285 W, 1.4 A, PF 0.97
- 230 V, 50 Hz: 285 W, 1.3 A, PF 0.97
- 240 V, 50 Hz: 285 W, 1.2 A, PF 0.97
- Measurements made at nominal voltage with all effects active and LEDs at full intensity. Allow for a deviation of +/- 10%.
- PF = power factor
Thermal

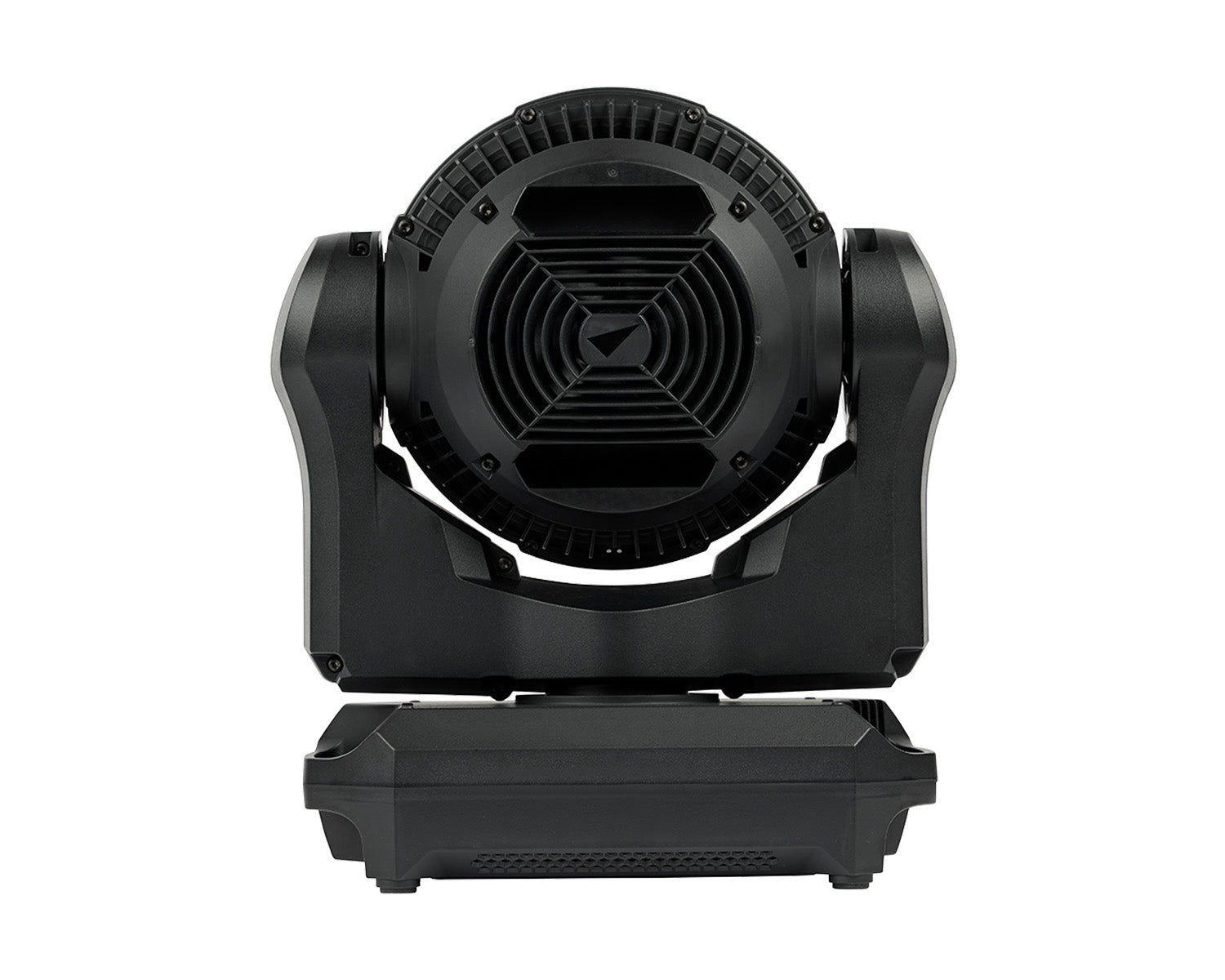

- Cooling: Forced air (temperature regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Maximum surface temperature, steady state, at 40° C ambient: 60° C (140° F)
- Total heat dissipation (calculated, +/- 10%): 972 BTU/hr.
Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 34.4 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 25.2 dB(A)
Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
Approvals
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
- United Kingdom: UKCA
Included Items
- Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
- SoftLens
- Multi-Language Safety and Installation Manual

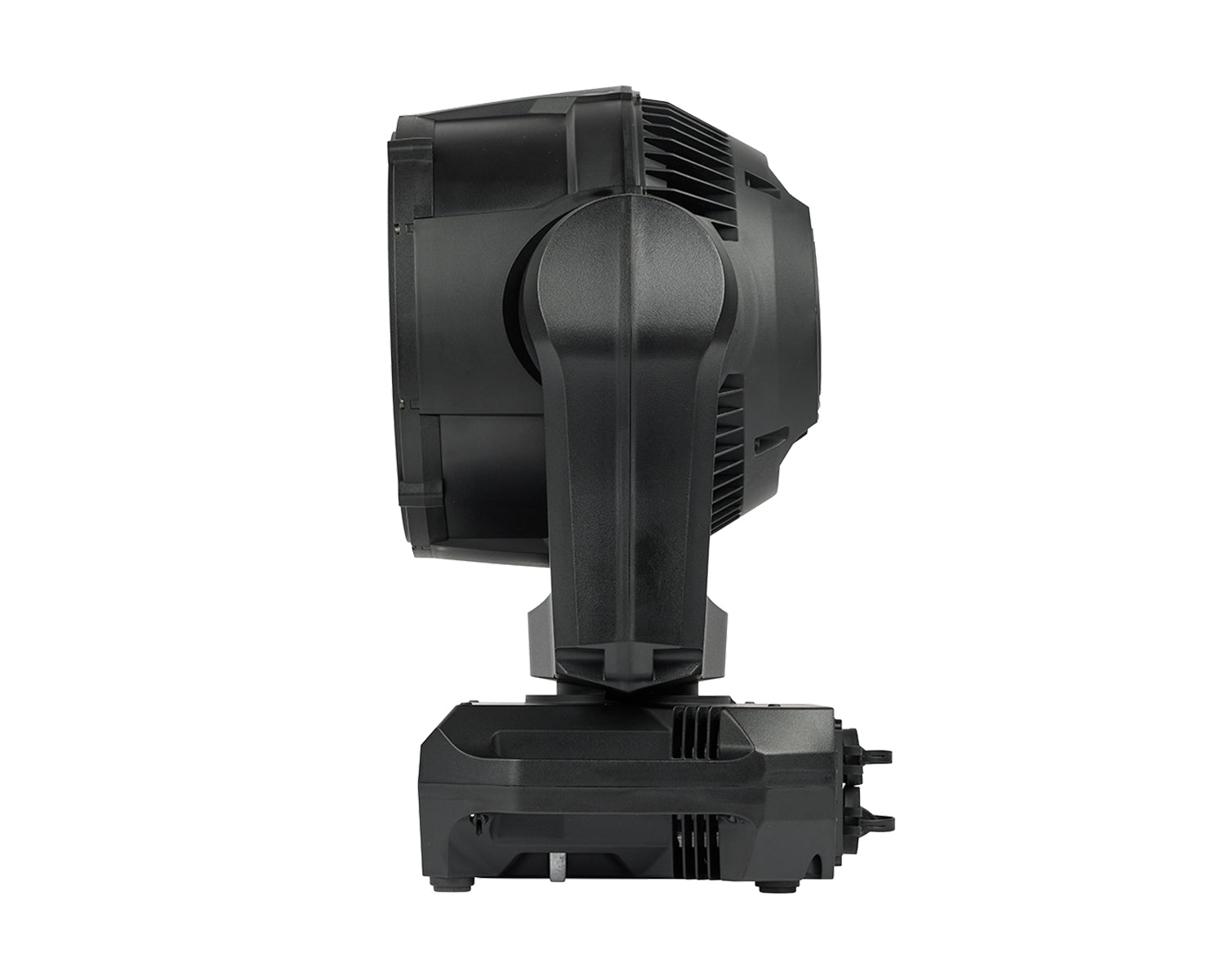

Physical & Dimensions
- Width (across yoke): 338 mm (13.31 in.)
- Width (base): 306 mm (12.05 in.)
- Height (head straight up): 380 mm (14.96 in.)
- Height (maximum): 421 mm (16.57 in.)
- Depth (head): 205 mm (8.07 in.)
- Depth (base): 226 mm (8.90 in.)
- Minimum centre-to-centre distance in side-by-side installation: 350 mm (13.78 in.)
- Weight: 8.95 kg (19.73 lbs)
what's in the Box?
- Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
- SoftLens
- Multi-Language Safety and Installation Manual
