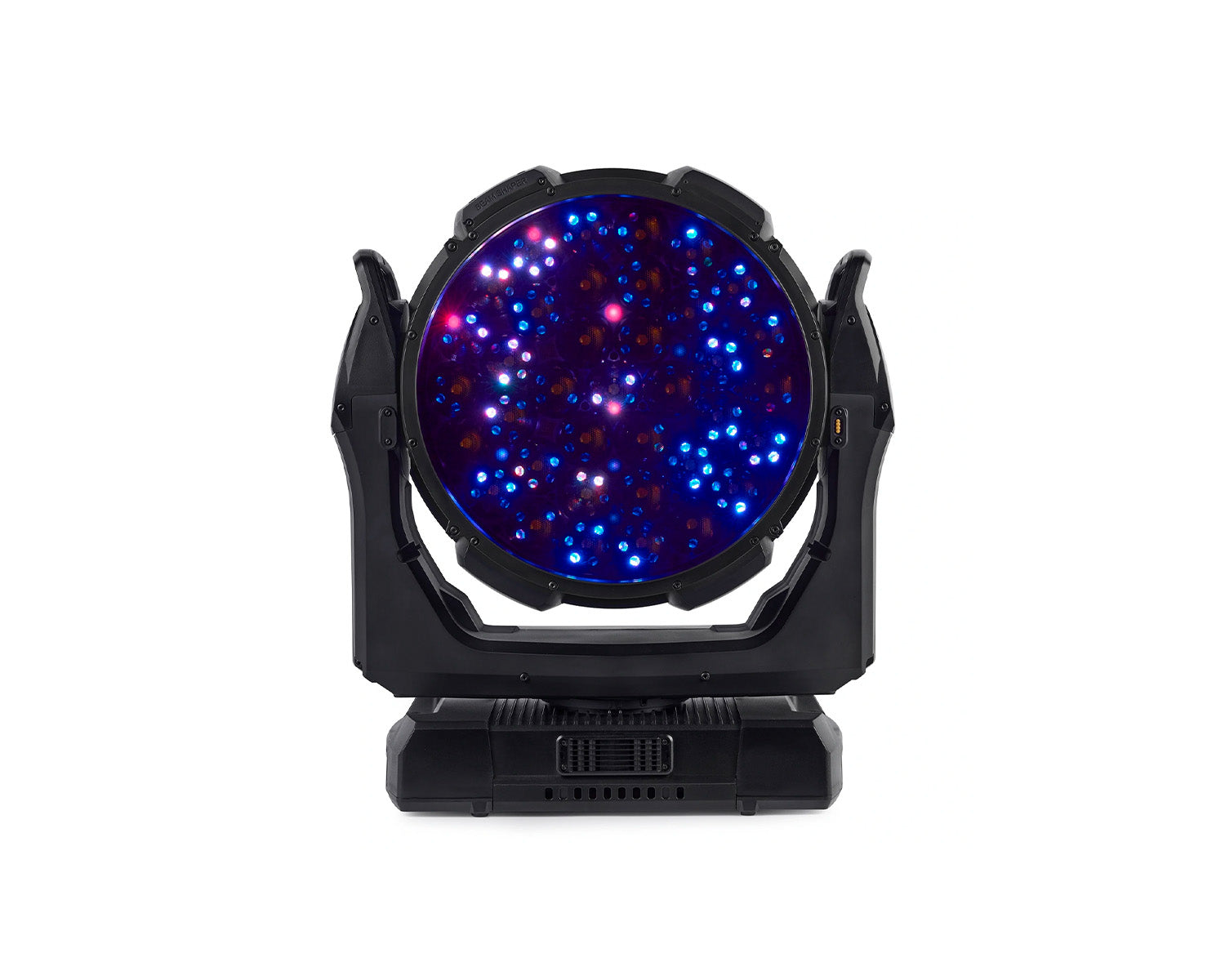

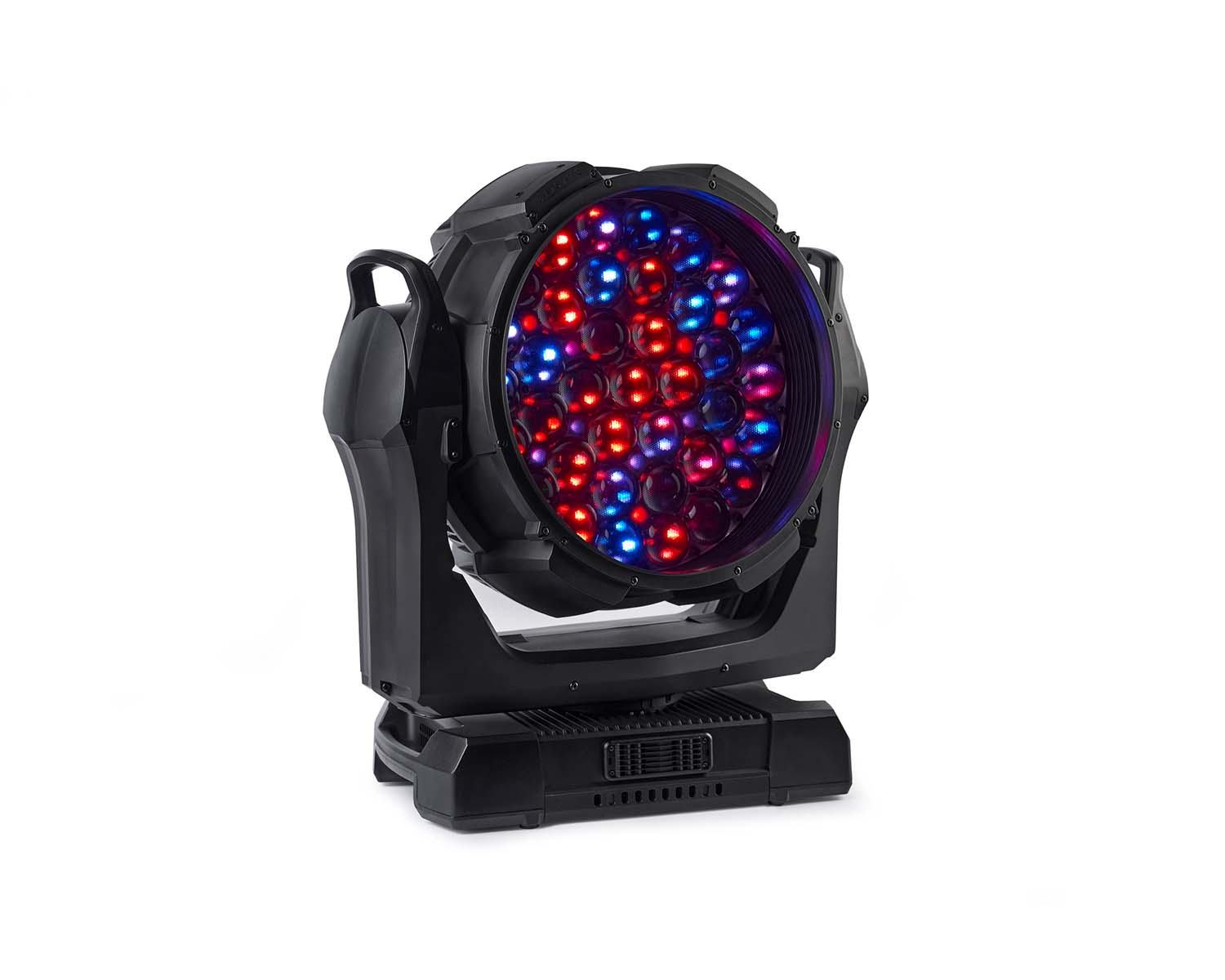

The Martin MAC Aura Raven XIP is a premium moving head fixture that combines wash, beam, eye-candy, and smart weatherproof functionality to lead as the biggest, brightest and boldest fixture of the MAC Aura family. Delivering class-leading lumen output and unparalleled performance indoors or outdoors, MAC Aura Raven XIP is perfect for lighting designers, rental companies, and installation customers needing a truly versatile workhorse for illuminating festival stages, theatrical performances, corporate events, and broadcast applications.

Product Features

• More than 24,000 lumens of output
• Silent and extremely fast zoom system with a range from 6 to 50 degrees
• RGBL (Red/Green/Blue/Lime) LED engine, providing higher light quality (CRI / TM-30 / TLCI)
• Large 343 mm (13.5 in) diameter front lens
• Dark lens, offering a much more discreet look and higher contrast for the pixelated Aura backlight effect

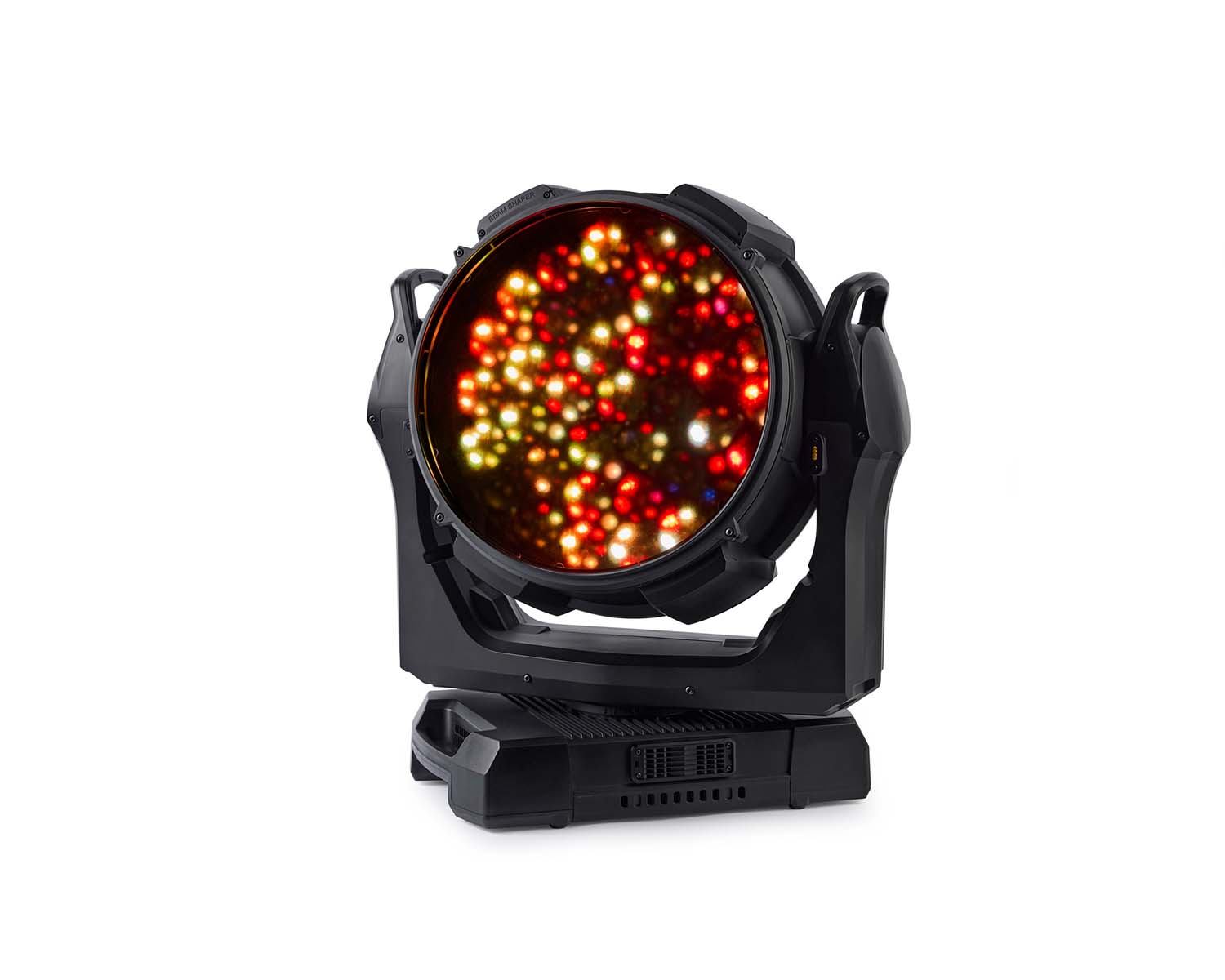

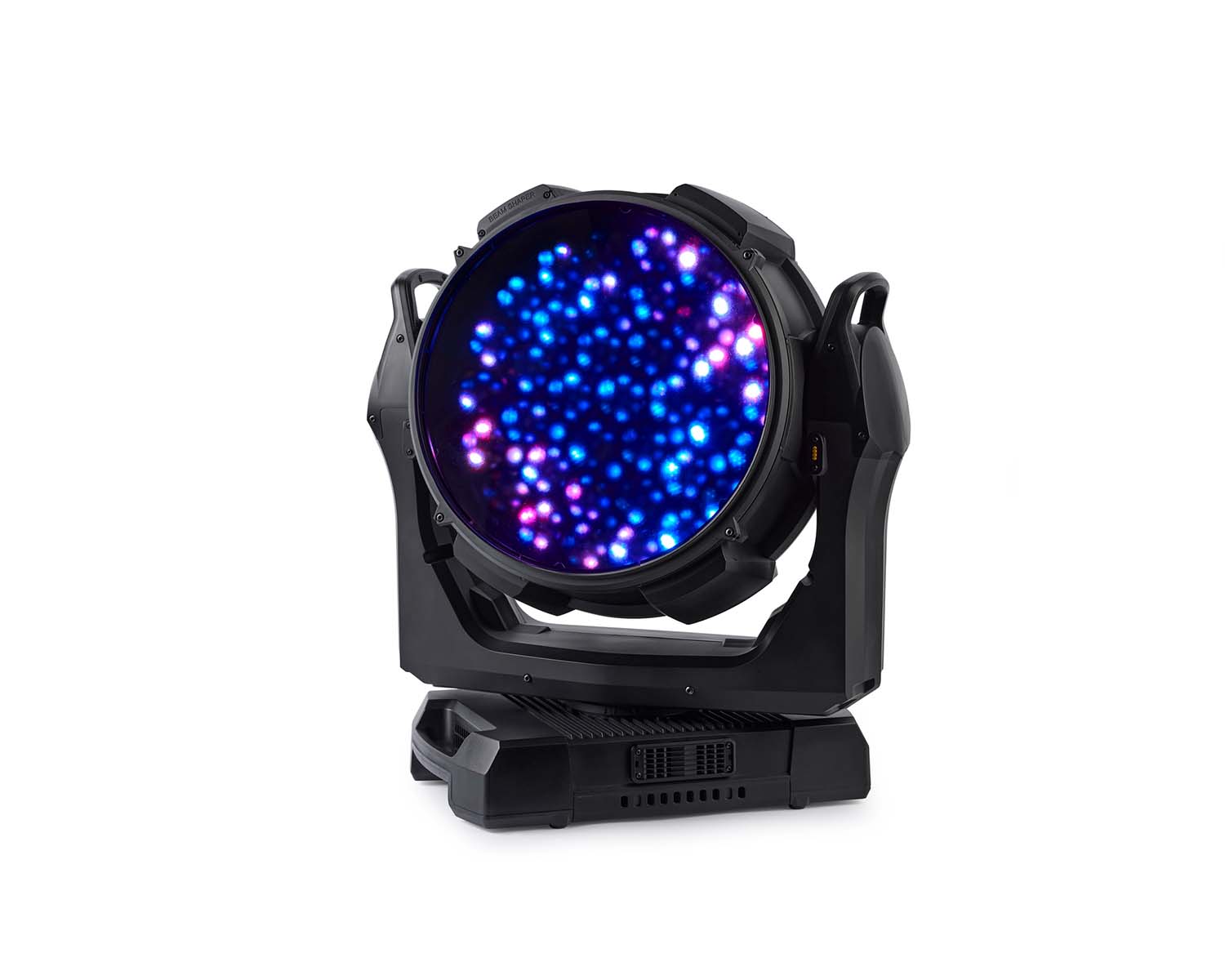

• Pixelated Aura Backlight Effect with 234 RGB LEDs
• Full pixel-control over 37 main LEDs and 234 Aura backlight LEDs
• DMX, Art-Net, sACN & Martin P3 control
• XIP smart weatherproof technology for temporary outdoor use
• Most compact and lightweight fixture in its class
• Yoke handles for easy handling of the fixture, and easy, upside-down flipping
• Battery-powered display for setup and configuration
• NFC interface, supporting configuration and diagnostics via Companion Mobile App
• Universal Connect Module slot, supporting third-party wireless modules
• Optional BeamShaper module, that can be added and shapes the field of light being projected

Product Specifications

Dynamic Effects

• Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
• Beam Dimming options: Choice of four dimming curves
• Beam Colour Mixing: RGBL, independently variable 0 - 100%
• Beam Colour Temperature Control: Variable 2,000 – 12,850 K
• Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Beam Virtual Colour wheel: 48 Colour presets, continuous rotation & random Colour
• Zoom: Motorised with 1:5.5 zoom ratio
• Pan: Motorised 540°
• Tilt: Motorised 250°

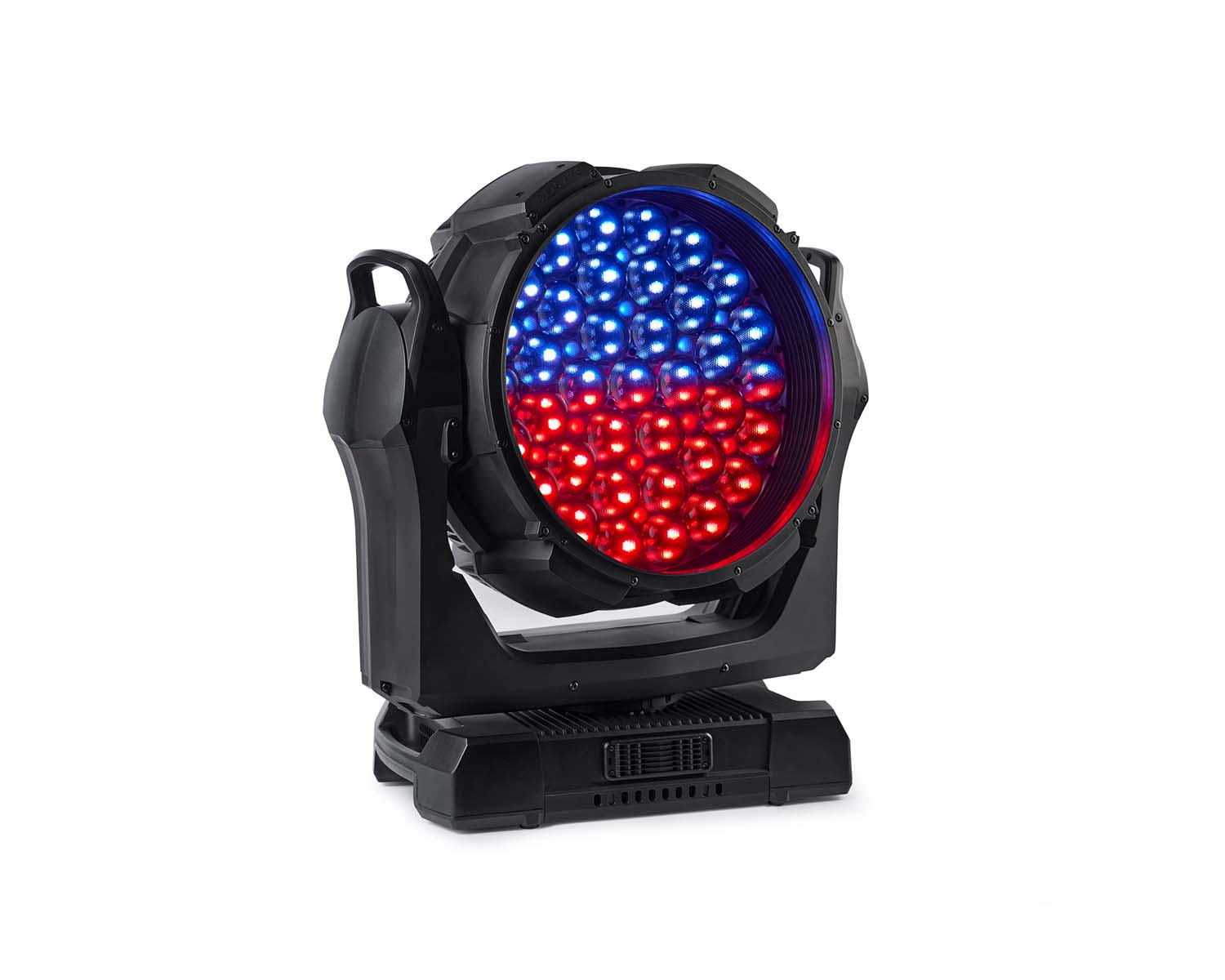

• Beam PixelMapping: Individual RGB control of each of the 37 Beam pixels
• Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
• Aura Dimming options: Choice of four dimming curves
• Aura Colour Mixing: RGB, independently variable 0 - 100%
• Aura Colour Temperature Control: Variable 2,000 – 12,850 K
• Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Aura Virtual Colour wheel: 48 Colour presets, continuous rotation & random Colour
• Aura PixelMapping: Individual RGB control of each of the 234 Aura pixels
• Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground Colour, background Colour, speed and direction control
• LED Frequency control: Variable LED PWM control

Optics

• Front Lens Diameter: 343 mm (13.5 in.)
• Zoom Range: 1:5.5
• Full Zoom Range at Half Peak (Beam Angle): 6.5° - 34.2°
• Full Zoom Range at Tenth Peak (Field Angle): 9.7° - 50.0°
• Beam Light Source: 37 x 40 W RGBL LED
• Aura Light Source: 234 x 0.25 W RGB LED
• Max. Total Beam LED Engine Power: 830 W
• Max. Total Aura LED Engine Power: 70 W
• Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)

Photometric Data

• Light Engine Luminous Output: 37,000 lumens
• Fixture Luminous Output Wide: 24,500 lumens
• Fixture Luminous Output Narrow: 18,000 lumens
• Peak Luminous Intensity Narrow: 1,400,000 cd
• CCT: Variable 2,000 K – 12,850 K (+/- 200 K)
• CRI (Colour Rendering Index) (default): ≥ 75
• CRI (Colour Rendering Index) (optimized): ≥ 86
• CQS (Colour Quality Scale) (default): ≥ 86
• CQS (Colour Quality Scale) (optimized): ≥ 89
• TM-30 Rf (IES TM-30-15 Fidelity Index) (default): ≥ 80
• TM-30 Rf (IES TM-30-15 Fidelity Index) (optimized): ≥ 84
• TM-30 Rg (IES TM-30-15 Gamut Index) (default): ≥ 114
• TM-30 Rg (IES TM-30-15 Gamut Index) (optimized): ≥ 105
• TLCI (Television Lighting Consistency Index) (default): ≥ 68
• TLCI (Television Lighting Consistency Index) (optimized): ≥ 87
• Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX and 19,200 Hz mode
• Aura LED Refresh Rate: 62,500 Hz
• Binning: Tight colour and flux binning
• Calibration: Full Gamut Colour Calibration of Beam and Aura
• Colour Modes: Direct Colour Mode, Extended Gamut Mode and Calibrated Colour Mode

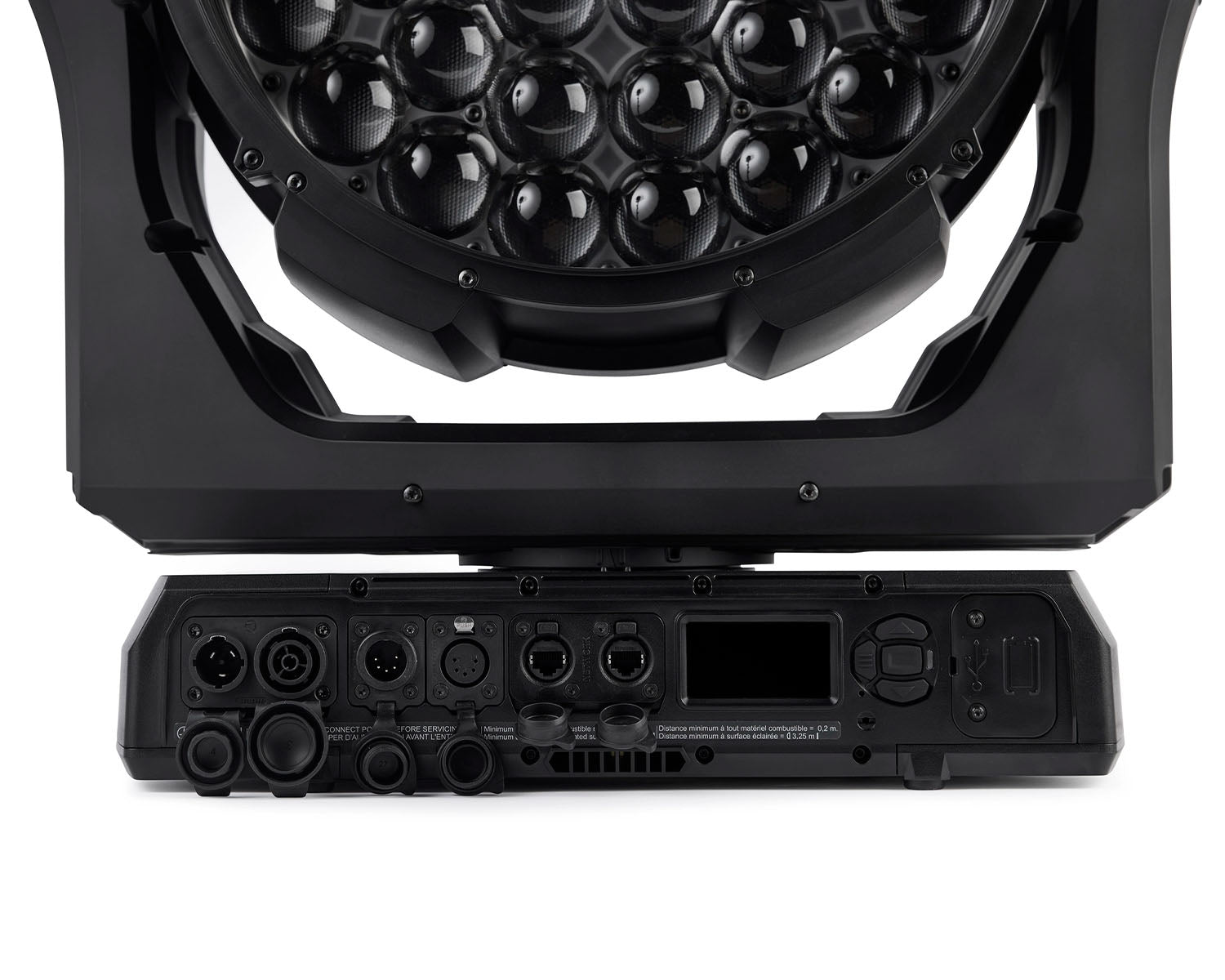

Connections

• AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
• DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
• Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
• Firmware from flash memory: USB 2.0 type C port
• Accessory Plug-In: Universal Connect Module Slot

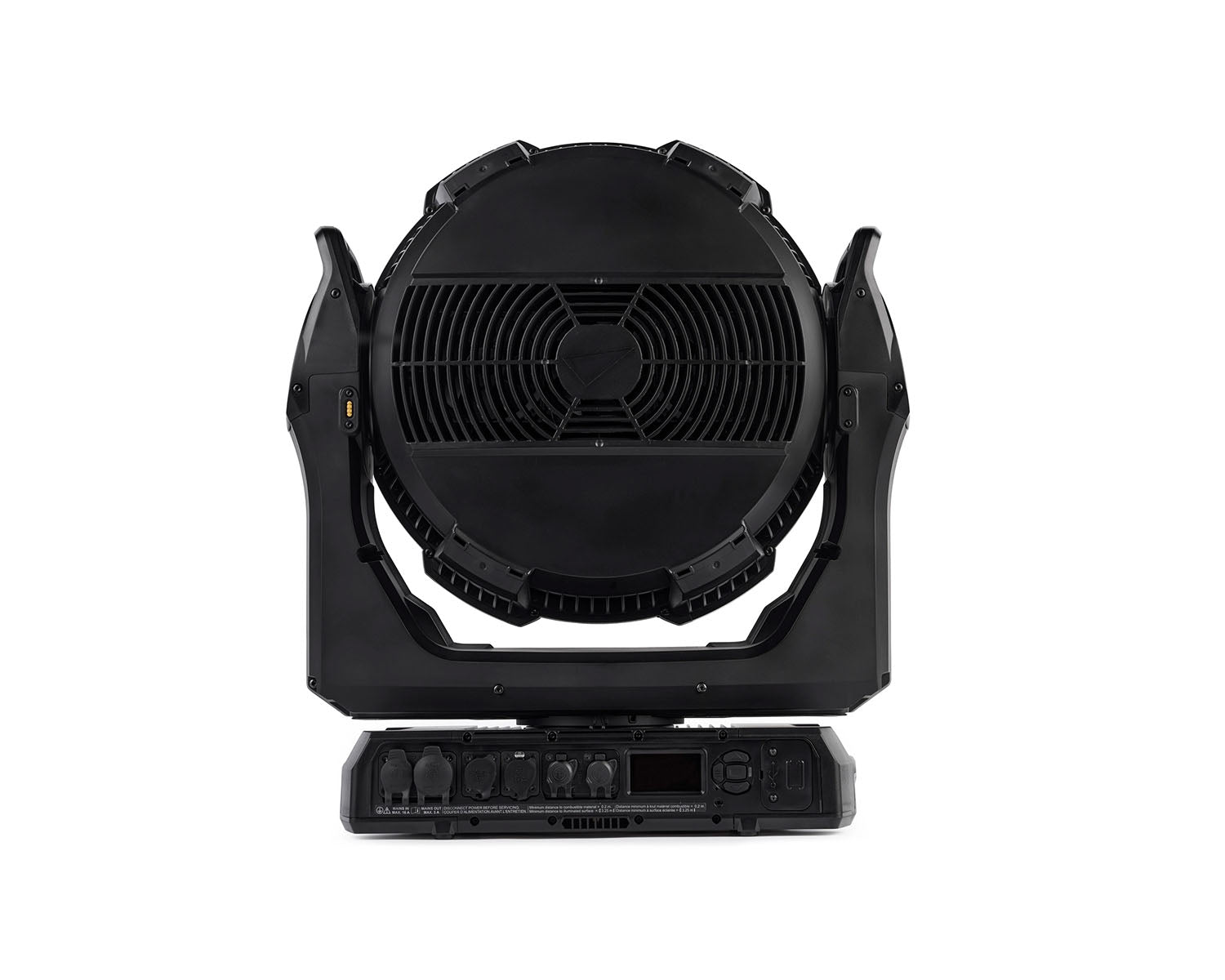

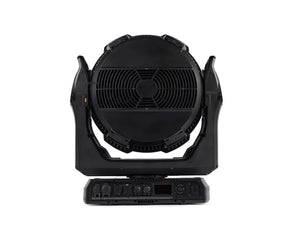

Thermal

• Cooling: Forced air (temperature regulated, low noise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may apply
• Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
• Total heat dissipation (calculated, +/- 10%): 3478 BTU/hr.

Construction

• Housing: High-impact flame-retardant thermoplastic
• Colour: Black
• Protection rating: IP54

Electrical

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
• Typical earth-leakage current: 0.7 mA
• Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
• Max current draw: 11.3 A @ 100 V / 120 V , 5.4 A @ 208 V , 4.8 A @ 230 V / 240 V
• Typical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V
• Power Consumption
• Maximum: 1120 W
• Typical: 1020 W
• Idle: 135 W
• Hibernation: 6 W

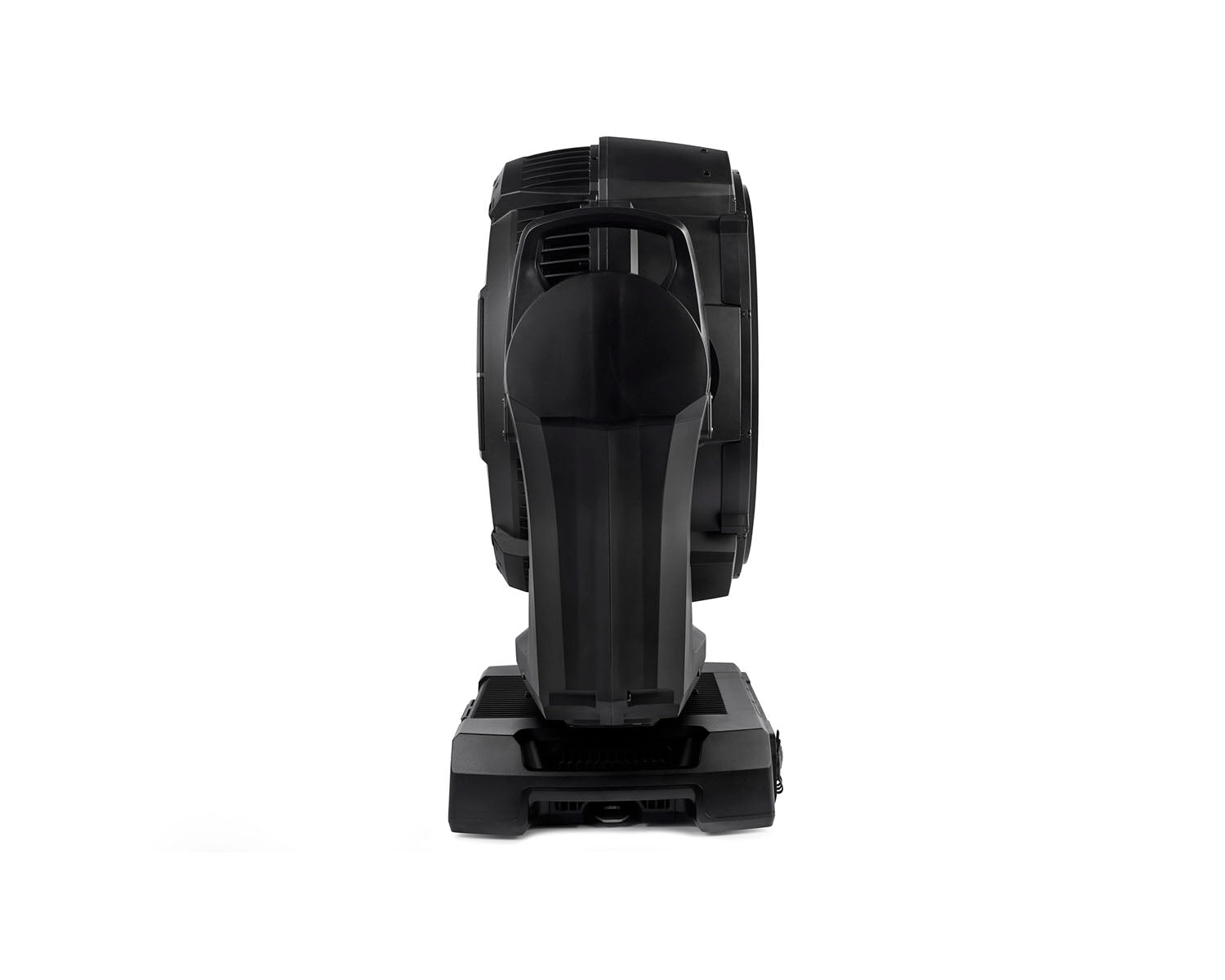

Physical

• Width (across yoke): 528 mm (20.8 in.)
• Width (base): 429 mm (16.9 in.)
• Height (head forward): 588 mm (23.1 in.)
• Height (maximum): 603 mm (23.7 in.)
• Depth (head): 241 mm (9.5 in.)
• Depth (base): 285 mm (11.2 in.)
• Minimum centre-to-centre distance in side-by-side installation: 540 mm (21 in.)
• Weight: 28.8 kg (63.5 lbs.)

What's in the Box?

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
• SoftLens
• Multi-Language Safety and Installation Manual
