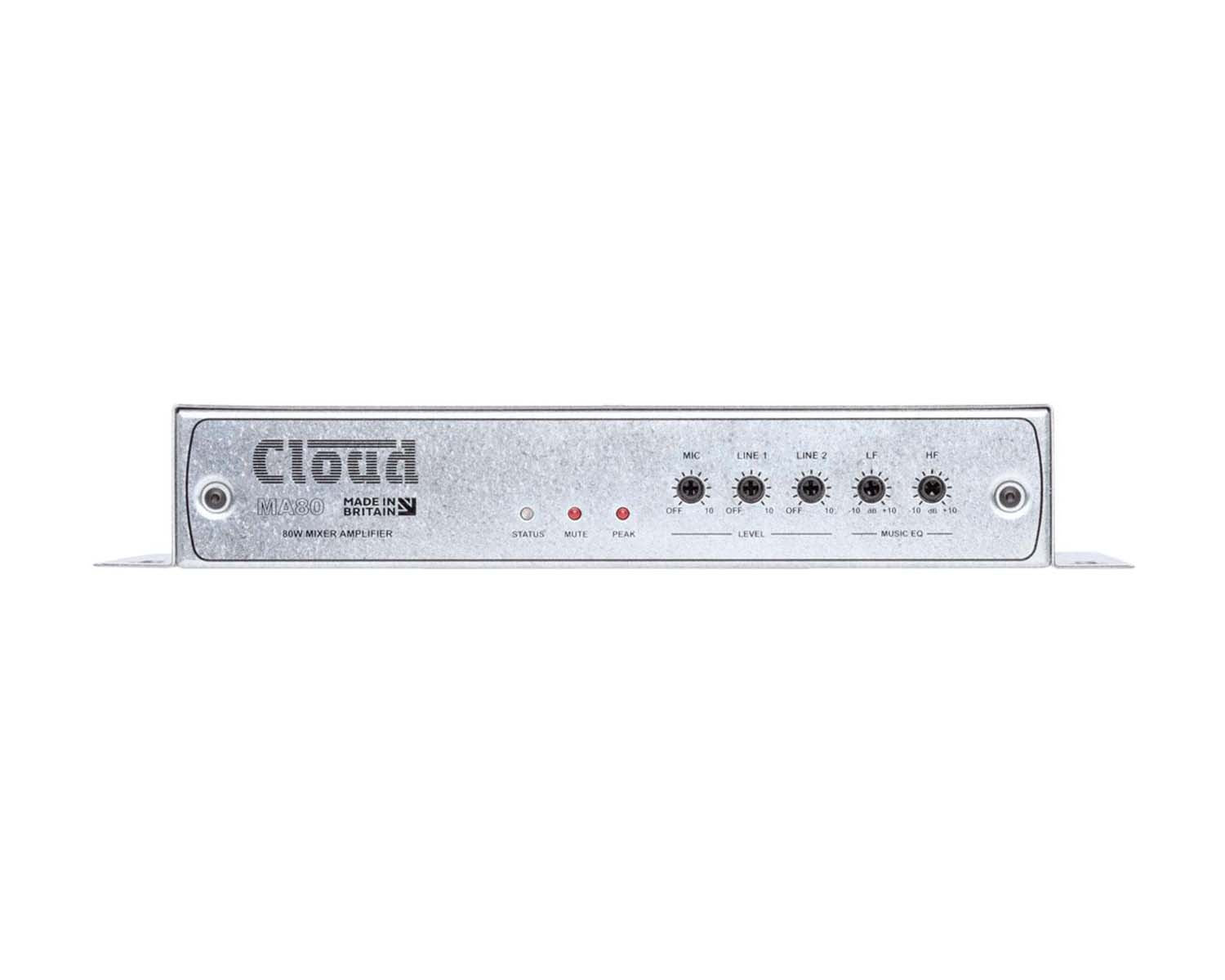

The MA80 is a compact Mini Amplifier providing 80W Mono Output at 4Ω (low impedance). Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

ENERGY STAR ® Tested & Certified providing extensive power saving and energy consumption saving features such as Auto Power Down (APD) and rapid waking.

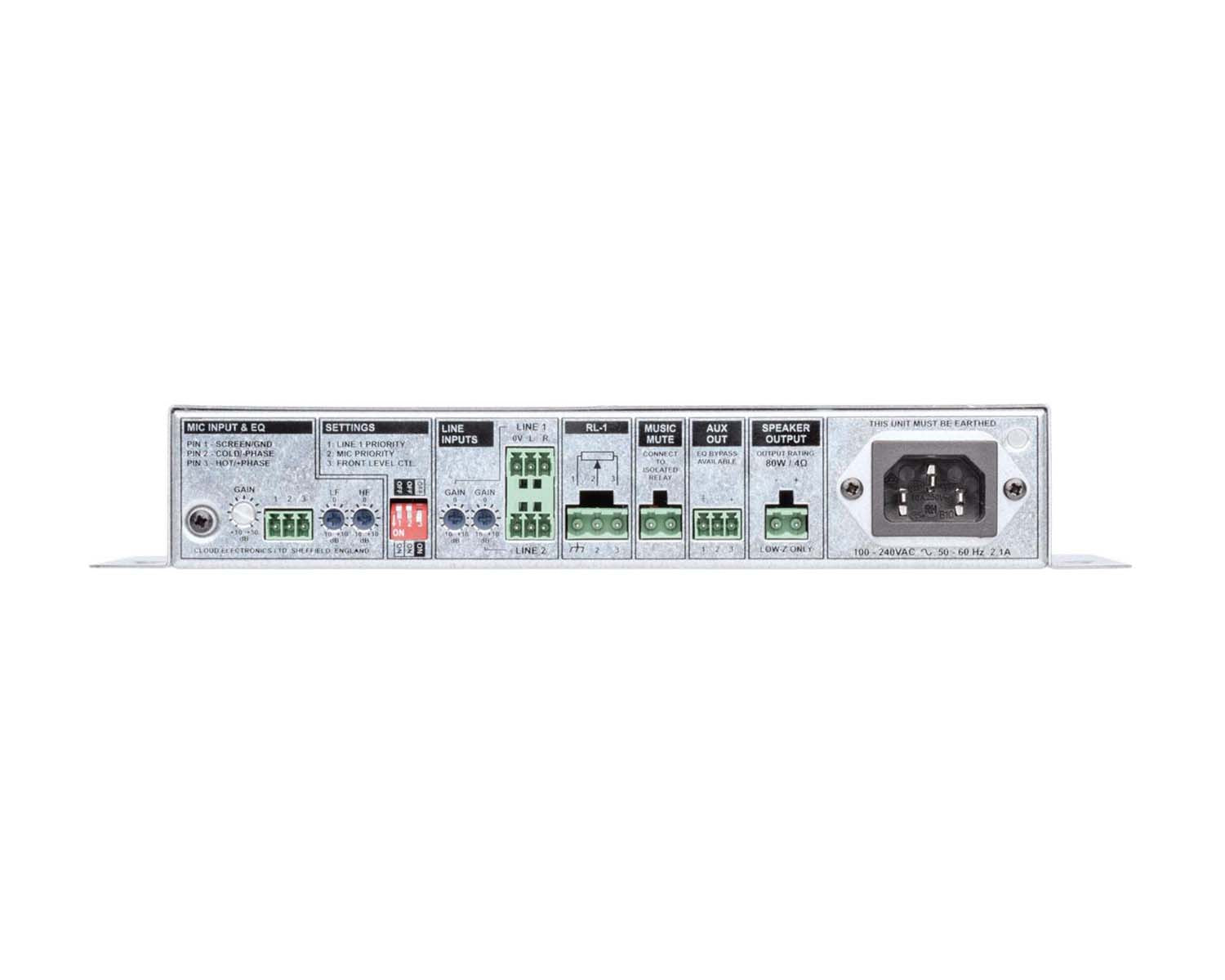

Fitted with a Microphone Input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.

The MA80 is powered internally via 100-240V SMPS. There is an optional 20mm Flexible Conduit Kit available (CA947034) for fire protection.

Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.

Product Features

• 1 x 80W Mono 4ohm Output (<1% THD @ Full Output)
• Line 1 over Line 2 Priority
• ENERGY STAR ® Certified
• APD - Auto Wake & Hibernation
• Mic Input with EQ and Input Gain
• Music EQ Plus Optional EQ Card
• Mic Output Level Control + Priority
• Music Mute
• RL-1 Remote Control Interface
• Aux Out
• Dynamic Clip, Thermal & Short Protection
• Integrated Universal Power Supply
• Variants: EK, AUS, NA

Product Specifications

• For detailed specifications please find the datasheets located in the attachments
