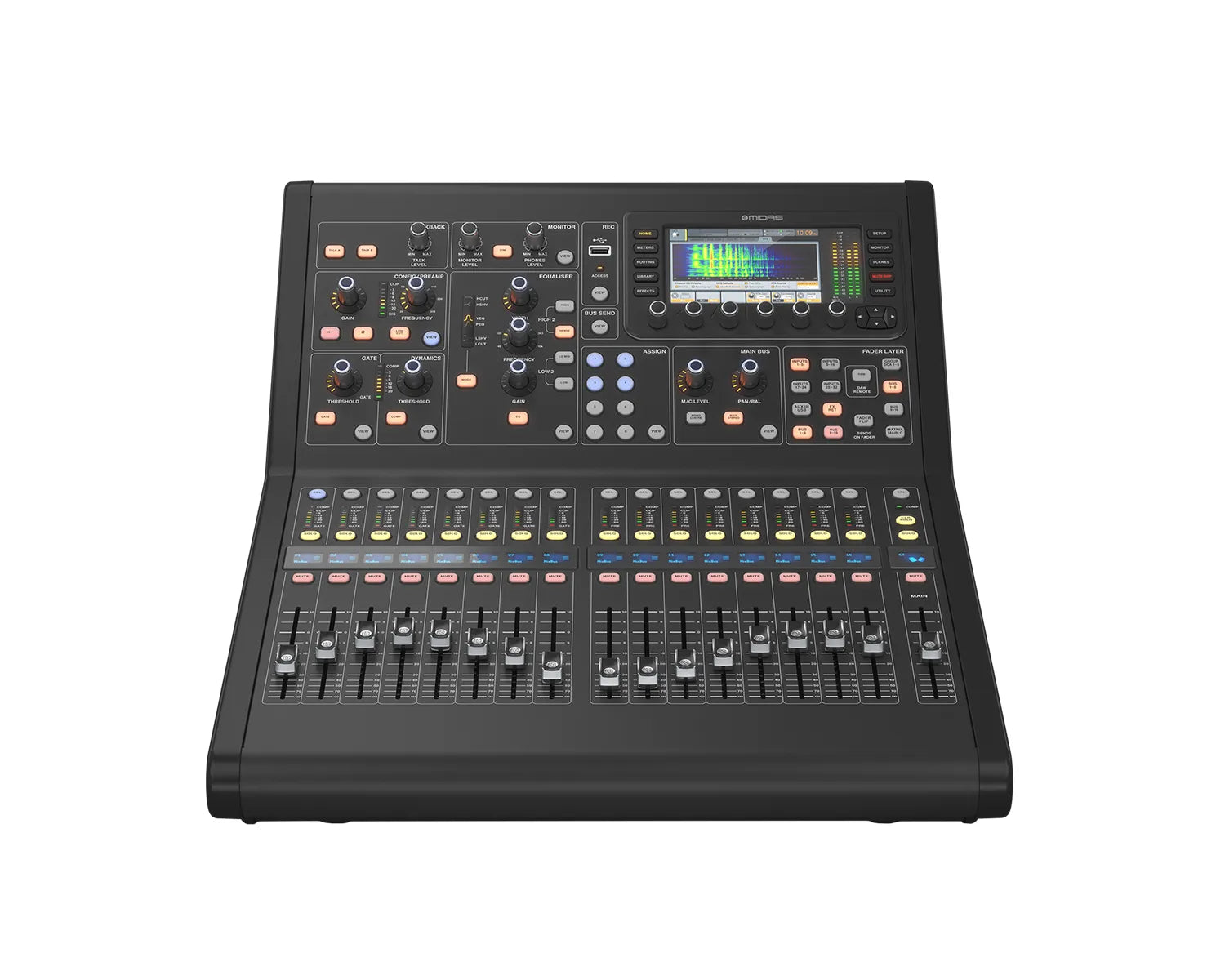

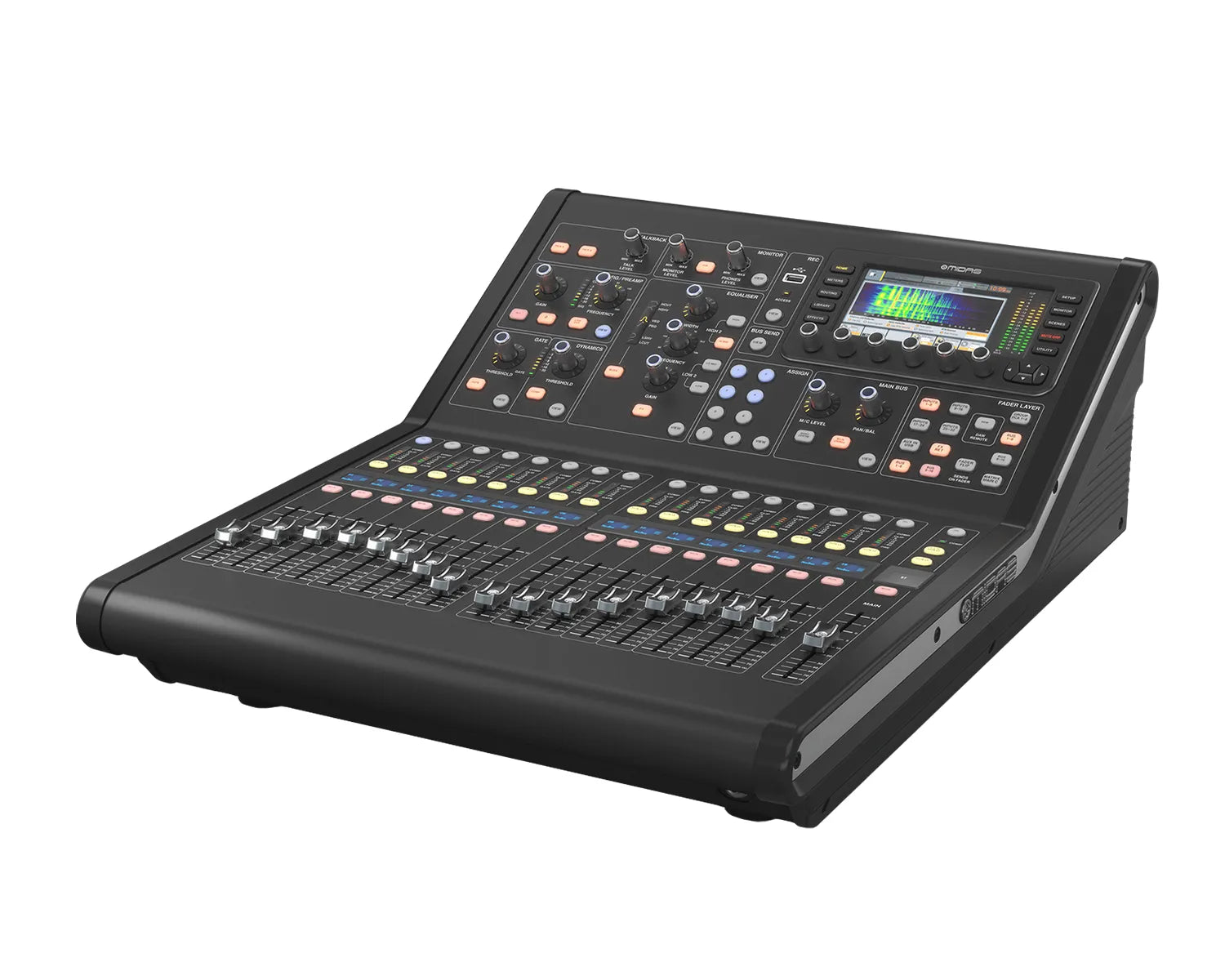

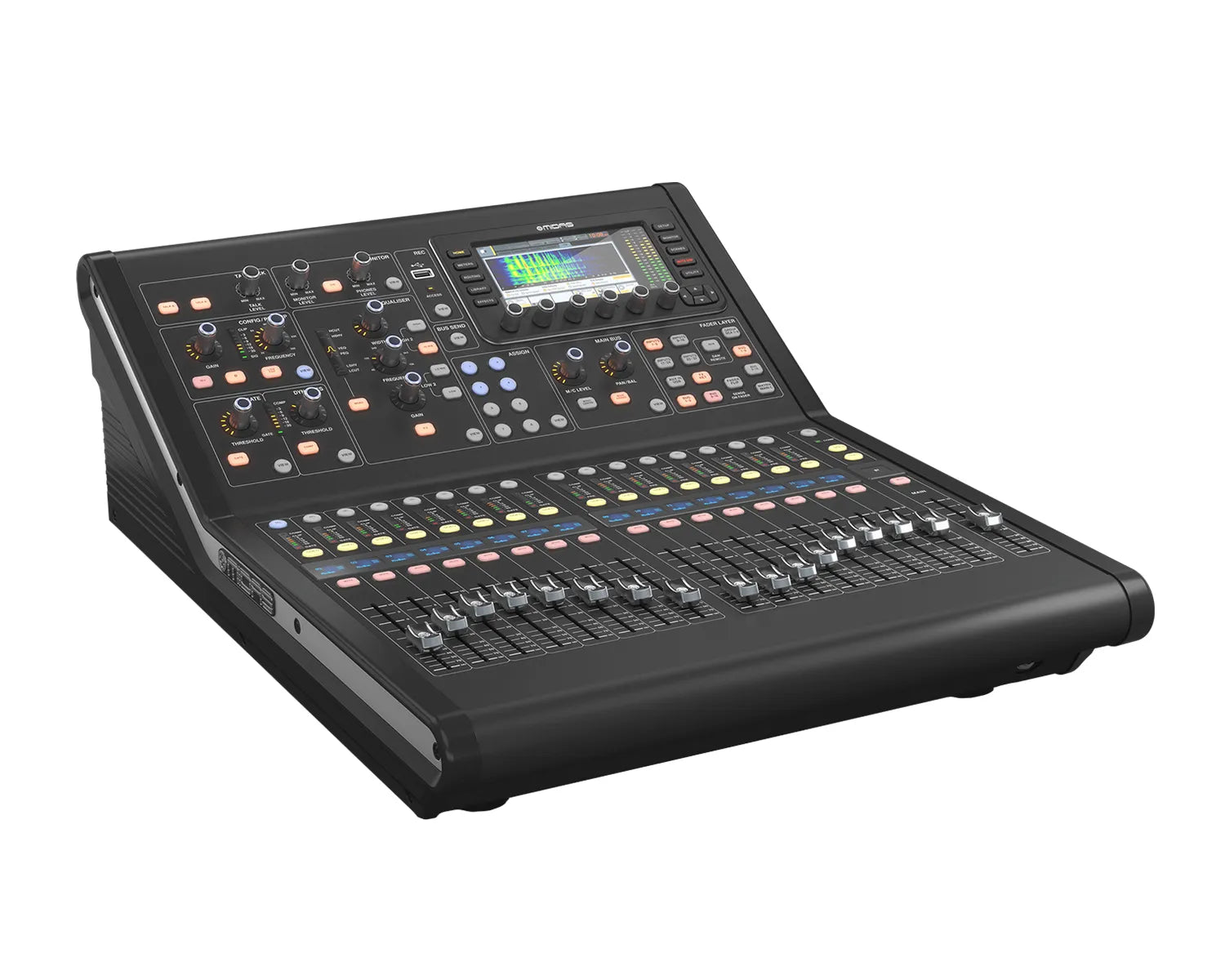

Digital Console for Live and Studio with 40 Input Channels, 16 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording.

A close look at M32R LIVE reveals that the styling is completely new in every sense of the word. Rajesh Kutty’s automotive-inspired design elements mesh perfectly with a recognisable Midas signature, setting the M32R LIVE apart from any other console. Its beautifully streamlined and elegant form factor completely revolutionises the experience of live mixing.

The Midas M32R LIVE construction is equally impressive, and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32R LIVE employs a predominantly space-frame construction, with parts of the sub-frame consisting of high-performance aluminium. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio.
The M32R LIVE is an innovative, evolved design that brings together modern construction principles and high-tech materials into a styling destined to go down as a landmark in console history.

Product Features

• Live performance and studio recording digital console with up to 40 simultaneous input channels
• 16 award-winning Midas PRO microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
• Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files
• High-performance aluminium and high-impact steel structure
• Rack mount brackets included for ultimate flexibility
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines
• 17 Midas PRO motor faders
• Daylight viewable 5" full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control and HUI protocols
• Optional wireless remote control with Midas Apps for iPhone and iPad
• Auto-ranging universal switch-mode power supply

Product Specifications

Processing

• Number of processing channels:  32 input channels, 8 aux channels, 8 FX return channels, 16 aux buses, 6 matrices, main LRC
• Internal effects engines, true stereo / mono:  8/16
• Internal total recall scenes (incl. preamp and fader):  100
• Signal processing:  40-bit floating point
• Network I/O latency (stagebox in > console processing* > stagebox out):  1.1ms

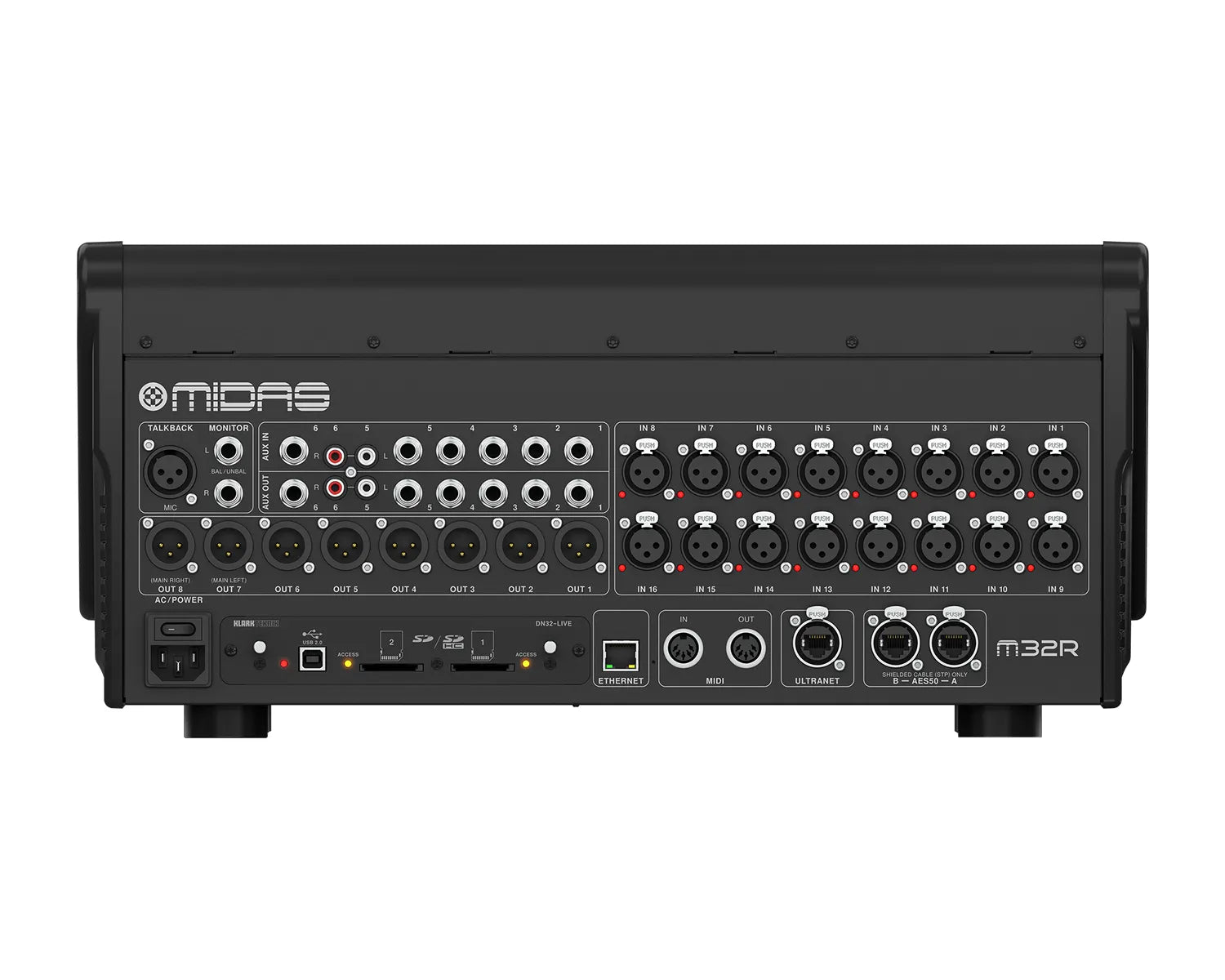

Connectors

• Talkback mic input, TRS:  1 external (no phantom power)
• Monitoring outputs 1/4" TRS balanced:  2
• AES50 ports, SuperMAC:  2
• Expansion card slot:  32 channel audio input/output, various standards
• P-16 connector, Ultranet (no power supplied):  1
• MIDI inputs/outputs:  1/1
• Ethernet, RJ45, rear panel, for remote control:  1

Talkback Input

• Maximum gain:  +50 dB
• Maximum input level at unity gain:  +8 dBu
• Input impedance: 2 K-Ohms

Monitor Outputs

• Maximum output level:  +21 dBu
• Output impedance:  50 Ohms
• Frequency response, +0 to -1 dB:  20Hz - 20KHz
• Output noise, 22Hz - 22 KHz:  -83 dBu, unweighted
• Distortion, 0dBu output level 1kHz:  0.02%

Indicators

• LCD screen:  128 x 64, LCD with RGB colour backlight
• Status LEDs:  AES50 port A/B status, power LED, Mute All button

Power

• Switch-mode power supply:  Autorange 100-240 V (50/60Hz)
• Power consumption:  40W

Physical

• Standard operating temperature range:  5-Decrees Celsius - 40-Degrees Celsius (41F - 104F)
• Dimensions:  483 x 300 x 50mm (19 x 11.8 x 2")
• Weight:  3.5 kg (7.7lbs)
