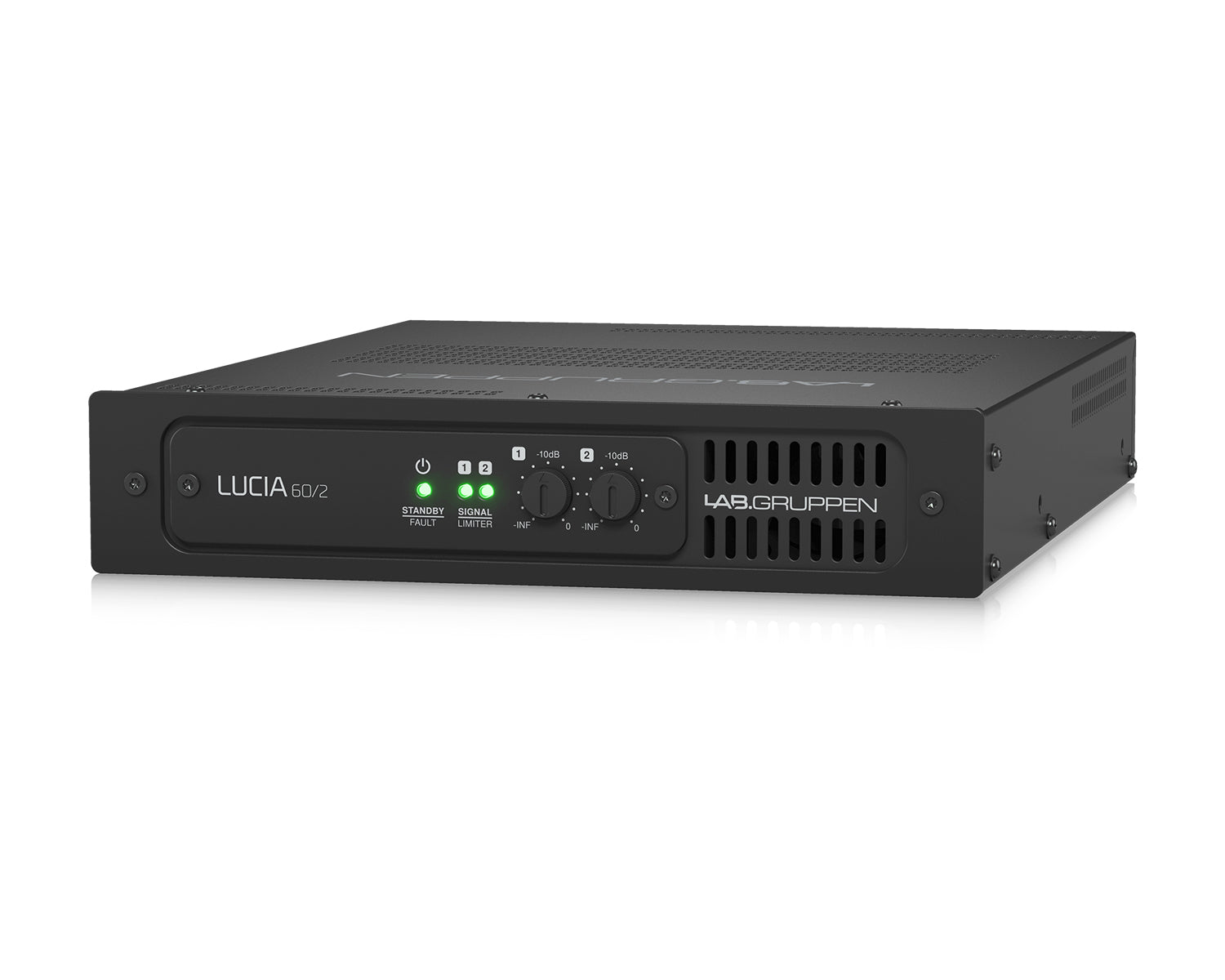

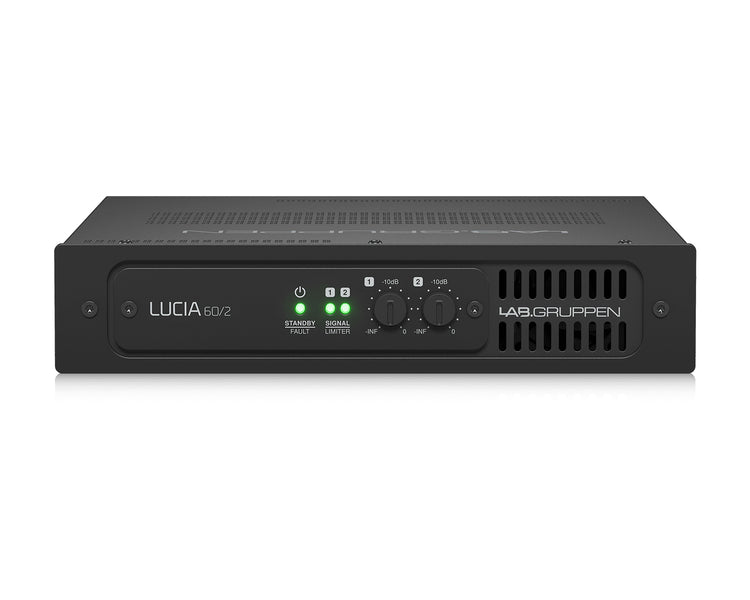

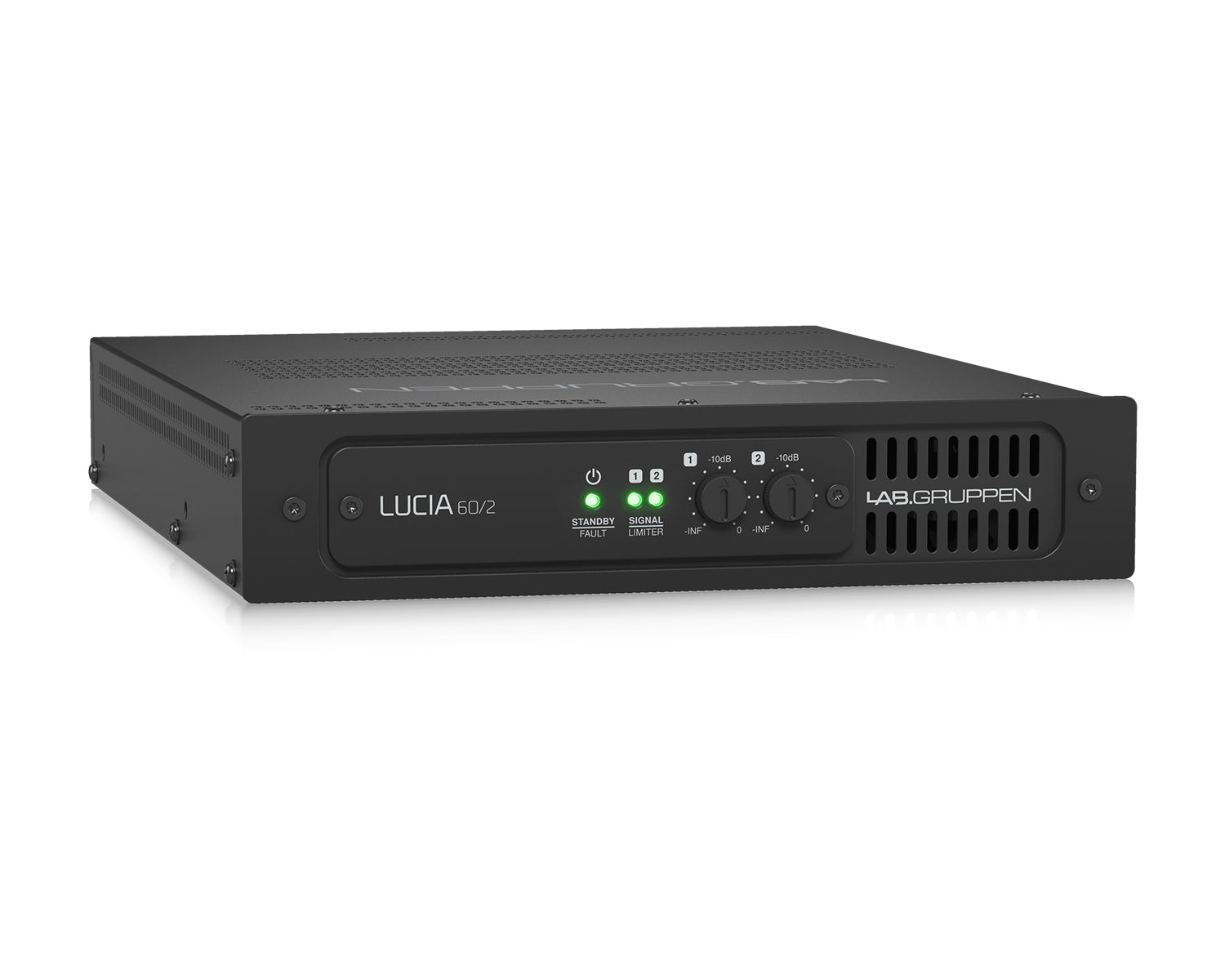

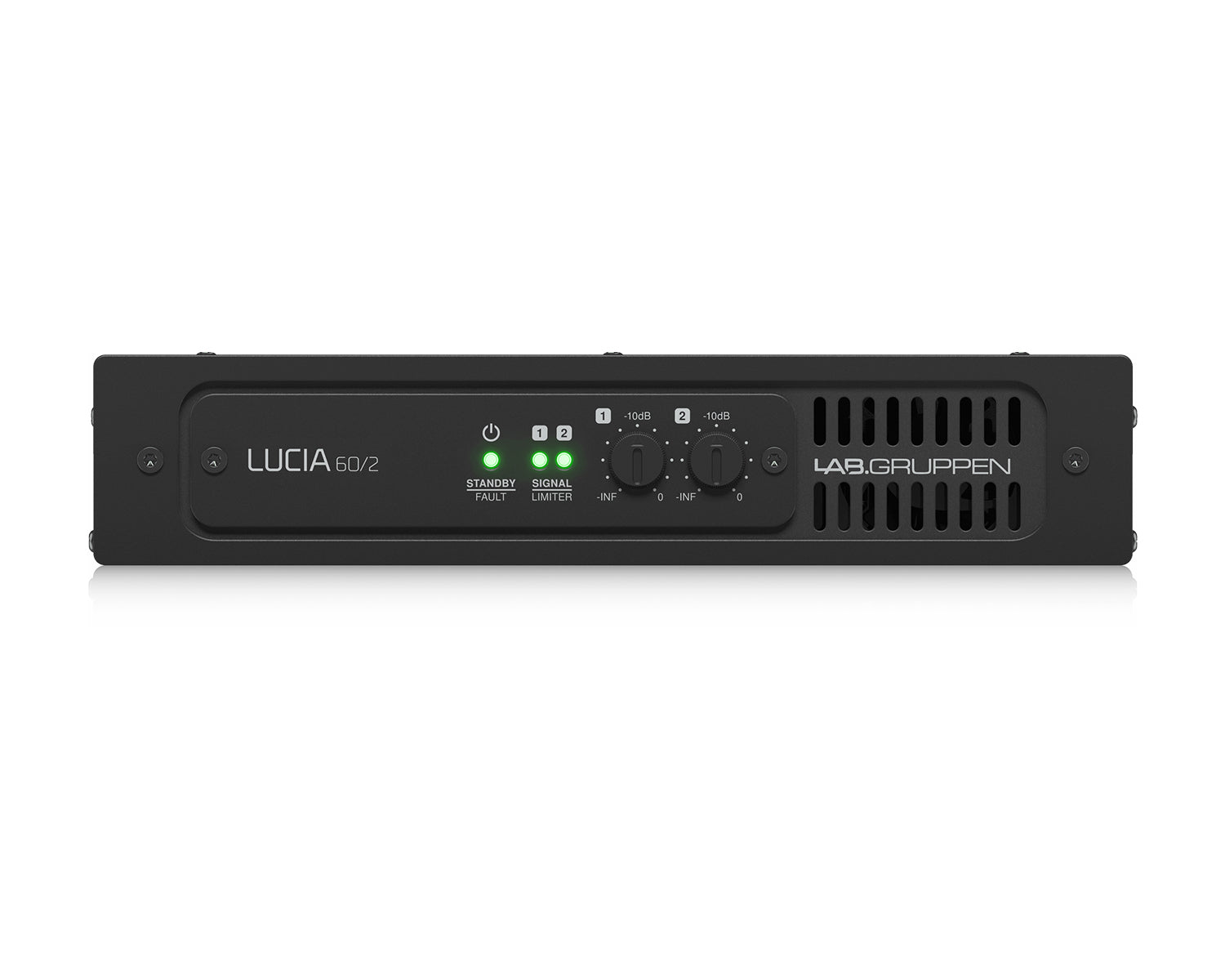

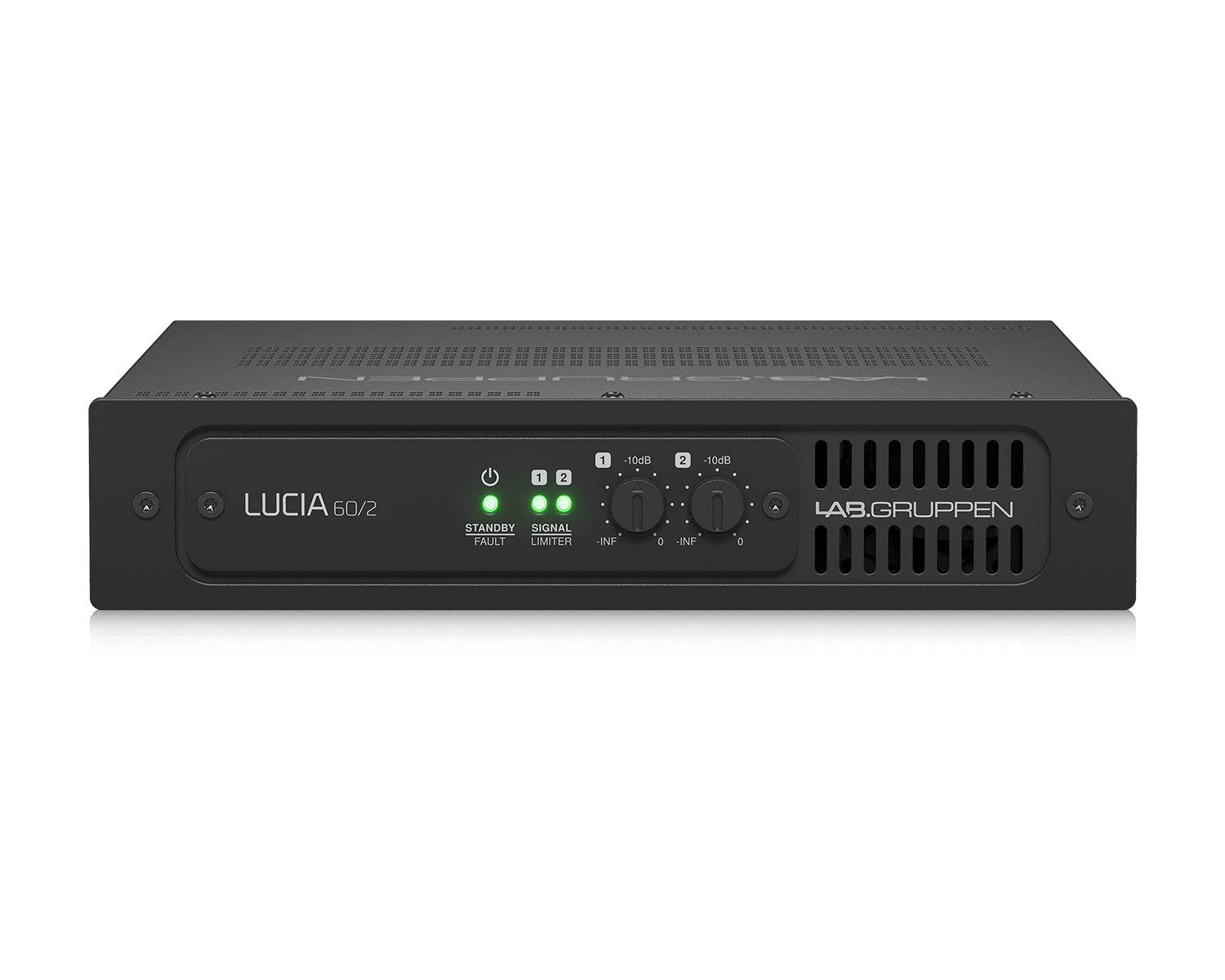

LAB602M - Lab Gruppen LUCIA 60 or 2M 2 Channel Compact Matrix Amplifier 2x30W and DSP Image 1

LAB602M - Lab Gruppen LUCIA 60 or 2M 2 Channel Compact Matrix Amplifier 2x30W and DSP Image 2

LAB602M - Lab Gruppen LUCIA 60 or 2M 2 Channel Compact Matrix Amplifier 2x30W and DSP Image 3

LAB602M - Lab Gruppen LUCIA 60 or 2M 2 Channel Compact Matrix Amplifier 2x30W and DSP Image 4

LAB602M - Lab Gruppen LUCIA 60 or 2M 2 Channel Compact Matrix Amplifier 2x30W and DSP Image 5

LAB GRUPPEN’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) brings superior audio performance and extraordinary flexibility to a decentralized approach in AV systems design. power, processing, control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution that often eliminates the complications and added expense of a centralized equipment room. LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient LAB GRUPPEN output stage, all of which make LUCIA the best-sounding and most reliable compact amplifier in its category.

LUCIA 60/2M has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace – whether next to a projector or integrated into a reception counter, podium & lectern or bar area. All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.

LUCIA amplifiers are ENERGY STAR qualified, making them an ideal choice for installation in projects seeking energy efficient certifications. The amplifiers automatically enter standby mode after a 20 minute period with no signal input, consuming less than 1 watt. Automatic power-up occurs within two seconds after an input signal is sensed.

Product Features

Compact matrix amplifier which offers full output power across a range of loads with 2 x 30 W into 8, 4 or 2 Ohms
Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
4 x 4 matrix allows mixing and routing all inputs to amplifier output channels and 2 balanced line level outputs
Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows* and Mac*
Energy efficient with Energy Star* certification for supreme green credentials and exceptionally low lifetime running costs
Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
Optimized presets available for a wide range of loudspeaker models for fast configuration
Enhanced Bass Profile for extended LF response with small loudspeakers
Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
Efficient Class-D amplifier with low distortion and minimal heat dissipation
Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
Universal power supply supports 100 - 240 V AC at 50 or 60 Hz
Intelligent fan control for silent operation at idle and at lower output levels
Front panel power and fault indication as well as per-channel signal LED and attenuation knob
Balanced high quality analogue inputs and amplifier outputs on detachable screw terminals
Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
Rackmount kit, pole-mount kit and wall panel kits available as accessories
10-Year Warranty Program*
Designed and engineered in Sweden

Product Specifications

General

Number of amplifier channels: 2
Max total output all channels driven: 60 W
Max output voltage per channel: 21.9 V peak
Max output current per channel: 3.9 Arms
Max output power (all channels driven)
- 2 ohms: 30 W
- 4 ohms: 30 W
- 8 ohms: 30 W
- 16 ohms: 15 W

Performance

THD 20 Hz - 20 kHz at 1 W into 8 ohms: <0.3%
THD at 1 kHz and 1 dB below clipping: <0.2%
Signal to Noise Ratio: >95 dBA
Channel separation (Crosstalk) at 1 kHz: >60 dBA
Frequency Response: 5 Hz - 22 kHz
Input impedance: 10 kOhm
Common Mode Rejection (CMR): 40 dB

Gain, Sensitivity and Limiters

VPL for 16 ohm mode: 21.9 V peak
VPL for 8 ohm mode: 21.9 V peak
VPL for 4 ohm mode: 15.5 Vpeak
VPL for 2 ohm mode: 11 Vpeak
Sensitivity, balanced input: 4 dBu / 1.23 Vrms
Sensitivity, RCA input: -2 dBu / 0.62 Vrms
Input headroom for clip, balanced 1: 12 dBu / 3.09 Vrms
Input headroom for clip, RCA 1: 6 dBu / 1.55 Vrms

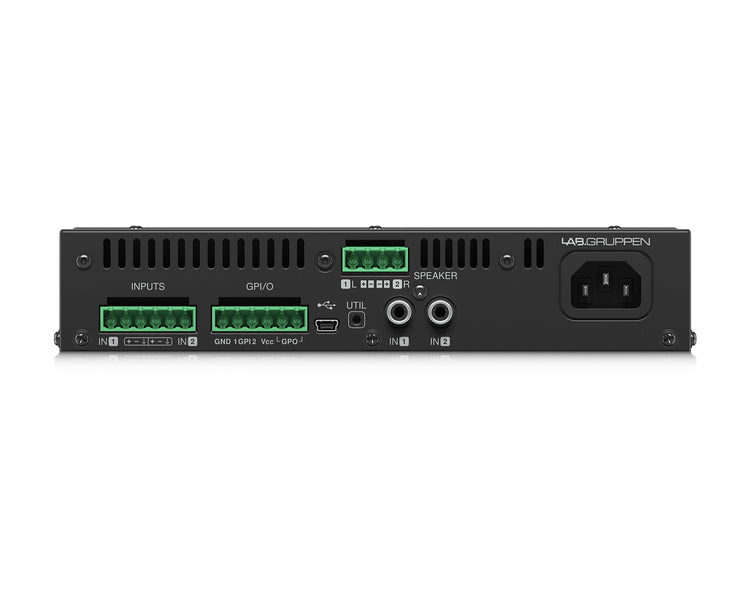

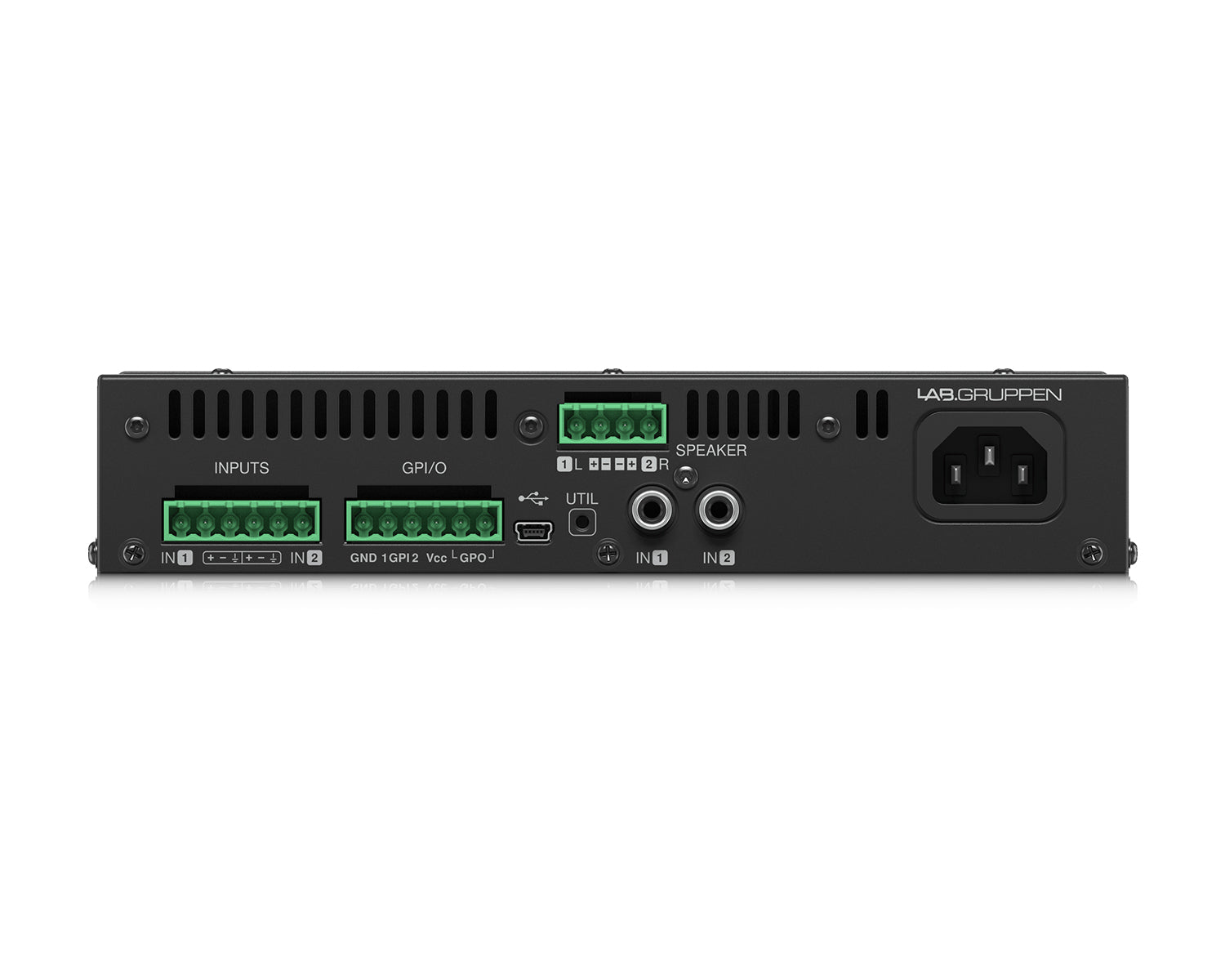

Connectors and Buttons

Output connectors (per ch.): 2 - pin detachable screw terminals
Line-level output connectors (ch. 3 & 4): 3 - pin detachable screw terminals, electronically balanced
GPI (power control input) 2: 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain.
Input connectors (per ch.): 3 - pin detachable screw terminals, electronically balanced
RS232: Can be controlled and monitored by third parties via RS232 using both the GPI pins
USB: For firmware update and configuration with the Application Browser software
Level adjustment (per channel): Front panel potentiometer, detented from -inf to 0 dB

Processing Features

Input processing block 3: 4 EQ sections per input
Mix matrix routing block 3: 4 in - 4 out mix-matrix controllable from GPI
Output processing block 3: 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation)
Two line level outputs 4: Each capable of driving 10 LUCIA devices in parallel
Latency from any input to any output: User adjustable from 9.15 to 137 ms

Power

Nominal voltage: 100 – 240 VAC
Operating voltage: 85 – 265 VAC
Mains connector: IEC inlet
Cooling: One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 2 × 6 W and the ambient temperature is below 25 C
Auto mode: The power state is controlled automatically by the audio signal
