Lab.gruppen’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) brings superior audio performance and extraordinary flexibility to a decentralized approach in AV systems design. Power, processing, control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution that often eliminates the complications and added expense of a centralized equipment room. LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient Lab.gruppen output stage, all of which make LUCIA the best-sounding and most reliable compact amplifier in its category.

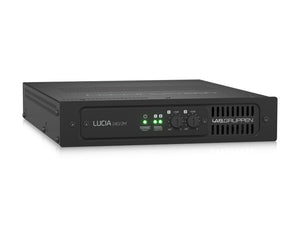

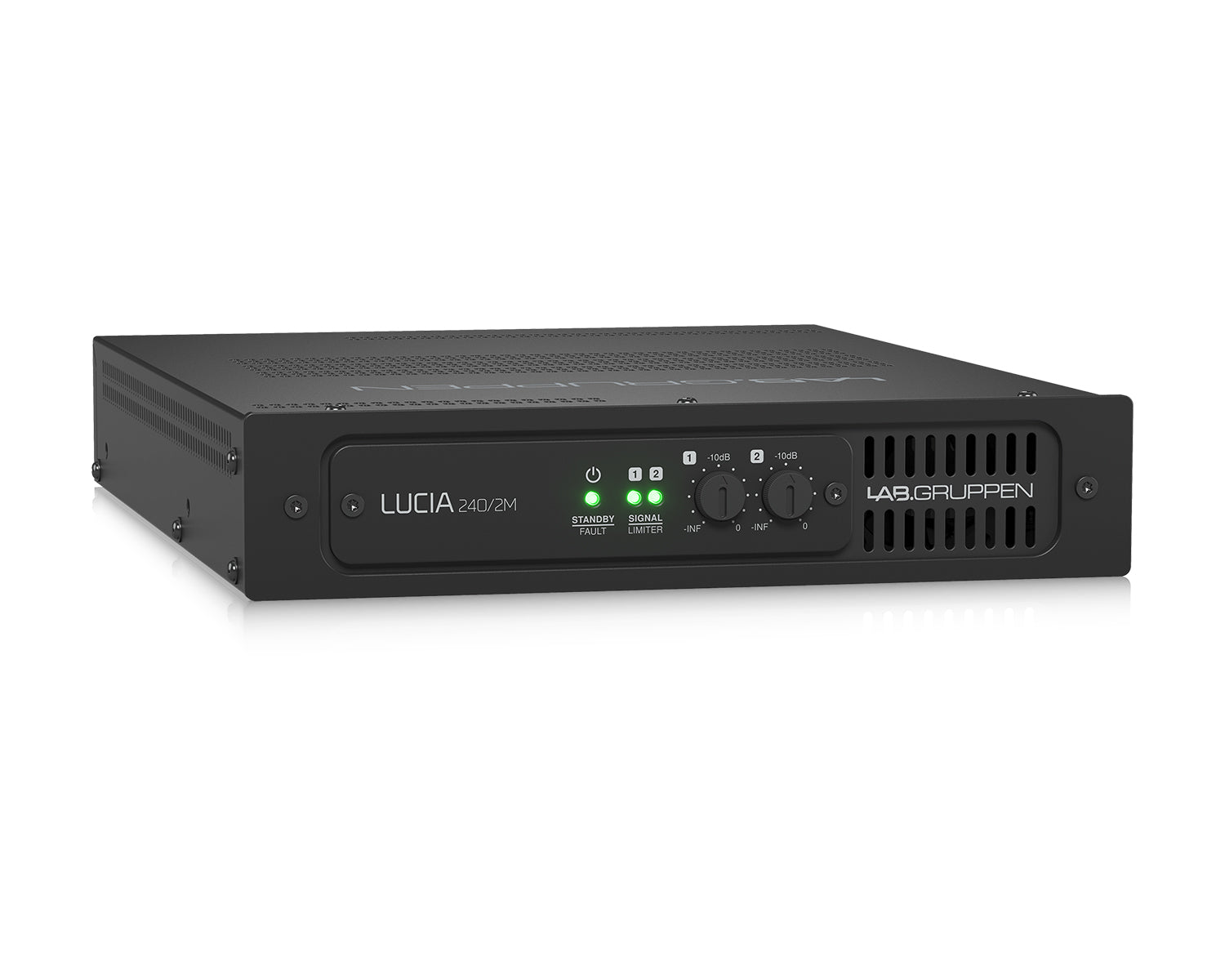

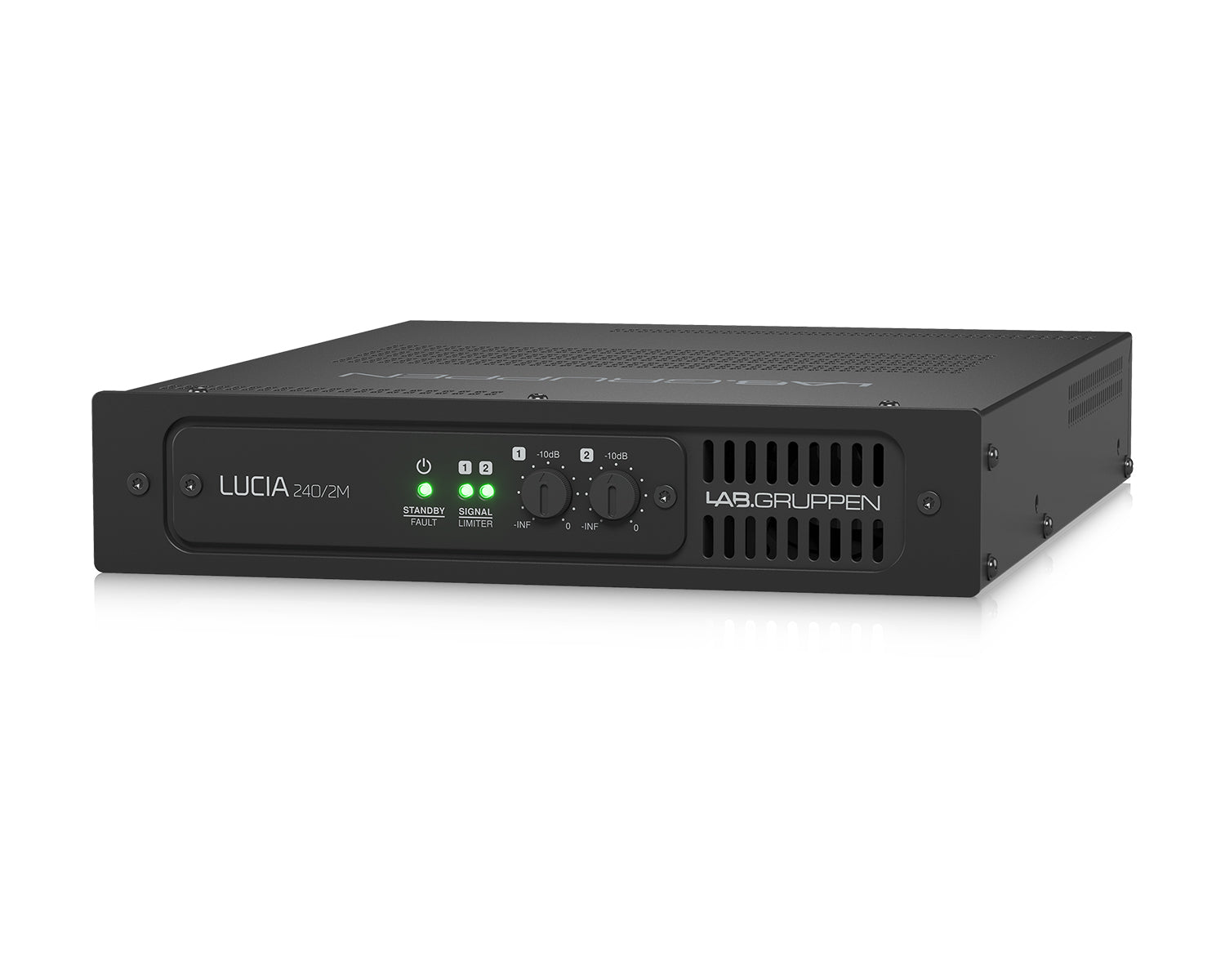

LUCIA 240/2M has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace – whether next to a projector or integrated into a reception counter, podium & lectern or bar area. All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.

LUCIA amplifiers are ENERGY STAR qualified, making them an ideal choice for installation in projects seeking energy efficient certifications. The amplifiers automatically enter standby mode after a 20 minute period with no signal input, consuming less than 1 watt. Automatic power-up occurs within two seconds after an input signal is sensed.

Product Features

• Maximum output power across range of loads – 2 x 120 W into 8, 4 or 2 ohms
• Comprehensive DSP features – Per channel presets for high-pass filter, parametric EQ, multi-band compressor, and look-ahead limiter
• Automatic Dynamic Loudness Contouring™ – DSP automatically adapts to optimize performance at any output level
• Optimized presets – Available for specific loudspeaker models
• Auto Load Sense™ – Proprietary auto-set VPL™ (Voltage Peak Limiter) for optimum performance with any connected load
• 4 x 4 mix matrix – Route input signals internally to either or both amplifier channels
• Configuration software – Windows and Mac software wizard for initial set-up, and advanced editor for preset configuration (LUCIA connection via USB)
• GPIO – Remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
• Compact form factor – Half-rack, 1U chassis and supplied bracket for discreet on-wall mounting (e.g. behind display screens)
• Efficient Class D amplifier – Patented design for low distortion and minimal heat dissipation
• Fail-safe operation – Comprehensive short circuit, thermal, and under-voltage protection
• Universal power supply – Operates at 100 - 240 V AC (50 or 60 Hz)
• ENERGY STAR® qualified – Conforms to latest specification energy efficiency standards
• Intelligent fan control – Silent operation at idle and at lower output levels
• RS232 – Remote control and monitoring from third party control solutions

Product Specifications

General

• Number of amplifier channels: 2
• Max total output all channels driven: 240 W
• Max output voltage per channel: 43.8 V peak
• Max output current per channel: 7.8 Arms
• Max output power (all channels driven):
  • 2 ohms: 120 W
  • 4 ohms: 120 W
  • 8 ohms: 120 W
  • 16 ohms: 60 W

Performance

• THD 20 Hz - 20 kHz at 1 W into 8 ohms: <0.3%
• THD at 1 kHz and 1 dB below clipping: <0.2%
• Signal to Noise Ratio: >101 dBA
• Channel separation (Crosstalk) at 1 kHz: >60 dBA
• Frequency Response: 5 Hz - 22 kHz
• Input impedance: 10 kOhm
• Common Mode Rejection (CMR): 40 dB

Gain, Sensitivity and Limiters

• VPL for 16 ohm mode: 43.8 Vpeak
• VPL for 8 ohm mode: 43.8 Vpeak
• VPL for 4 ohm mode: 31 Vpeak
• VPL for 2 ohm mode: 22 Vpeak
• Sensitivity, balanced input: 4 dBu / 1.23 Vrms
• Sensitivity, RCA input: -2 dBu / 0.62 Vrms
• Input headroom for clip, balanced: 12 dBu / 3.09 Vrms
• Input headroom for clip, RCA: 6 dBu / 1.55 Vrms

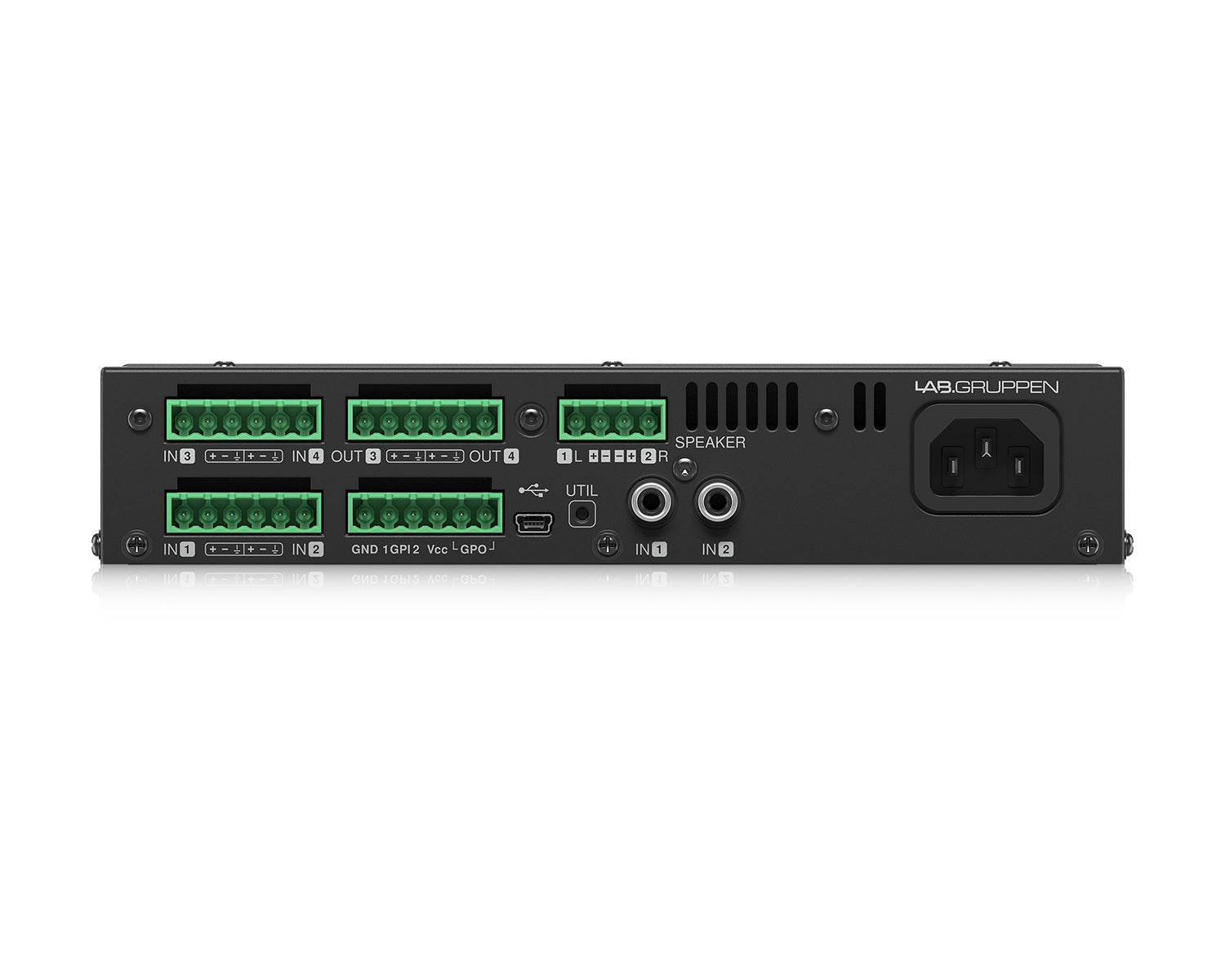

Connectors and Buttons

• Input connectors (per ch.): 3 - pin detachable screw terminals, electronically balanced
• Input connectors (ch. 1 & 2): Unbalanced RCA type
• Output connectors (per ch.): 2 - pin detachable screw terminals
• Line-level output connectors (ch. 3 & 4): 3 - pin detachable screw terminals, electronically balanced
• GPO (power state output):
  • Contact closure type, 2 pins in a detachable screw terminal
  • Default for external monitoring of fault/protection/power off
• USB: For firmware update and configuration for the matrix models
• RS232: Can be controlled and monitored by third parties via RS232 using both the GPI pins

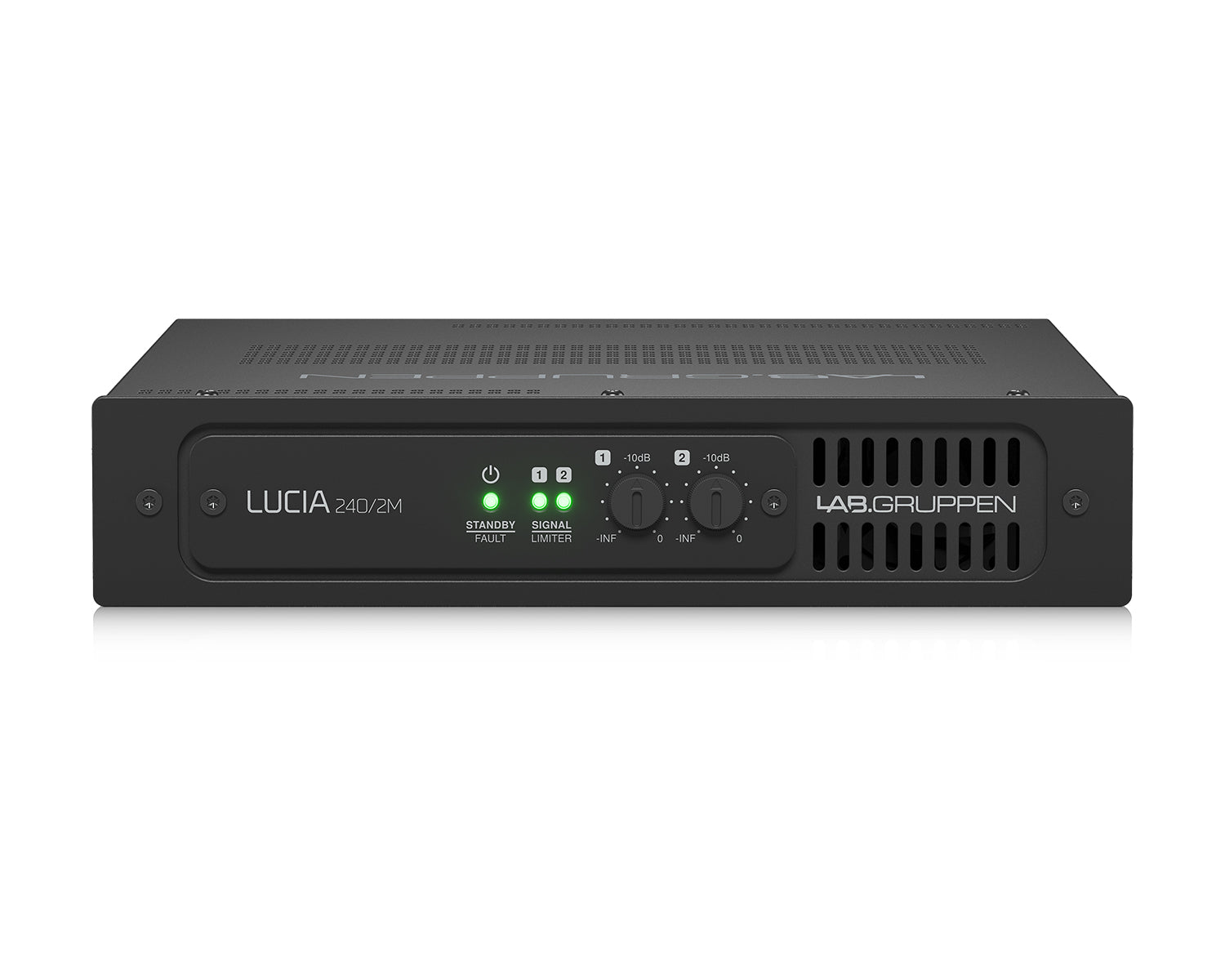

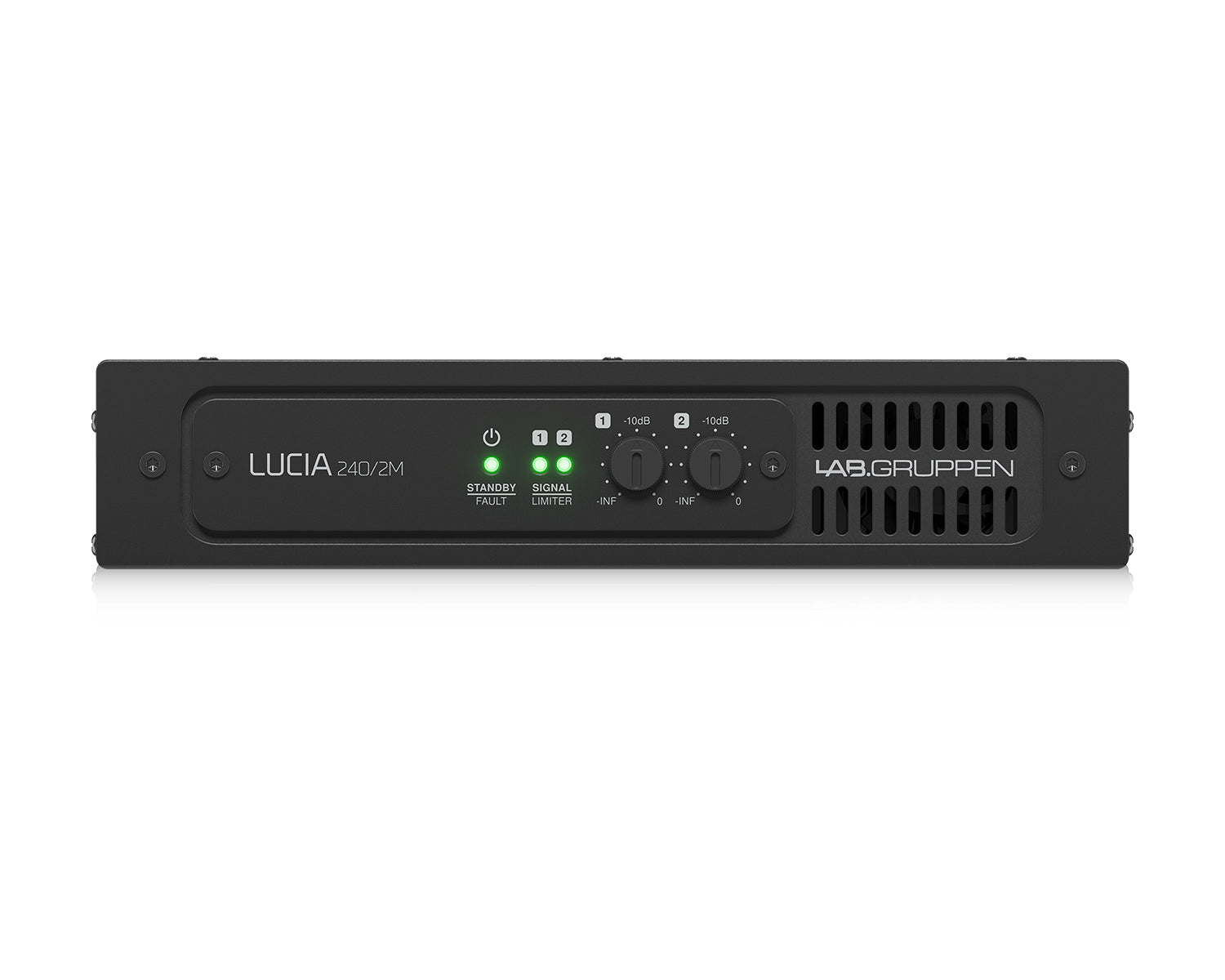

• Level adjustment (per channel): Front panel potentiometer, detented from -inf to 0 dB

Processing Features

• Input processing block: 4 EQ sections per input
• Mix matrix routing block: 4 in - 4 out mix-matrix controllable from GPI
• Output processing block:
  • 4 EQ sections per output (presets available for many loudspeakers)
  • User adjustable output look ahead limiter
  • ADLC (Adaptive ISO 226 compensation)
• Two line level outputs: Each capable of driving 10 LUCIA devices in parallel
• Latency from any input to any output: User adjustable from 9.15 to 137 ms

Power

• Nominal voltage: 100 – 240 VAC
• Operating voltage: 85 – 265 VAC
• Standby consumption: <1 W
• Mains connector: IEC inlet
• Cooling: One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 2 × 6 W and the ambient temperature is below 25 C
• Auto mode: The power state is controled automatically by the audio signal

Finish

• Finish: Black aluminum front and black steel chassis

Approvals

• Approvals: CE, CSA, CCC, PSE, FCC, Energy Star

Physical & Dimensions

• Height: 44mm
• Width: 216mm
• Depth: 280mm
• Weight: 1.9 kg
