LRC Line Radiator Column is a line of passive column loudspeakers engineered specifically for installation. LRC loudspeakers are simple, practical, and easy to install, offering a sleek, neutral industrial design that blends into a wide range of settings. LRC loudspeakers can play a role in any install as main speakers, support speakers, and foreground and background speakers.

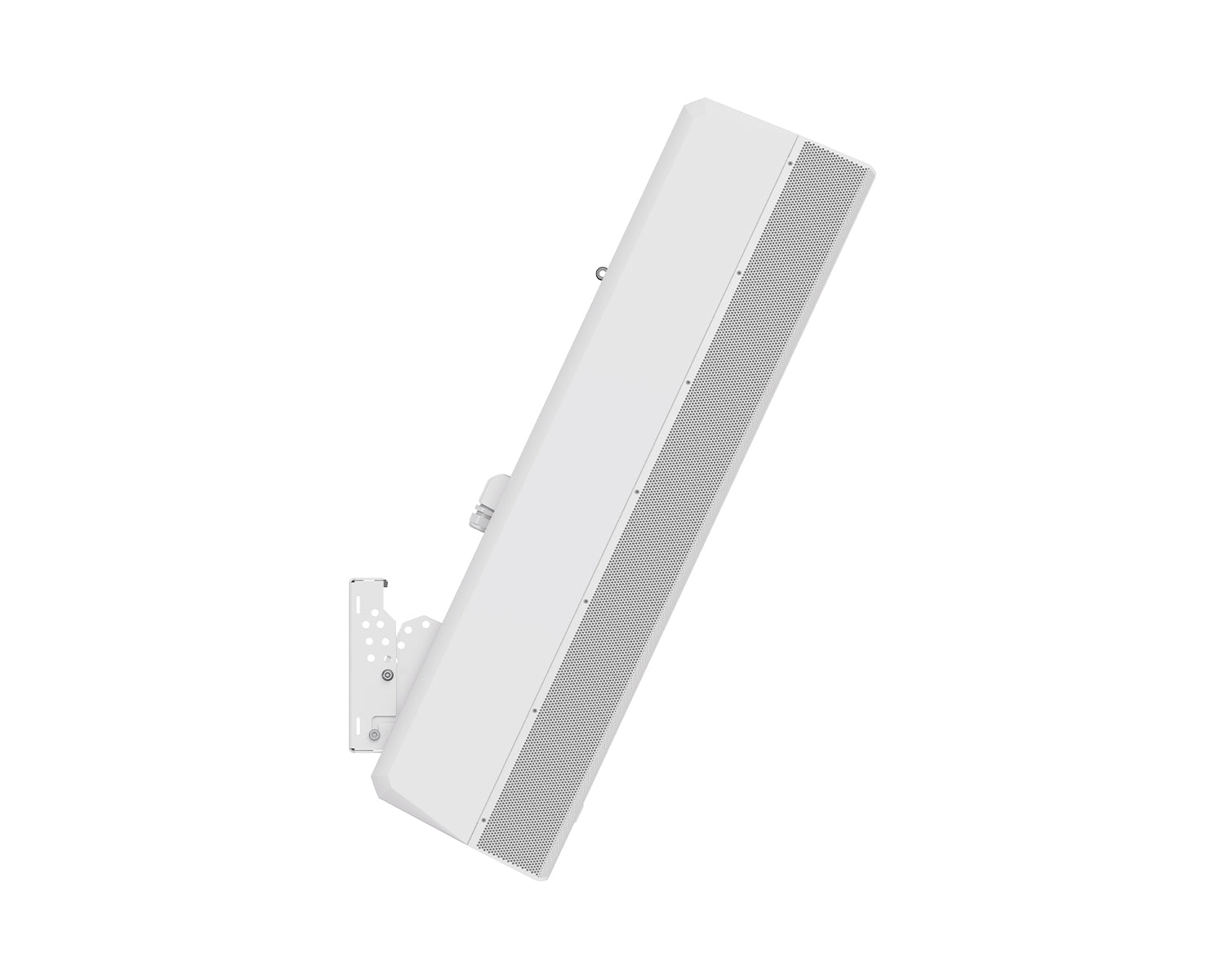

An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.

LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.

LRC-2100 is supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software, as well as AFMG EASE and EASE Focus3 software.

Product Features

• Twelve 2.5" mid-high drivers / Two 6.5" woofers in band-pass
• SwifTilt Pan-Tilt mounting bracket (patent pending) supports most mounting situations and installs column as close to the mounting surface as possible
• IP55 rating, certified for all weather applications

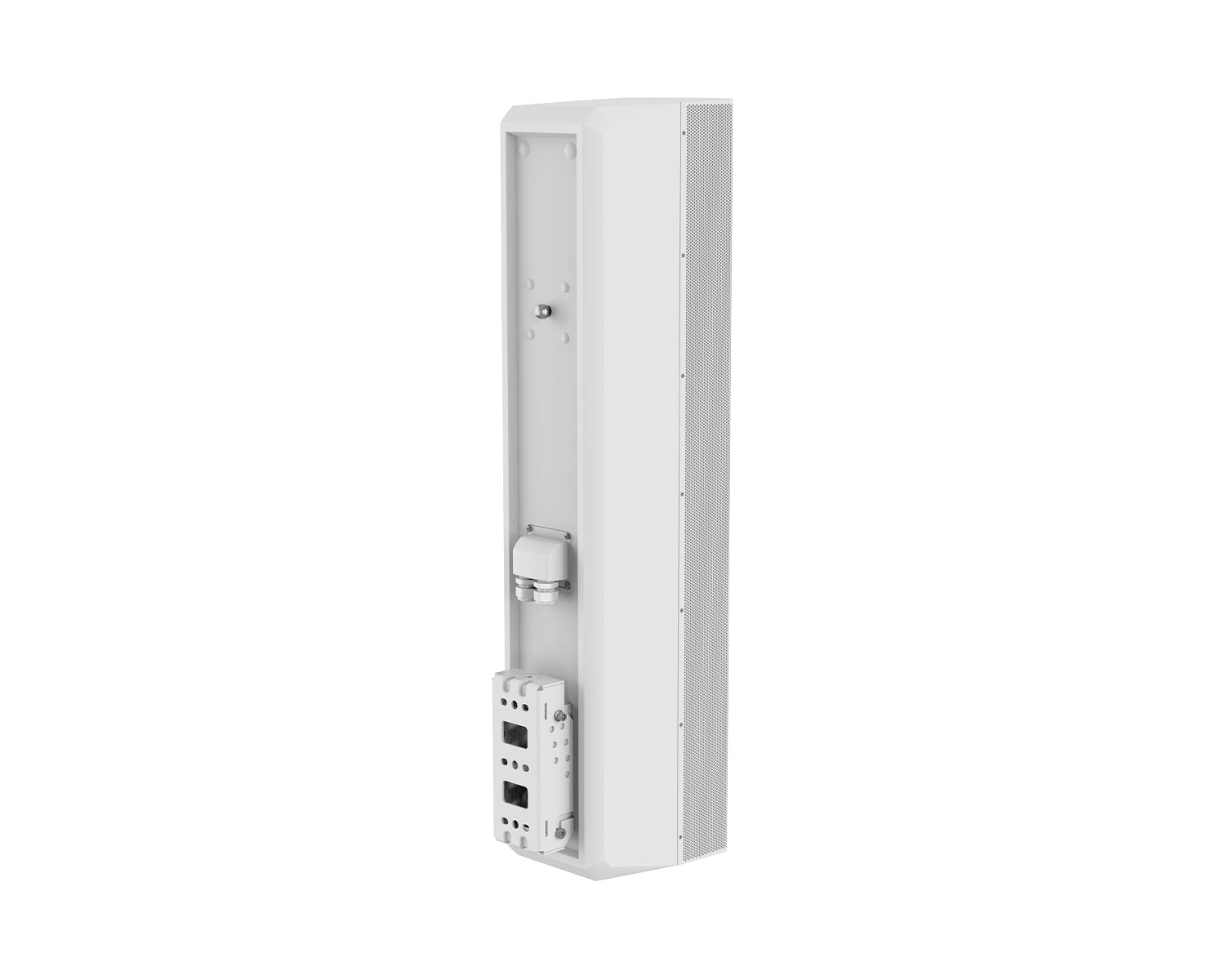

• Includes rear insert points for suspension
• 37.40” (950 mm) high
• 12x 2.5” (63.5 mm) mid-high drivers
• 2x 6.5” / (165 mm) woofers in band-pass
• 25°/45° vertical coverage (switchable)
• 180° horizontal coverage
• 45 Hz-16 kHz
• Maximum SPL: 128 dB narrow / 126 dB wide
• 8 ohms, 600W program

Product Specifications

• Frequency range (-10 dB): 45 - 16000 Hz
• Maximum SPL
  • 128 dB narrow
  • 126 dB wide
• Axial sensitivity:
  • 91.5 dB SPL 1W/1m narrow
  • 90 dB SPL 1W/1m wide
• Acoustic down-tilt (relative to horizontal): -7.5°
• Coverage angle HxV
• 180° x 25° (narrow)
• 180° x 45° (wide)
• Power handling (continuous): 300 W
• Power handling (program): 600 W
• Peak input voltage: 130 V
• Nominal impedance: 8 Ω
• Minimum impedance: 6.4 Ω at 280 Hz
• Recommended high pass: 50 Hz Butterworth 24 dB/oct
• Transducer (quantity) size
  • (2) 6.5” bass drivers
  • (12) 2.5” mid-high drivers
• Connector type:
  • 4-pin Euroblock
  • Input + Pass through
  • (max 10AWG)
• Suspension points: (6) M8x20mm
• Mounting: SwifTilt Multi-angle Tilt + Pan Bracke
• Maximum horizontal pan angle: +- 80° at all down-tilt angles
• Vertical down-tilt angles: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
• IP rating: IP55
• Colour: RAL 9003 Signal white
• Dimensions (H x W x D): 950 mm x 185 mm x 250 mm (37.4 in x 7.28 in x 9.84 in)
• Weight: 15.7kg (33 lb)

What's in the Box?

• Tilt Bracket
• Pan Bracket
• Gland Nut Weather Cover
• Dual-ended Allen/TR20 Key,
• M8x20mm Eyebolt (Pre-installed)
