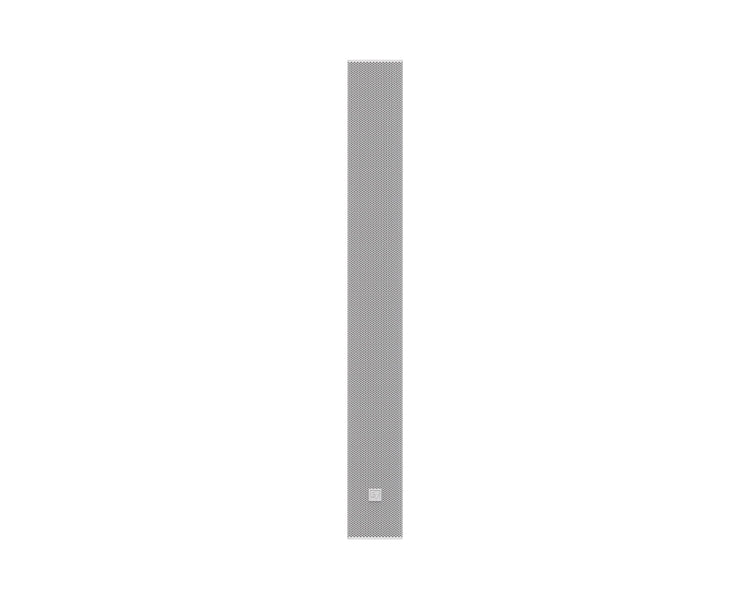

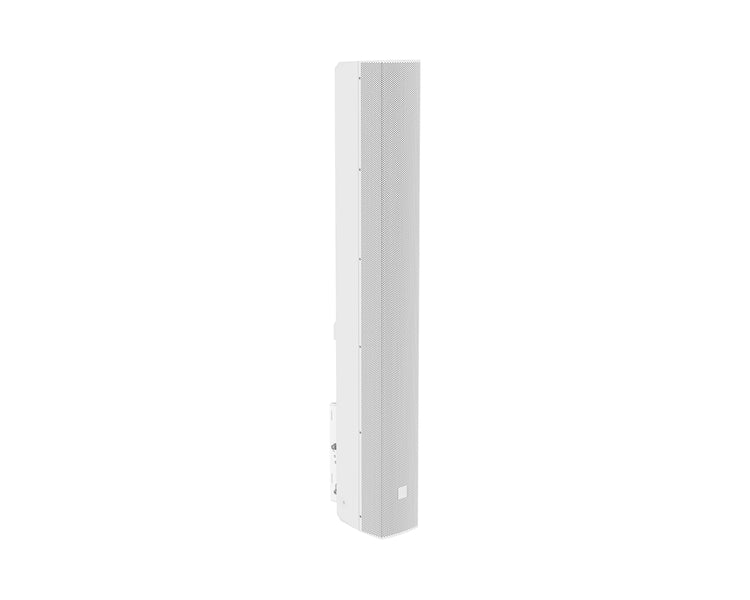

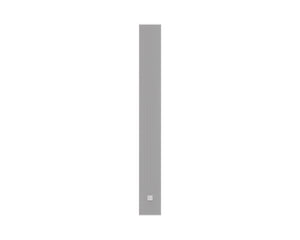

LRC Line Radiator Column is a line of passive column loudspeakers engineered specifically for installation. LRC loudspeakers are simple, practical, and easy to install, offering a sleek, neutral industrial design that blends into a wide range of settings. LRC loudspeakers can play a role in any install as main speakers, support speakers, and foreground and background speakers.

LRC-1100 loudspeakers include a pre-installed transformer for connection to 70- or 100-volt lines. These models include EV’s patented Automatic Saturation Compensation (ASC) technology, which preserves low frequency response and protects system electronics from improper electrical loads when the transformer is engaged - regardless of the number of speakers connected to the line.

An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.

LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.

LRC-1100 loudspeakers are EN54-24 certified, and all models are supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software.

Product Features

• Twelve 2.5-inch full-range drivers coupled to proprietary PaSS phase plugs produce a narrow vertical pattern and exceptional LF extension.
• User can select a narrow or wide vertical pattern (20°/40°), with a 5° downward bias to focus energy towards the listener.
• Weatherised for full exposure, including IP56c rating, and EN54-24 Type B certified for all weather applications.

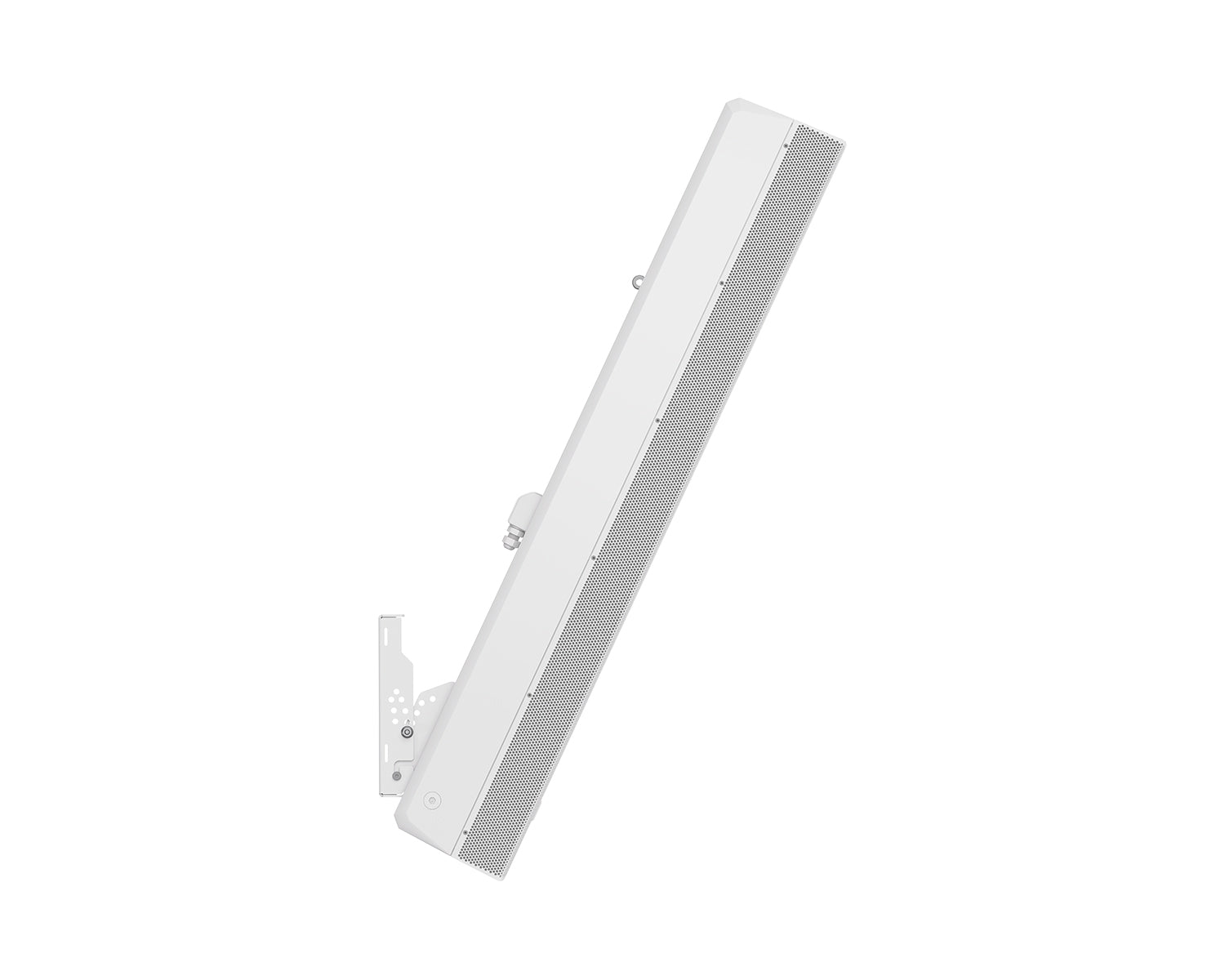

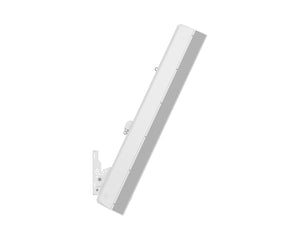

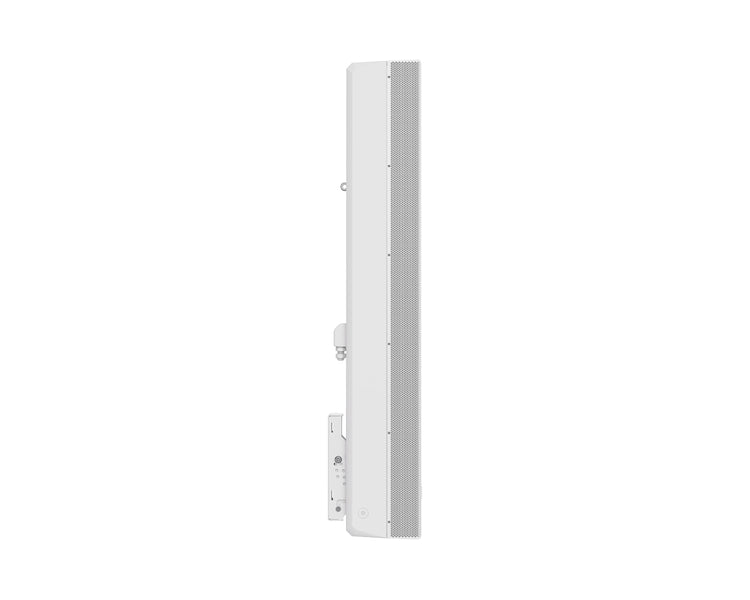

• SwifTilt Pan-Tilt mounting bracket (patent pending) supports most mounting situations and installs column as close to the mounting surface as possible.

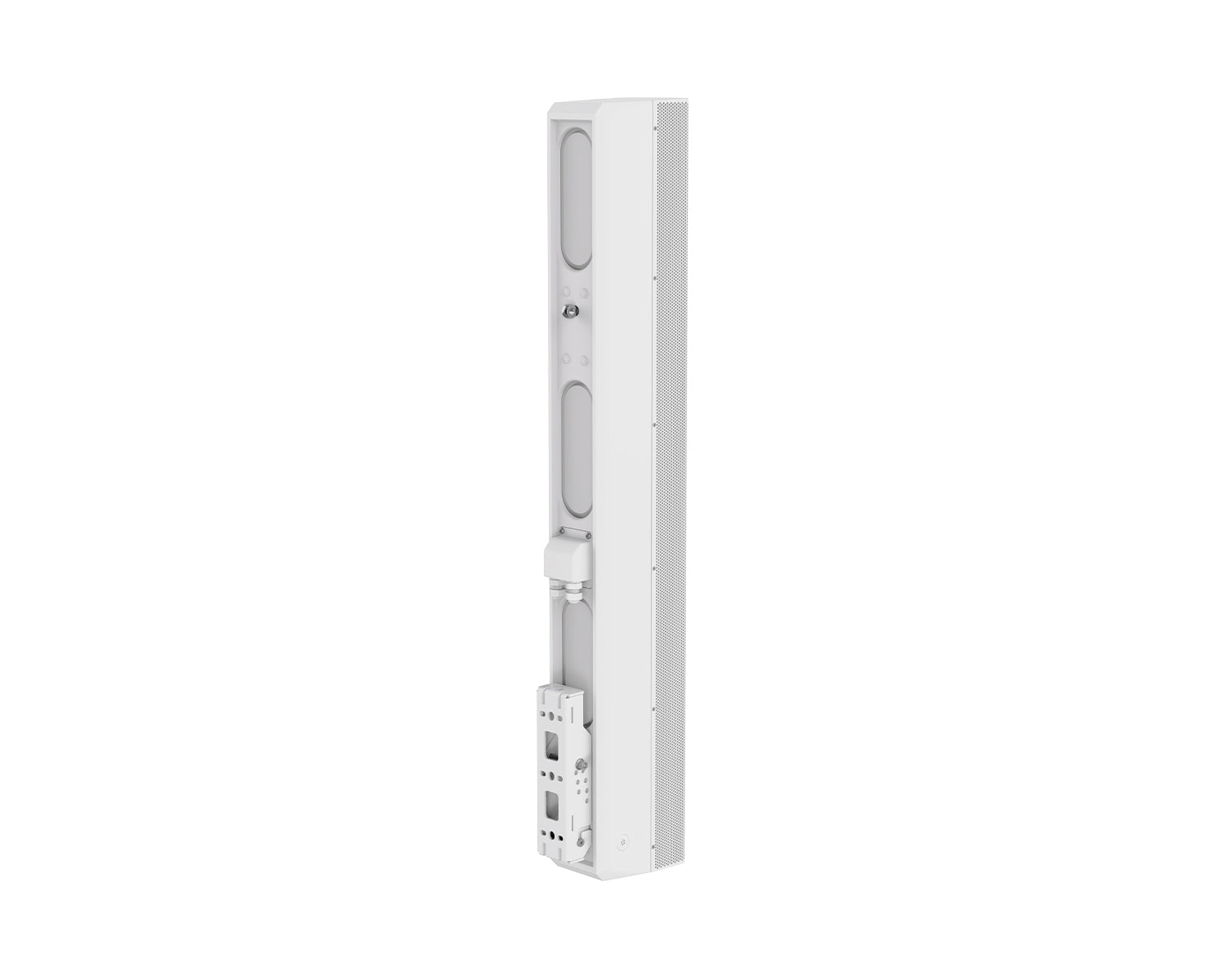

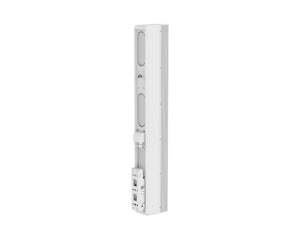

• Includes rear insert points for suspension
• 37.4” (950 mm) high
• 12x 2.5” (63.5 mm) full-range drivers
• 3x 2.5” (63.4 mm) passive radiators
• 20°/40° vertical coverage (switchable)
• 130° horizontal coverage
• 65 Hz-14 kHz
• 126 dB SPL (peak)
• Lo-Z, 8 ohms, 400W program
• 70/100V

Product Specifications

• Frequency range (-10 dB): 65 Hz – 14,000 Hz
• Maximum sound pressure level at a distance of 1 m:
  • 126 dB narrow
  • 123 dB wide
• Axial sensitivity:
  • 93 dB SPL 1W/1m narrow
  • 91 dB SPL 1W/1m wide
• Acoustic down-tilt (relative to horizontal): -5°
• Coverage angle HxV: 130° x 20° (narrow) / 40° (wide)
• Power handling (continuous): 200 W
• Power handling (program): 400 W
• Peak input voltage (Lo-Z): 115 V
• Nominal impedance (Lo-Z): 8 Ω
• Minimum impedance (Lo-Z): 7.1 Ω at 8 kHz
• Recommended high-pass: ≥70 Hz Butterworth, 24 dB/oct
• Transformer taps 70 V line: 120 W; 60 W; 30 W; 15 W; 8 W
• Transformer taps 100 V line: 120 W; 60 W; 30 W; 15 W
• Transducer (quantity) size:
  • (12) 2.5" active drivers
  • (3) 2.5" and 6.5" passive radiators

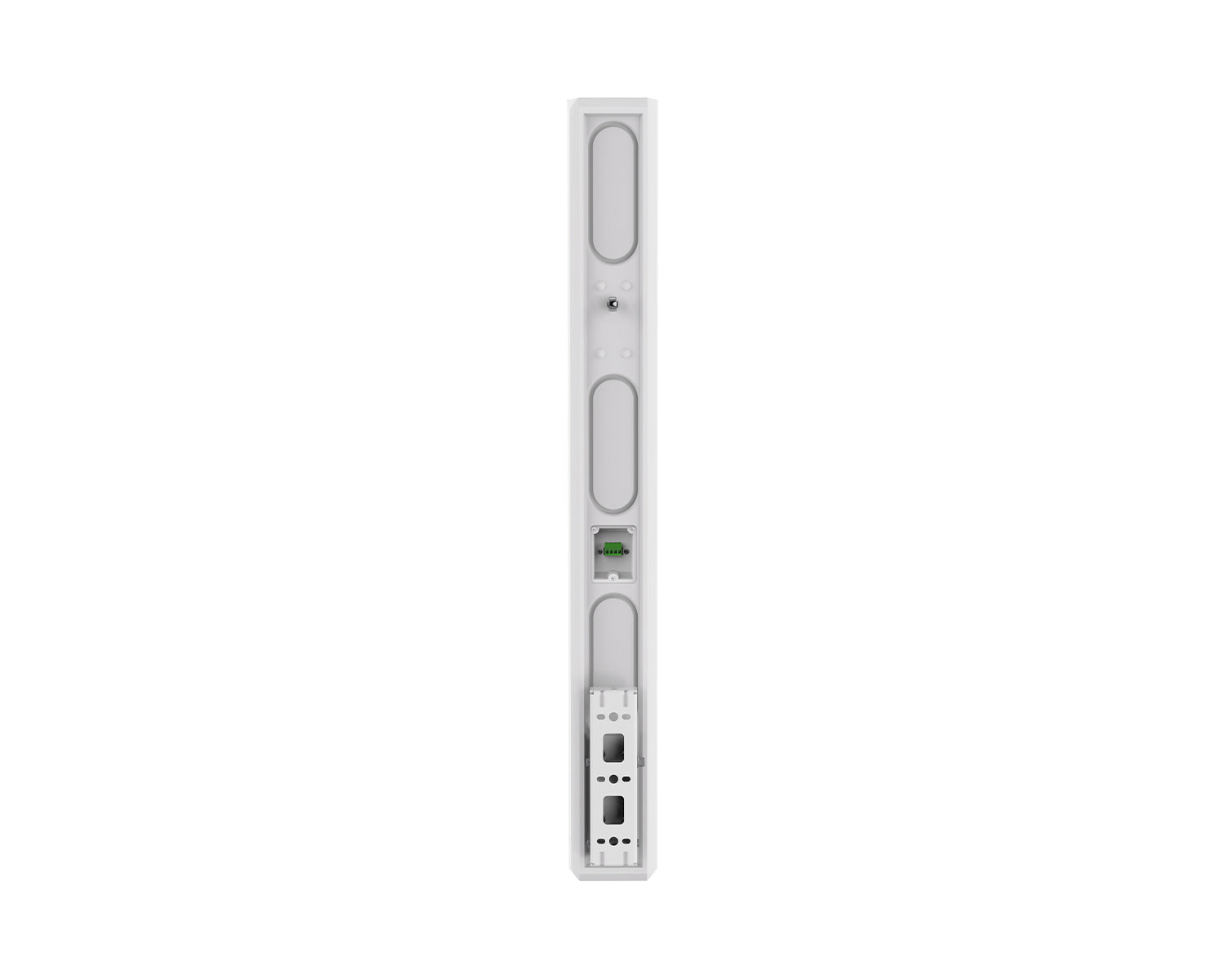

• Connector type:
  • 4-pin Euroblock
  • Input + Pass through
• Wire size: 12AWG (maximum)
• Suspension points: (2) M8
• Mounting: SwifTilt Multi-angle Tilt + Pan Bracket
• Maximum horizontal pan angle: +/- 80° (at all down-tilt angles)
• Vertical down-tilt angles: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
• IP rating: FW (outdoor full exposure), IP56c
• Colour: RAL 9003 Signal white
• Dimensions (H x W x D): 37.40 in x 4.33 in x 5.91 in (950 mm x 110 mm x 150 mm)
• Weight: 16.8 lb (7.6 kg)

What's in the Box?

• Tilt bracket
• Pan bracket
• Gland nut weather cover
• Dual-ended Allen key
• M8x20 mm eyebolt (pre-installed)
