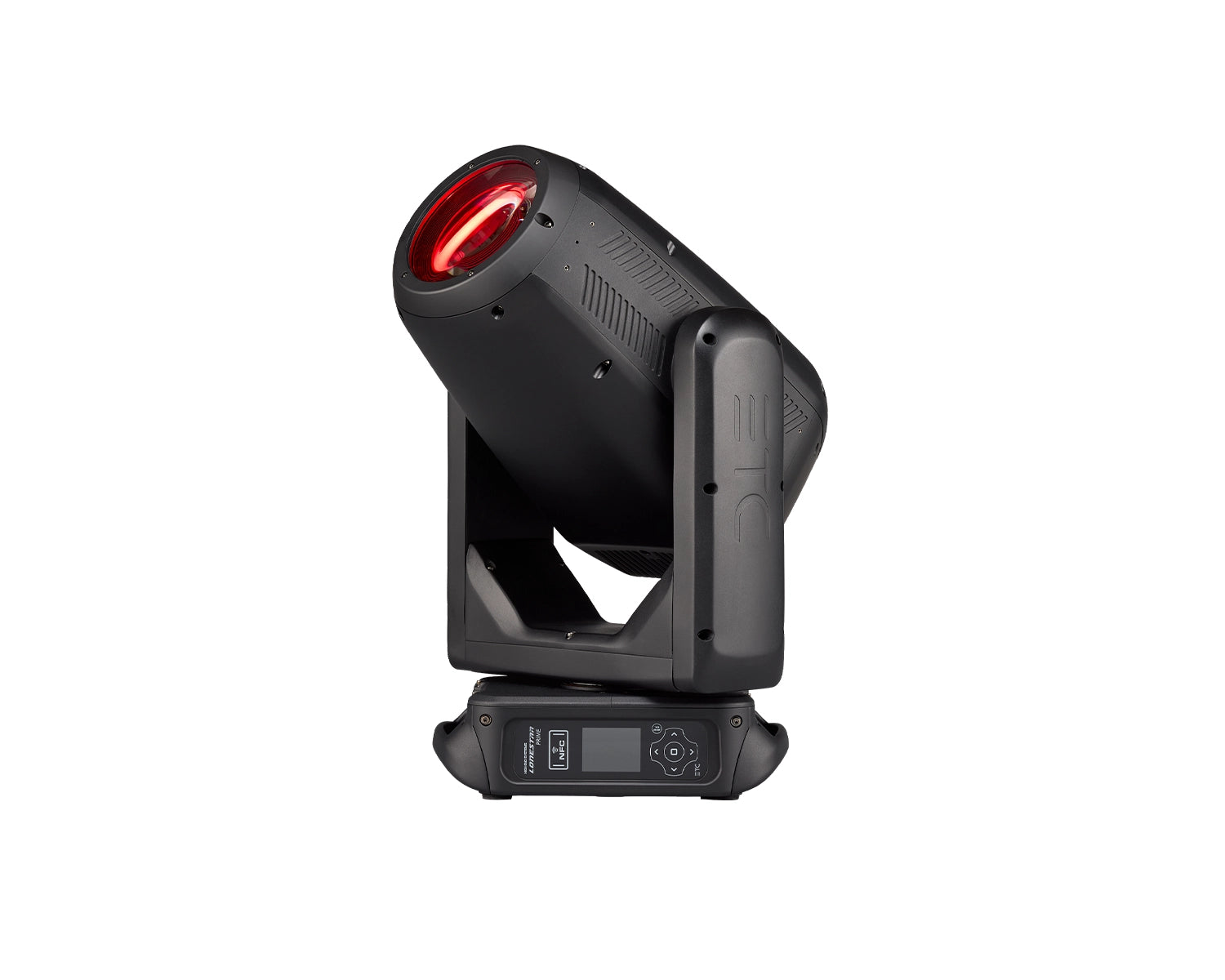

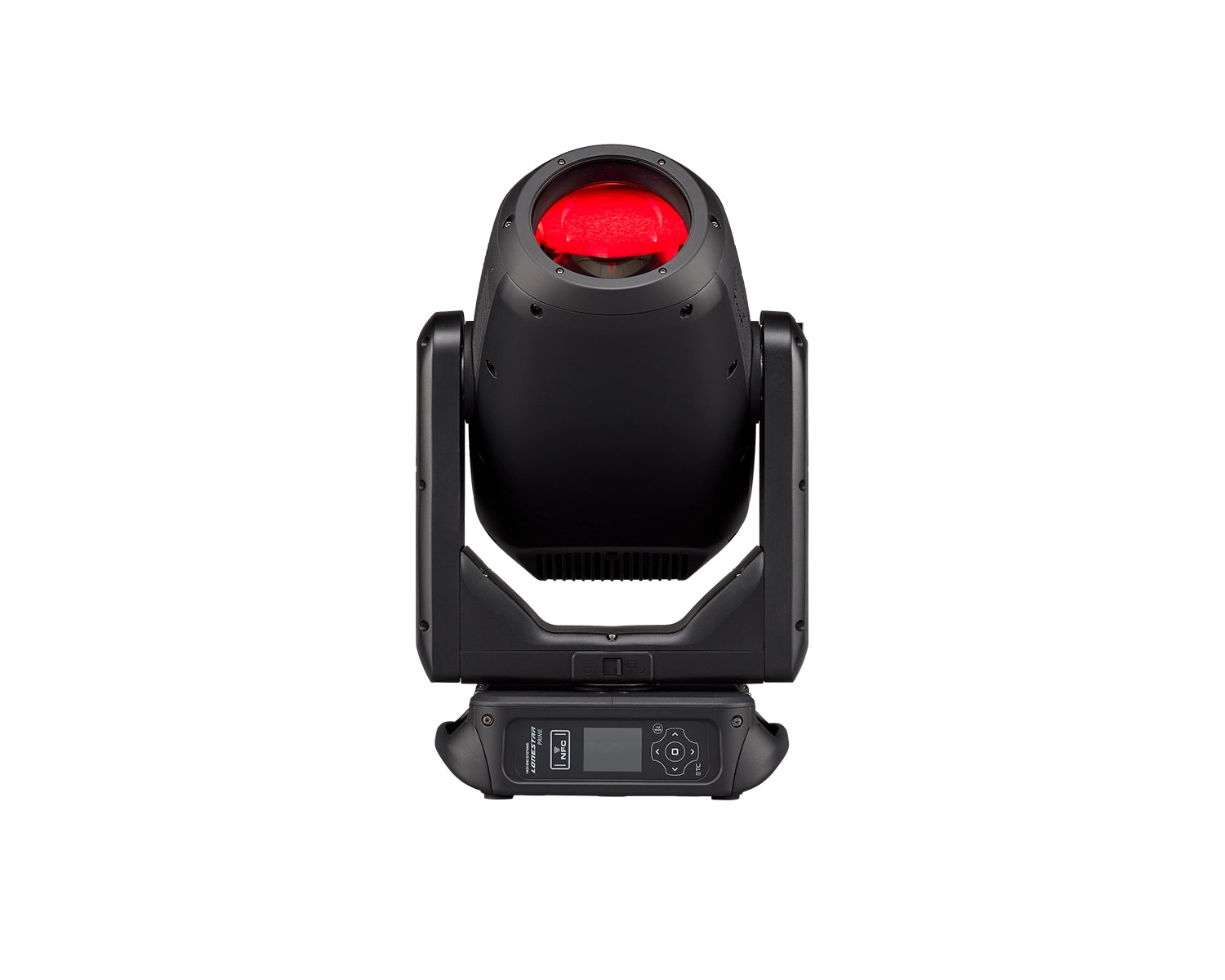

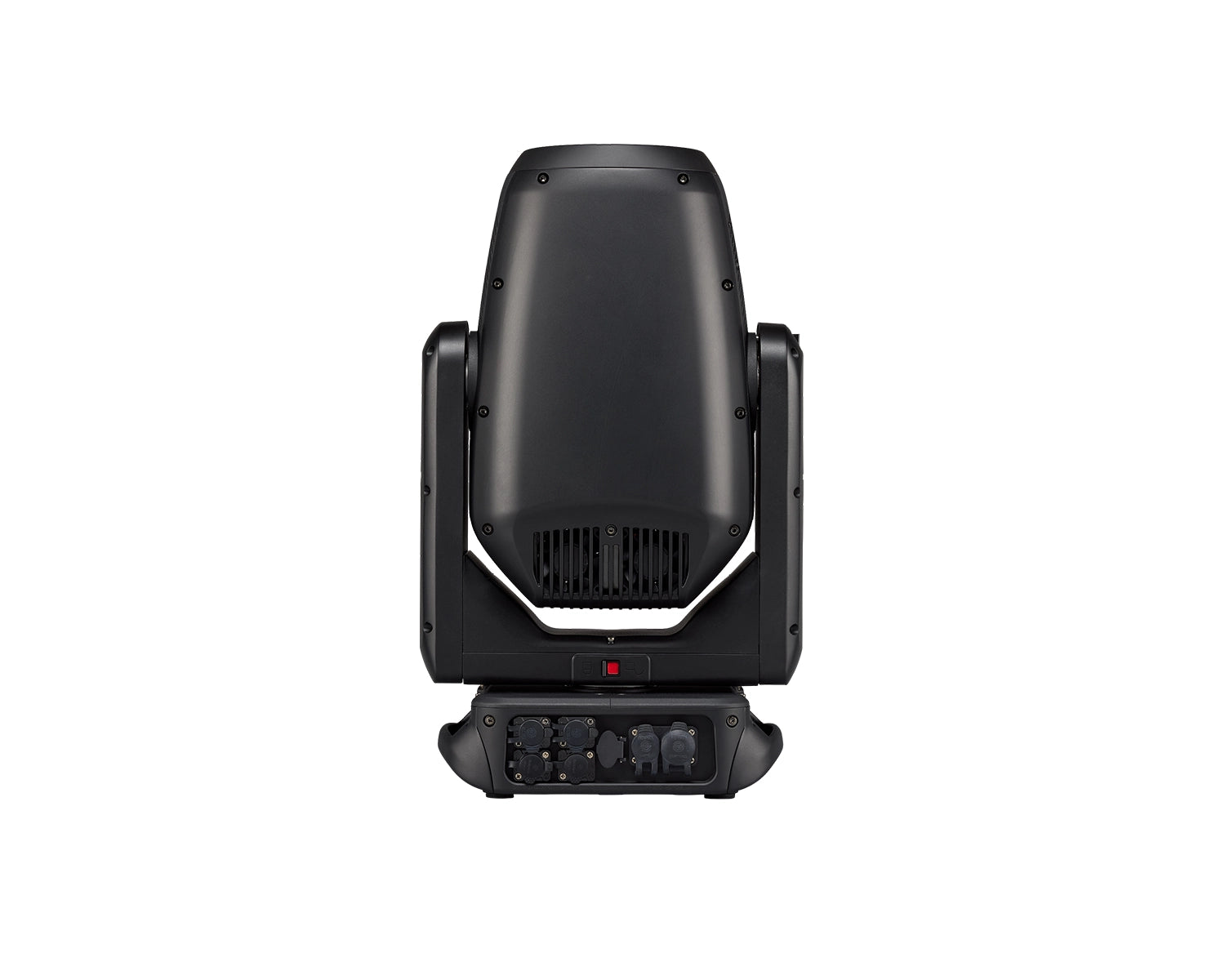

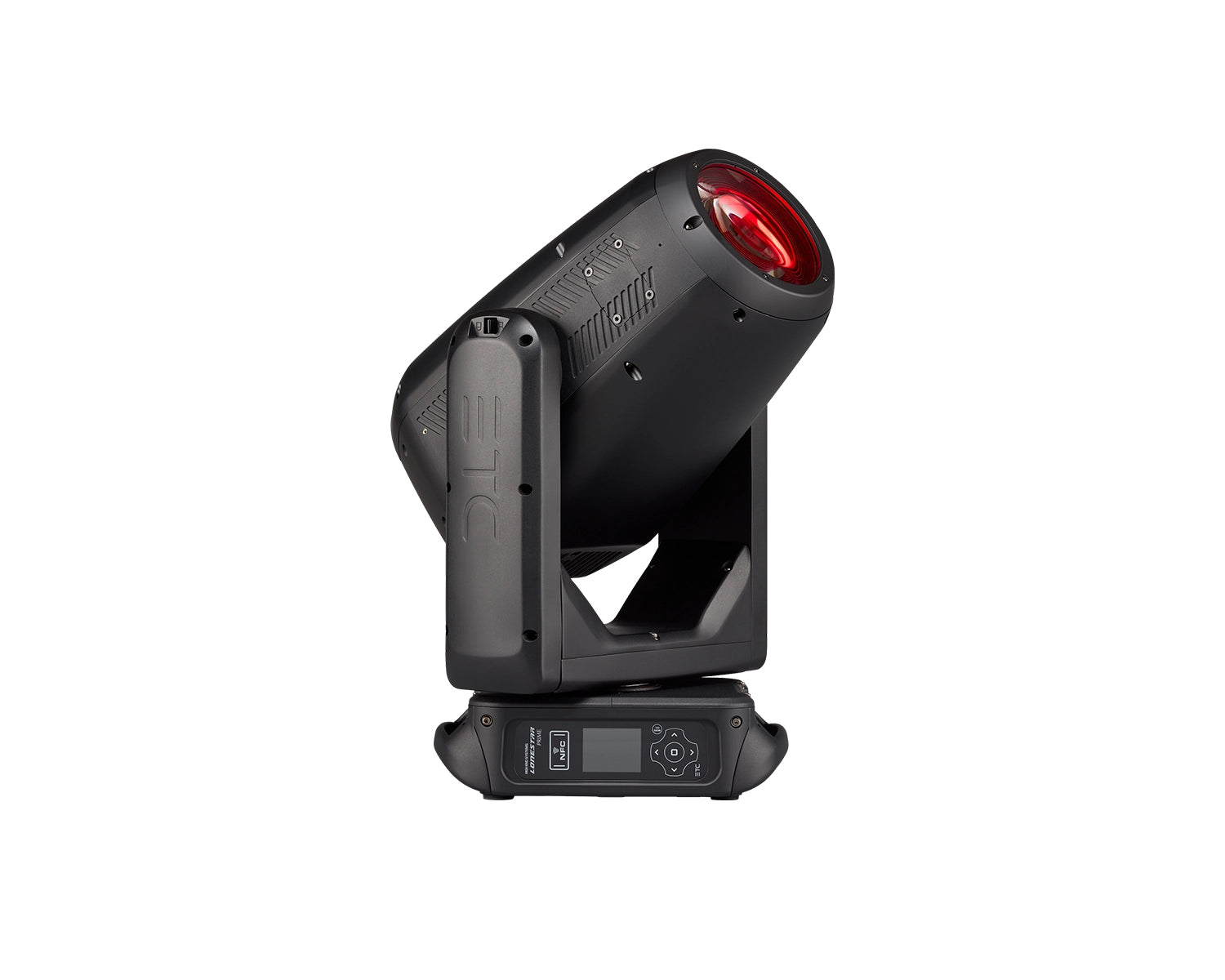

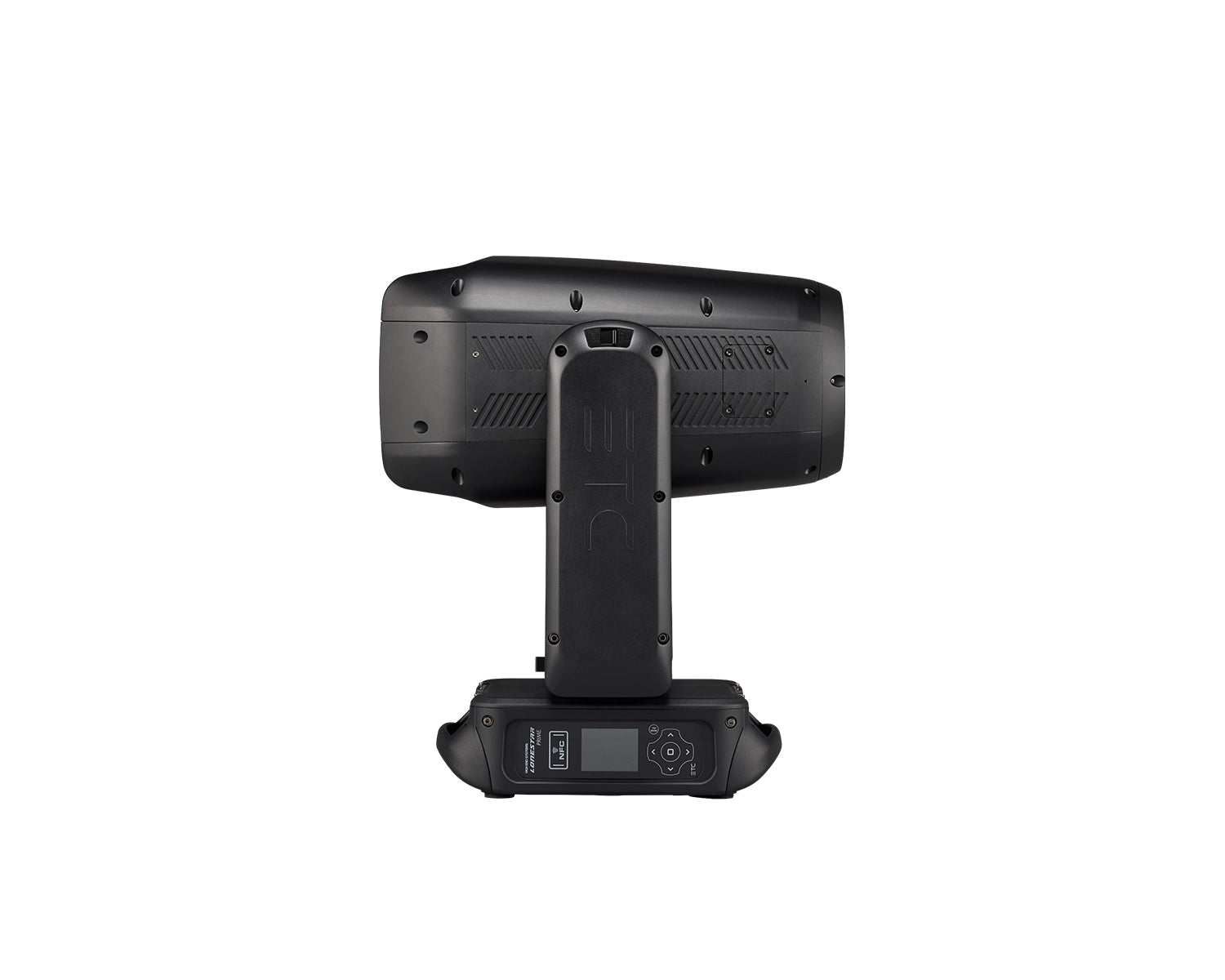

Lonestar Prime is a framing fixture boasting exceptional brightness
and professional features in a compact package. With its
weatherproof design, Lonestar Prime is ideal for broad-purpose
rental applications and venues that are working either inside or
outside. Its 17,000+ lumen output, enhanced colour rendering,
dedicated CTO flag, robust gobo library, and more, make Lonestar
Prime a high-impact tool for all kinds of live events.

Product Features

• Extra Bright Colour Boost (EBCB) white LED engine
• 350 W engine
• Fixture output exceeding 17,000 lumens at native 80 CRI
• High quality 13-lens optic system
• Extremely powerful 3.8°–55° zoom
• Dual Flag CMY colour mixing system with CTO wheel
• Ten-position plus open colour wheel
• Full-curtain framing system for total control of beam shaping
  16-blade iris for extremely tight beam effects
• Two diffusion levels, light and medium, with variable
  insertion and no zoom or focus interference
• Nine-position plus open Rotating Gobo Wheel
• Ten-position plus open Fixed Gobo Wheel
• Dual prisms with simultaneous insertion for beam and
  projection effects
• Rotating Animation Wheel with linear positioning and
  angular control
• Optional RigPOV camera kit provides livestream NDI feed
  from the fixture’s perspective

Product Specifications

• Source
  • Engine
    • Extra Bright Colour Boost white LED engine
  • LED Details
    • 350 W
  • Field Lumens
    • See photometrics on page 4
  • Max Integrating Sphere Lumens
    • 17,000
  • LPW
    • 48
  • LED Life
    • 50,000 hours
  • Native CCT
    • 6500 K
• Colour
  • Colour Mixing
    • Cyan, magenta, yellow, and CTO
  • Colour Temperature
    • Variable down to 2700K
  • Colour Wheel
    • Ten (10) dichroic colours plus open
• Optical
  • Beam Angle Range
    • 3.8°–55°
  • Gate Size
    • 16 mm
  • Aperture Size
    • 140 mm
  • Pattern Projection
    • Rotating and indexable wheel with nine (9)
      interchangeable patterns plus open
    • Fixed wheel with ten (10) fixed and stamped
      patterns plus open
  • Animation
    • Bi-directional rotating animation wheel with
      linear insertion, and variable angle
  • Prism
    • Five-facet star and four-facet linear rotating
      prism with simultaneous insertion
  • Diffusion
    • Light and Medium diffusion with variable
      insertion with no effect on focus or zoom
    • Optional Heavy diffusion available for Prism slot
  • Iris
    • 16-blade iris
  • Framing
    • Four-plane, full-curtain framing system with
      180° module rotation
  • Flicker Control/Hz Range
    • 2.4 kHz, 16 kHz, and 25 kHz
• Control
  • Input Method
    • DMX (5-pin) or Ethernet
  • Protocols
    • DMX via RS-485
  • Art-Net or sACN via Ethernet
  • Ethernet Pass-Thru
    • Passive Ethernet in and thru with and without
      power
  • Data Conversion
    • Patented data conversion system for Ethernet
      to DMX
  • Modes (Footprint)
    • Standard (52 channels), Trifusion Protocol (52
      channels)
  • RDM Functions
    • Yes
  • UI Type
    • Full-colour graphical UI with 6-button
    • navigational control
    • NFC Configuration
  • Local Control
    • Yes
  • Dimming Performance
    • 16-bit, DMX controlled
  • Wireless
    • Multiverse via optional MV-Mount Adaptor
      and Multiverse Connect Module (CT-5914)
• Electrical
  • Voltage Range
    • 100–240 V 50–60 Hz
  • Input Method
    • REAN® power X Series Connectors
  • Wattage
    • 550 W
  • Current (Max)
    • 5.9 A @ 100 V
    • 2.3 A @ 240 V
  • Inrush (First Half Cycle)
    • 120 V: 37 A
    • 230 V: 51 A
  • Fixtures per Circuit
    • 3 fixture (R20 module or similar)
    • Note: REAN power X Series connector rated
      for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
• Thermal
  • Ambient Operating Temp
    • 10°C to 35°C (14°F to 95°F)
  • Fan Mode
    • Standard, Studio, and Linear Continuous control channel
  • Stationary Noise
    • Standard - 36.6 dBA
    • Studio - 35.8 dBA
    • Lowest settable fan setting - 27.5 dBA
    • All tests at 18.4 dBA background noise
• Physical
  • Pan and Tilt Range
    • 630/540° pan, 260° tilt
  • Max Pan/Tilt Speed
    • 360° in 1.62 s/180° in 0.88 s
  • Materials
    • Steel and aluminium frame with aluminium and
      moulded plastic covers
  • Colour Options
    • Black, white by request
  • Mounting Options
    • Any orientation
  • IP Rating
    • IP54, for use both indoors and in temporary
      outdoor installations
  • Weight
    • 23.1 kg (51 lb)

What's in the box?

• X Series IP65 to bare end fixture tail
• Two (2) 107 mm single-hole Omega brackets
• Safety cable
