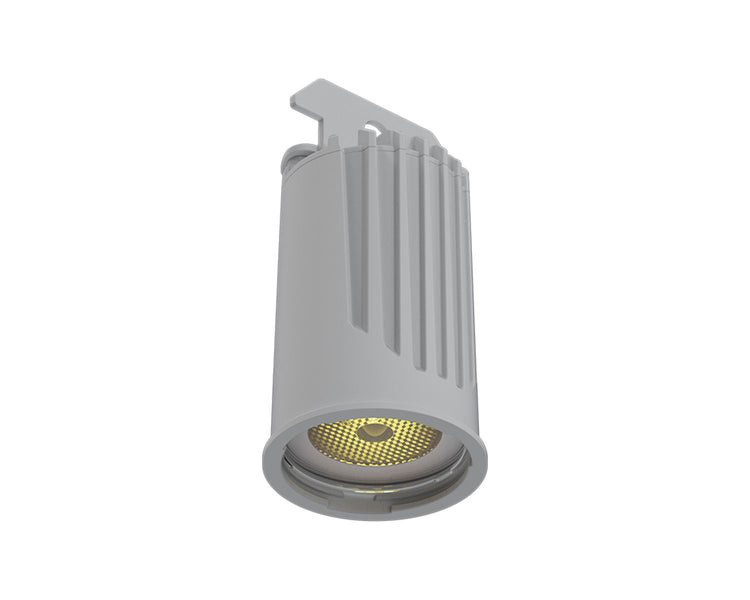

The Iluminarc Logic MR16 DN wash downlight with a high-quality RBGW color mix system for use in permanent architectural installations. Fits into a variety of situations and spaces, the MR16 DN features high-quality dimming and amazing ease of installation. With Power Over Ethernet technology, only one cable is needed per fixture, and users can daisy-chain multiple fixtures together, making deployment fast and easy.

Product Features

• 1 Quad-color RGBW LED at 10 W
• LED Lifespan: 50,000 hours
• Native Beam Angle: 30.9º
• Optics Included: Medium Filter (35º), Wide Filter (60º), and Honeycomb Filter
• Lumen Output: 266
• Color Temperature Presets: 1,800K to 10,000K
• Control: Logic Drive 2X (required), Logic POE X (required)
• Lens Material: Frosted Polycarbonate
• Fixture Color: White

Product Specifications

Light Source and Optical Specifications

• 1 LEDs (quad-color RGBW) 10 W, (4.375 A)
• Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
• White LED Native CCT: 3000 K
• Installed Optics: Medium Filter
• Included Optics: Wide Filter
• Standard Optics:
  • Beam Angle: 30.9°
  • Field Angle: 59.7°
  • Cutoff angle: 82.8°
  • Lumens: 266
  • Base Illuminance @ 5 m: 29 lux
  • Efficacy: 32 lm / W
• Medium Filter (installed):
  • Beam Angle: 40.4°
  • Field Angle: 81.7°
  • Cutoff angle: 148.9°
  • Lumens: 194
  • Base Illuminance @ 5 m: 11 lux
  • Efficacy: 23 lm / W
• Medium Filter with Honeycomb Filter (installed):
  • Beam Angle: 33.6°
  • Field Angle: 63.9°
  • Cutoff angle: 84.7°
  • Lumens: 98.3
  • Base Illuminance @ 5 m: 9 lux
  • Efficacy: 12 lm / W
• Wide Filter (included)
  • Beam Angle: 41.8°
  • Field Angle: 105.5°
  • Cutoff angle: 154.3°
  • Lumens: 182
  • Base Illuminance @ 5 m: 8 lux
  • Efficacy: 22 lm / W
• Wide Filter with Honeycomb Filter (included):
  • Beam Angle: 34.2°
  • Field Angle: 64.3°
  • Cutoff angle: 90°
  • Lumens: 83.1
  • Base Illuminance @ 5 m: 8 lux
  • Efficacy: 10 lm / W
• Color Temperature Presets: Built-in, 1,800 to 10,000 K

Construction & Physical Specifications

• Dimensions: 1.96 x 1.96 x 4.59 in (50 x 50 x 116.80 mm)
• Weight: 0.39 lb (0.18 kg)
• Fixture Color: White
• Housing Material: Aluminum (ADC12)
• Lens Cover: Frosted Polycarbonate
• Mounting Options: Logic MR16 Trim Ring, Logic MR16 Mounting Kit

Control Specifications

• Control Protocol: USITT DMX-512a, RDM, Art-Net, Art-RDM, sACN via Logic Drive 2X
• Operating Modes: Selectable personalities, via Logic Drive 2X and POE X
  • Red (1-channel) Red
  • Green (1-channel) Green
  • Blue (1-channel) Blue
  • White (1-channel) White
  • TW (2-channel) Dimmer, White CCT Preset
  • RGB (3-channel) Red, Green, Blue
  • RGBW (4-channel) Red, Green, Blue, White
  • RGBW+D (5-channel) Red, Green, Blue, White, Dimmer
  • FULL (10-channel) Dimmer, Red, Green, Blue, White, White CCT Presets, Strobe, Auto Programs, Dimmer Speed Presets
• Standalone Control: Yes, Logic Wall Con via Logic Drive 2X and POE X
• Fixture setup: Logic Drive 2X and POE X (RDM, webserver or display), Art-RDM (DMX Workshop)

Electrical System Specifications

• Input Voltage: 52 VDC, DMX/RDM (via Logic POEX)
• Power and Current: 8.3 W
• Power Supply: Logic POE X (52 VDC)
• Dimmer: Electronic
• Power Linking: 8 units via Logic POE X

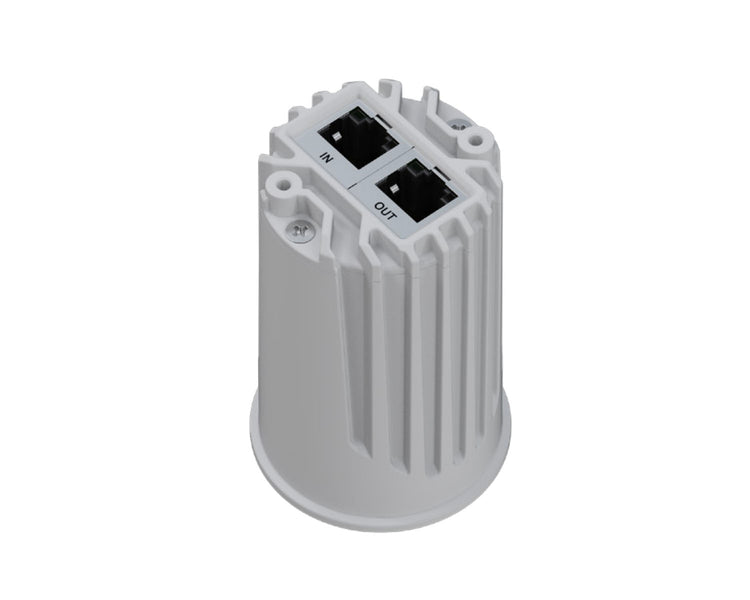

• Power/Connection: 2 Ethernet (RJ45)
• Required Cable Specifications
  • Cable type: CAT6/A, Shielded
  • Conductor Diameter: ≥23 AWG (≥0.5733 mm)
  • Conductor Material: Solid Bare Copper Wire (stranded not supported)
  • Cable Terminator: RJ45, CAT6/A, Shielded
• Cable Length(s) Supported
  • Total Max Cable Length (Drive to POE X) ≤100 m / 328 ft
  • Total Max Cable Length (POE X to first fixture) ≤15.24 m / 50 ft
  • Total Max Cable Length (first fixture to last fixture) ≤46m / 150 ft
  • Total Max Cable Length (Drive to last fixture) ≤145 m / 475 ft
• Recommended Cable (or equivalent): Belden 2413F, 2412F

Thermal Specifications

• Cooling: Convection
• Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
• Maximum Surface Temperature: 158 °F (70 °C)
• Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
• BTU/hr: 8.3

Regulatory & Voluntary Qualification

• US Safety: UL 2108, UL 1598A
• Canadian Safety: CSA-C22.2 No. 250.2
• City of Chicago Electric Code Safety: Chicago Plenum (CCEA), Section 18-27-300.22(c)(2)
• Certification Listings: CE, MET, FCC, ROHS
• Environment: Dry location, IP20, All indoor permanent installations.
  • Please refer to the User Manual for more detailed information on installation.
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Installation Orientation: Any

What's in the Box?

• Logic MR16 Downlight S
• Medium & Wide Filters
• Hanging Pendant Bracket
• Quick Reference Guide

Accessories

• Required
  • Logic Drive 2X
  • Logic POE X
• Optional
  • Logic MR16 Honeycomb Filter
  • Logic MR16 Trim Ring (white)
  • Logic MR16 Mounting Kit
