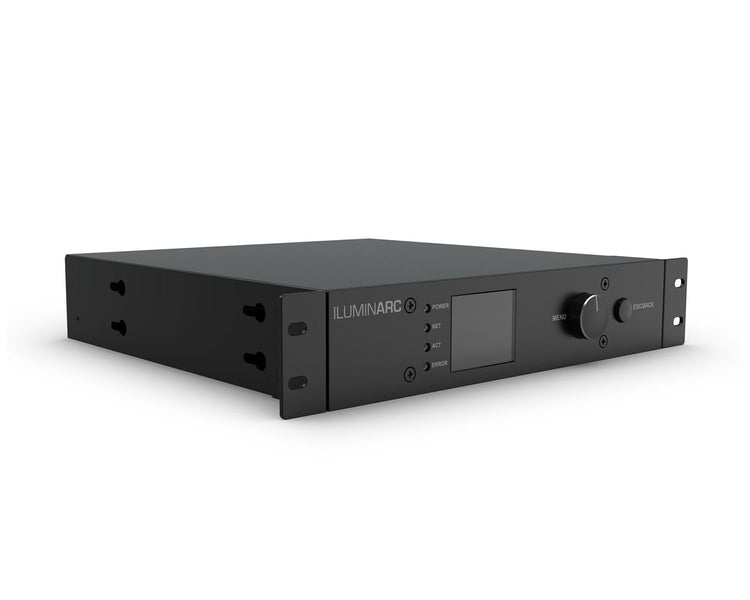

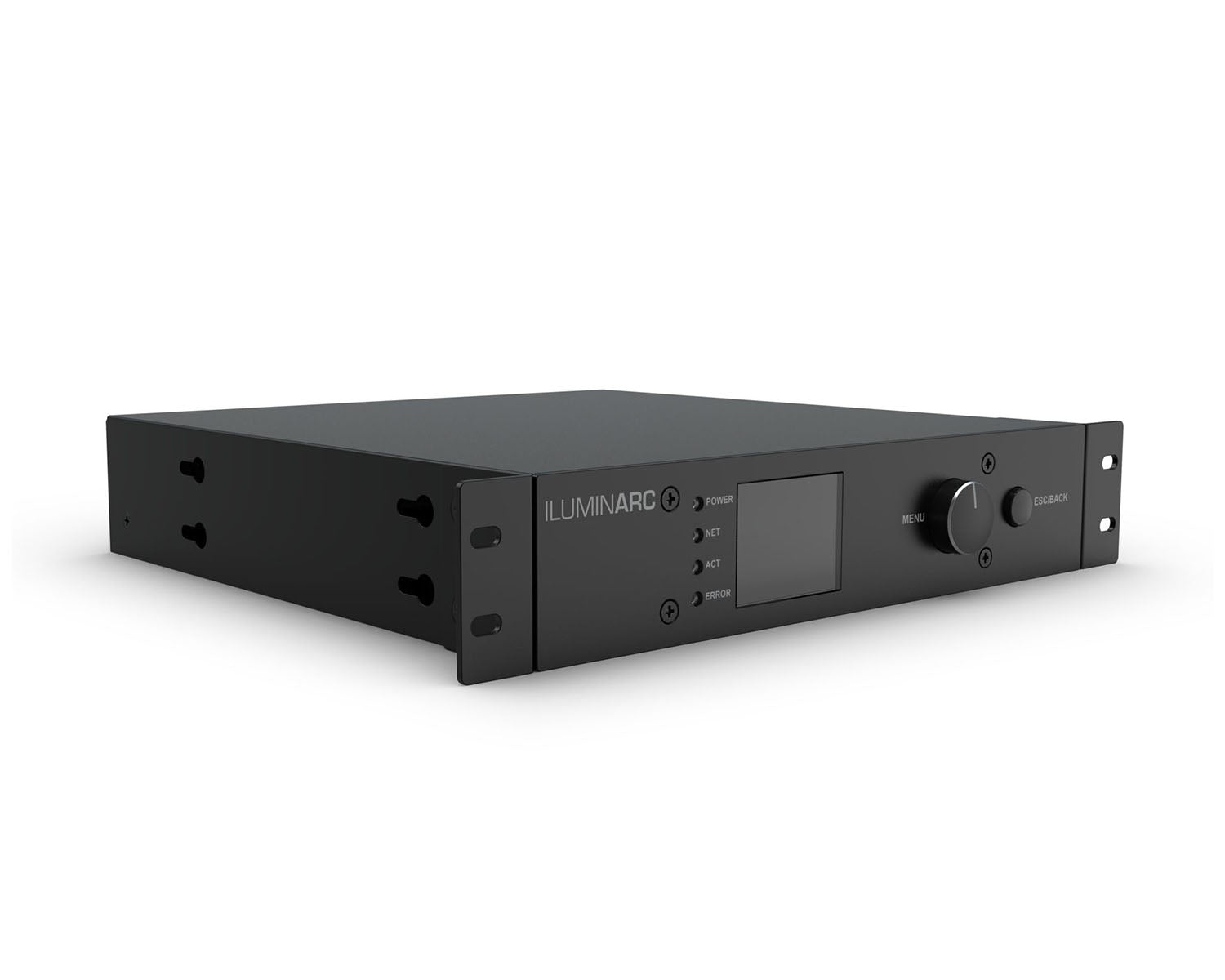

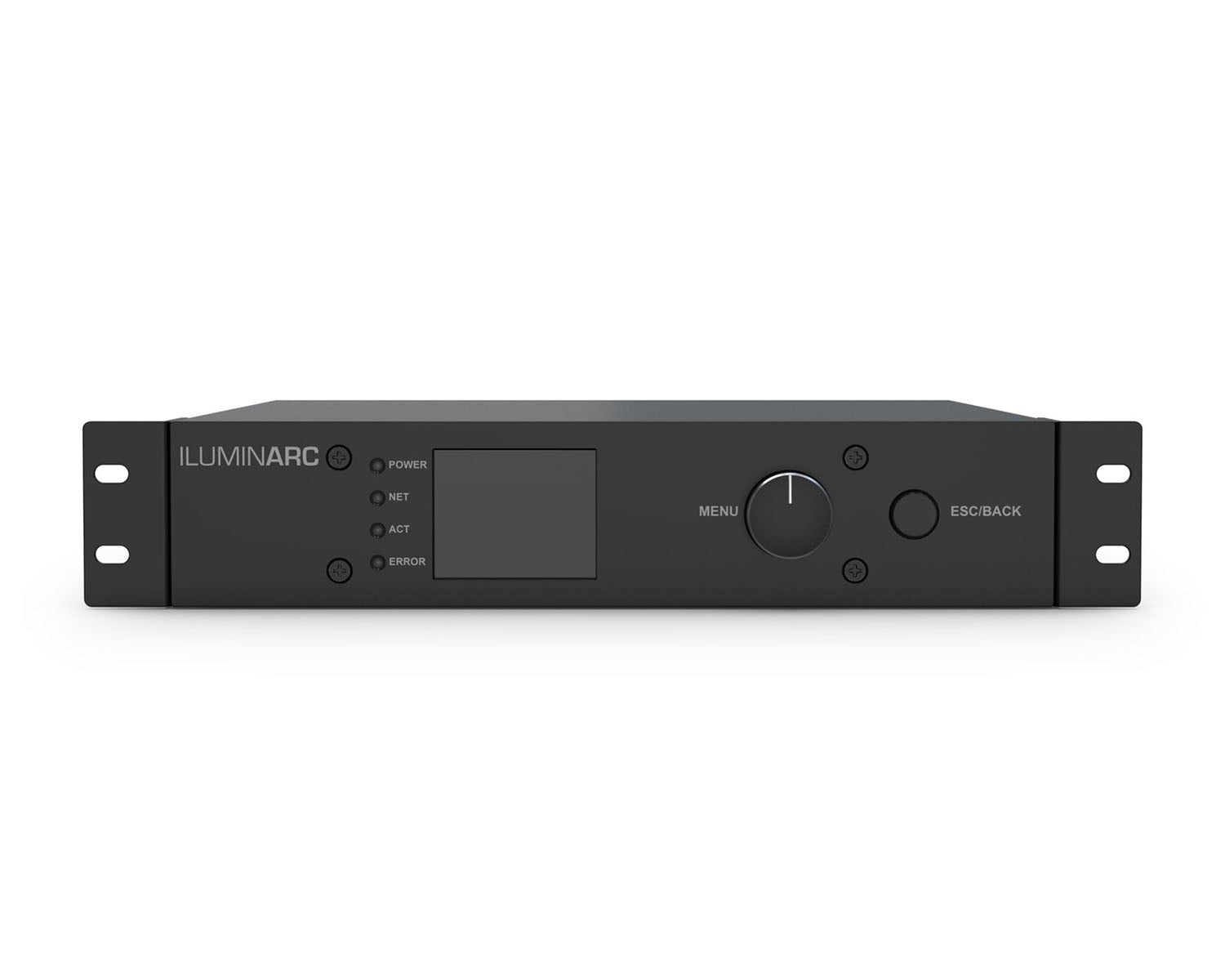

The Logic Drive 2X is designed to feed power and control to remote fixtures using the POE latest standard IEEE 802.3bt (power over Ethernet) and TCP/IP for control. It has 2 ports and will support a maximum of 92.5 W/port. The Drive 2X includes one LOGIC Wall Con, which is a single gang wall controller that can recall up to 8 recorded scenes from the Drive 2X. Additional Wall Cons may be added to the system, up to 4 pcs on a single controller to have multiple control locations. The Drive 2X supports DMX, Art-Net, and sACN control protocols, and includes an integrated webserver to configure the date/time settings, which are used in the daily/calendar trigger.

Product Features

• Power and Control Unit for Logic Fixtures
• Uses the POE latest standard IEEE 802.3bt (power over Ethernet) and TCP/IP for control
• 2 ports and will support a maximum of 92.5 W/port

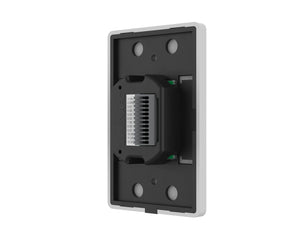

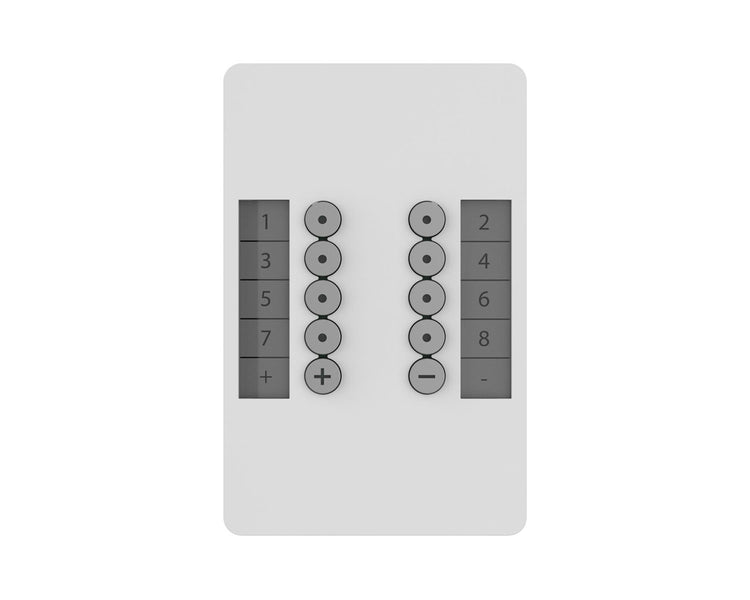

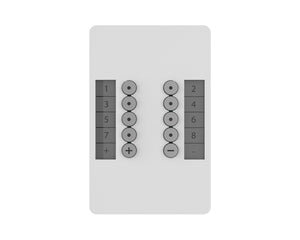

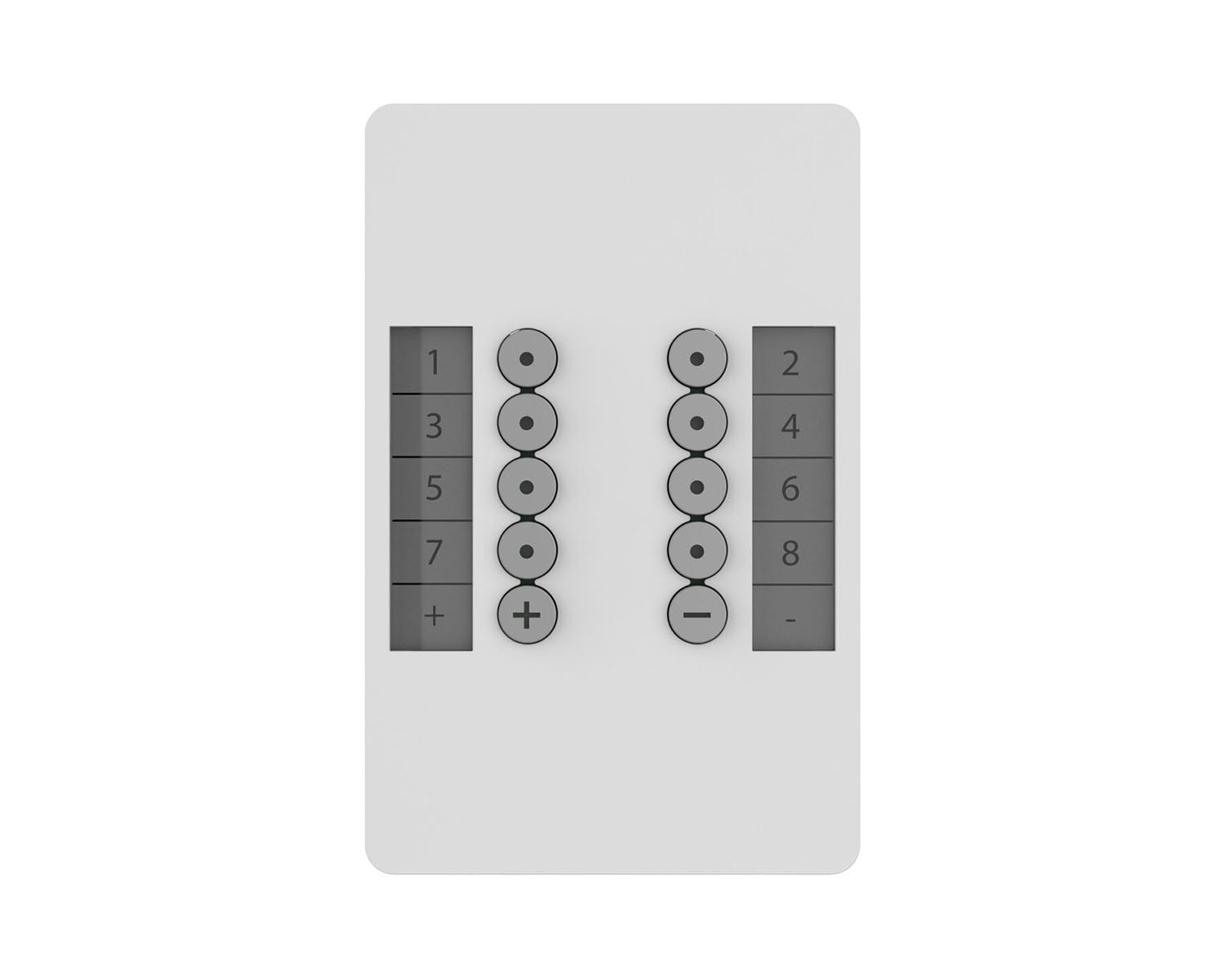

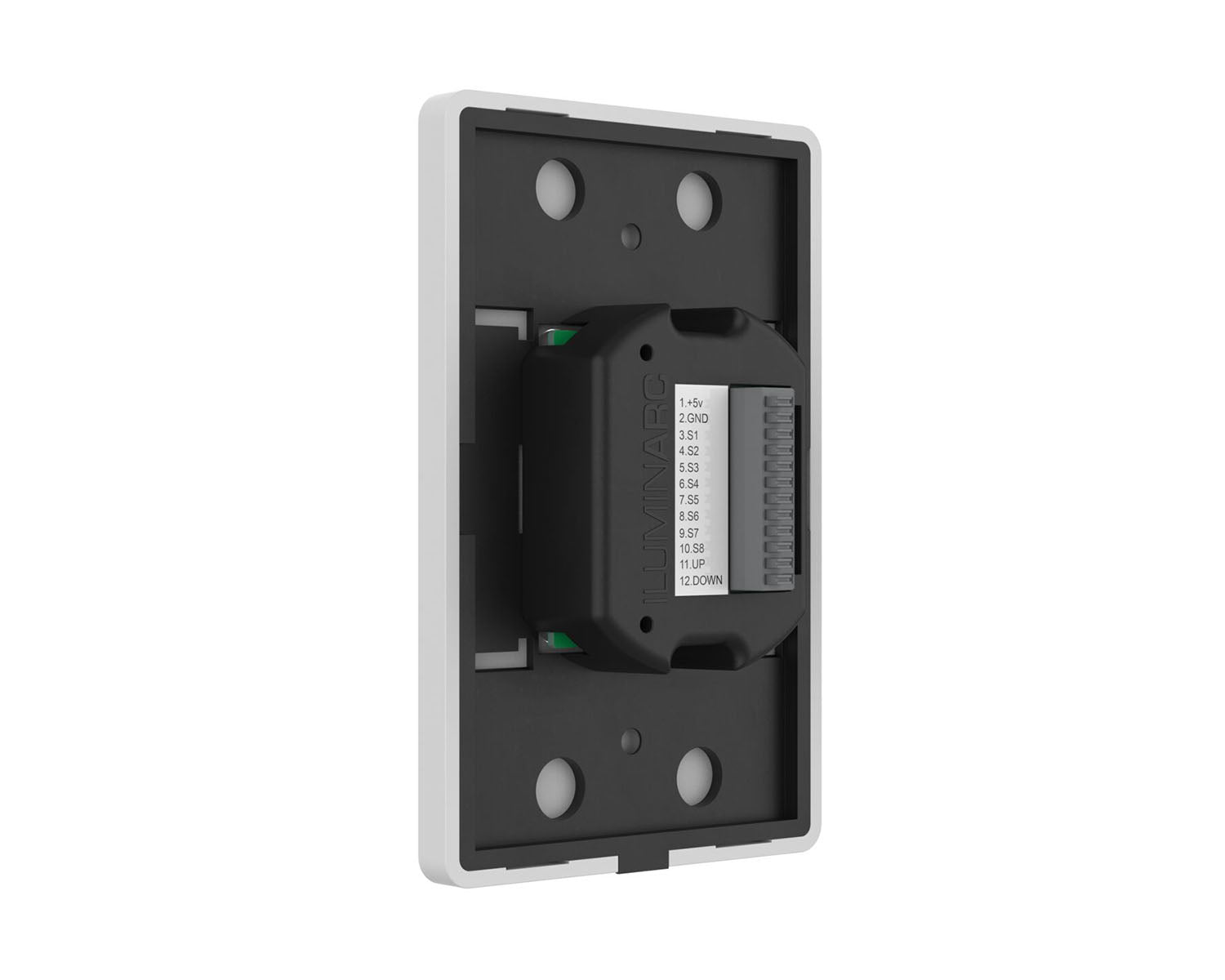

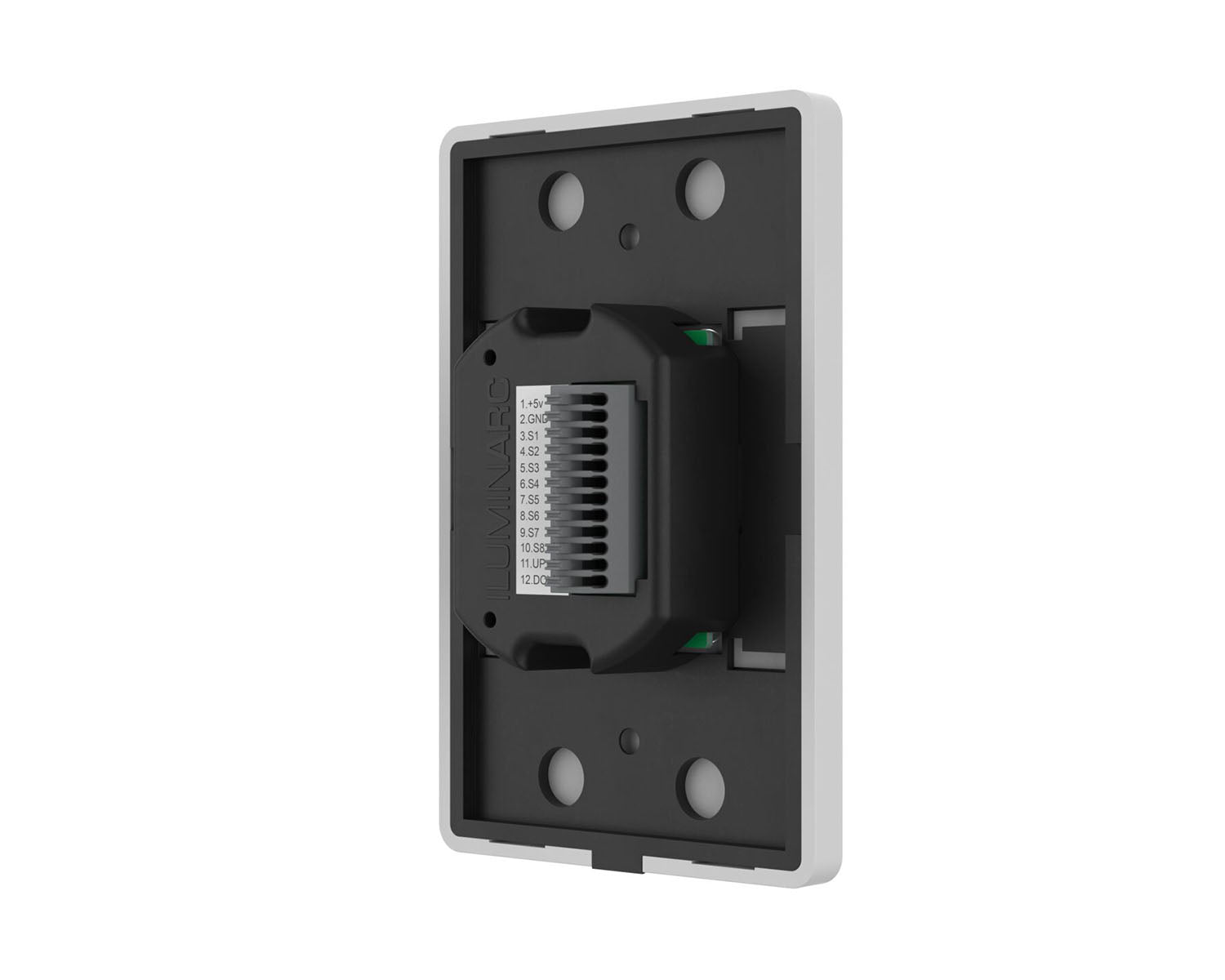

• Includes one LOGIC Wall Con single gang wall controller
• Supports DMX, Art-Net, and sACN control protocols
• Includes an integrated webserver to configure the date/time settings, which are used in the daily/calendar trigger

Product Specifications

Control Specifications

• Control Protocol: USITT DMX-512a, Art-Net, sACN, RDM, Art-RDM
• Operating Modes: Selectable in connected fixtures
• Standalone Control: Yes
• Fixture setup: Display, RDM, Art-RDM (Artistic License DMX Workshop)
• Data Connection:
  • Device Data Input: 1 Ethernet (RJ45) and 1 (5-pin) Phoenix connector
  • Device output support: POE++, IEEE 802.3bt, type 4, up to class 8
  • Device Data throughout: 1 Ethernet (RJ45) and 1 (5-pin) Phoenix connector
  • Wired remote input: 1 (12-pin) Phoenix connector

Construction/Physical

• Dimensions: 10.31 x 9.64 x 1.81 in (262 x 245 x 46 mm)
• Weight: 4.6 lb (2.1 kg)
• Fixture Colour: Black
• Housing Material: Stamped steel

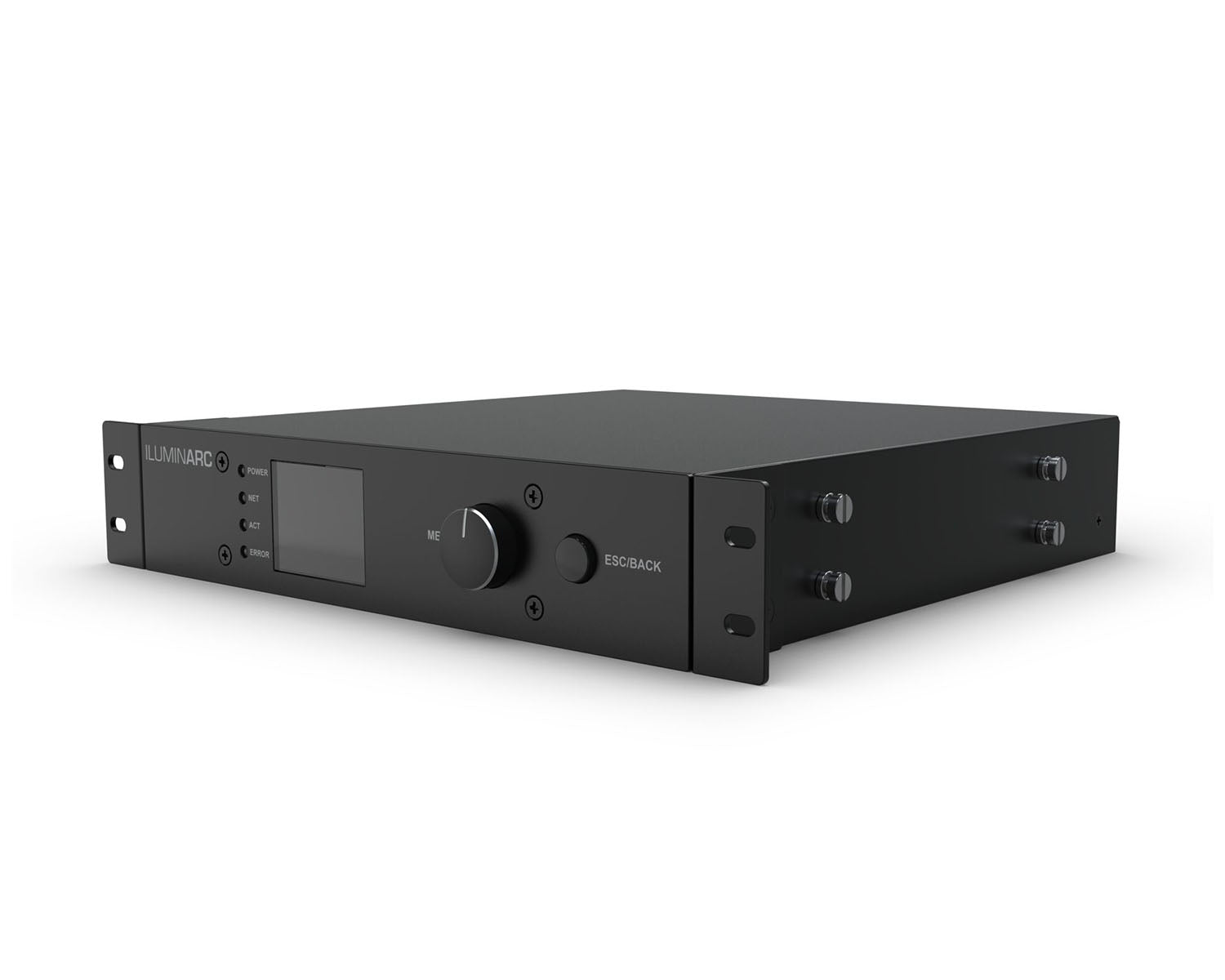

• Mounting Options: 1U Rack Mount, wall mount via X-slots on bottom of drive housing

Electrical

• Input Voltage: 100 t240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 260 W, 2.6 A @ 100 V
  • 260 W, 2.17 A @ 120 V
  • 260 W, 1.25 A @ 208 V
  • 260 W, 1.14 A @ 230 V
  • 260 W, 1.09 A @ 240 V
• Output port power rating: 92.5 W per port
• Output port voltage: 54 VDC
• Power Supply: Electronic internal
• Dimmer: Electronic
• Power Linking: N/A
• Power Connection: Seetronic TRUE1 power cord

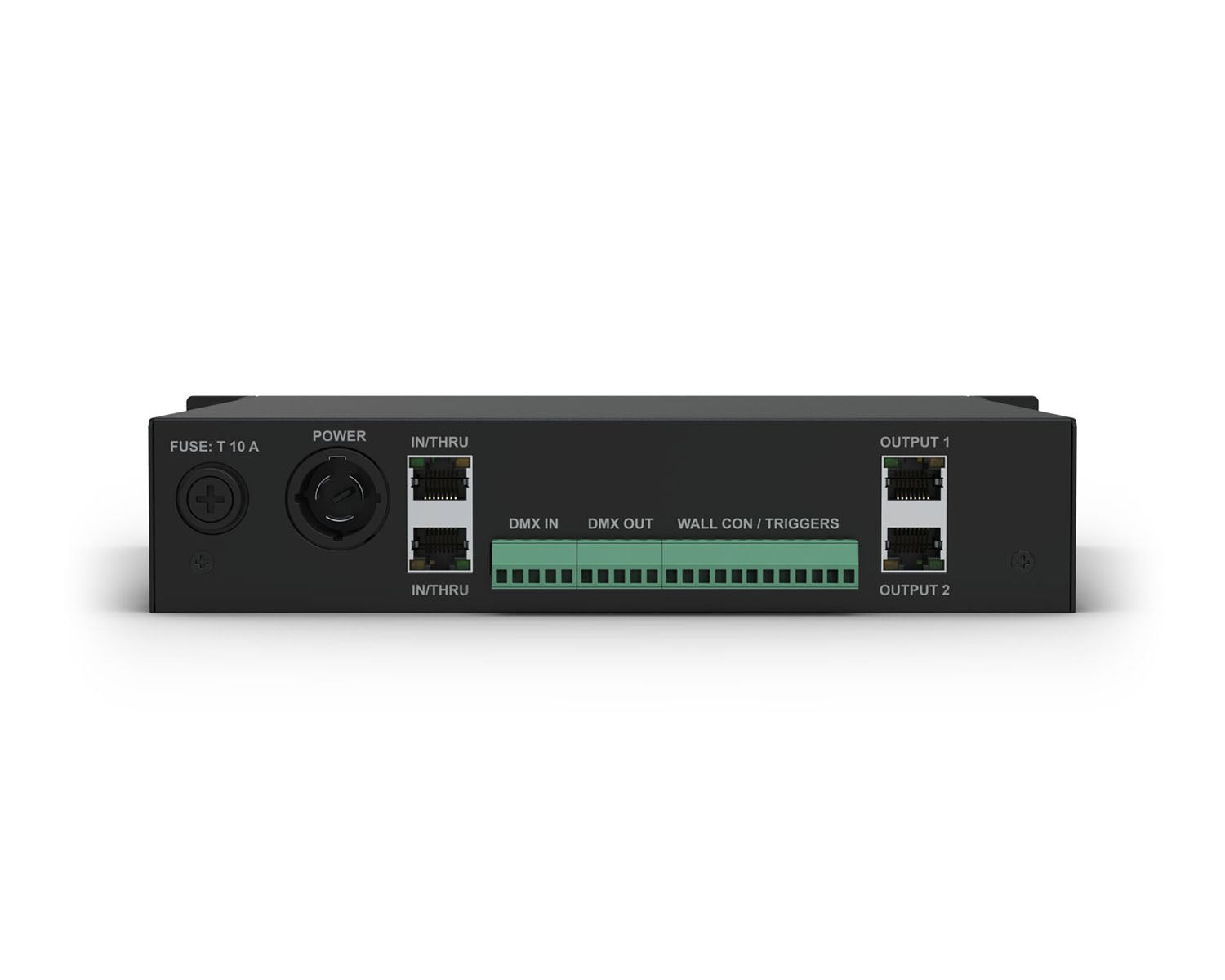

• Power/Data Connection:
  • RJ45 In/Thru Control (2)
  • RJ45 Out POE (2)
  • Phoenix Out DMX/RDM (2)
  • Phoenix In WALLCON (1)
• Recommended Power Cable: 3 x 14 AWG
• Required Cable Specifications
  • Cable type: CAT6/A, shielded
  • Conductor Diameter: ≥23 AWG (≥0.5733 mm)
  • Conductor Material: Solid Bare Copper Wire (stranded not supported)
  • Cable Terminator: RJ45, CAT6/A, Shielded
• Cable Length(s) Supported:
  • Total Max Cable Length (Drive to first fixture): ≤100 m / 328 ft
  • Total Max Cable Length (Drive to last fixture): ≤140 m / 460 ft
  • Total Max Cable Length (first fixture to last fixture): ≤40 m / 131 ft
• Recommended Ethernet Cable for POE connections (or equivalent): Belden 2413F, 2412F

Thermal Specifications

• Cooling: Fan-assisted convection
• Operating Temperature Range: -4 °F t113 °F (-20 °C t45 °C)
• Maximum Surface Temperature: 158 °F (70° C)
• Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
• BTU/hr: 887

Regulatory & Voluntary Qualification

• US Safety: UL 2108, UL 1598A
• Canadian Safety : CSA-C22.2 No. 250.2
• CE, MET, FCC, ROHS
• Environment: Dry location, IP20
  • Please refer to the User Manual for more detailed information on installation.
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Installation Orientation: Any, vertical only, horizontal only

What's in the Box?

• Logic Drive 2X
• Seetronic Powerkon IP65 power cord
• LOGICWALLCON Wall Controller
• 1x short rack ear bracket
• 1x long rack ear bracket
• Quick Reference Guide

Optional

• LOGIC Wall Con (additional, up to 3 additional
