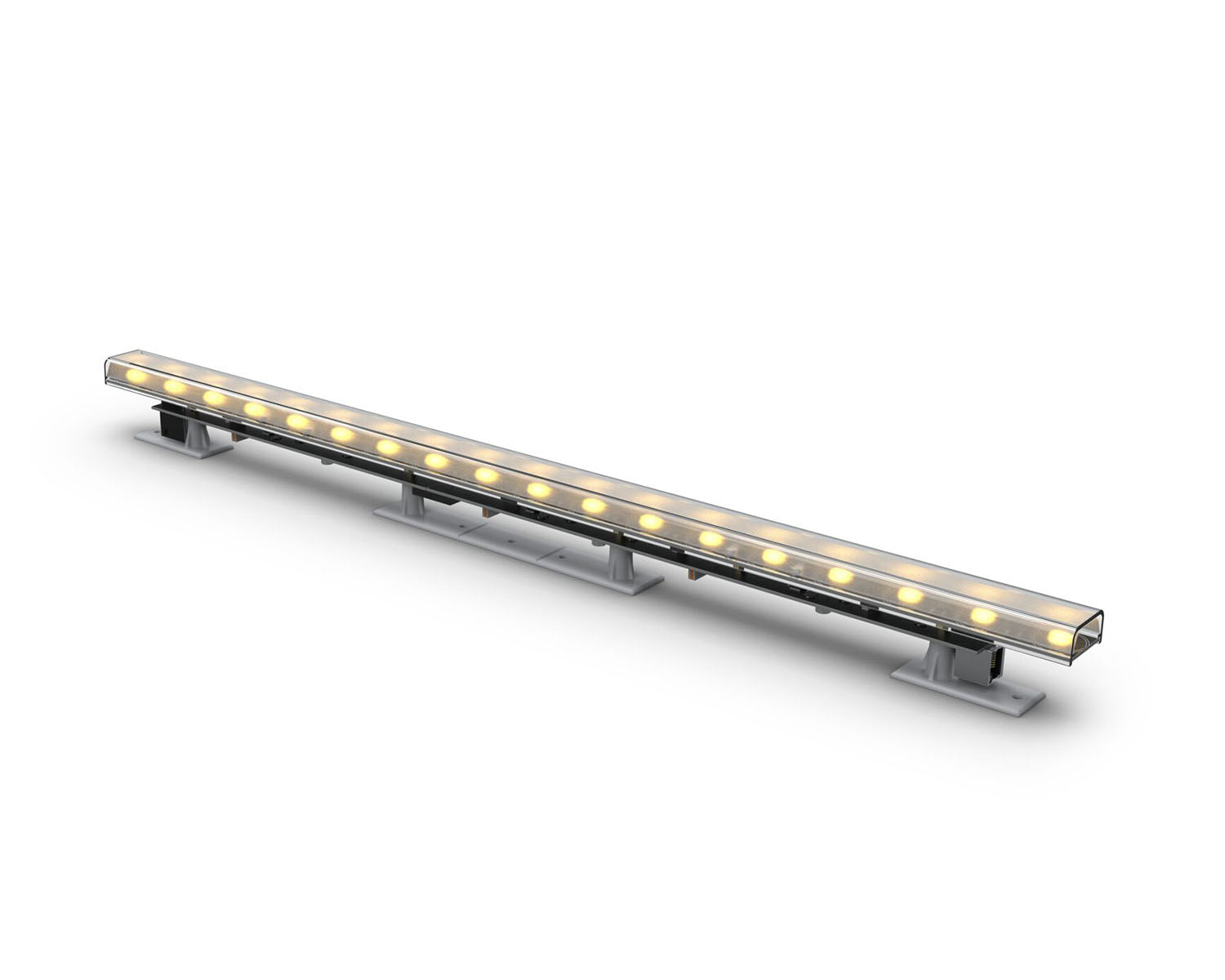

ILULCOVEM - Iluminarc Logic Cove M 0.6m LED Batten 18x RGBW LED 2.5W 711 Lumen Output Image 1

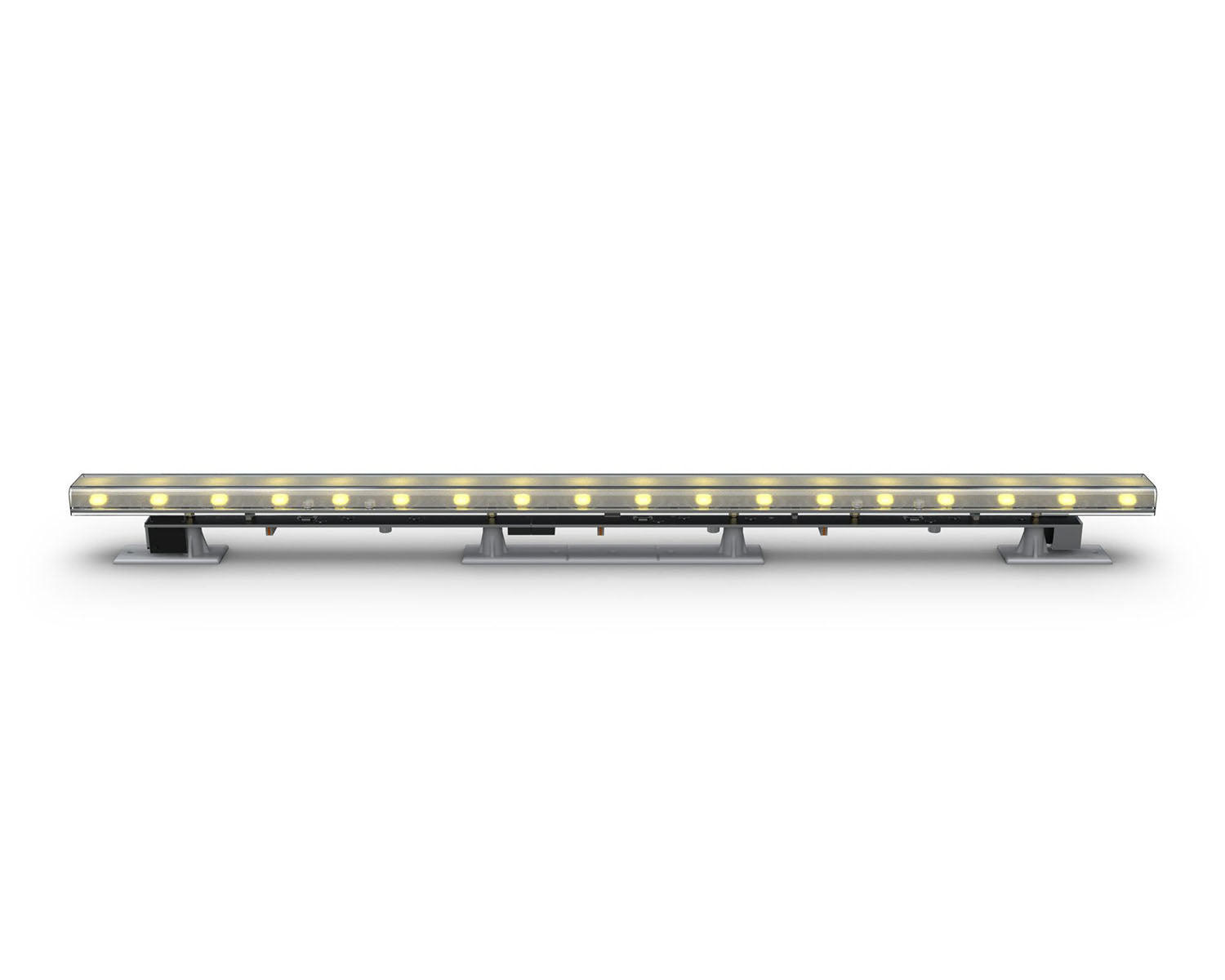

ILULCOVEM - Iluminarc Logic Cove M 0.6m LED Batten 18x RGBW LED 2.5W 711 Lumen Output Image 2

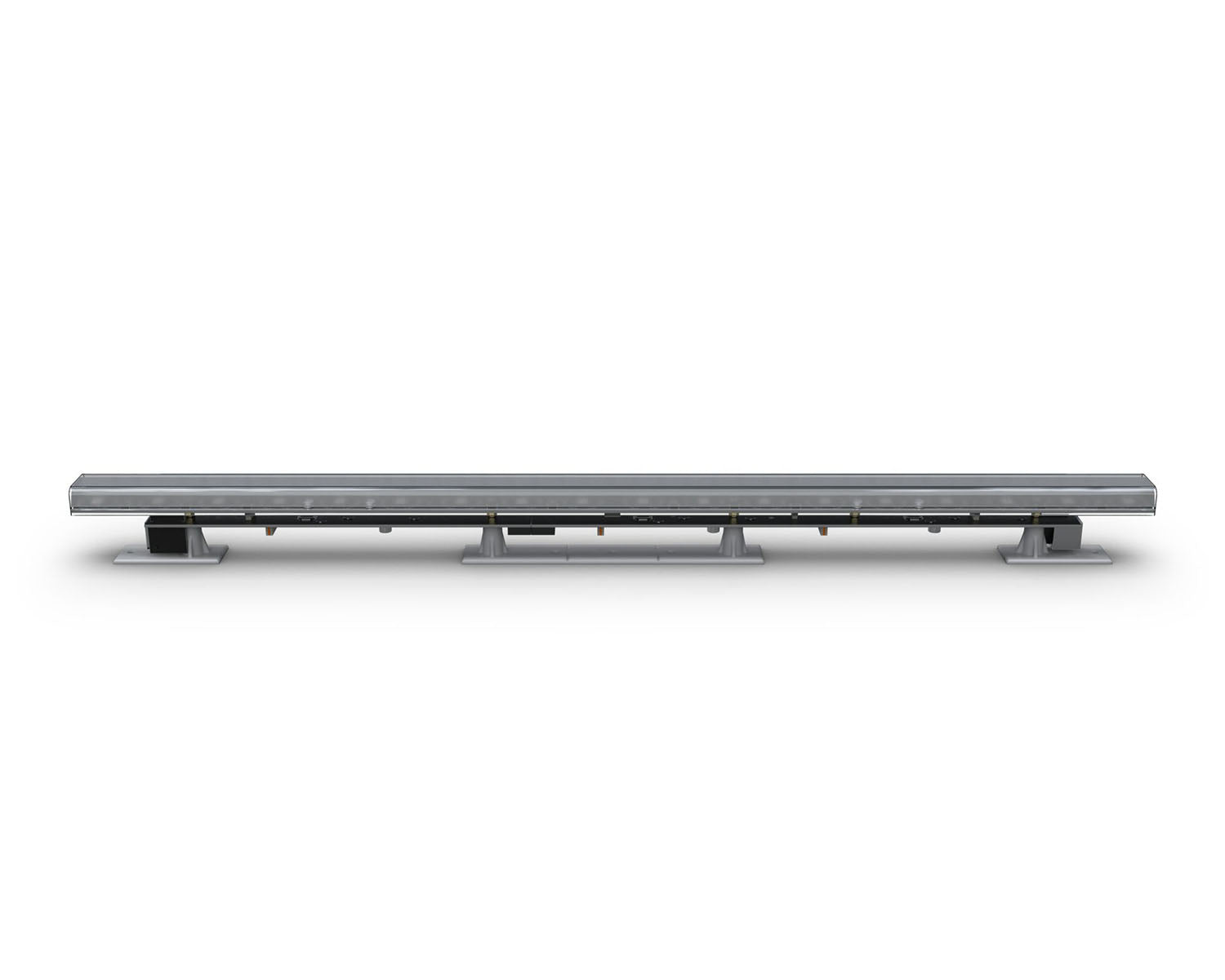

ILULCOVEM - Iluminarc Logic Cove M 0.6m LED Batten 18x RGBW LED 2.5W 711 Lumen Output Image 3

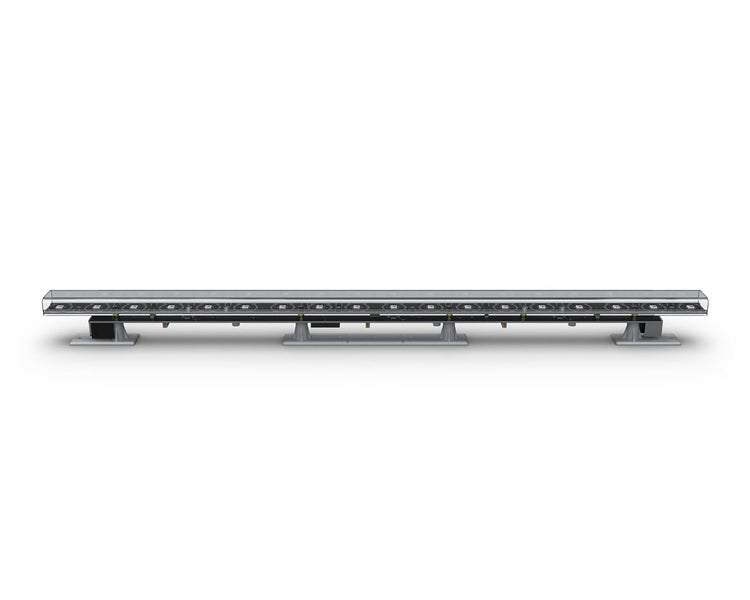

ILULCOVEM - Iluminarc Logic Cove M 0.6m LED Batten 18x RGBW LED 2.5W 711 Lumen Output Image 4

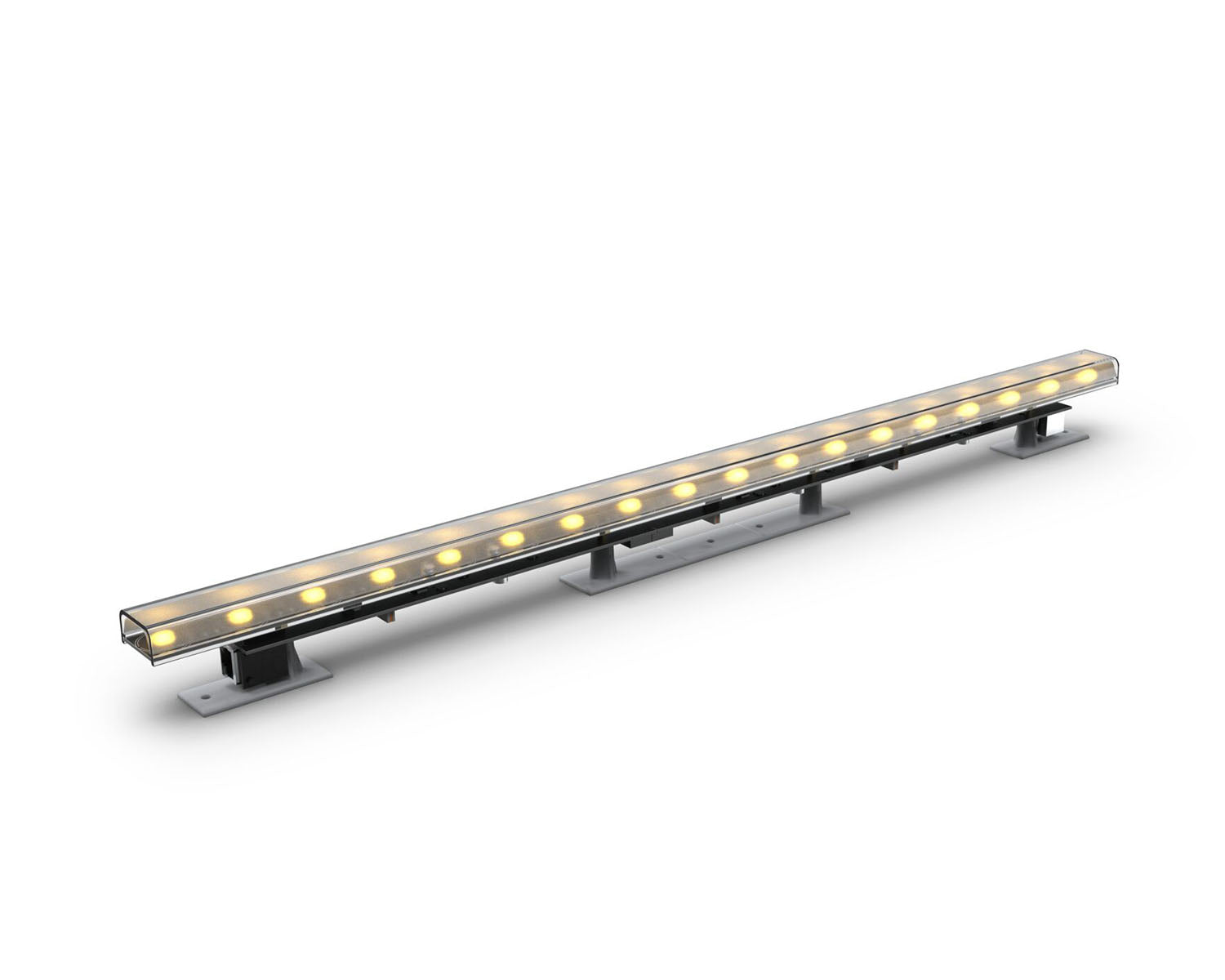

ILULCOVEM - Iluminarc Logic Cove M 0.6m LED Batten 18x RGBW LED 2.5W 711 Lumen Output Image 5

Iluminarc Logic Cove M is a sleek and discreet architectural batten designed for permanent installation into tight spaces, behind decorative elements, or anywhere an accent of illumination is needed. With its four color RGBW system, Cove can provide everything from a soft and pleasing incandescent glow to bold pops of bright, saturated color. Cove uses Power Over Ethernet (POE) to keep cabling efficient and clean, and supports daisy-chaining using widely available Ethernet cable.

Product Features

Light Source: 18 Quad-color RGBW LEDs at 2.5W
LED Lifespan: 50,000 hours
Native Beam Angle (Horizontal): 119.9º
Lumen Output: 711
Color Temperature Presets: 1,800K to 10,000K
Control: Logic Drive 2X (required)
Lens Material: Clear Polycarbonate

Product Specifications

Light Source and Optical Specifications

Light Source: 18 LEDs (quad-color RGBW) 2.5 W, (870 mA)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications
White LED Native CCT: 3000 K
Installed Optics: Very Wide Filter
Open Optics
- Beam Angle (Horizontal): 119.9°
- Beam Angle (Vertical): 122.2°
- Field Angle (Horizontal): 164.4°
- Field Angle (Vertical): 165.2°
- Cutoff angle: 178.4°
- Lumens: 711
- Base Illuminance @ 5 m: 9 lux
- Efficacy: 56 lm / W
Very Wide filter (installed)
- Beam Angle (Horizontal): 142.1°
- Beam Angle (Vertical): 135.6°
- Field Angle (Horizontal): 251°
- Field Angle (Vertical): 167°
- Cutoff angle: 334.2°
- Lumens: 537
- Base Illuminance @ 5 m: 4 lux
- Efficacy: 43 lm / W
Color Temperature Presets: Built-in, 1,800 to 10,000 K

Construction & Physical Specifications

Dimensions: 23.58 x 1.22 x 1.81 in (599 x 31 x 46 mm)
Weight: 0.6 lb (0.3 kg)
Lens Cover: Clear Polycarbonate
Mounting Options: Integrated mounting bracket, 0.157 in (4 mm) bracket holes

Control Specifications

Control Protocol: USITT DMX-512a, RDM, Art-Net, Art-RDM, sACN via Logic Drive 2X
Operating Modes Selectable personalities, via Logic Drive 2X:
- Red (1-channel) Red
- Green (1-channel) Green
- Blue (1-channel) Blue
- White (1-channel) White
- TW (2-channel) Dimmer, White CCT Preset
- RGB (3-channel) Red, Green, Blue
- RGBW (4-channel) Red, Green, Blue, White
- RGBW+D (5-channel) Red, Green, Blue, White, Dimmer
- FULL (10-channel) Dimmer, Red, Green, Blue, White, White CCT presets, Strobe, Auto Programs, Dimmer speed presets
Standalone Control: Yes, Logic Wall Con via Logic Drive 2X
Fixture setup: Logic Drive 2X (RDM, Webserver or Display), Art-RDM (DMX Workshop)

Electrical System Specifications

Input Voltage: 52-56 VDC
- Power and Current (fixture via POE): 15 W
Power Supply: POE++, IEEE 802.3bt, type 4, class 8 (via Logic Drive 2X)
Dimmer: Electronic
Power Linking: 8 units per port via POE++, IEEE 802.3bt, type 4
Power/Data Connection: 2 Ethernet (RJ45)
Required Cable Specifications
- Cable type: CAT6/A, Shielded
- Conductor Diameter: ≥23 AWG (≥0.5733 mm)
- Conductor Material: Solid Bare Copper Wire (stranded not supported)
- Cable Terminator: RJ45, CAT6/A, Shielded
Cable Length(s) Supported
- Total Max Cable Length (drive to first fixture): ≤100 m / 328 ft
- Total Max Cable Length (drive to last fixture): ≤140 m / 460 ft
- Total Max Cable Length (first fixture to last fixture): ≤40 m / 131 ft
Recommended Cable (or equivalent): Belden 2413F, 2412F

Thermal Specifications

Cooling Convection
Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Surface Temperature: 158 °F (70 °C)
Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
BTU/hr: 51.1

Regulatory & Voluntary Qualification

US Safety: UL 2108, UL 1598A
Canadian Safety: CSA-C22.2 No. 250.2
Certification Listings: CE, MET, FCC, ROHS
Environment: Dry location, IP20, All indoor permanent installations.
- Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any

What's in the Box?

Logic Cove M
90° filter
Quick Reference Guide

Accessories

Required: Logic Drive 2X
Optional: RDM2GO
