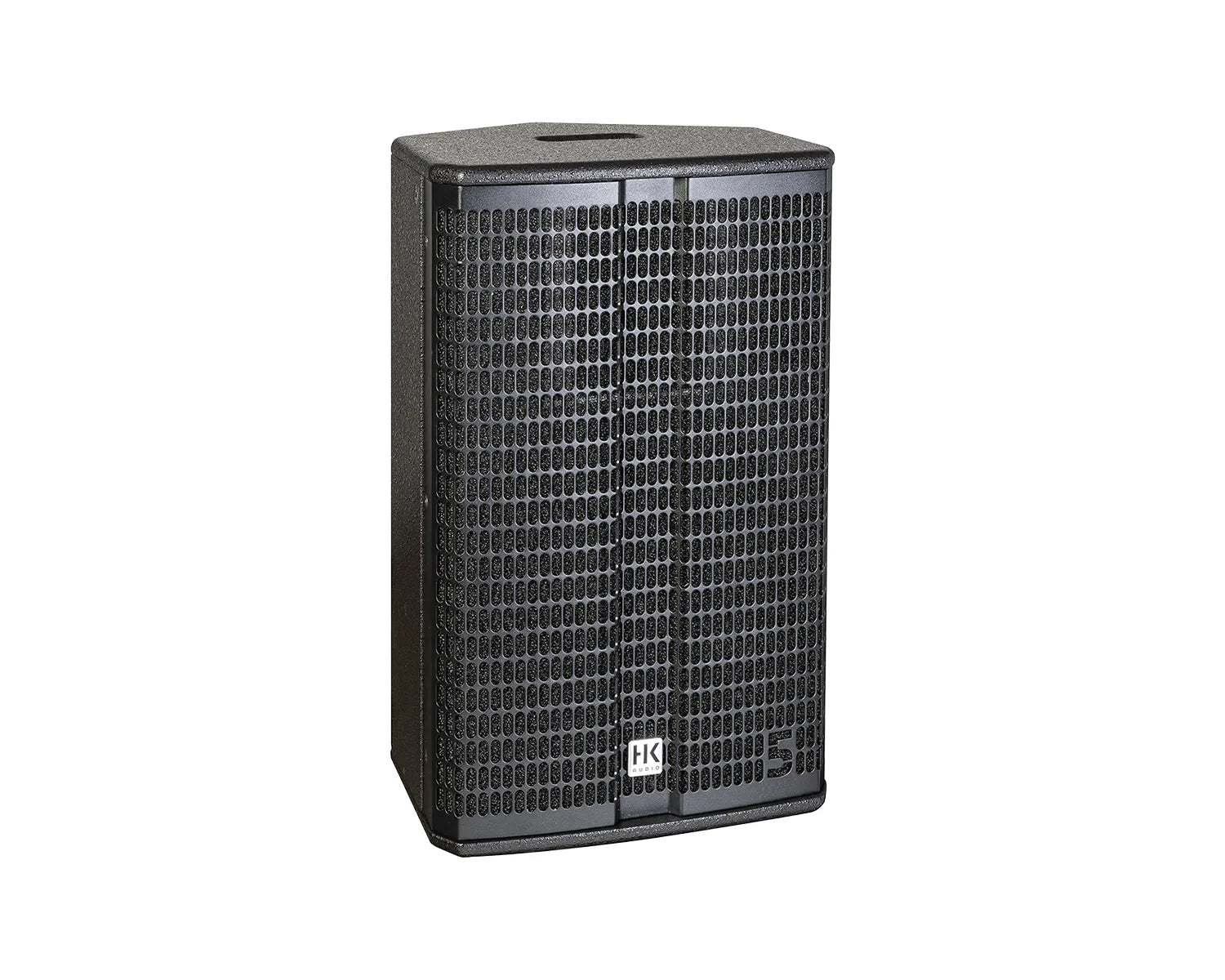

The LINEAR 5 MK II 112 XA is a compact, flexible multifunctional mid/high unit with 12" woofer and tweeter with 1.7" voice coil. Its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60° make it a powerful solution for low feedback and directional monitor applications. Even on small stages and without turning the horn.

The LINEAR 5 MK II 112 XA offers an impressive range with transparent, assertive sound and includes a remote-controllable high-performance DSP with integrated, directly selectable presets. The DSP Out can transmit the processed signal from the speaker to a non-network-compatible speaker.

The sturdy birch multiplex hybrid enclosure and a wide range of accessories make the LINEAR 5 MK II 112 XA a strong partner for bands and sound technicians, either as a transverse stage monitor or as a powerful system mid/high unit in conjunction with the LINEAR 5 MK II subwoofers.

Product Features

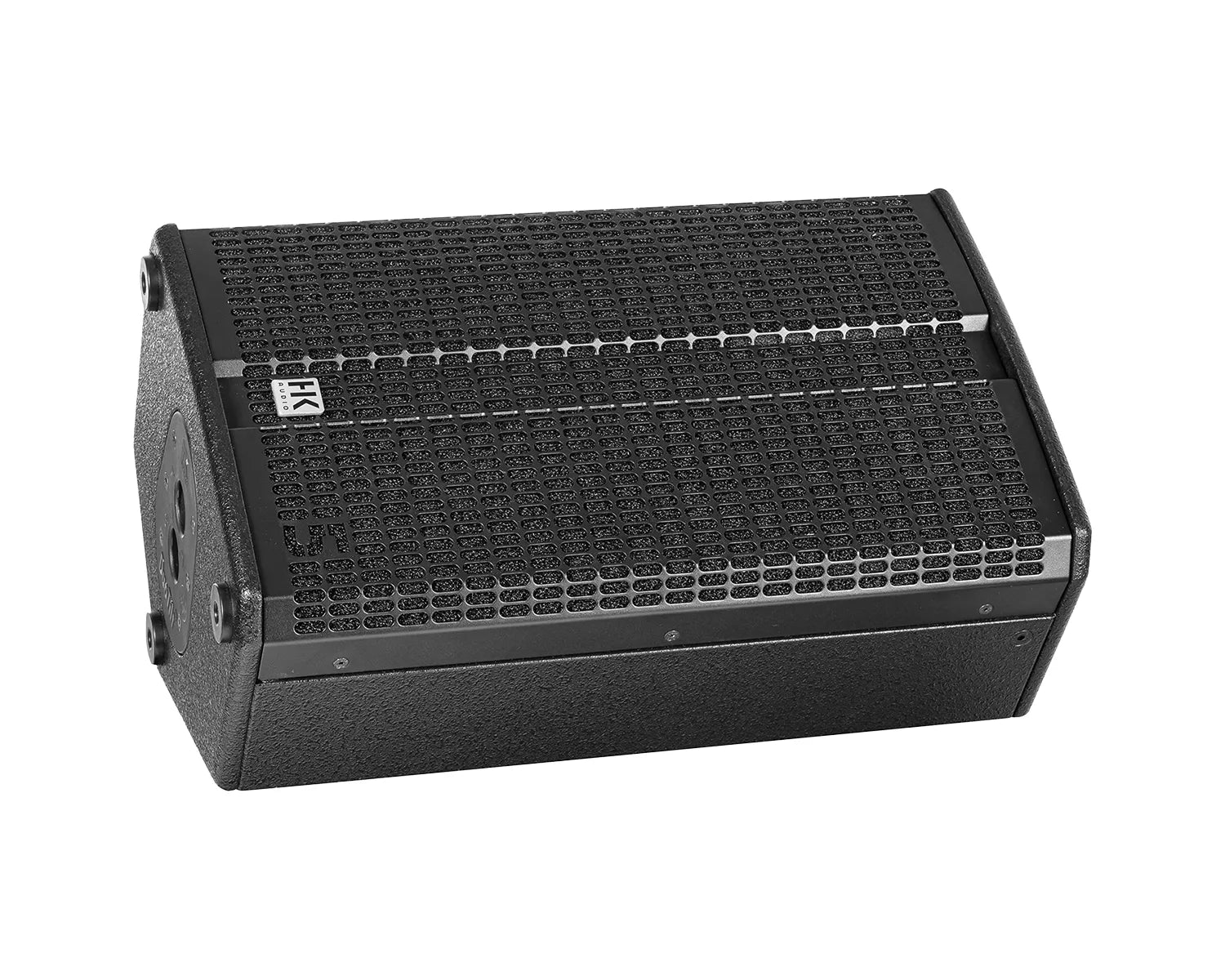

• Compact, multifunctional enclosure shape with 31° monitor slope
• 1200 W peak power bi-amped Class-D power amplifier
• Rotatable horn with 80° x 60° dispersion pattern

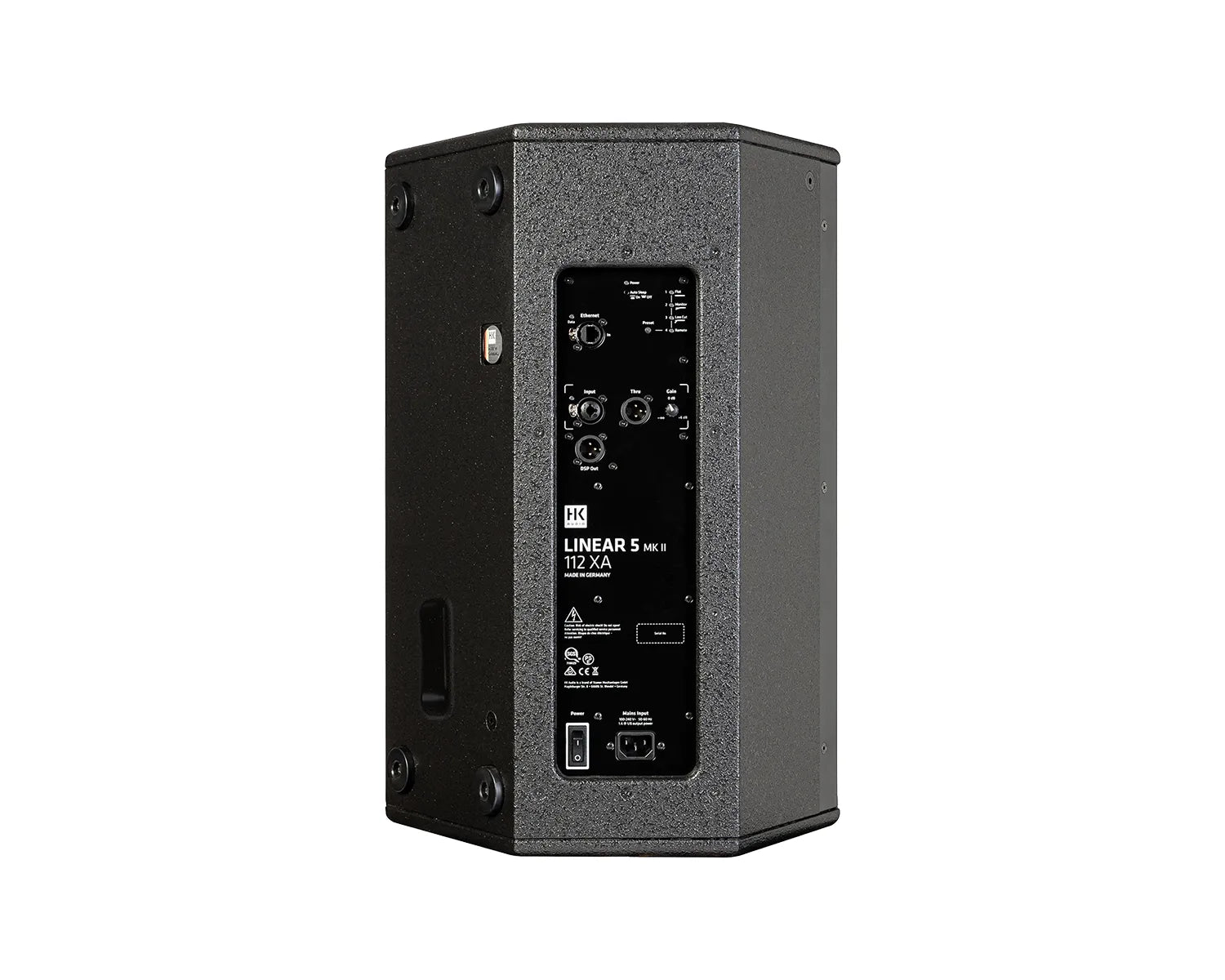

• Lockable, balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker
• Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote
• Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Professional, lockable EtherCon connector for connection to a Mac or PC to control the system
• DSP Out: balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software

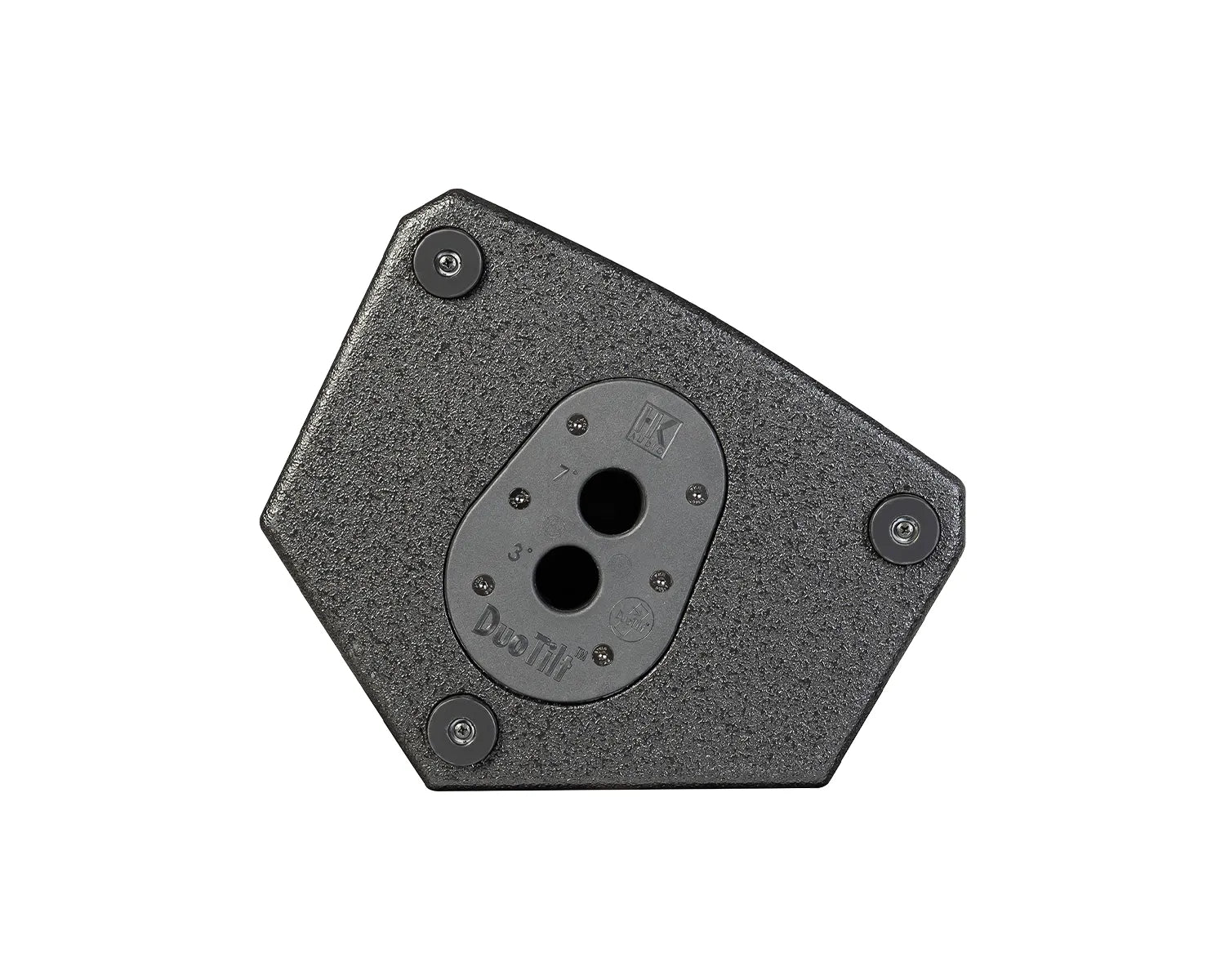

• HK AUDIO DuoTilt with 3° or 7° inclination
• Three reinforced M8 (AP-8) mounting points
• Lockable V-Lock mains cable
• Made in Germany

Product Specifications

• Max. SPL peak @ 10 % THD:  128 dB half space (70 Hz – 12 kHz averaged)
• Max. SPL Peak @ 10 % THD:  136 dB half space
• Frequency response +/- 3 dB:  73 Hz – 12 kHz
• Frequency response -10 dB:  67 Hz – 19 kHz
• Power amp output (RMS/Peak):  600 / 1,200 W
• Amplifier type:  Class D – bi-amped
• Low/mid speaker:  1x 12", 2.5" voice coil
• HF driver:  1", 1.7" voice coil
• Horn characteristics:  80° x 60° CD horn, rotatable
• Active x-over frequency:  1.9 kHz FIR X-over with 72 dB/ oct.
• Maximum input level:  20 dBu
• Analogue inputs:  1 x XLR combo balanced
• Analogue Thru:  1 x XLR balanced
• DSP Out:  1 x XLR balanced
• Network port:  EtherCON RJ45, 1 x In
• Filter presets:  Flat, Monitor, Low Cut, Remote
• Remote software:  DSP CONTROL (Windows, Mac OS)
• DSP functions:  Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate:  48 kHz
• System latency:  Less than 2 ms
• Mains connection:  1x IEC connector with V-Lock securing system, 100-240 V
• Power consumption:  1 A / 100–240 V nominal according to EN 62368-1
• Setup angle:  31°
• Pole mount:  DuoTilt 3°/7°
• Rigging points:  3x M8 (AP-8)
• Carrying handles:  2 x SingleGrip
• Housing:  Hybrid (birch multiplex/MDF
• Surface:  Black acrylic enamel
• Front grille:  2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD):  36 x 59 x 30.5 cm
• Weight:  17.6 kg / 38.80 lbs
