Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.

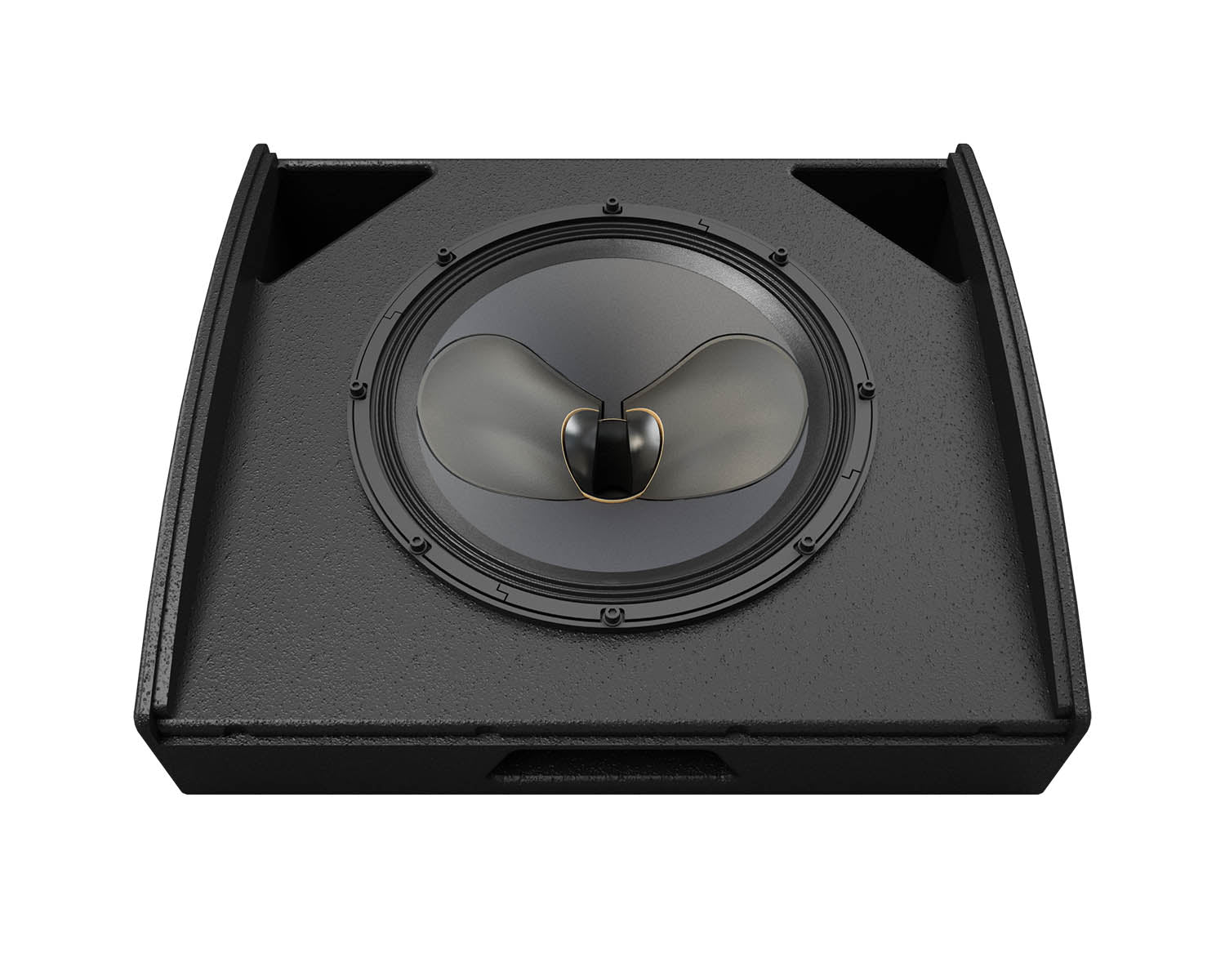

The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.

Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.

Product Features

• Compact, two-way stage monitor
• Coaxial ‘point-source’ performance
• Differential Dispersion™ technology for consistent coverage
• Defined, near-rectangular coverage plane at head-height
• Switchable active/passive operation
• Low-profile plywood enclosure
• M8 rigging inserts
• Multiple connectors for flexible deployment

Product Specifications

General

• TYPE: Two-way, bi-amp/passive Coaxial Differential Dispersion
• FREQUENCY RESPONSE (5): 68Hz-18kHz ± 3dB, -10dB @ 50Hz
• DRIVERS:
  • LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
  • HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver
• RATED POWER (2): 400W AES, 1600W peak
• SENSITIVITY (8):
  • LF: 100dB, HF: 103dB
  • Passive: 100dB
• MAXIMUM SPL (9): 133dB peak
• NOMINAL IMPEDANCE:
  • LF/FR: 8Ω
  • HF: 8Ω
• DISPERSION (-6DB): 100°-60° horizontal, 60° vertical
• CROSSOVER: 1.2kHz active/passive (switchable)
• ENCLOSURE: Birch/poplar ply
• FINISH: Black textured paint
• PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing
• BAFFLE ANGLE: 30˚
• CONNECTORS: 4 x NL4 type
• PIN CONNECTIONS:
  • LF/FR: 1+/-
  • HF: 2+/-
• FITTINGS:
  • 2 x pocket handles
  • Protective rubber feet on base and sides
  • 4 x M8 inserts

Physical & Dimensions

• Height: 364mm
• Width: 610mm
• Depth: 562mm
• Weight: 26kg
