The unique Coaxial Differential Dispersion technology employed in the LE100 produces a horizontal coverage pattern which varies from a wide 110° directly over the monitor, reducing to 60° further back. This tapering produces a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.

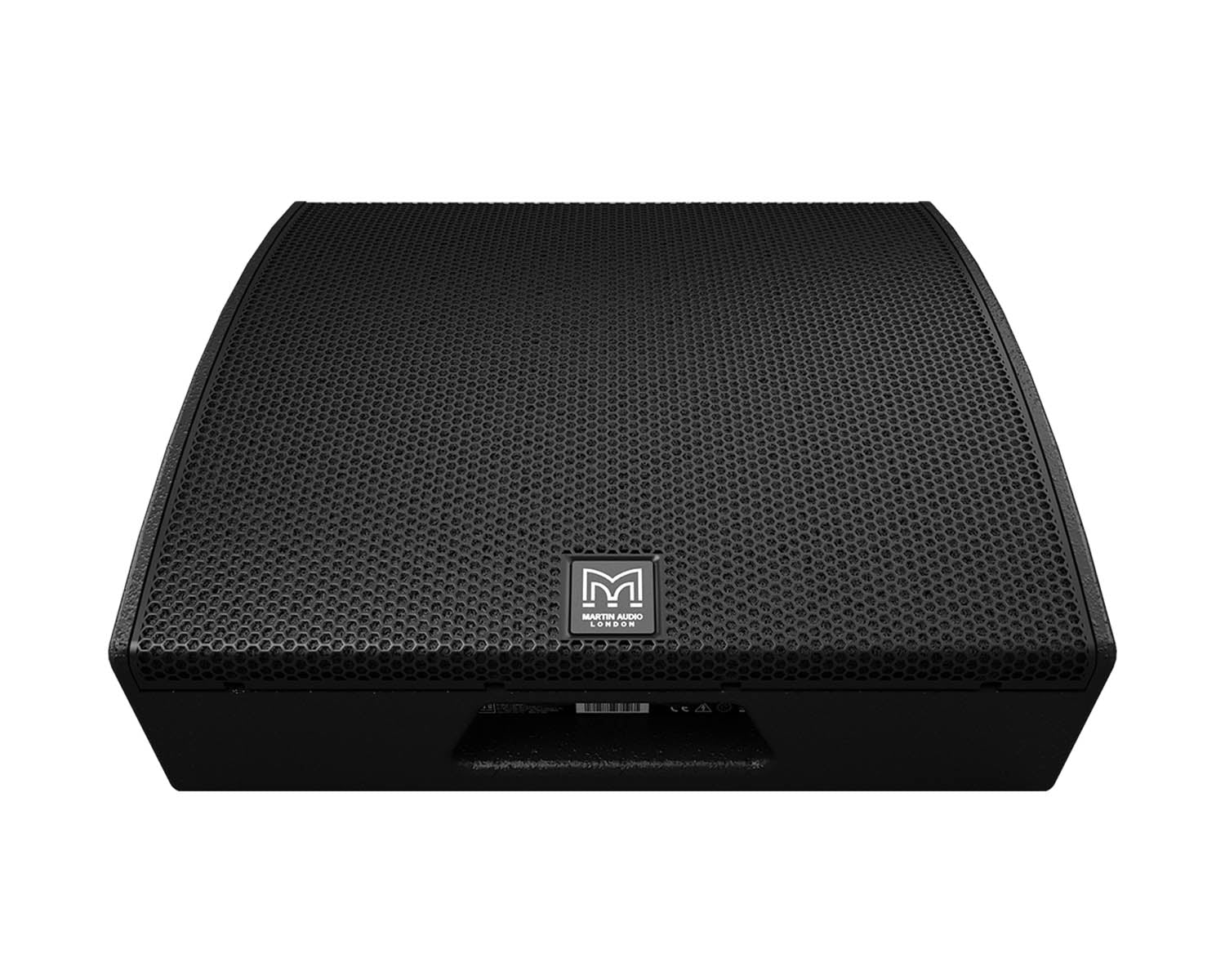

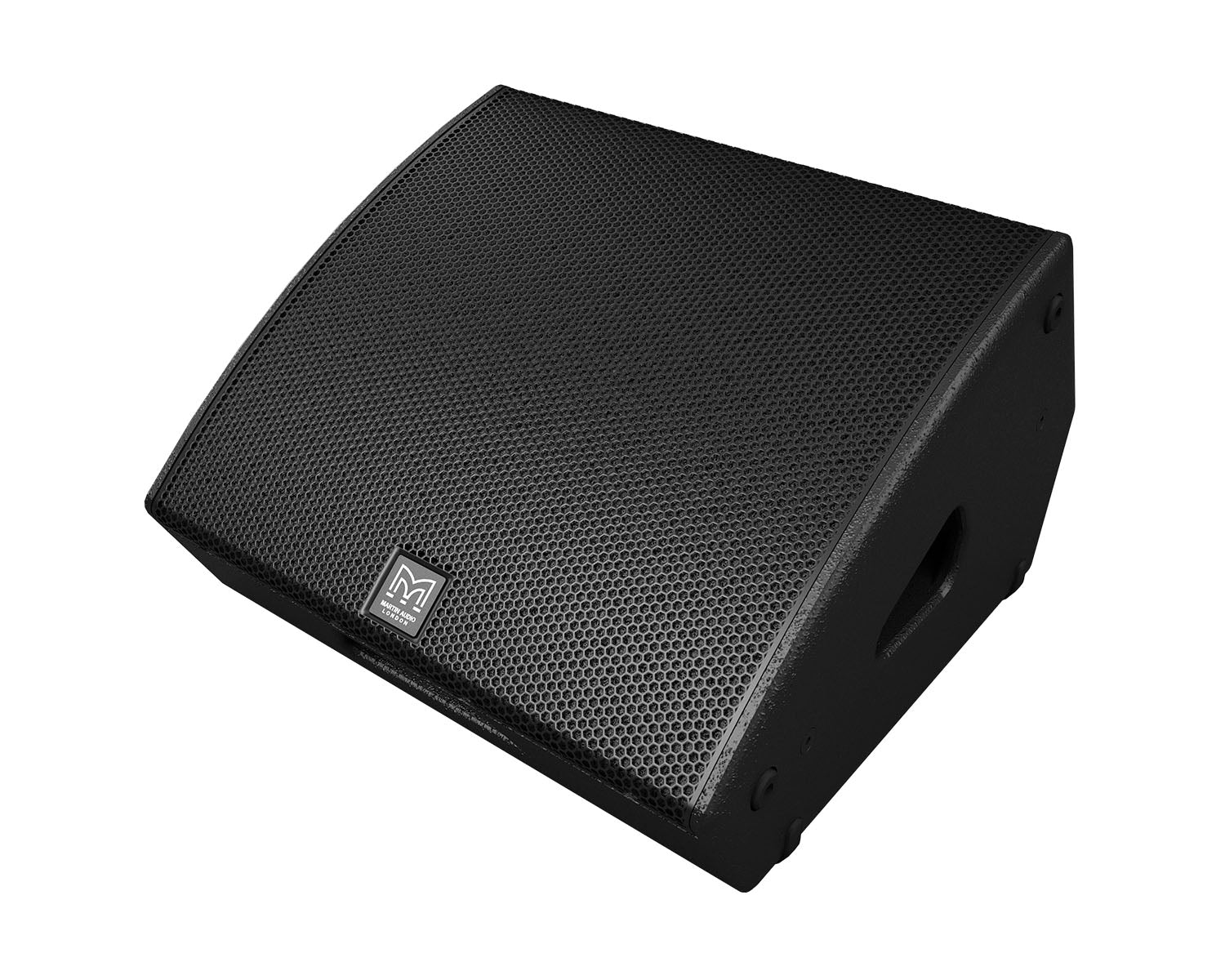

The LE100 enclosure is constructed from durable plywood and is finished with a durable black textured paint. Ergonomic pocket handles assist handling and a strong, perforated steel grille with an acoustically transparent cloth backing provides driver protection. Moulded feet prevent movement onstage and protect the base of the monitor from scratches.

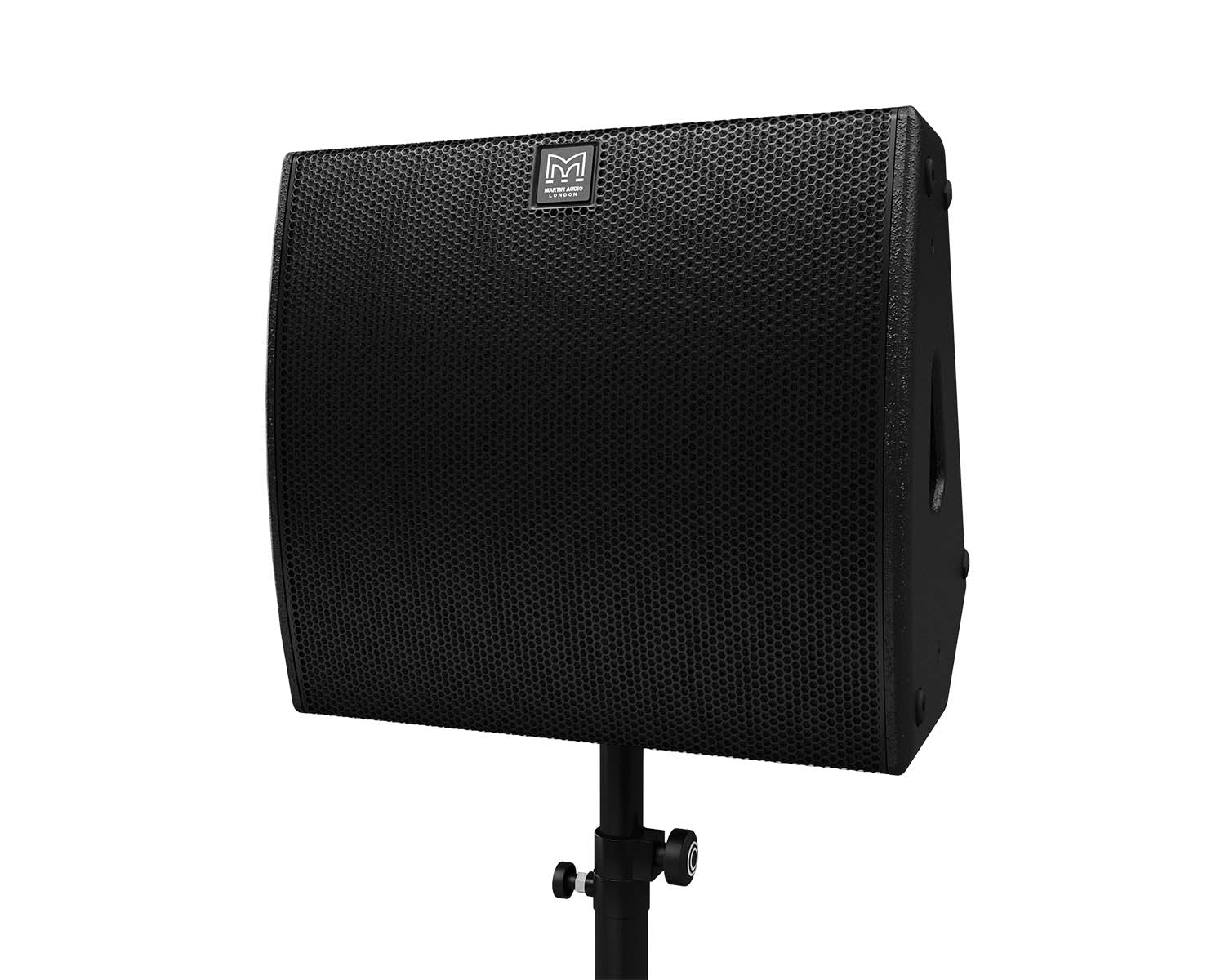

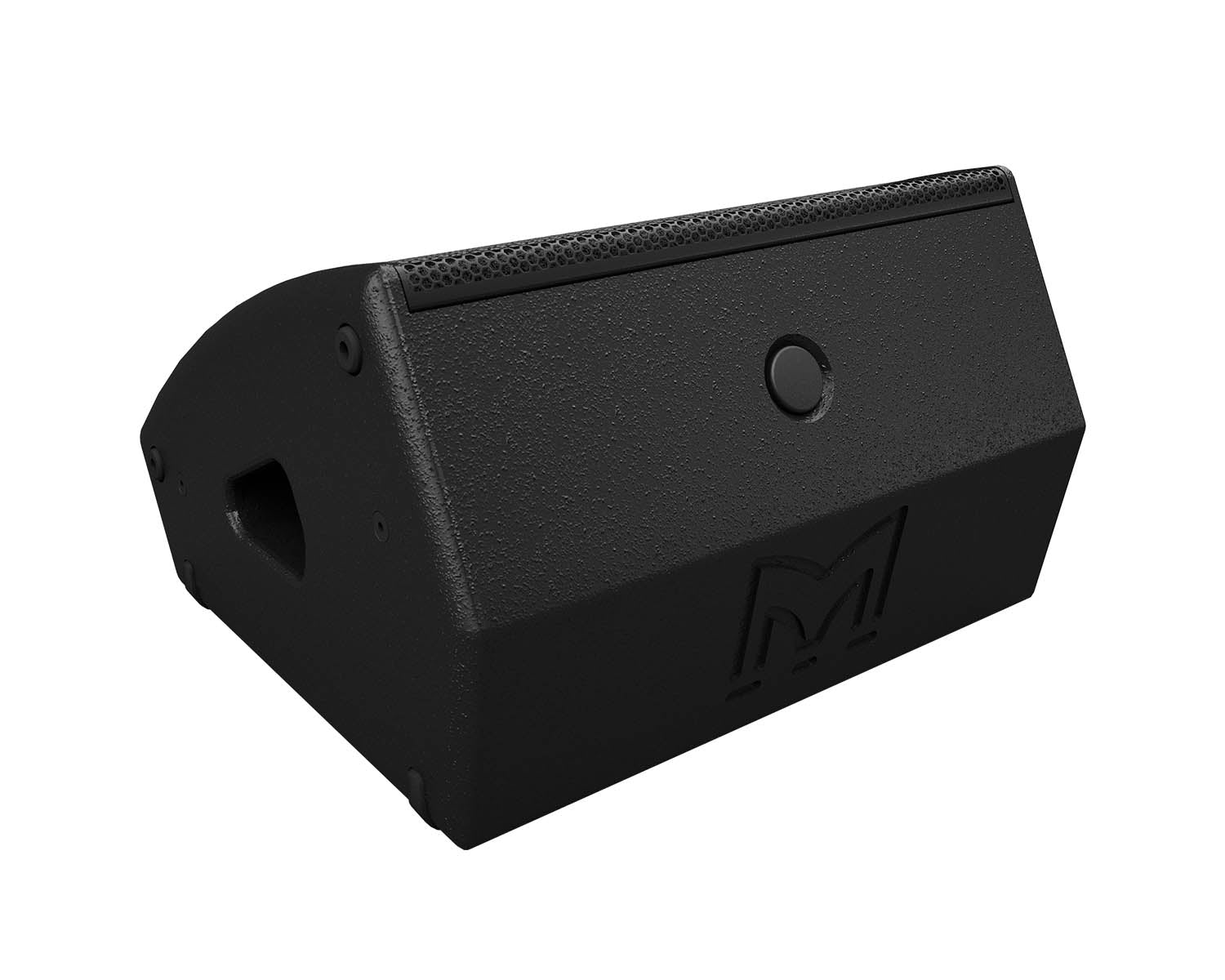

As well as use as a stage monitor, the LE100 offers a range of flexible deployment options. It can be inverted and used as a pole-mounted sidefill or sound reinforcement system without the need to rotate the drive unit, or combined with a Martin Audio subwoofer as a drumfill. A removable pole-mount bung maintains clean lines in stage monitor guise while a total of five NL4 connectors at the front, base and in each handle pocket satisfy a wide variety of user configurations.

Product Features

• Compact, two-way stage monitor
• Coaxial ‘point-source’ performance
• Differential Dispersion™ technology for consistent coverage
• Defined, near-rectangular coverage plane at head-height
• Low-profile plywood enclosure
• Integral pole-mount with removable bung
• M8 rigging inserts
• Multiple connectors for flexible deployment

Product Specifications

General

• TYPE: Two-way passive, Coaxial Differential Dispersion stage monitor
• FREQUENCY RESPONSE (5): 78Hz-20kHz ± 3dB, -10dB @ 58Hz
• DRIVERS:

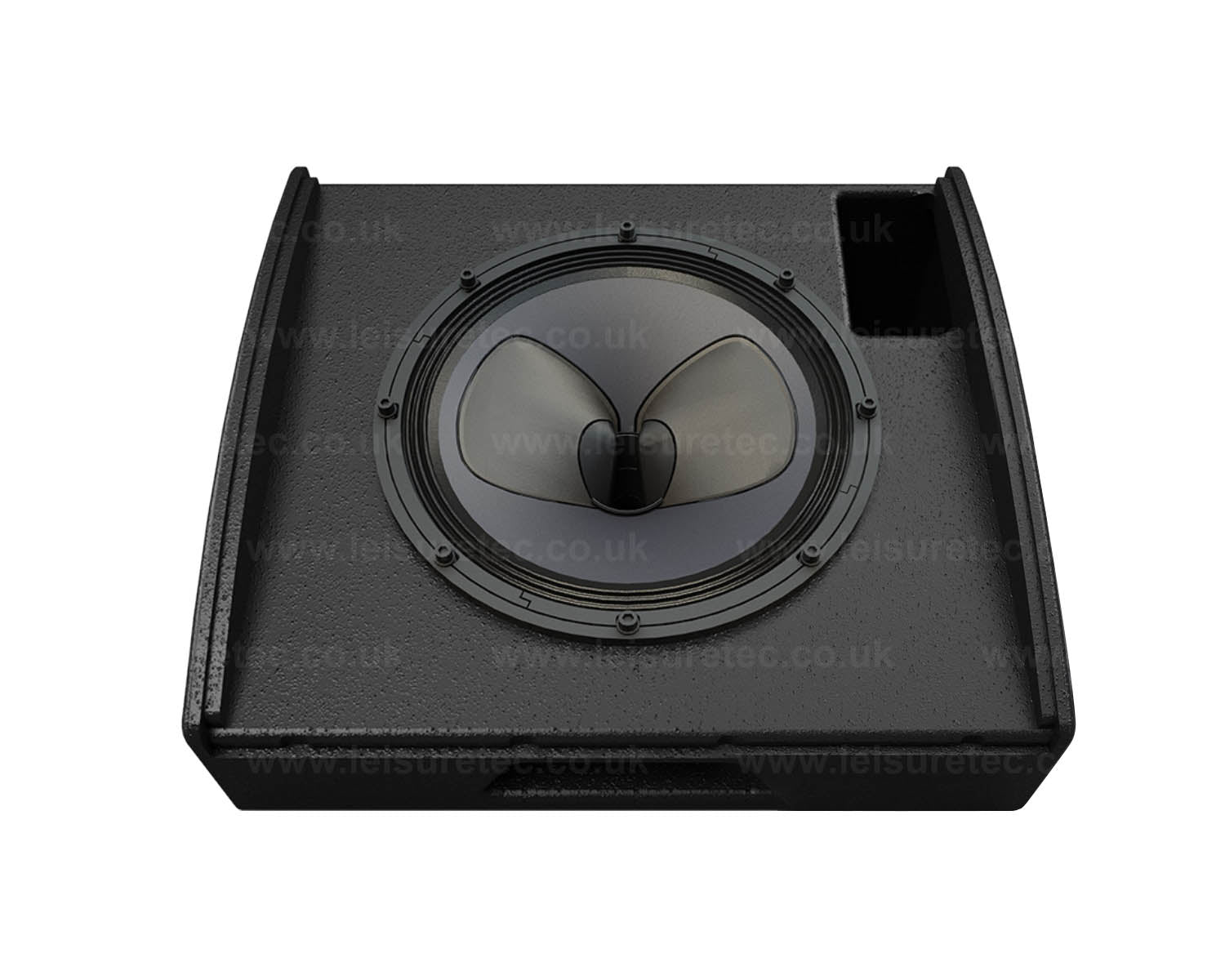

  • LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
  • HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
• RATED POWER (2): 300W AES, 1200W peak
• SENSITIVITY (8): 97dB
• MAXIMUM SPL (9): 129dB peak
• NOMINAL IMPEDANCE: 8Ω
• DISPERSION (-6DB): 110°-60° horizontal, 60° vertical
• CROSSOVER: 1.6kHz passive
• ENCLOSURE: Birch/poplar ply
• FINISH: Black textured paint
• PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing
• BAFFLE ANGLE: 27˚
• CONNECTORS: 5 x NL4 type
• PIN CONNECTIONS: 1+/1-
• FITTINGS:
  • 2 x pocket handles
  • Protective rubber feet on base and sides
  • 4 x M8 inserts
  • Pole-mount socket

Physical & Dimensions

• Height: 302mm
• Width: 490mm
• Depth: 472mm
• Weight: 18kg
