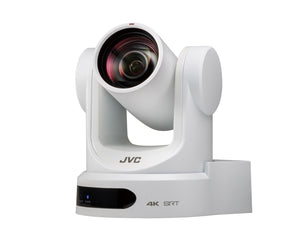

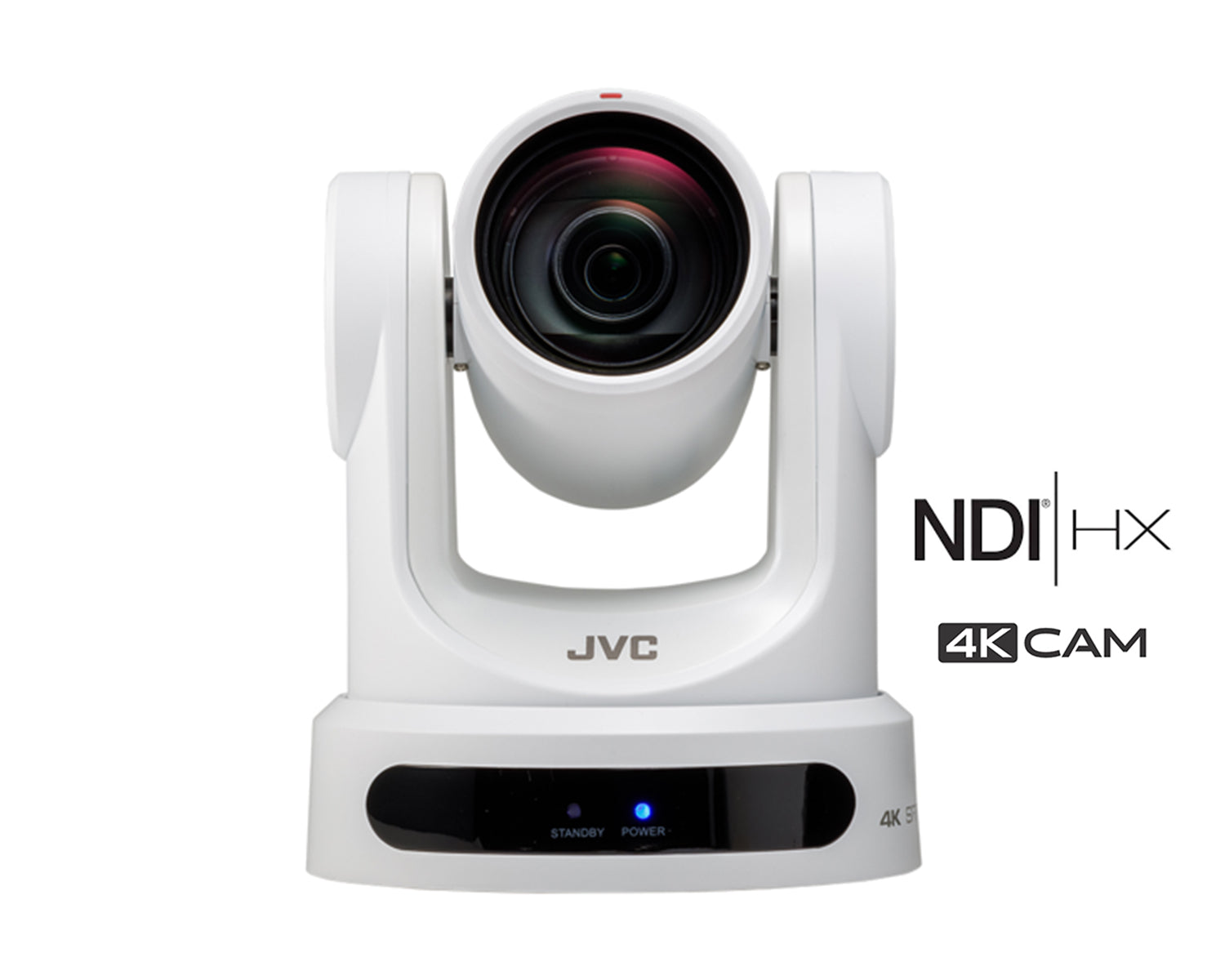

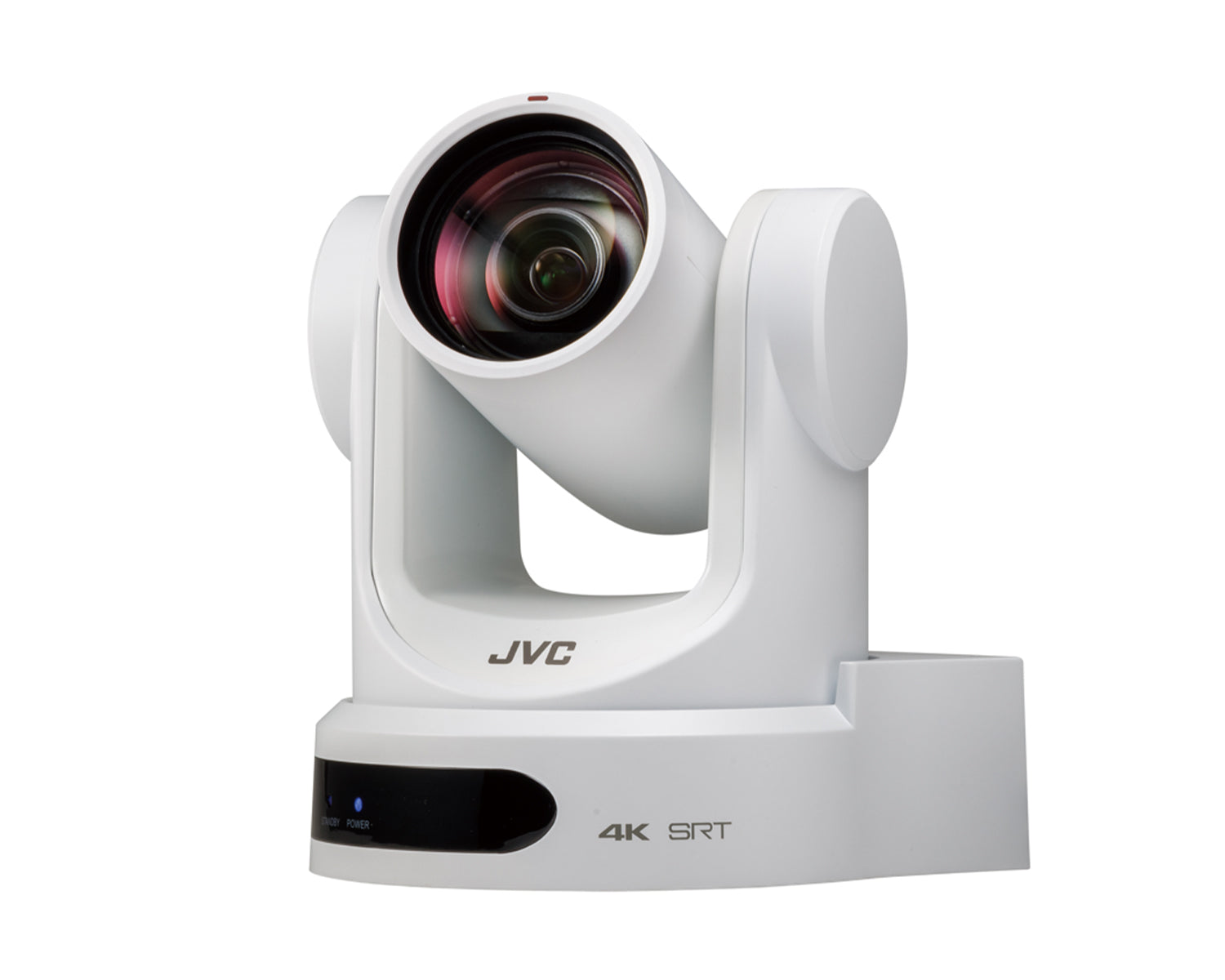

JVC’s first robotic pan, tilt and zoom 4K video production camera, the KY-PZ400 offers NDI®|HX, SRT and supports POE for a true \'One Wire Solution\'. Ideal for studio or field use, this PTZ model enables reliable remote IP production for education, corporate, live events and sport applications.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• 1/2.5-inch CMOS sensor (8.51 million pixels)
• Can memorize 255 preset settings and positions
• NDI|HX support
• Wide 71° optical zoom lens with 12x zoom ratio (4.4mm ~ 52.8mm, F1.8 ~ F2.6)
• Multiple protocol streaming SRT, RTSP, RTMP, RTMPS
• Powerful encoding engine supports H.265, H.264 & MJPEG
• Simultaneous high (4K) and low resolution encoding with main and sub stream
• LAN Connector supports Power over Ethernet (POE)
• Compatible with RM-LP100 controller using JVC protocol and API
• 3G-SDI and HDMI 2.0 (4K) digital outputs
• Remote control via RS232, RS485 and JVC IP protocoll
• Ships with IR controller, mounting bracket, power adapter & RS232 cable

Product Specifications

Camera Front-End Specifications

• Image Sensor (inch): 1/2,5 Inch CMOS
• Number of Sensors: 1
• Mega Pixels: 8.51
• Min. Illumination: 0.5Lux
• Shutter speed: 1/30 to 1/10000

Optical Specifications

• Lens mount: Internal
• Optical Zoom X times: 12
• Dynamic Zoom x times: 16
• Lens F Number: 1.8 to 2.6
• Lens ratio from / to: 4.4mm to 52.8mm
• Auto Focus: Yes

PTZ Head Features

• PAN Angle in degree +/-: 170
• PAN Speed with AC Adapter max degree/sec.: 100
• PAN Speed with POE+ max degree/sec.: 100
• TILT Angle in degree: -30 to 90
• TILT Speed with AC Adapter max degree/sec.: 69.9
• TILT Speed with POE+ max degree/sec.: 69.9
• Preset Positions: 255

Recording Formats

• Encoder: H.265/H.264/MJPEG
• Resolution 3840 x 2160: Yes, 29.97p, 25p , 23.98p
• Resolution 1920 x 1080: Yes, (60p/50p/30p/25p/24p / 1080i60/i50
• Resolution 1280 x720: Yes, 60p/50p/30p/25p/24p
• Audio Channels: 2

IP Section of the Product

• IP Main Connection: Ethernet LAN RJ45 1000Base-T with POE+
• IP Connection supports: Ethernet
• IP Features Live-Streaming: Yes
• IP Features Remote: Yes, via RM-LP100 or Web-Browser no apps needed
• Video Compression Codecs: 3
• H.265 Codec [1]: Yes
• H.264 Codec: Yes
• MJPEG Codec: Yes
• Live-Streaming Bitrates: 1~60 Mbit/s
• Live-Streaming Protocols: NDI|HX, SRT, RTMP, RTMPS, RTSP
• SRT Protocol: Yes
• NDI|HX Protocol: Yes
• Live-Streaming Single cast: Yes
• Live-Streaming Multicast: Yes

IN-OUT´s Connections

• OUT HDSDI: Yes, 3G HDSDI
• OUT HDSDI Format max.: 1080/60p,50p
• OUT HDMI: Yes
• OUT HDMI Format max.: 2160/30p,25p
• OUT Audio Line: Yes, 1 times 3.5mm mini jack
• IN Audio AUX: Yes, 1 times 3.5mm mini jack
• PTZ Serial Interface RS-232C in/out: Yes, over 8 PIN mini DIN
• PTZ Supported Protocols: Serial, PelcoD, IP JVC, IP others

Power and Environment Spec´s

• Power DC: Yes, 12 Volt or 42V to 57V POE+ over Network LAN
• Power consumption: 12W
• Operation Temperature in Celsius degrees: 0 to 40
• Storage Temperature in Celsius degrees: -40 to 60

Mechanical Information

• Weight in kg: 1.7
• Measurements (WxHxD) in mm: W 142 x H 164 x D 169

What's in the Box?

• AC/DC Adapter
• Power Cable
• RS232 Cable
• User Manual, Warranty Card
• IR Controller
• Ceiling Mount Bracket
