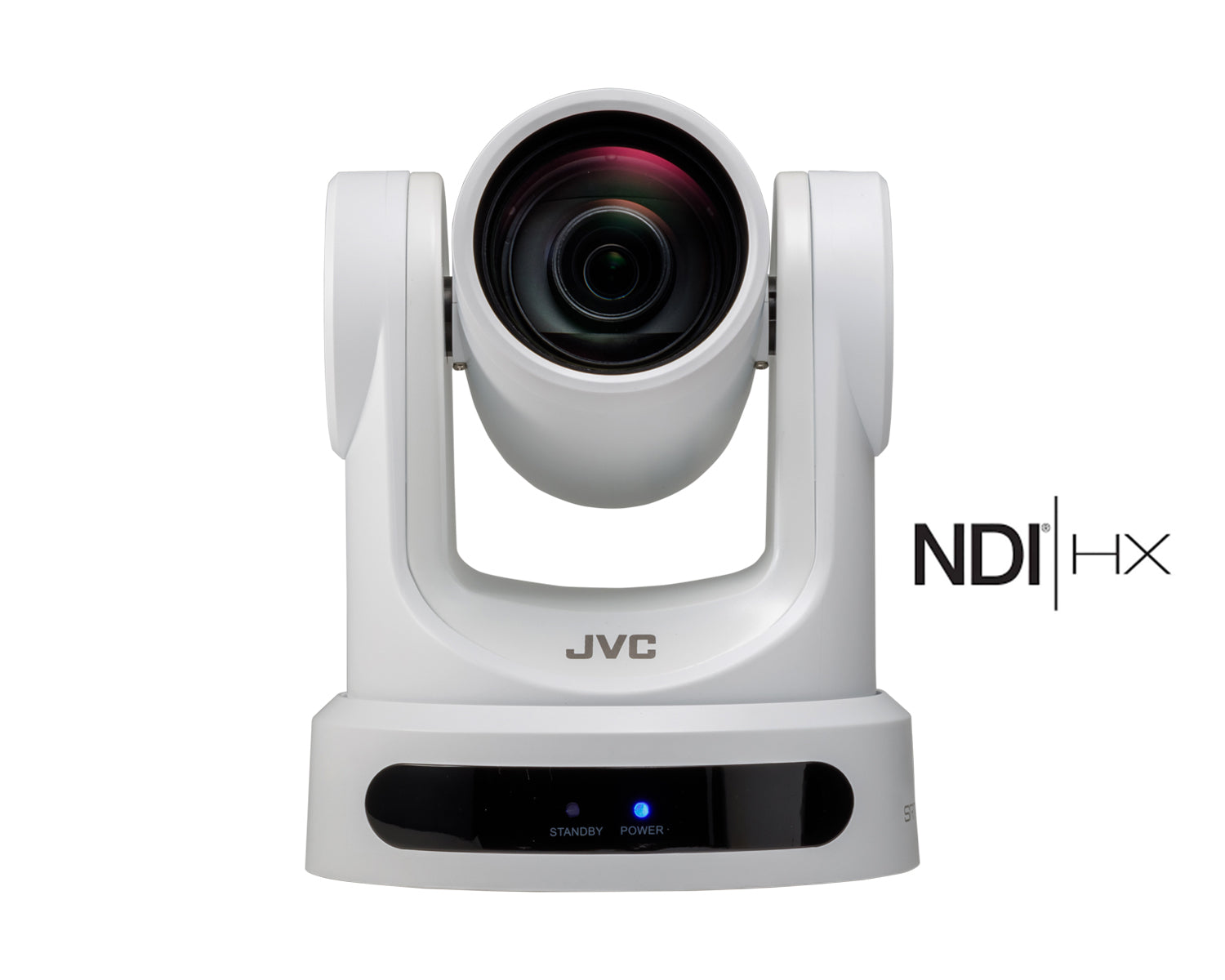

JVC’s new HD robotic pan, tilt and zoom video production camera, the KY-PZ200 offers NDI®|HX, SRT and supports POE for a true \'one cable solution\'. Ideal for studio or field use, the PTZ camera enables reliable remote IP production for education, corporate, live events and sport applications.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Optical zoom lens with 20x zoom ratio (4.42-88.5mm, f/1.8~2.8)
• Can memorize 255 preset settings and positions
• Multiple protocol streaming SRT, RTSP, RTMP, RTMPS
• Powerful encoding engine supports H.265, H.264 & MJPEG
• Simultaneous high (HD) and low resolution encoding with main and sub stream
• LAN Connector supports Power over Ethernet (POE)
• Compatible with RM-LP100 controller using JVC protocol and API
• 3G-SDI and HDMI digital outputs
• Remote control via RS232, RS485 and JVC IP protocoll
• Ships with IR controller, mounting bracket, power adapter & RS232 cable
• 1/2.8-inch CMOS sensor (2.07 million pixels)
• NDI|HX support

Product Specifications

Camera Front-End Specifications

• Image Sensor (inch): 1/2,8 Inch CMOS
• Number of Sensors: 1
• Mega Pixels: 2.07M
• Min. Illumination: 0.5 Lux
• Shutter speed: Shutter speed: 1/30 to 1/10000

Optical Specifications

• Optical Zoom X times: 20
• Dynamic Zoom x times: 8
• Lens F Number: 1.8 to 2.8
• Lens ratio from / to: 4.42mm to 88.5mm
• Auto Focus: Yes

PTZ Head Features

• PAN Angle in degree +/-: 170
• PAN Speed with AC Adapter max degree/sec.: 100
• PAN Speed with POE+ max degree/sec.: 100
• TILT Angle in degree: -30 to 90
• TILT Speed with AC Adapter max degree/sec.: 69.9
• TILT Speed with POE+ max degree/sec.: 69.9
• Preset Positions: 255

Recording Formats

• Encoder: Encoder: H.265/H.264/MJPEG

IP Section of the Product

• IP Main Connection: Ethernet LAN RJ45 1000Base-T with POE+
• IP Connection supports: Ethernet
• IP Features Live-Streaming: Yes
• IP Features Remote: Yes, via RM-LP100 or Web-Browser no apps needed
• Video Compression Codecs: 3
• H.265 Codec [1]: Yes
• H.264 Codec: Yes
• MJPEG Codec: Yes
• Live-Streaming Bitrates: 1~58 Mbit/s
• Live-Streaming Protocols: NDI|HX, SRT, RTMP, RTMPS, RTSP
• SRT Protocol: Yes
• NDI|HX Protocol: Yes
• Live-Streaming Single cast: Yes
• Live-Streaming Multicast: Yes

IN-OUT´s Connections

• OUT HDSDI: Yes, 3G HDSDI
• OUT HDSDI Format max.: 1080/60p,50p
• OUT HDMI: Yes
• OUT HDMI Format max.: 1920x1080 60/50p
• OUT Audio Line: Yes, 1 times 3.5mm mini jack
• PTZ Serial Interface RS-232C in/out: Yes, over 8 PIN mini DIN
• PTZ Supported Protocols: Serial, PelcoD, IP JVC, IP others

Power and Environment Spec´s

• Power DC: Yes, 12 Volt or 42V to 57V POE+ over Network LAN
• Power consumption: 12W
• Operation Temperature in Celsius degrees: 0 to 40
• Storage Temperature in Celsius degrees: -40 to 60

Mechanical Information

• Weight in kg: 1.7
• Measurements (WxHxD) in mm: W 142 x H 164 x D 169

What's in the Box?

• AC/DC Adapter
• RS232 Cable
• Ceiling Mounting Bracket
