The KL CYC S is the perfect fixture for smooth and even cyclorama, set and wall washing applications. It utilises a carefully crafted asymmetrical reflector design to achieve perfect blends while covering significant heights with ease.

Designed with an incredibly low-profile housing, the KL CYC is also the ideal choice for footlight positions, providing excellent versatility for stage, film, television, and event lighting use.

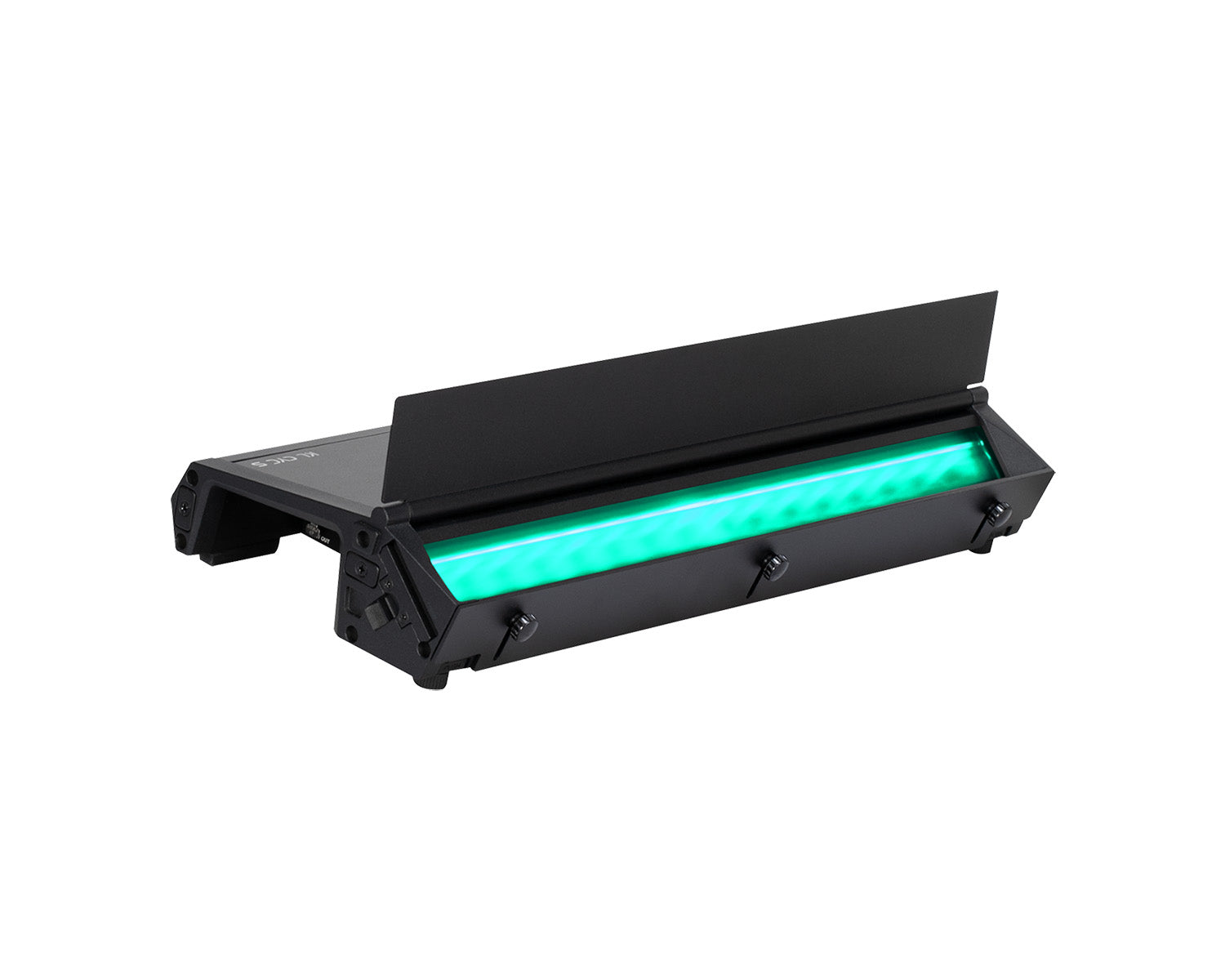

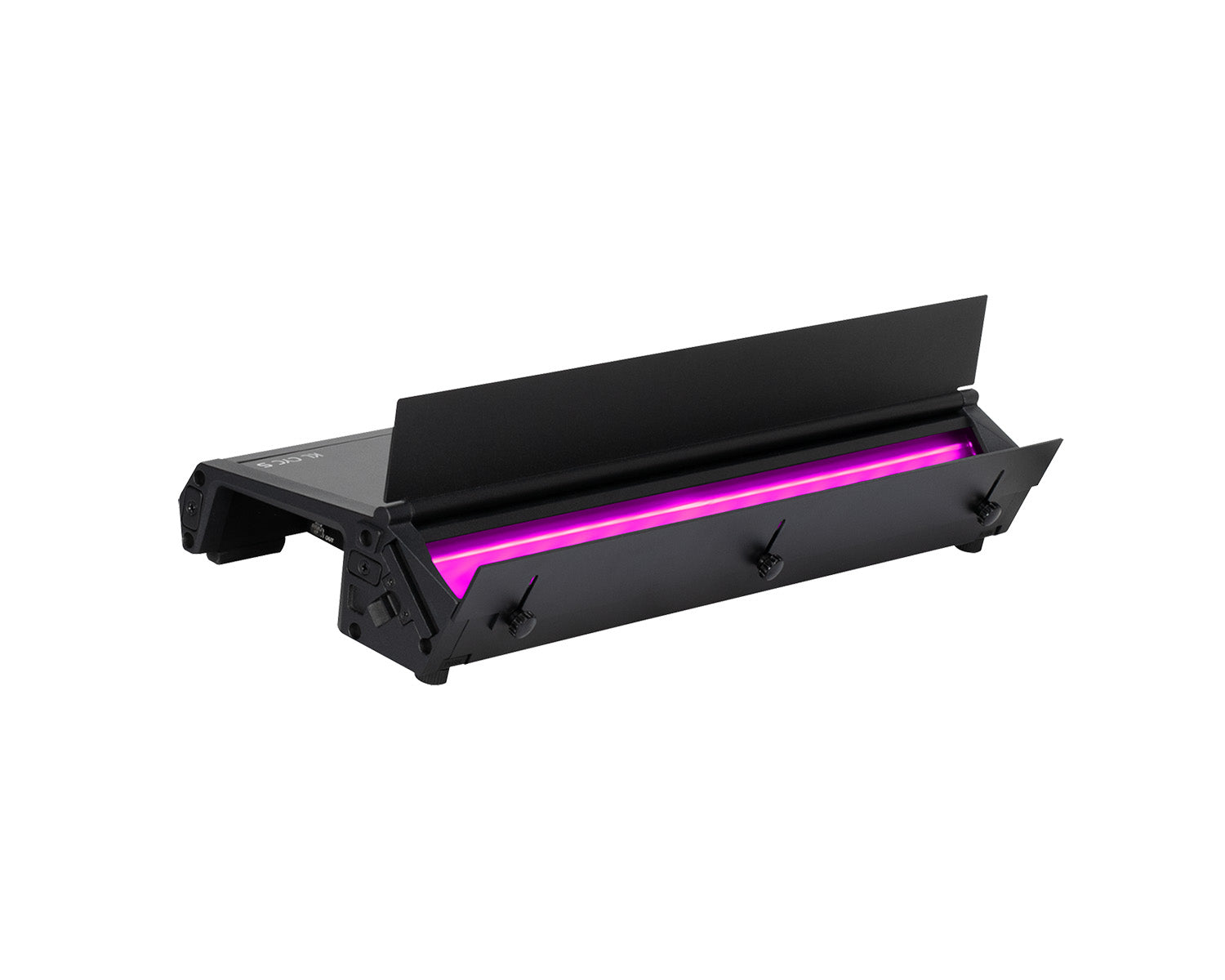

Seamless magnetic alignment, simple mounting bracket attachment, and elegant power and data wire management make the KL CYC a breeze to integrate into new designs or upgrade traditional CYC fixtures or foot ramps to a modern LED fixture without compromises. The fanless design ensures the fixture is always a perfectly silent performer. Adjustable front feet allow for angle changes when floor mounted. The top and bottom barndoors allow for perfect framing of the light output along the surface or to avoid overspill in footlight applications.

The KL CYC S features Elation's proven RGBMA colour system, allowing a perfect colour match to many other fixtures in the KL and Fuze ranges. Calibrated colour temperature control, green-shift adjustment, and the CMY and RGB emulation modes provide the designer with powerful control to recall any colour in up to two separate segments.

The newly developed EdgeLight feature allows the user to designate a safety light in red or blue to turn on whenever desired, or if DMX signal is lost. This new feature provides a guide for performers on stage to where the edge of the stage is located.

The KL CYC S is the ideal solution for touring applications, theme parks, live events, theatre or houses of worship.

90W RGBMA LED Array
Ultra-efficient asymmetrical reflector design
Replaceable Lens
Fanless heat management

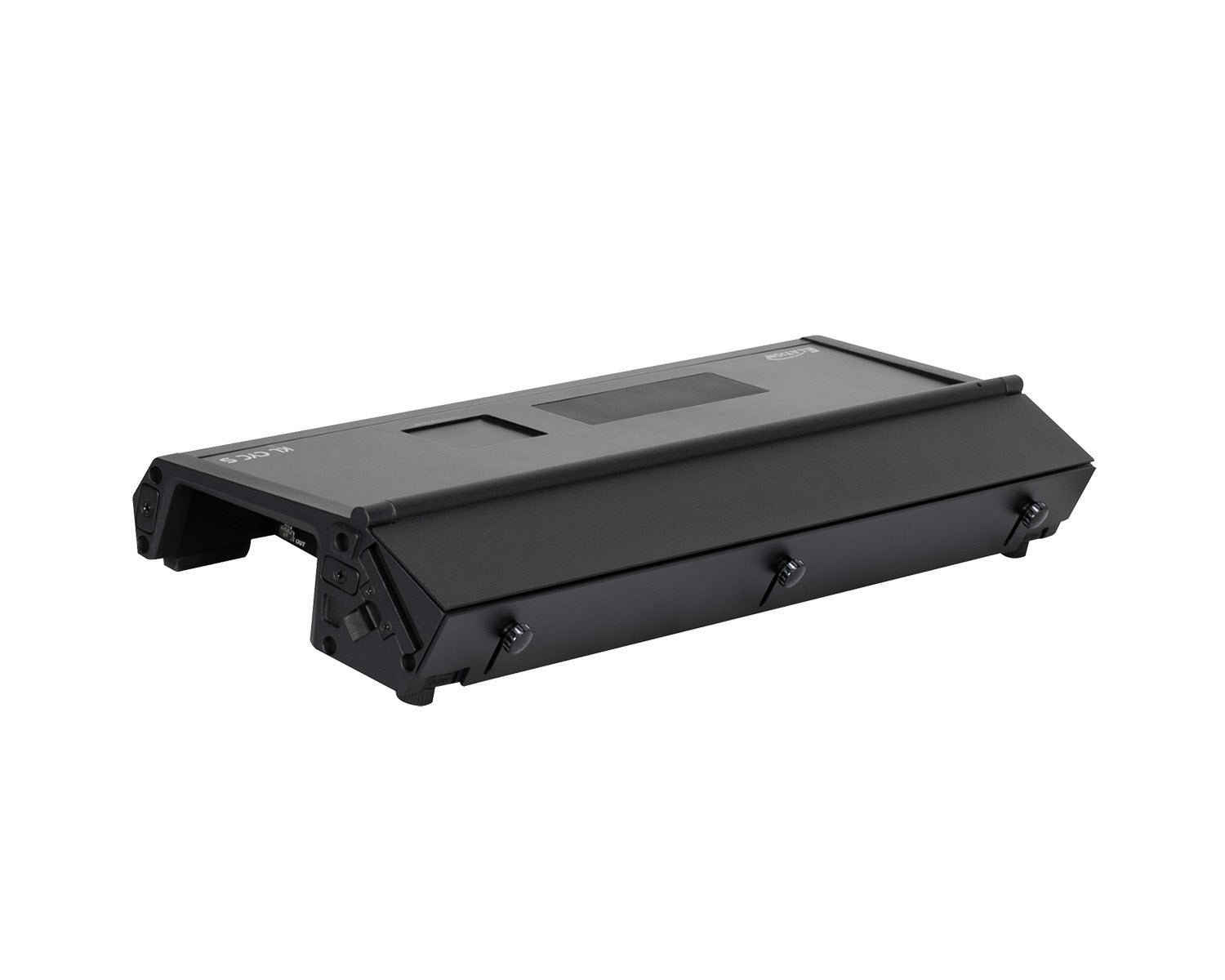

Low profile housing
Up to 2 control segments
EdgeLight safety feature

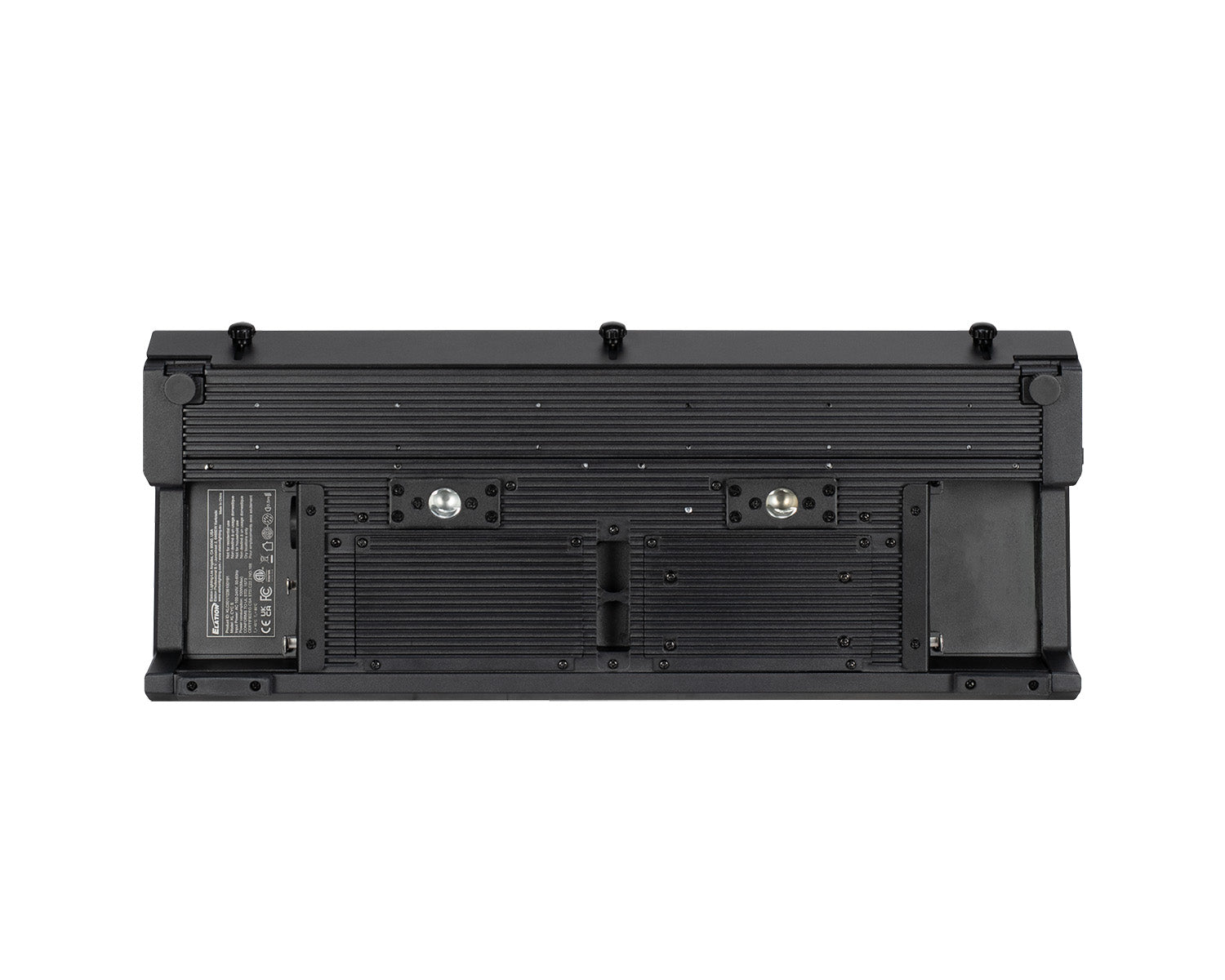

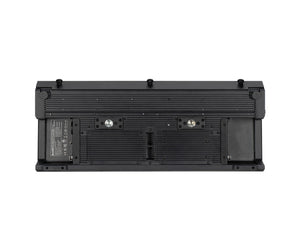

Magnetic fixture alignment
Flicker Free Operation for TV and FILM
DMX, Art-net and sACN support
Power and Data passthrough

Product Specifications

Source

90W RGBMA LED Array
30,000 Hour Average LED Life

Photometric Data

Total Lumen Output
5,645 (Integrating Sphere)
5,276 (Goniometer)
CRI 96.5
TLCI 88

Filter

Beam Angle: 40° x 90°
Field Angle: 85° x 160°

No Filter

Beam Angle: 25° x 75°
Field Angle: 80° x 125°

Effects

EdgeLight Safety Feature
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

Colour

RGBMA Colour Array
Up to Four Control Segments
CMY, RGB Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book

Control / Connections

11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 12ch, 11ch, 16ch, 13ch, 20ch, 19ch, 32ch)

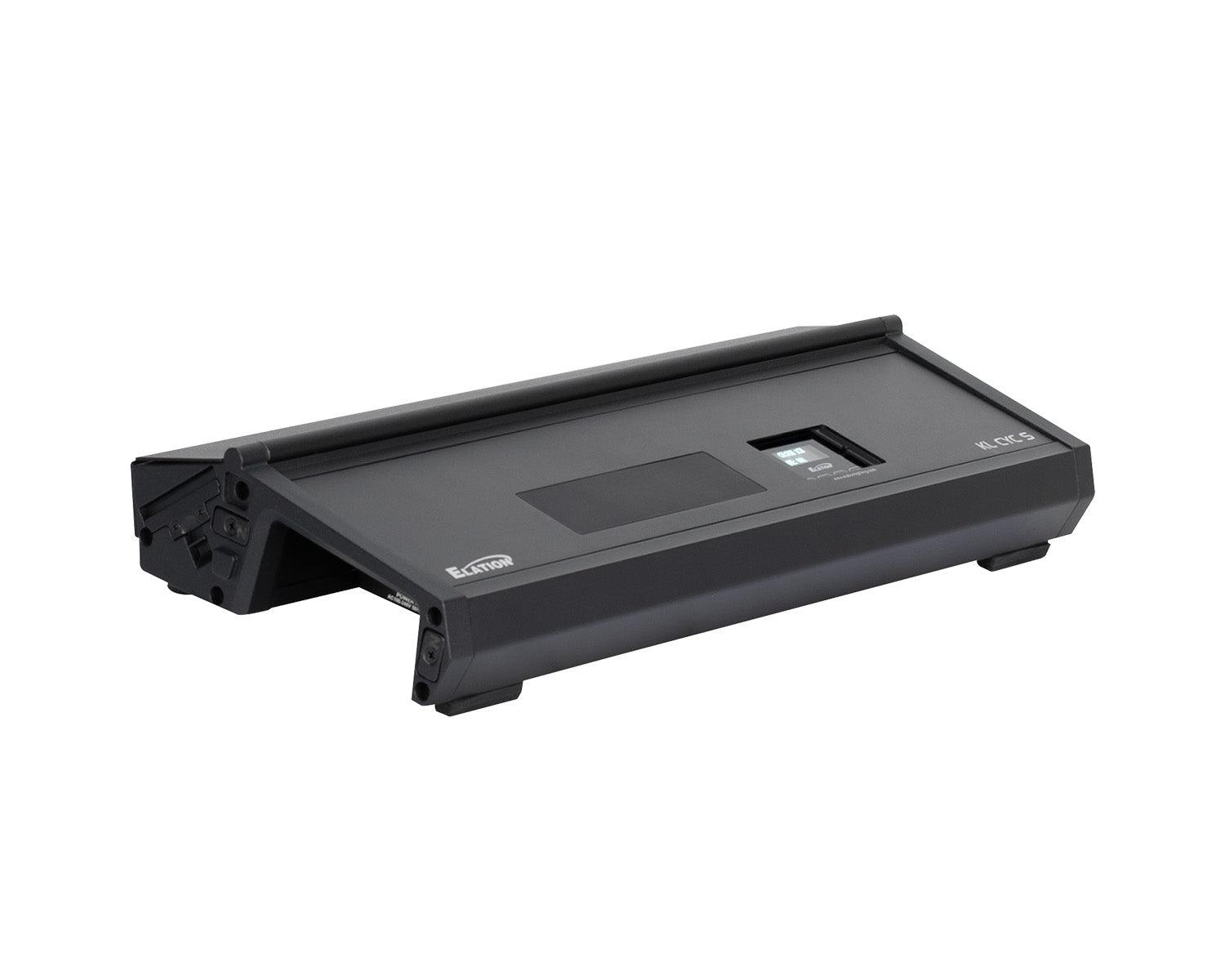

4 Button Control Panel, LED Display
RDM (Remote Device Management)

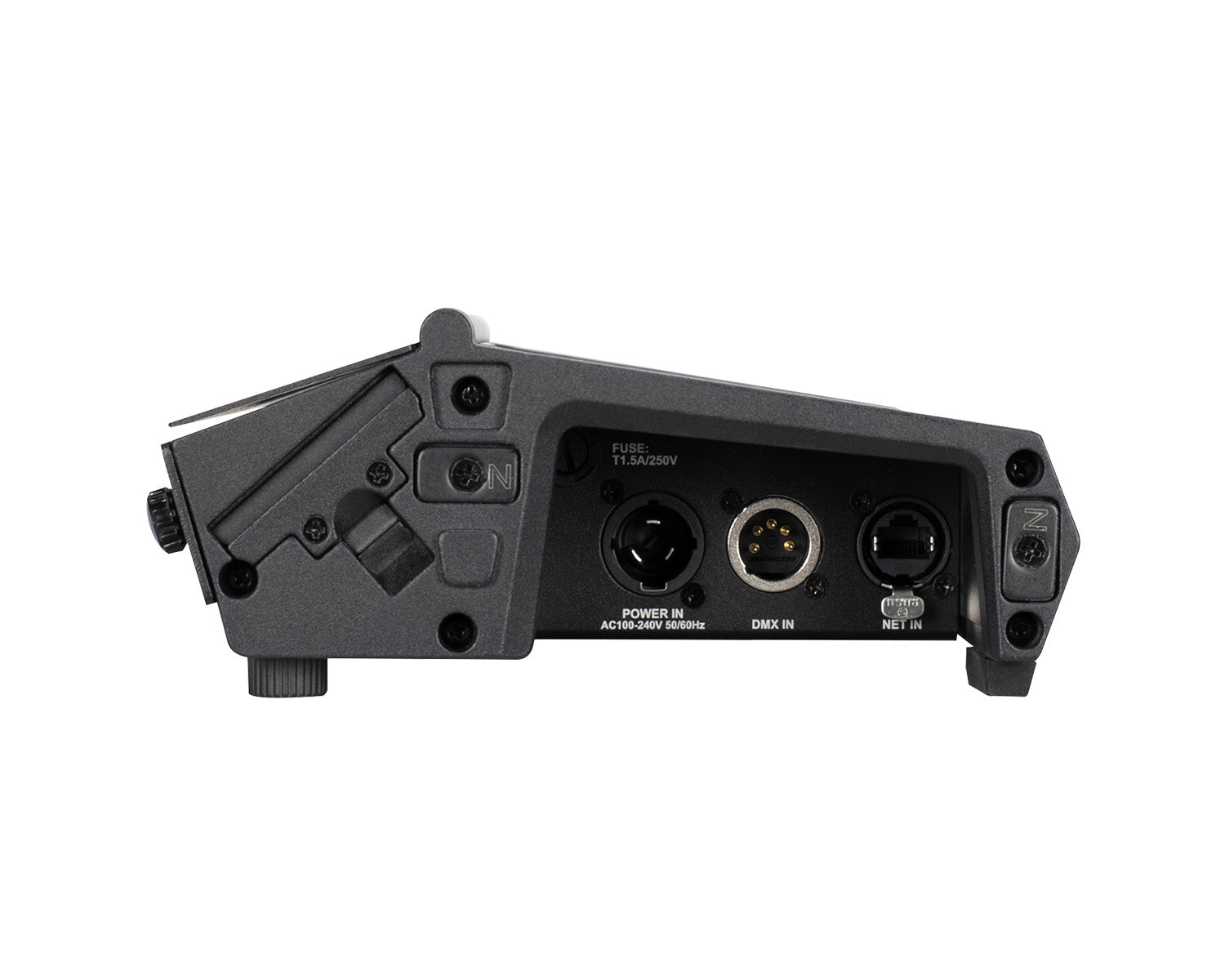

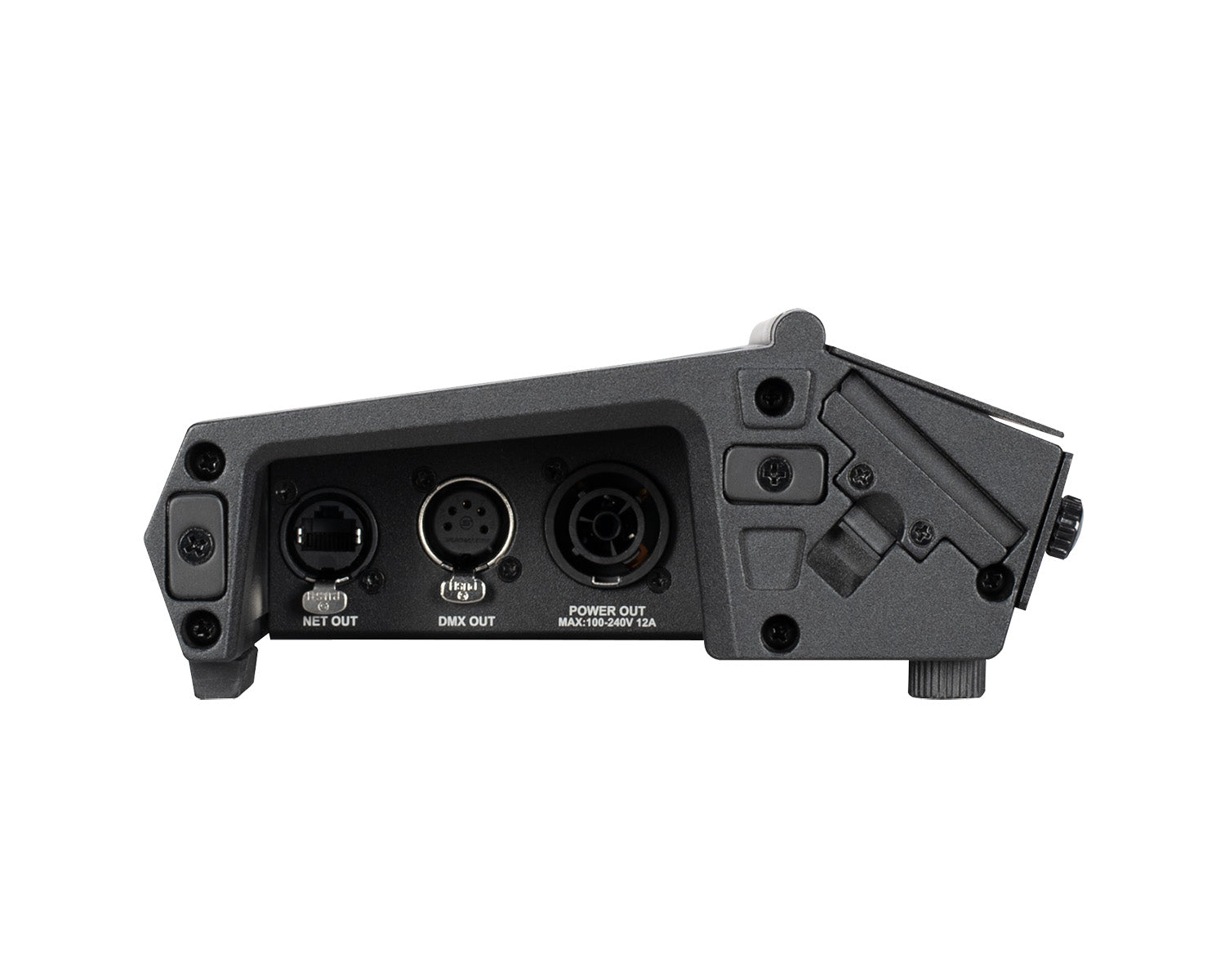

5pin DMX In/Out
RJ45 Locking Ethernet In/Out
IP65 Locking Power Cable In/Out
