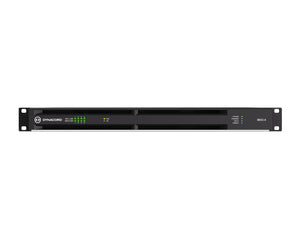

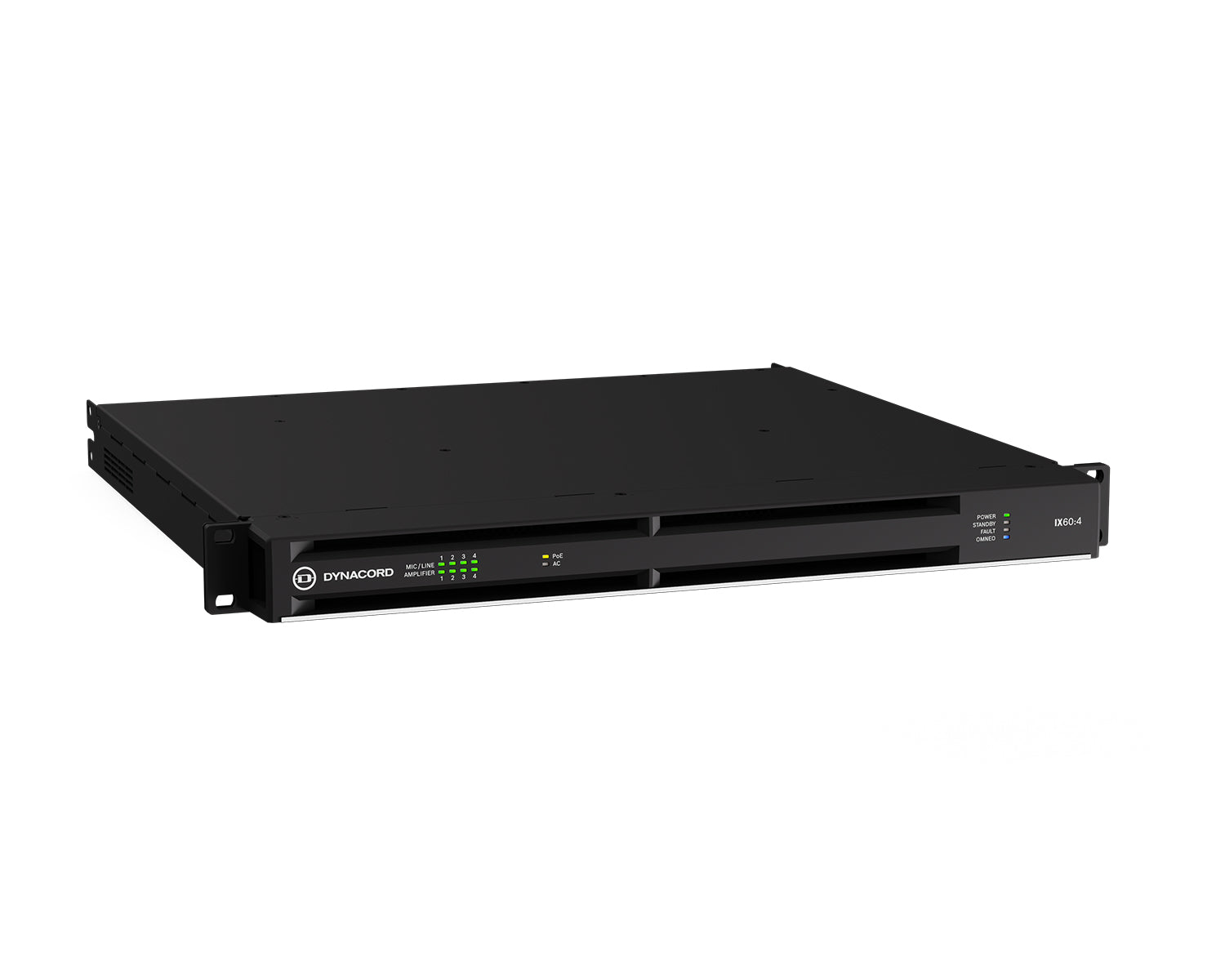

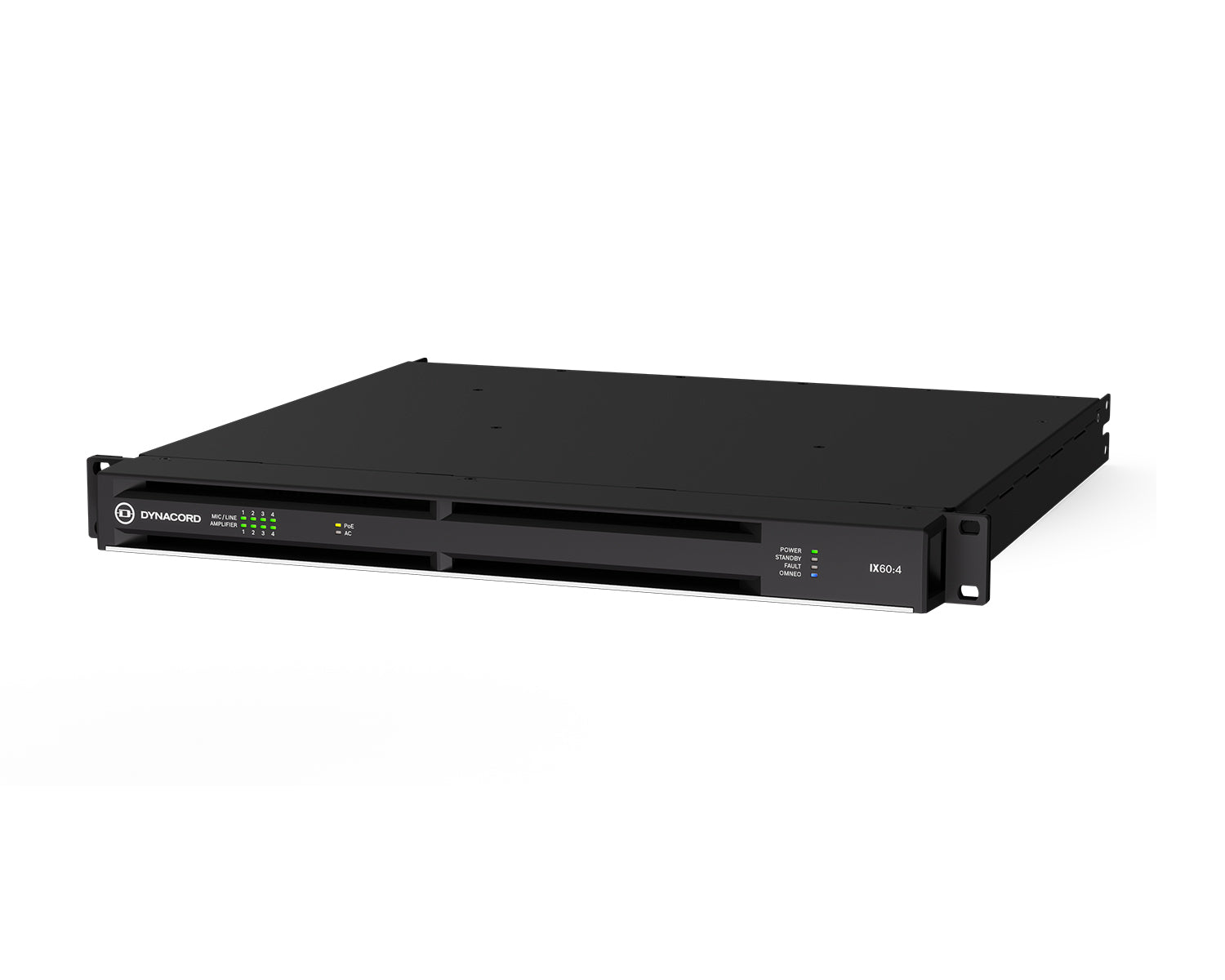

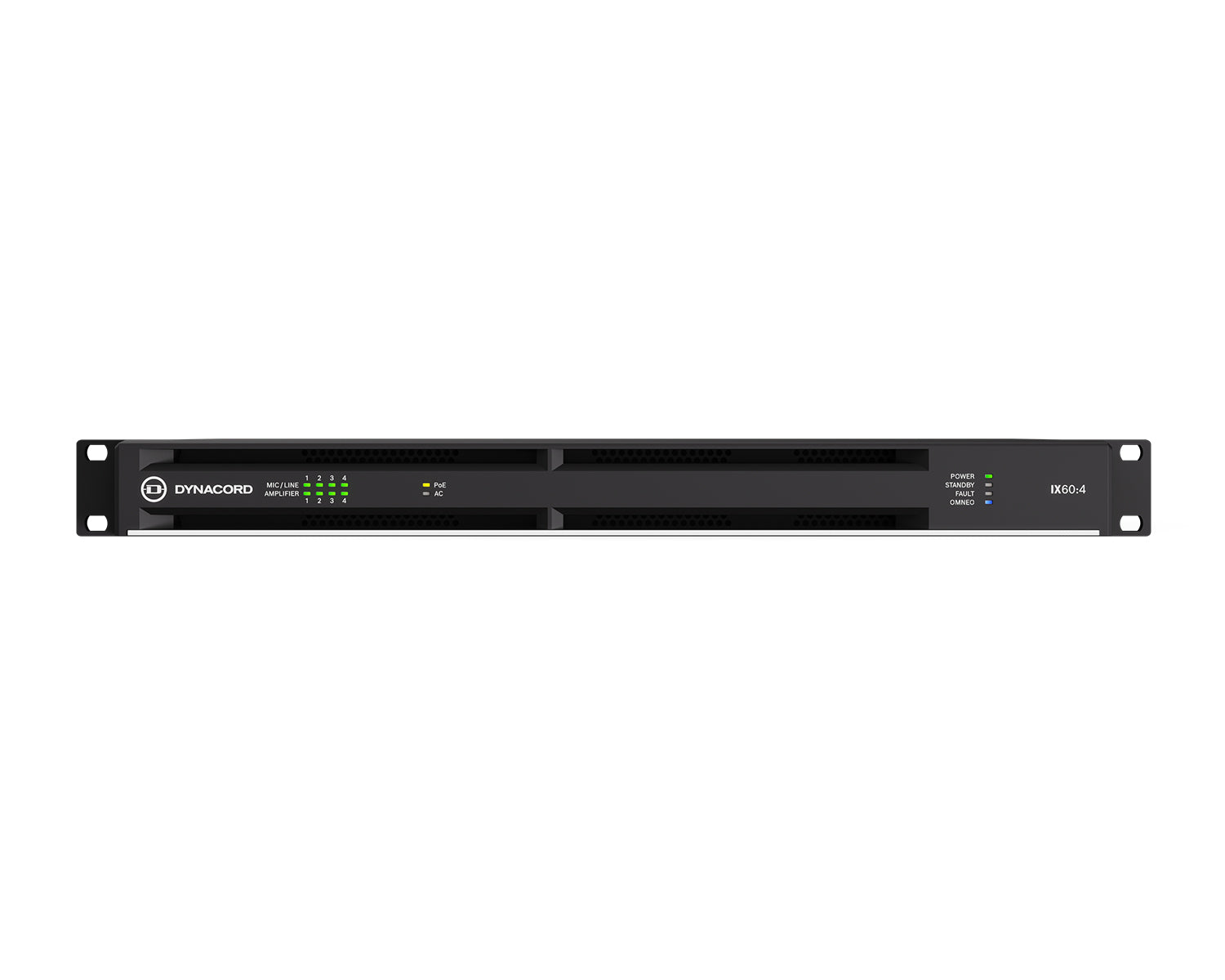

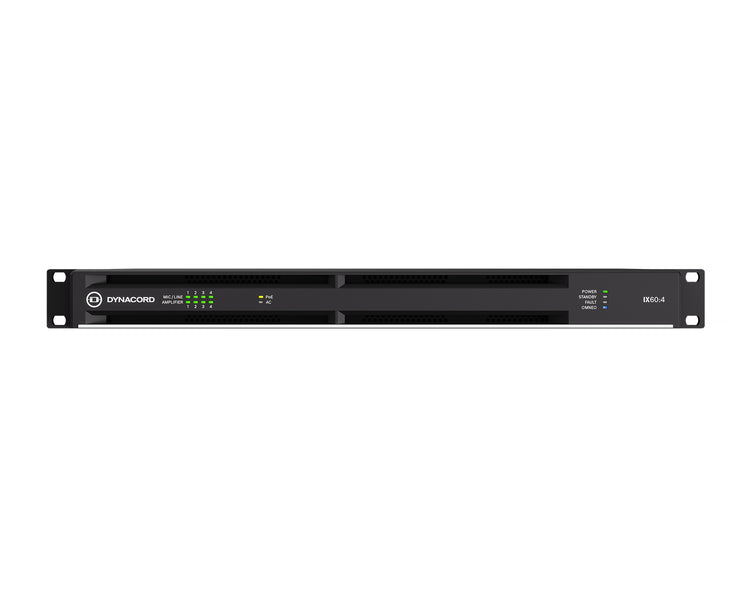

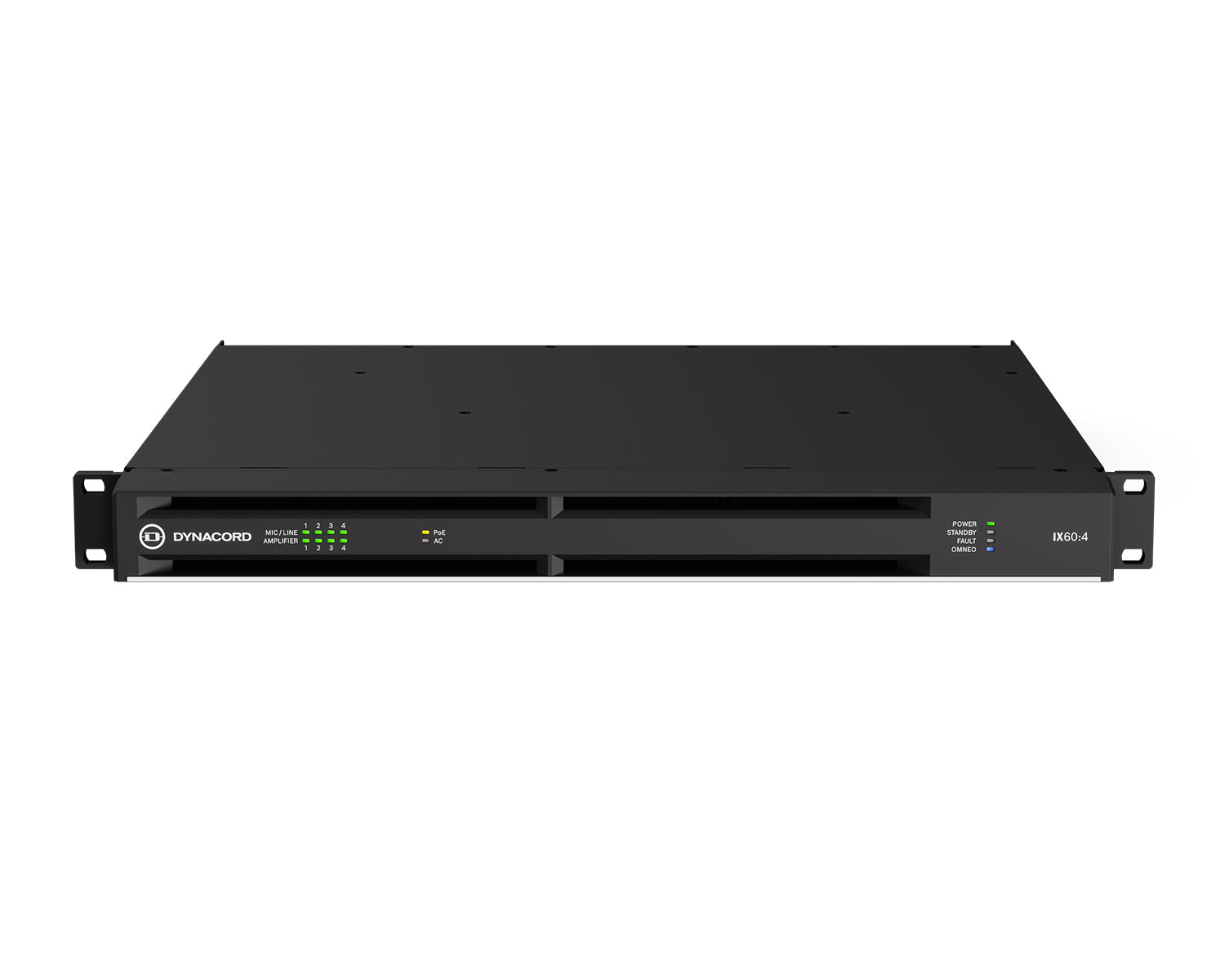

The IX60:4 is a 4-channel networked DSP amplifier with 6 kW total output power. Capable of driving Hi-Z or Lo-Z loads with powerTANK technology, the IX60:4 is ideal for a wide range of applications including sports venues, houses of worship, live performance spaces and hospitality.

IX60:4 features eight (8) Dante inputs, eight (8) Dante outputs and four (4) mic/line inputs that can be used as Dante break-in points. The natively operating 96 kHz DSP features a fully equipped 12 x 12 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 12 inputs feature pilot-tone detection, while the eight (8) Dante and four (4) amplifier outputs allow to add pilot tones up to 30 kHz.

The IX60:4 uses Dynacord‘s patented ecoRAIL technology for optimising energy consumption. ghostPOWER via POE maintains the entire DSP, the Dante network and all mic/line inputs active, independent of the mains power. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices.

IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall panel as well as TPC-1, iOS and Windows devices.

Product Features

• 4-channel networked DSP amplifier with 6 kW powerTANK for Hi-Z and Lo-Z operation
• 8 x 8 Dante with OCA/AES70 remote control, 4 mic/line inputs usable as Dante break-in
• 96 kHz fully featured DSP matrix mixer and MXE-style TaskEngine for system logic, automation, scheduling and integration
• ghostPOWER via PoE to maintain DSP, Dante network and mic/line inputs
• High efficiency ecoRAIL technology for lower operating costs

Product Specifications

Output Power

• Total rated output power: 6,000
• Number of amplifier channels: 4
• All channels driven equally:
  • 2 Ω: 1.000 W
  • 2.7 Ω: 1.300 W
  • 4 Ω: 1.500 W
  • 8 Ω: 1.200 W
• Maximum per channel:
  • 2 Ω: 1.000 W
  • 2.7 Ω: 1.300 W
  • 4 Ω: 1.800 W
  • 8 Ω: 1.200 W
• Bridge:
  • n/a
• All channels driven equally:
  • 70 V: 1.500 W
  • 100 V: 1.500 W
• Maximum per channel:
  • 70 V: 1.500 W
  • 100 V: 1.800 W
• Max. output voltage Hi-Z/8Ω mode, per channel: 145 Vpk
• Max. output current Lo-Z/4Ω mode, per channel: 33 Apk

Amplifier

• Voltage Gain Lo-Z mode, ref. 1 kHz: 32 dB, adjustable 20.0 - 44.0 dB
• Input sensitivity, direct drive mode: +6 dBu ( 1.55 V), fixed
• THD+N (3 dB below max. AES17, 1 kHz) : <0,1 %
• Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω): < -80 dB
• Frequency response (ref. 1 kHz, analogue in-speaker out): 20 Hz to 20 kHz (±1 dB)
• Sampling rate: 96 kHz internal, Dante 48/96 kHz switchable
• Latency (analogue in-speaker out): 0.77 ms
• Number of mic/line inputs: 4
• Gain: 0 to 60 dB
• Maximum input level: +18 dBu
• Phantom power: + 48 V, switchable per input
• Input impedance: >10 kΩ
• E.I.N (A-weighted) @ 150Ω: -127 dBu
• Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω): <-80 dB

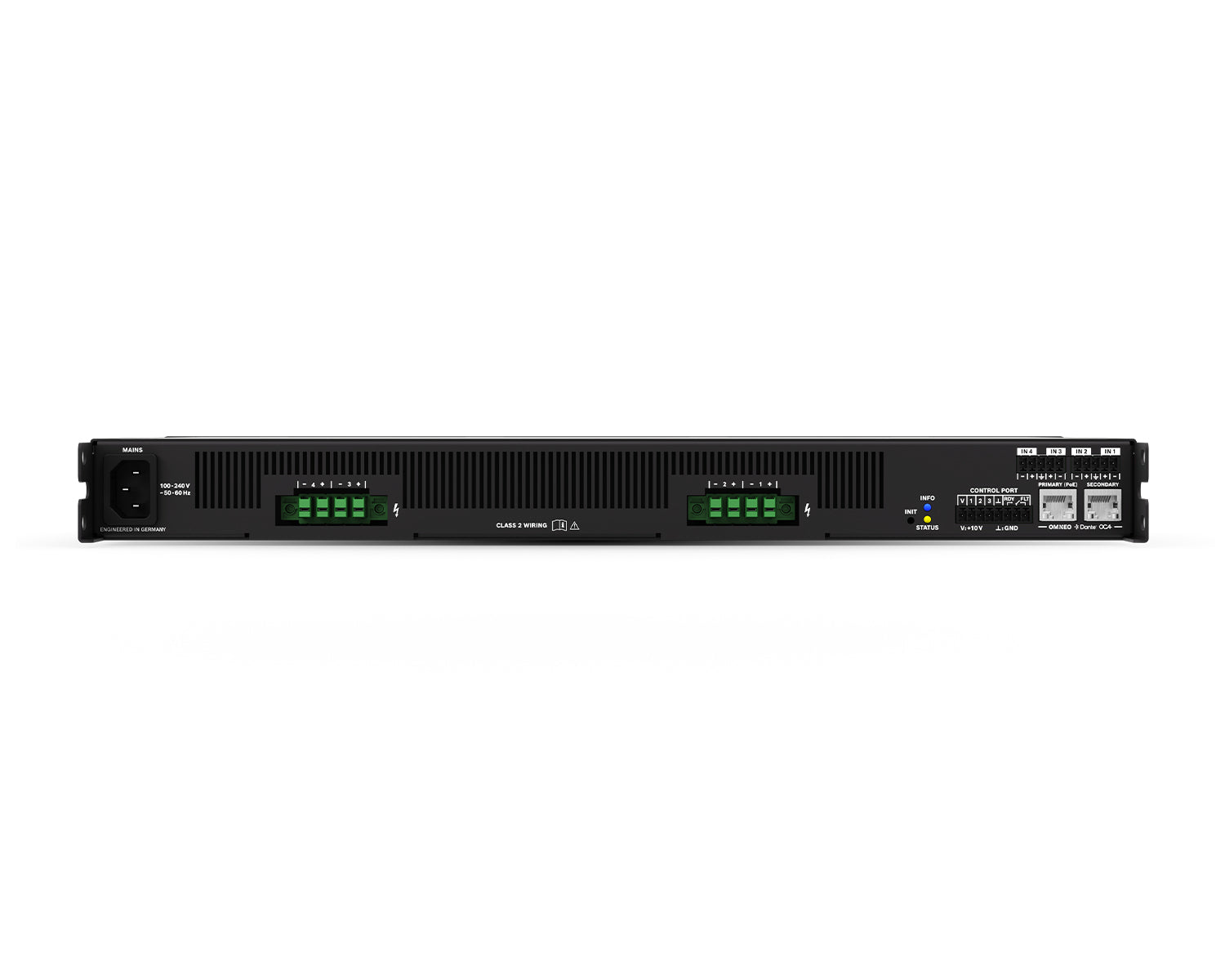

Connectivity

• Mic/Line inputs: 2 x 5-pin Euroblock-style, male
• Speaker outputs: 2 x 4-pin Euroblock-style, 6 mm² (10 AWG)
• Network: 2 x RJ45
• Control port: 1 x 8-pin Euroblock-style
• Mains power input: 1 x IEC C14

Network

• General: 1000base-T/100base-TX, integrated switch
• Redundancy modes: Glitchfree (PRIMARY/SECONDARY), RSTP
• Backup power supply (ghostPOWER): 1 x PoE (IEEE802.3af) on PRIMARY port
• Network audio (inputs x outputs): 8 x 8, 48/96 kHz, Dante

Control Port

• GPIO control port: 3 ports, switchable: analogue in/digital in/digital out
• Analogue input range: 0 V to +13 V, 133 kΩ input resistance
• Digital input limits
  • ON: <1,5 V
  • OFF: >2,0 V, internal pull-up (10kΩ / 10V)
• Digital outputs
  • ON: output switched to GND, max. 200 mA
  • OFF: open collector
• Reference voltage output: +10V, max. 200 mA, supervised, short circuit protected
• READY/FAULT: Galvanic isolated relay, max. 30 VDC/500 mADC

General

• Rated power consumption (1/8 max. output power): 1.050 W
• Eco mode: 33 W
• Stand-by mode: <15 W
• Power requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
• Power Supply Technology: Switching mode power supply with digitally controlled power factor correction
• Protections: Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Lim colspan="4"iters, Mains Over-/Under Voltage Protection
• Cooling: Front-to-rear, temperature controlled fan, supervised
• Ambient Temperature Limits: +5 °C to +40 °C (+40 °F to +105 °F)
• Dimensions: 483 mm x 44,1 mm x 447 mm
• Weight: 8,6 kg (19 lbs)
