I SERIES Subwoofer 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I SERIES subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I SERIES full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

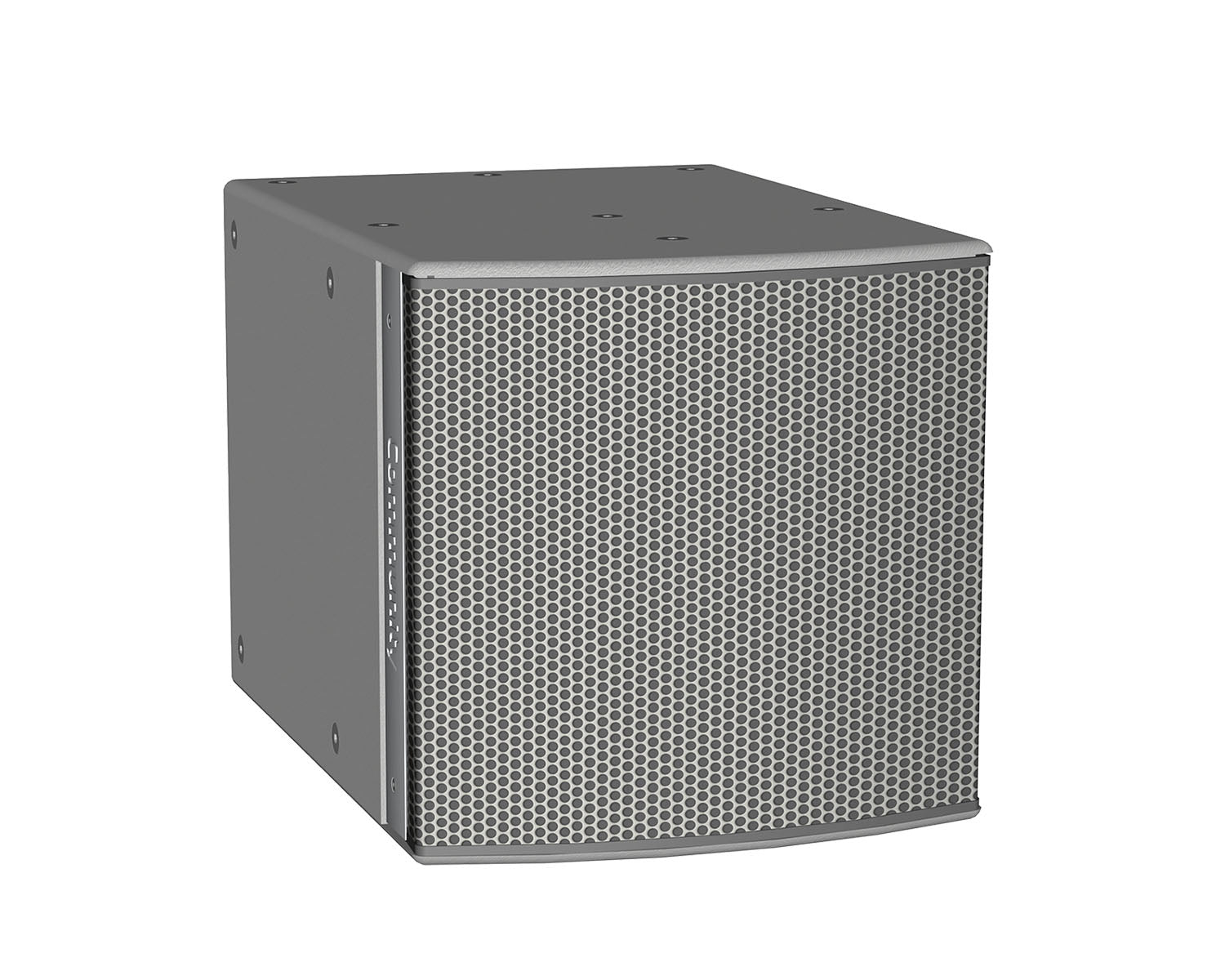

The IS6-112WR is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimised ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s diminutive size. The IS6-112WR includes weather-resistant hardware and grille, with high-strength PolyGlas™ cabinet construction.

Product Features

• Long excursion ferrite LF driver with FEA-optimised motor and symmetric movement suspension
• Matched-size enclosure and aligned suspension point for seamless flown array integration
• 700W continuous power handling (2800W peak)
• High sensitivity design minimises power compression losses and required amplifier size
• Finish: Grey
• IP Rating: IP55

Product Specifications

• Transducer: 1 x 12" double-treated cone with 4” inner/outer wound voice coil, ferrite construction
• Operating Range: 39 Hz – 150 Hz
• Sensitivity (1W/1m): 100 dB
• Power Handling: 700W continuous @ 8 ohms
• Continuous Max Output: 128 dB (134 dB Peak)
• Nominal Beamwidth (H x V): 360° x 180°
• Finish: Outdoor (WR): 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille
• Dimensions (H x W x D): 14.30" x 14.50" x 21.00" (363 x 368 x 533 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
