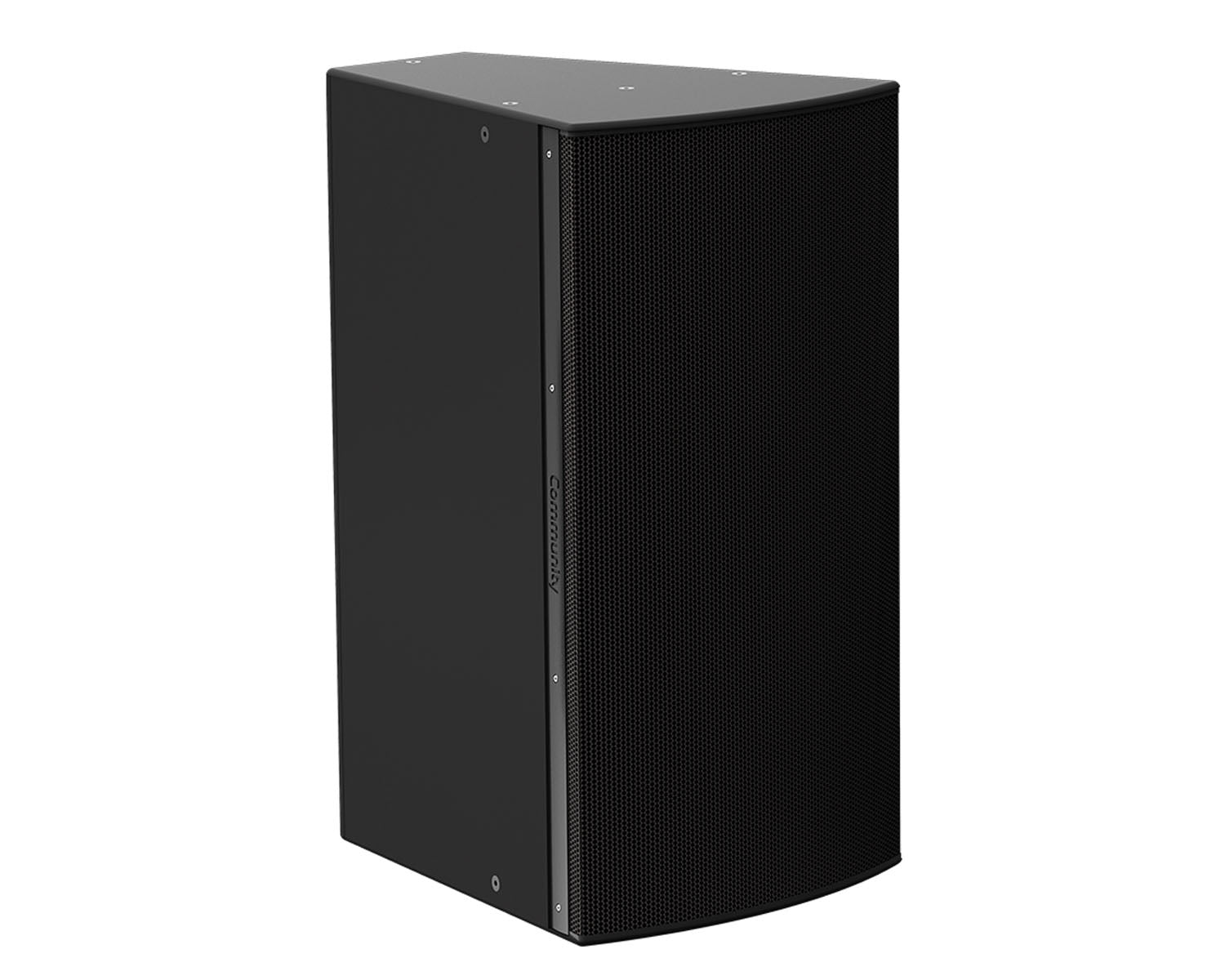

I SERIES Point Source 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning.

FEA-optimised linear suspensions, high-flux neodymium motors, and integral demodulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced midrange in the most demanding applications. The matched diaphragms on the HF and MF compression drivers provide natural, transparent sound quality with unrivaled intelligibility and transient response accuracy that complements any source.

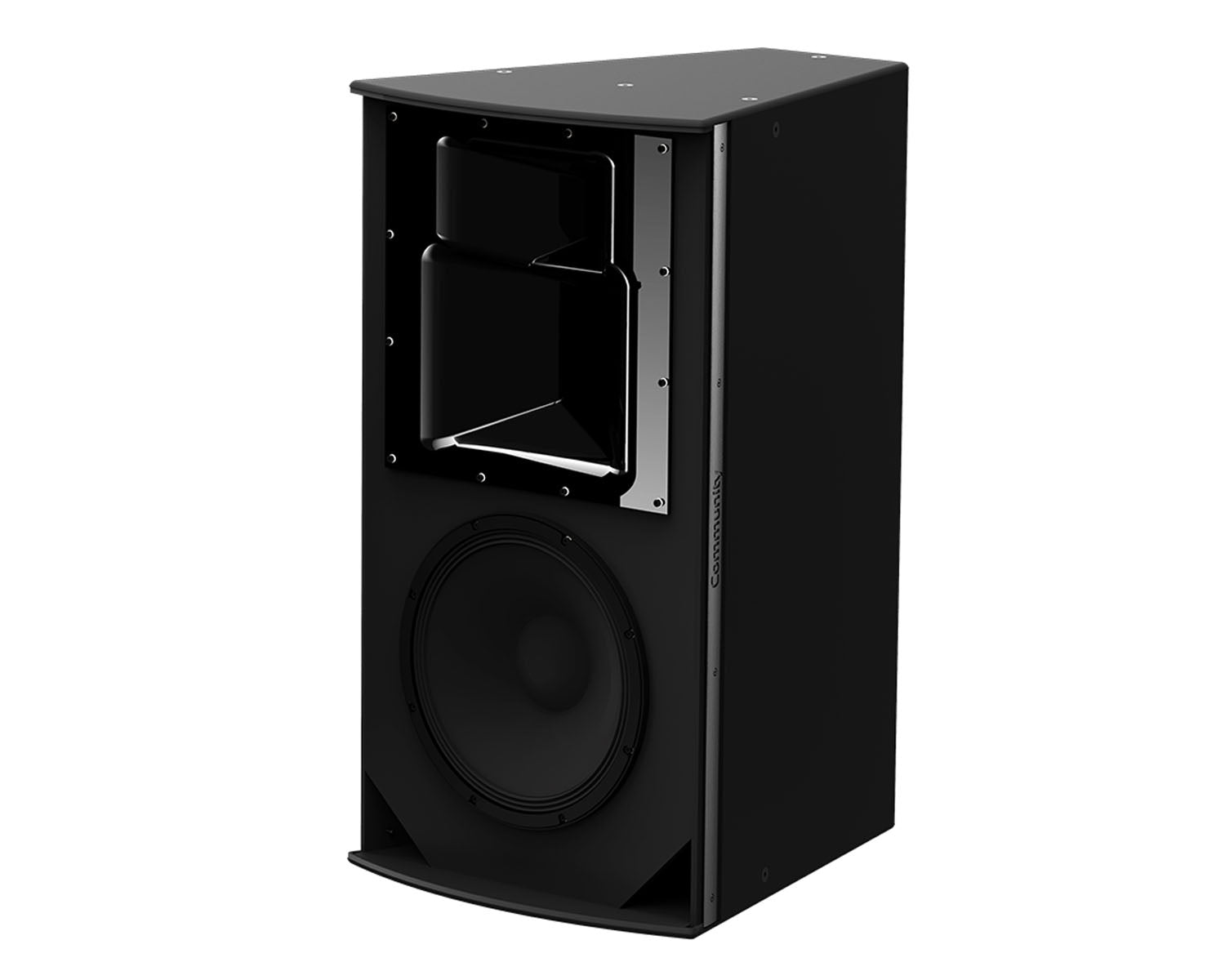

The rotatable 18-inch (457mm) MF/HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. The acoustically resultant 8th order MF/HF passive crossover produces a smooth, consistent vertical off-axis response free from the polar lobing and power response losses inherent in other similar systems. User selectable biamp or triamp operating modes expand performance capabilities further.

Product Features

• Matching ketone polymer MF/HF diaphragms provide uniform sound quality from 500Hz to 20 kHz
• M200HP midrange compression driver for signature Community intelligibility and low distortion
• FEA-optimised suspensions and neodymium motors with integral demodulation rings in LF and HF
• Large rotatable waveguide, user selectable biamp or triamp operation
• Innovative low profile modular bracket systems create elegant arrays with simplified installation
• Finish: Black
• Coverage: 60° x 60°

Product Specifications

• Transducers: LF - 1 x 15" cone, 3” voice coil, demodulation ring, neodymium MF - M200HP, 2” exit, crystallized polymer diaphragm, compression driver HF - 1 x 1.4" exit , 2.6” voice coil, demodulation ring, ketone polym
• Operating Range: 30 Hz – 21.8 kHz
• Sensitivity (1W/1m): LF - 96 dB, MF/HF - 107 dB
• Power Handling: LF - 600W continuous @ 8 ohms , MF/HF - 275W continuous @ 8 ohms
• Continuous Max Output: LF - 124 dB (130 dB Peak), MF/HF - 131 dB (137 dB Peak)
• Nominal Beamwidth (H x V): /64 (60° x 40°), /66 (60° x 60°), /94 (90° x 40°)
• Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor (WR): 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminum grille
• Dimensions (H x W x D): 39.00" x 22.10" x 26.30" (991 x 561 x 668 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
