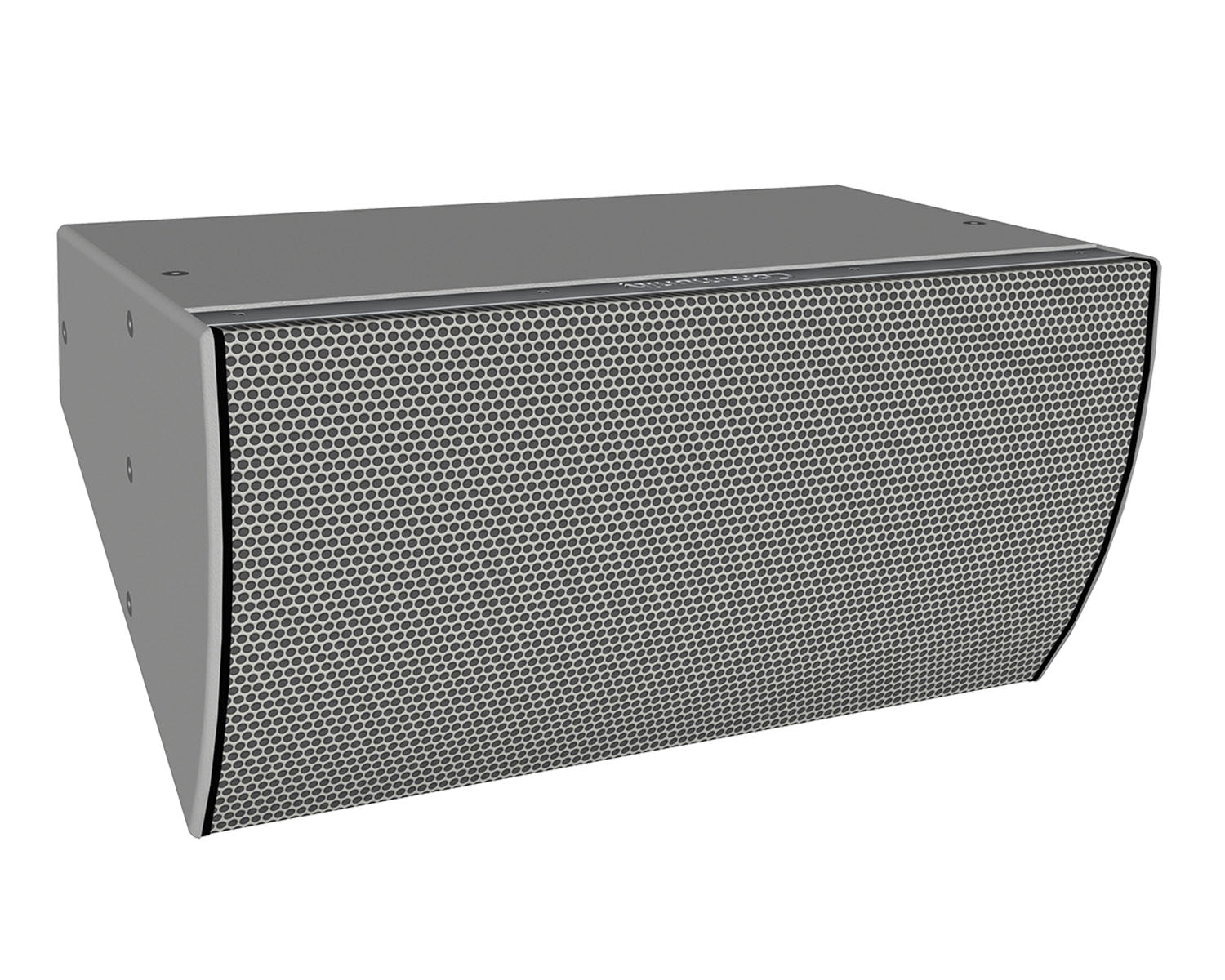

I SERIES Point Source 600 weather-resistant loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of rotatable coverage patterns and an easily installed U-Bracket that accelerate system design and system commissioning.

FEA-optimised ferrite motors, mechanically mirrored suspension and advanced cooling system combine to provide linear performance with minimal power compression. The custom long-excursion LF driver delivers deep bass response and a detailed midrange at maximum SPL levels. The HF driver delivers excellent sound quality from a hybrid diaphragm of deep drawn titanium and resonance-absorbing polyimide, coupled to a patented low compression, low resonance phase plug for very low distortion performance with abundant headroom.

The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Factory-standard passive or optional biamp operating modes further expand performance capabilities. The IP6-1152WR includes weather-resistant hardware and grille, with high-strength PolyGlas™ cabinet.

Product Features

• Long excursion ferrite LF driver with FEA-optimised motor and symmetric movement suspension
• 3-inch voice coil, 1.4” exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug
• Lightweight and compact with deep LF extension
• Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
• Innovative low profile modular bracket systems create elegant arrays with simplified installation
• Finish: Grey
• IP Rating: IP55
• Coverage: 120°x 60°

Product Specifications

• Transducers: LF - 1 x 15" ferrite driver, 3” voice coil; HF - 1 x 1.4" exit, 3” voice coil, titanium diaphragm, ferrite compression driver
• Operating Range: 30 Hz – 19.5 kHz
• Sensitivity (1W/1m): 95 dB
• Power Handling: 600W continuous @ 8 ohms
• Continuous Max Output: 123 dB (129 dB Peak)
• Nominal Beamwidth (H x V): /26 (120° x 60°), /64 (60° x 40°), /66 (60° x 60°), /94 (90° x 40°), /96 (90° x 60°), /99 (90° x 90°)
• Enclosure: 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille with water-repellent synthetic fabric backing
• Dimensions (H x W x D): 30.80" x 16.50" x 20.07" (782 x 419 x 510 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
