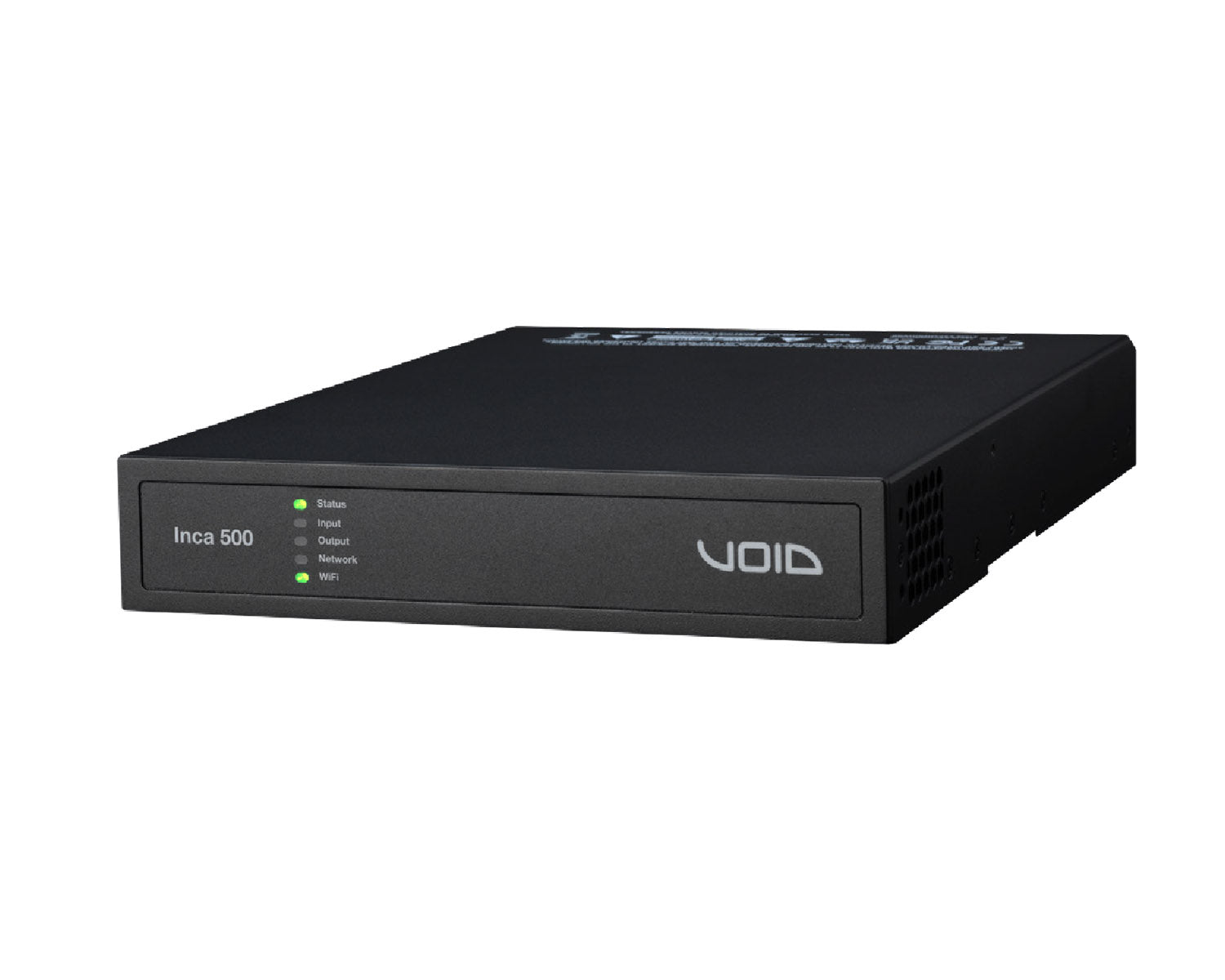

The Inca 500 amplifier is a half rack width, 1U format power amplifier that can drive both conventional low impedance (Low-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. The Inca 500 provides four analog inputs, one stereo S/PDIF digital input, and four outputs (Low-Z mode) or two outputs (Hi-Z mode). It is capable of a maximum output of 125 Watts per channel into Low-Z loads or 250 Watts per channel into Hi-Z loads. The Inca 500 also incorporates automatic power-sharing technology that enables 250 Watts to be shared proportionately as required across each output pair in Low-Z mode and the two outputs in Hi-Z mode.

Product Features

• Full matrix DSP embedded and controlled via TCP/IP
• Master / Slave functionality – S/PDIF link to multiple amps
• Market proven reliability
• Automatic power-sharing
• Small size with flexible mounting
• Total System Power: 500W

Applications

• Gyms & Fitness
• Hotels & Resorts
• Residential
• Restaurants & Cafes
• Retail

Product Specifications

• Channel Handling
  • Number of output channels: 4
  • Number of input channels: 4
• Audio
  • Frequency Response 20Hz-20kHz (+0/-0.25dB) (8Ω load, 3dB below rated power)
  • Signal To Noise-Ratio: >106dB (A-weighted, 20Hz-20kHz, 8Ω load)
  • Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
  • THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
  • Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
• Construction
  • Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in)
  • Weight: 2.8kg (6.2 lbs)
• Output Stage
  • Total System Power: 500 W
  • Output Power @ 4/8Ω: 4 x 125 W
  • Output Power @ 70/100V: 2 x 250 W
  • Powershare (up to) Across all channels: 2 x 250 W
  • Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
• AC Mains Power
  • Power supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
  • Nominal voltage: Universal Mains, 100V-240V, 50Hz-60Hz
  • Power Consumption: 150W
  • Standby Consumption: < 0.5W
  • Operating Temperature: 0-40°C
  • Power Ratings: 1% THD @ 120Vac and 230Vac

What's in the Box?

• Inca 500
• 2x Rack ears
• 1x ½ rack plate extension
• 2x ½ rack mounting
• 2x Rear supports
