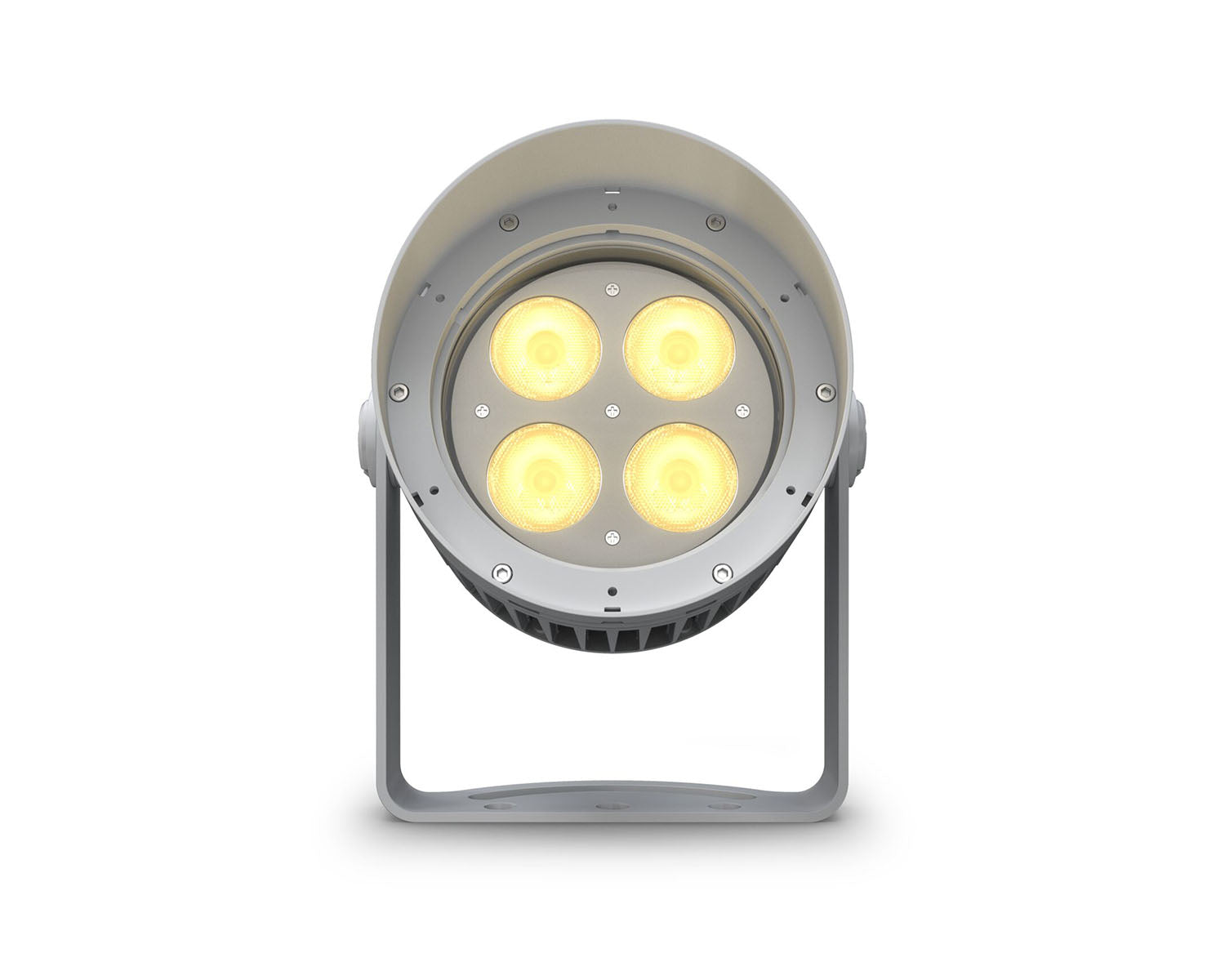

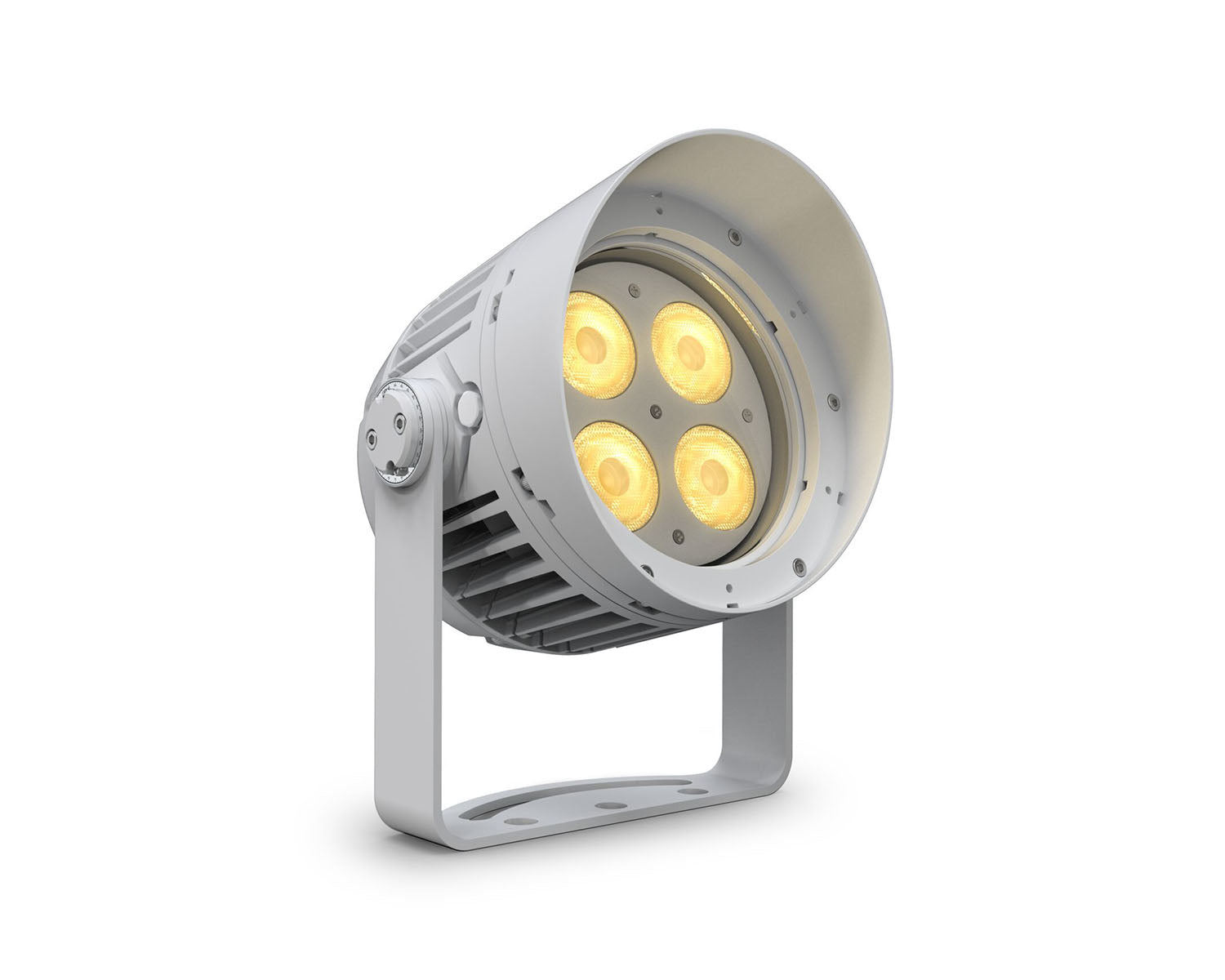

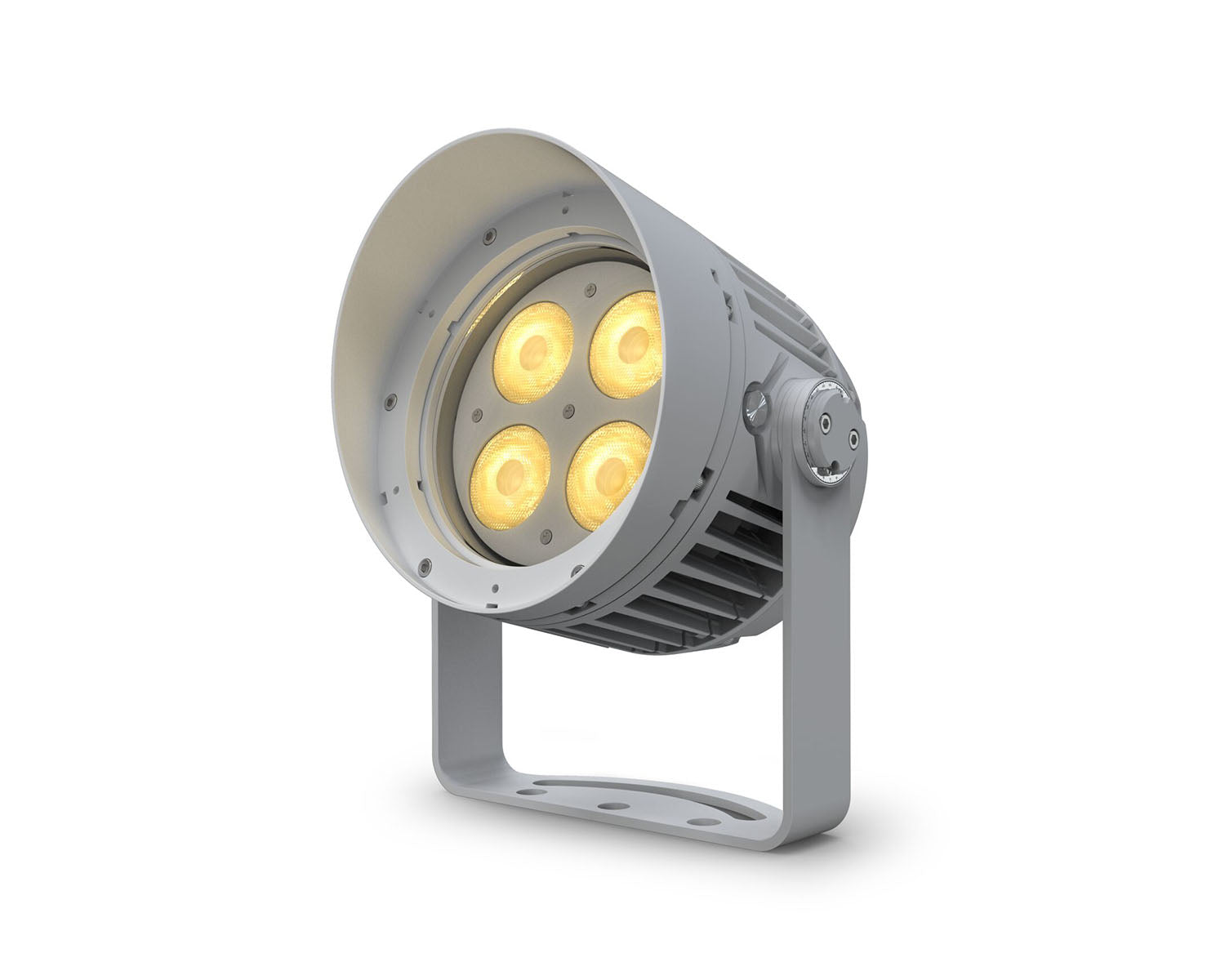

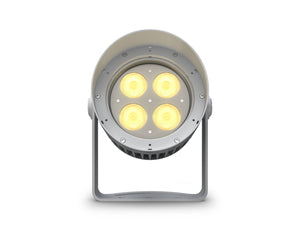

Ilumipod SL from Iluminarc fuses plug-and-play installation with precision optics to create seamless splashes of light and color. Bringing energy to any architectural project in any weather conditions, it has a sleek, low-profile form factor and four-in-one LED optics. The advanced RGBL color mixing unlocks true whites from crisp and cool tones to warm incandescent ambers, as well as raucous, saturated shades.

Product Features

• 4-in-1 RGBL Color Mixing
• 50,000 hour LED Lifespan
• Beam Angle: 6.5º, or change with optional Beam Filters
• Illuminance: 4,414 lux @ 5 m
• IP Rating: 67
• Integrated Yoke
• Optional Beam Spread Filters can be applied without breaking IP Seal

Product Specifications

Light Source & Optical Specifications

• Light Source: 4 LEDs (quad-color RGBL) 20 W, (1A)
• Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
• Installed Optics: 6°
• Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
• Beam Angle: 6.5°
• Field Angle: 11.1°
• Cutoff angle: 18.3°
• Lumens: 2,113
• Base Illuminance: 4,414 lux @ 5 m
• Efficacy @ Full: 34 lm/W
• Color Temperature Presets: 1,800 K – 10,000 K

Construction & Physical Specifications

• Dimensions: 8.11 x 7.76 x 8.54 in (206 x 197 x 217 mm)
• Weight: 9 lb (4.1 kg)
• Fixture Color: Off white
• Housing Material: Cast aluminum
• Lens Cover: Impact resistant glass
• Mounting Options: Bracket, Hole Diameter 10M

Control Specifications

• Control Protocol: USITT DMX-512a, RDM
• Operating Modes:
  • Operating Modes
  • SOLID (1-channel)
  • ARC 1 (3-channel)
  • ARC 1+D (4-channel)
  • ARC 2 (4-channel)
  • ARC 2+D (5-channel)
  • ARC FULL (8-channel)
  • SPECIAL 2 (9-channel)
• Standalone Control: Yes
• Fixture setup: RDM Only
• Recommended control cable specification: Gepco DLC224
• Data Connection: 6.25 ft (1.9 m) Waterproof cable, Bare-wired to hard-wired

Electrical System Specifications

• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 58 W, 0.494 A @ 120 V, 60 Hz, PF: 0.97
  • 56 W, 0.304 A @ 208 V, 60 Hz, PF: 0.89
  • 55 W, 0.270 A @ 230 V, 50 Hz, PF: 0.85
  • 56 W, 0.274 A @ 277 V, 60 Hz, PF: 0.81
• Power Supply: Electronic internal
• Dimmer: Electronic
• Power Connection: 6.25 ft (1.9 m) Waterproof cable bare wired to hard-wired
• Recommended Power Cable: 14 AWG (3x 2.08 mm2)

Thermal Specifications

• Cooling: Convection
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance to Illuminated Surface: 3.28 ft (1 m)
• Minimum Distance to Flammable Surface: 0.98 ft (0.3 m)
• BTU Ratings:
  • 198 BTUs/hr @ 120 V, 60 Hz
  • 191 BTUs/hr @ 208 V, 60 Hz
  • 188 BTUs/hr @ 230 V, 50 Hz
  • 191 BTUs/hr @ 277 V, 50 Hz

Regulatory & Voluntary Qualification

• Certification Listings: MET, CE, RoHS, FCC, CB
• Certification Listings: MET, CE, RoHS, FCC, CB
• Impact Resistance Rating: IK10
• Vibration Rating: 3G
• Wind Load Rating – EPA: .280 ft²
• Environment: IP67, outdoor/wet, with pressure equalizing M12 GORE valve
  • Please refer to the User Manual for more detailed information on installation.
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Installation Orientation: Any

What's in the Box?

• Ilumipod SL
• Filter Frame
• Quick Reference Guide

Accessories

• Required
  • RDM Device
• Optional
  • Medium Filter (20°)
  • Wide Filter (40°)
  • Very Wide Filter (55°)
  • Asymmetrical Filter (60° x 10°)
