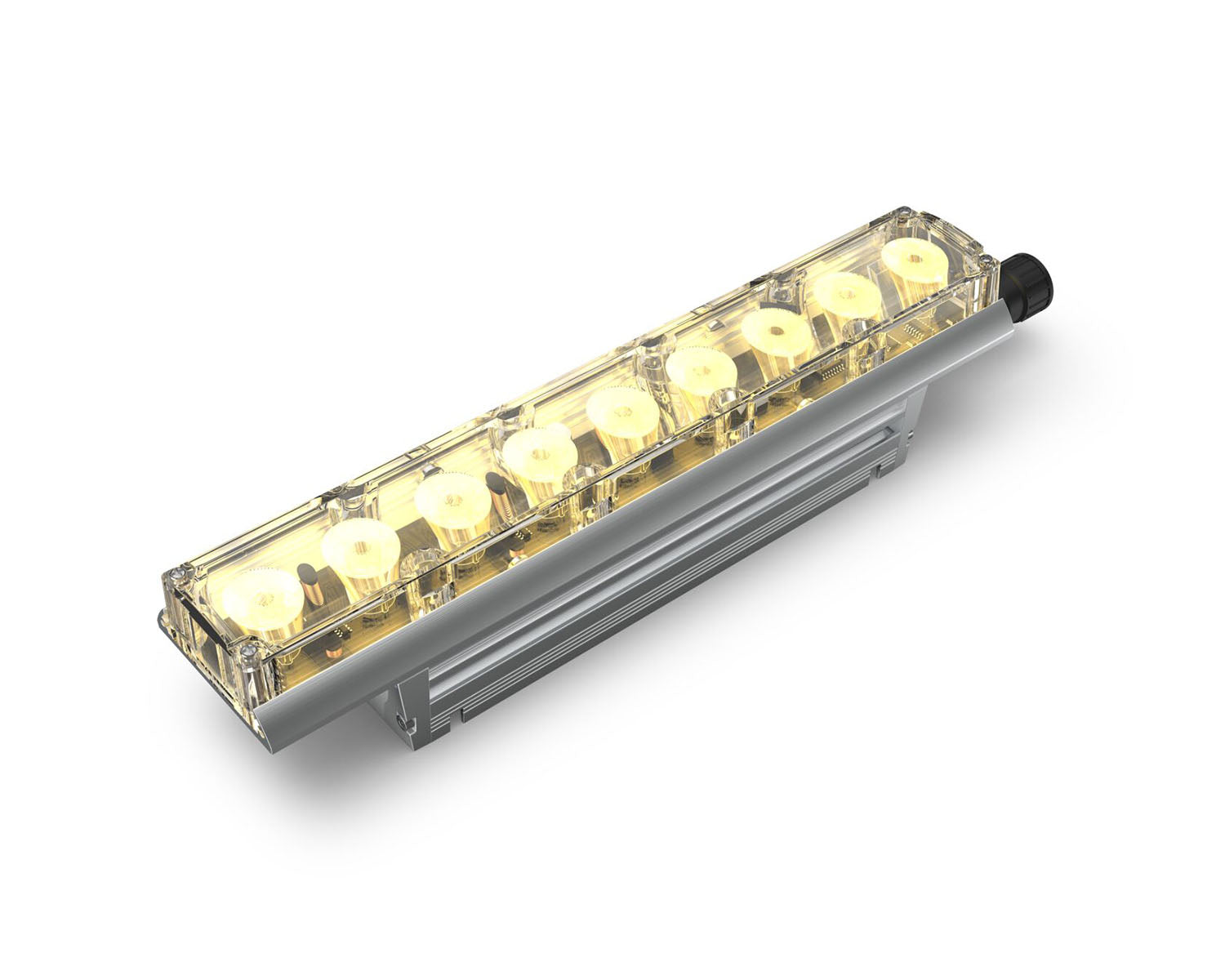

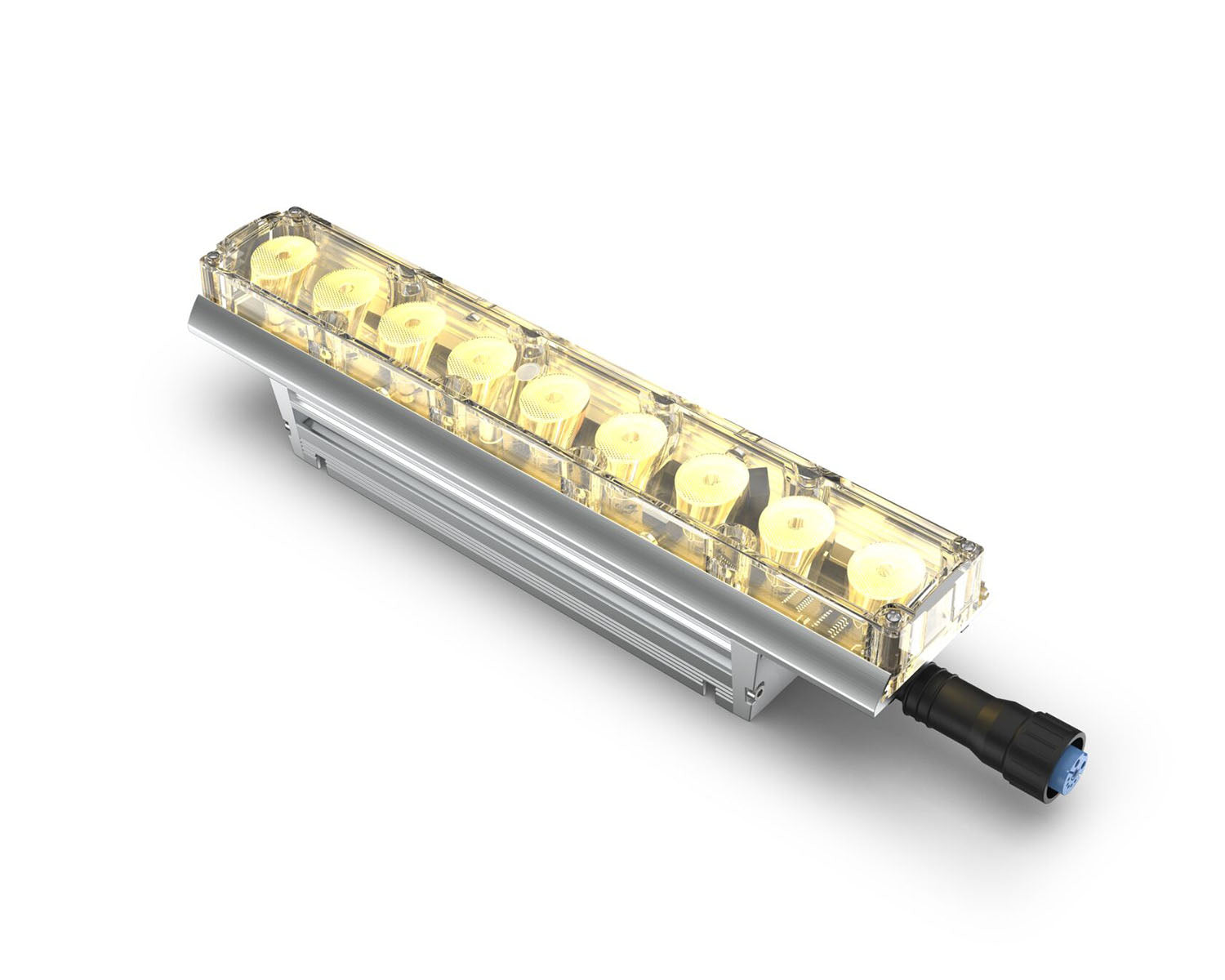

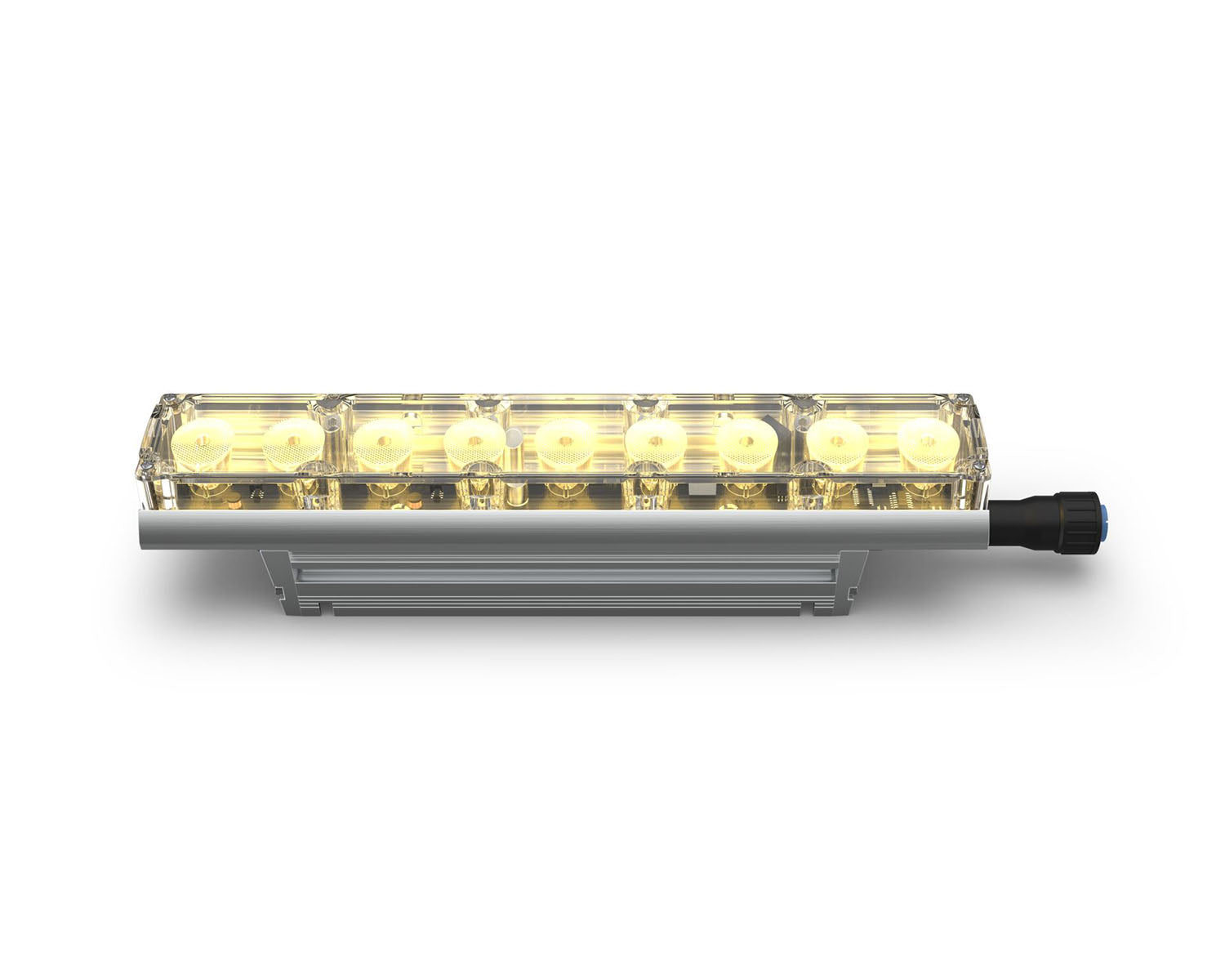

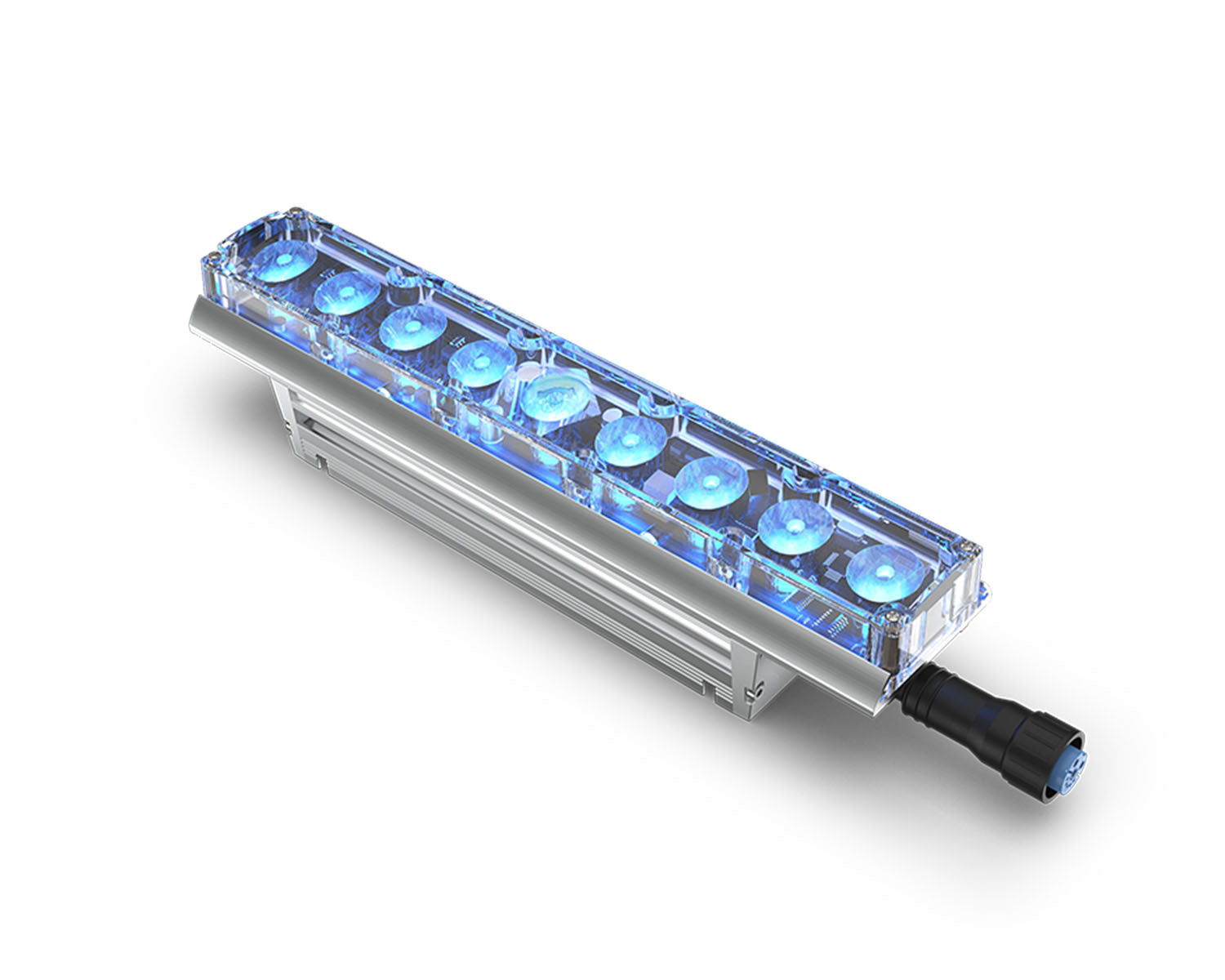

Ilumiline SL is an outdoor-rated linear battens with a sleek, low profile and RGBL color mixing. Like all Ilumi series products, it features plug-and-play installation with an optical system that delivers stunning, fully-mixed colors. The one-foot version is perfect for fitting into available space, while interchangeable, easy-to-install beam spread filters to help the fixture adapt to various applications and throw distances. Additionally, the lime emitter allows Ilumiline SL to create not only brilliant saturated colors, but crisp and clear whites to beautify any building, in any weather conditions.

Product Features

• 4-in-1 RGBL Colour Mixing
• One Foot in Length
• 50,000 hour LED Lifespan
• Beam angle: 14.5º, or change with optional Beam Filters
• Illuminance: 251 lux @ 5 m
• IP Rating: 66
• Optional Beam Spread Filters can be applied without breaking IP Seal

Product Specifications

Light Source & Optical Specifications

• Light Source: 9 LEDs (quad-color RGBL) 3.5 W, (200 mA)
• Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
• Installed Optics: 12°
• Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
• Beam Angle: 14.5°
• Field Angle: 30°
• Cutoff Angle: 49.6°
• Lumens: 808
• Base Illuminance: 251 lux @ 5 m
• Efficacy @ Full: 34 lm/W
• Color Temperature Presets: 1,800 K – 10,000 K

Construction & Physical Specifications

• Dimensions: 12 x 3.03 x 3.43 in (305 x 77 x 87 mm)
• Weight: 2.65 lb (1.2 kg)
• Fixture Color: Brushed aluminum
• Housing Material: Extruded aluminum
• Lens Cover: ABS plastic
• Mounting Options: Bracket

Control Specifications

• Control Protocol: USITT DMX-512a, RDM
• Operating Modes: Selectable personalities, via LΩGIC Driver
  • Solid (1-Channel)
  • Arc 1 (3-Channel)
  • Arc 1+D (4-Channel)
  • Arc 2 (4-Channel)
  • Arc 2+D (5-Channel)
  • Arc Full (8-Channel)
  • Special 2 (9-Channel)
• Standalone Control: Yes
• Fixture setup: RDM Only
• Data Connection: 3.7 ft (1.13 m) Proprietary Waterproof cable

Electrical System Specifications

• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 23 W, .200 A @ 120 V, PF: 94
  • 22 W, .118 A @ 230 V, PF: 78
  • 21 W, .113 A @ 277 V, PF: 71
• Power Supply: Electronic internal
• Dimmer: Electronic
• Power Linking: 52 units @ 120 V, 88 units @ 230 V, 92 units @ 277 V
• Power Connection: 3.7 ft (1.13 m) Hardwire to Proprietary Waterproof cable
• Recommended Power Cable: Power and Data Interface (14 AWG)
• Cable Connector Max Diameter: 1.18 in (30 mm)

Thermal Specifications

• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature Range: -40 °F to 113 °F (-40°C to 45 °C)
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance to Illuminated Surface: 3.28 ft (1 m)
• Minimum Distance to Flammable Surface: .98 ft (.3 m)
• BTU at various voltages:
  • 78 BTUs/hr @ 120 V, 60 Hz
  • 72 BTUs/hr @ 208 V, 60 Hz
  • 75 BTUs/hr @ 230 V, 50 Hz
  • 72 BTUs/hr @ 277 V, 60 Hz

Regulatory & Voluntary Qualification

• Certification Listings: UL, MET, CE, RoHS, FCC
• Impact Resistance Rating: IK10
• Vibration Rating: 3G
• Wind Load Rating – EPA: .237 ft²
• Environment: Dry/Damp/Wet location, IP66, All indoor and limited outdoor permanent installations.
  • Please refer to the User Manual for more detailed information on installation.
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Installation Orientation: Any, Vertical only, Horizontal only

What's in the Box?

• Ilumiline SL
• Quick Reference Guide

Accessories

• Required
  • RDM Device
  • Power and Data Interface
• Optional
  • Medium Filter (20°)
  • Wide Filter (40°)
  • Very Wide Filter (55°)
  • Asymmetrical Filter (60° x 10°)
  • Power and Data extension cable
