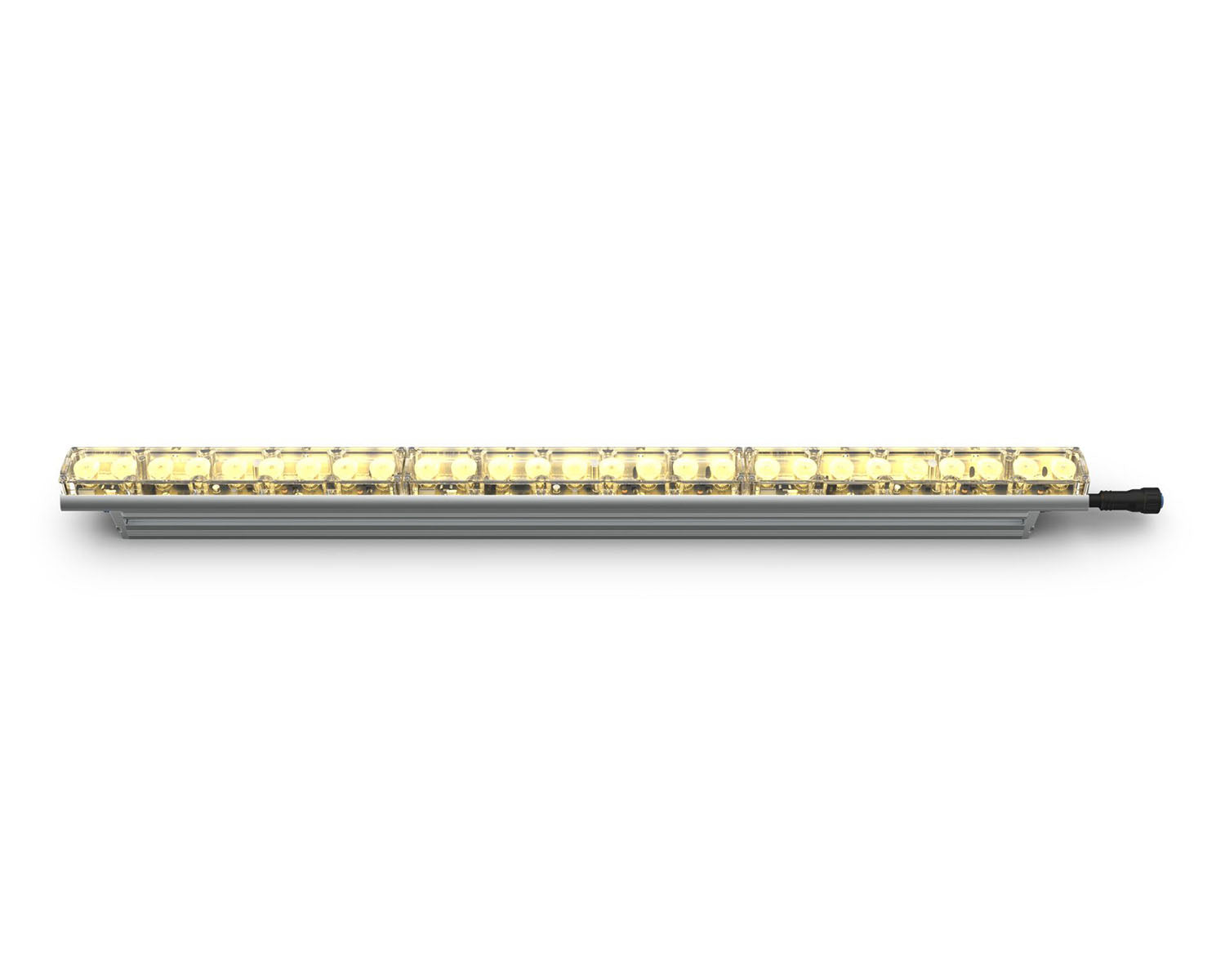

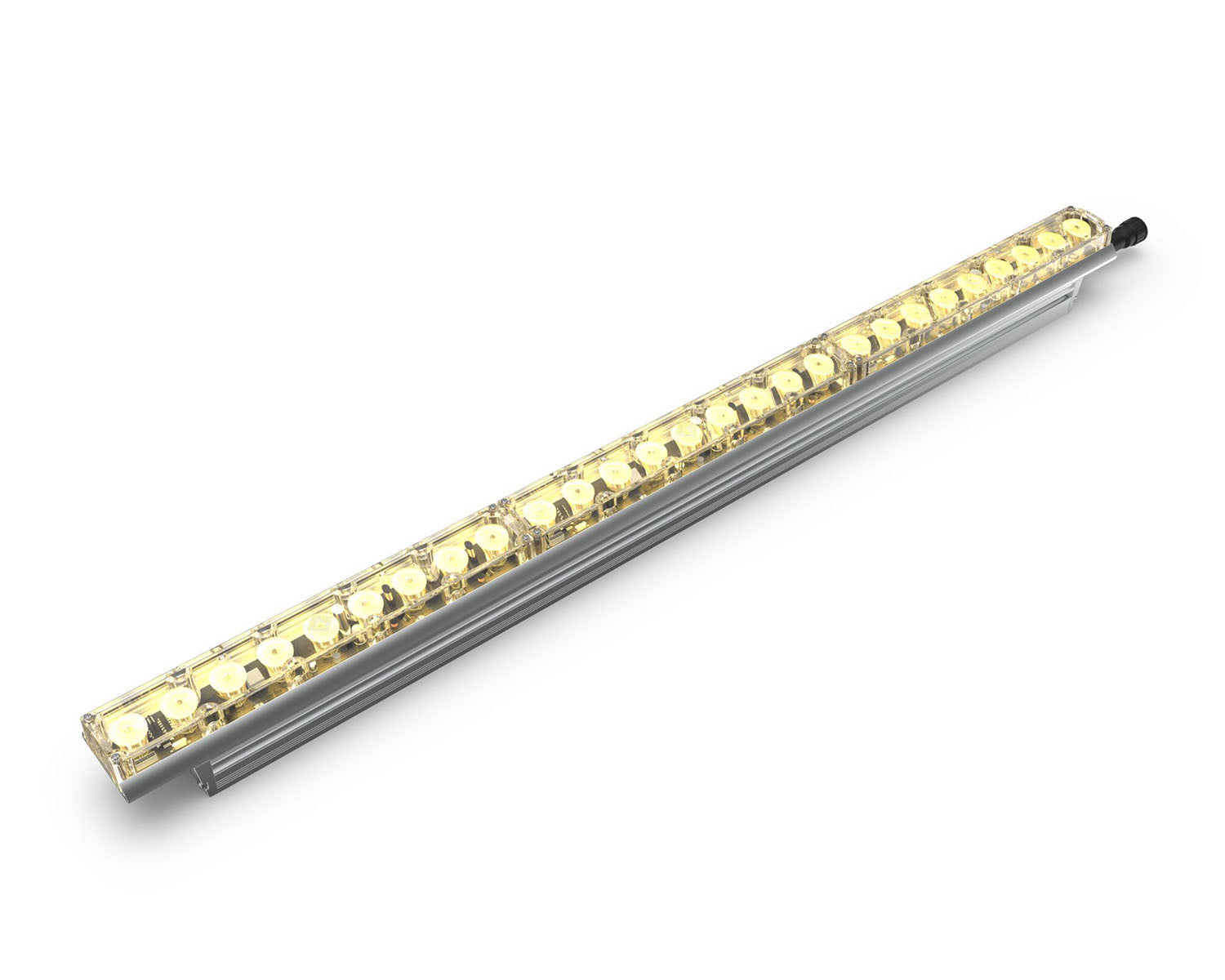

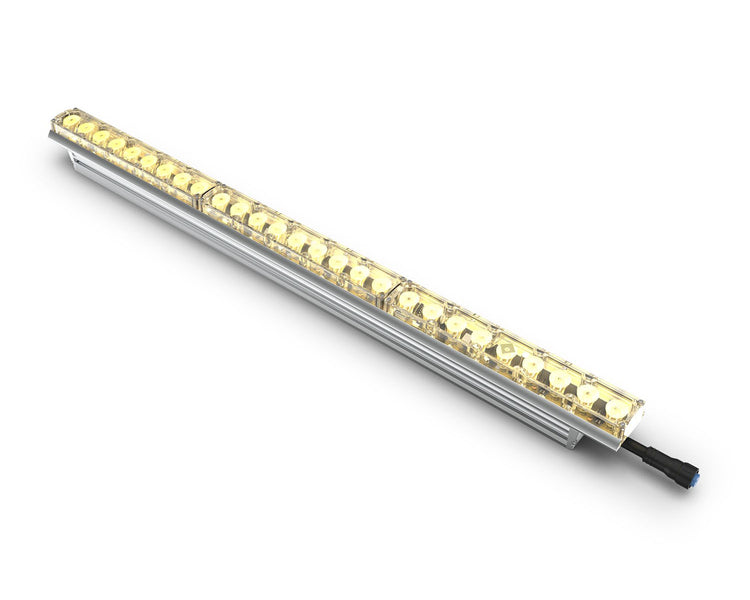

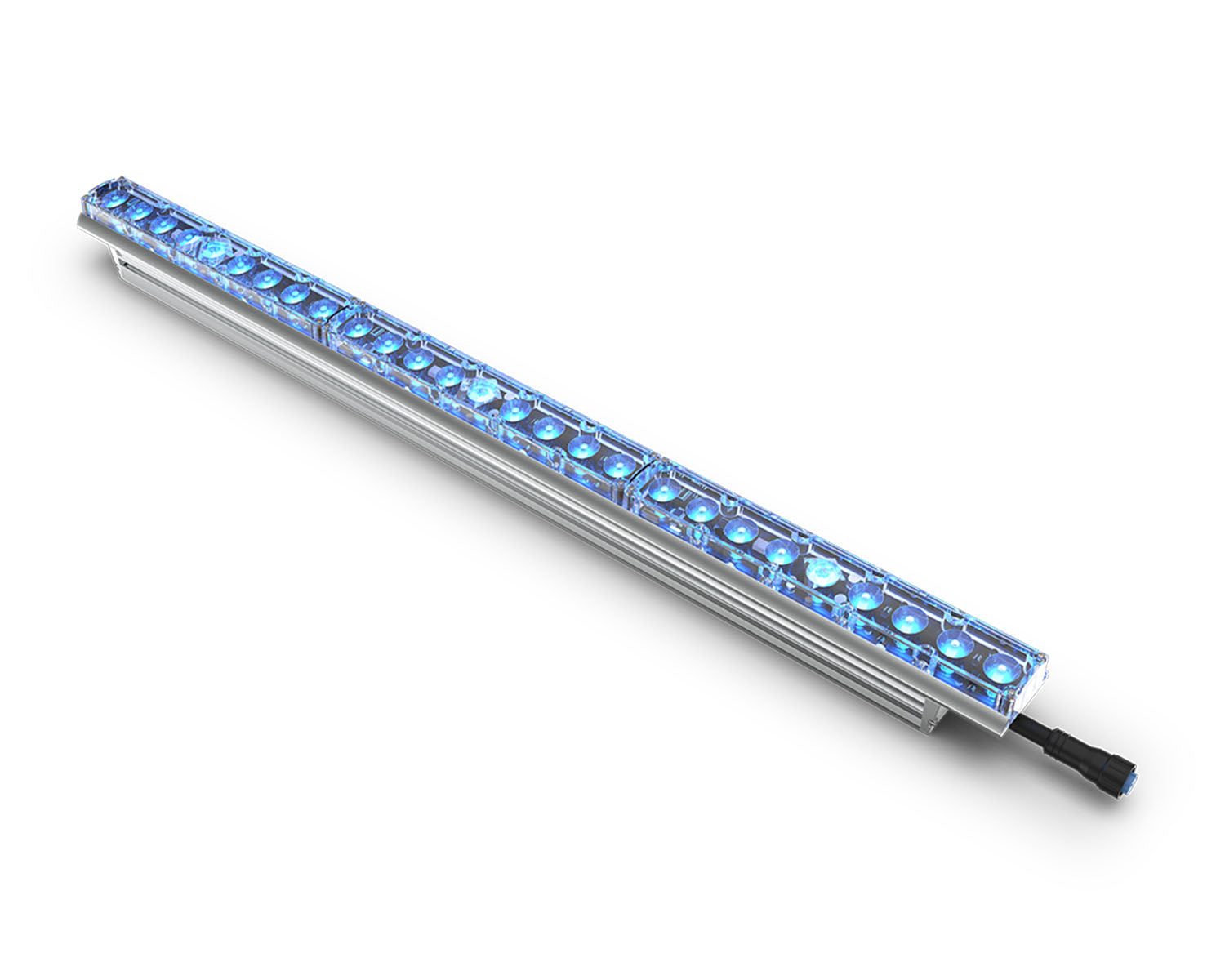

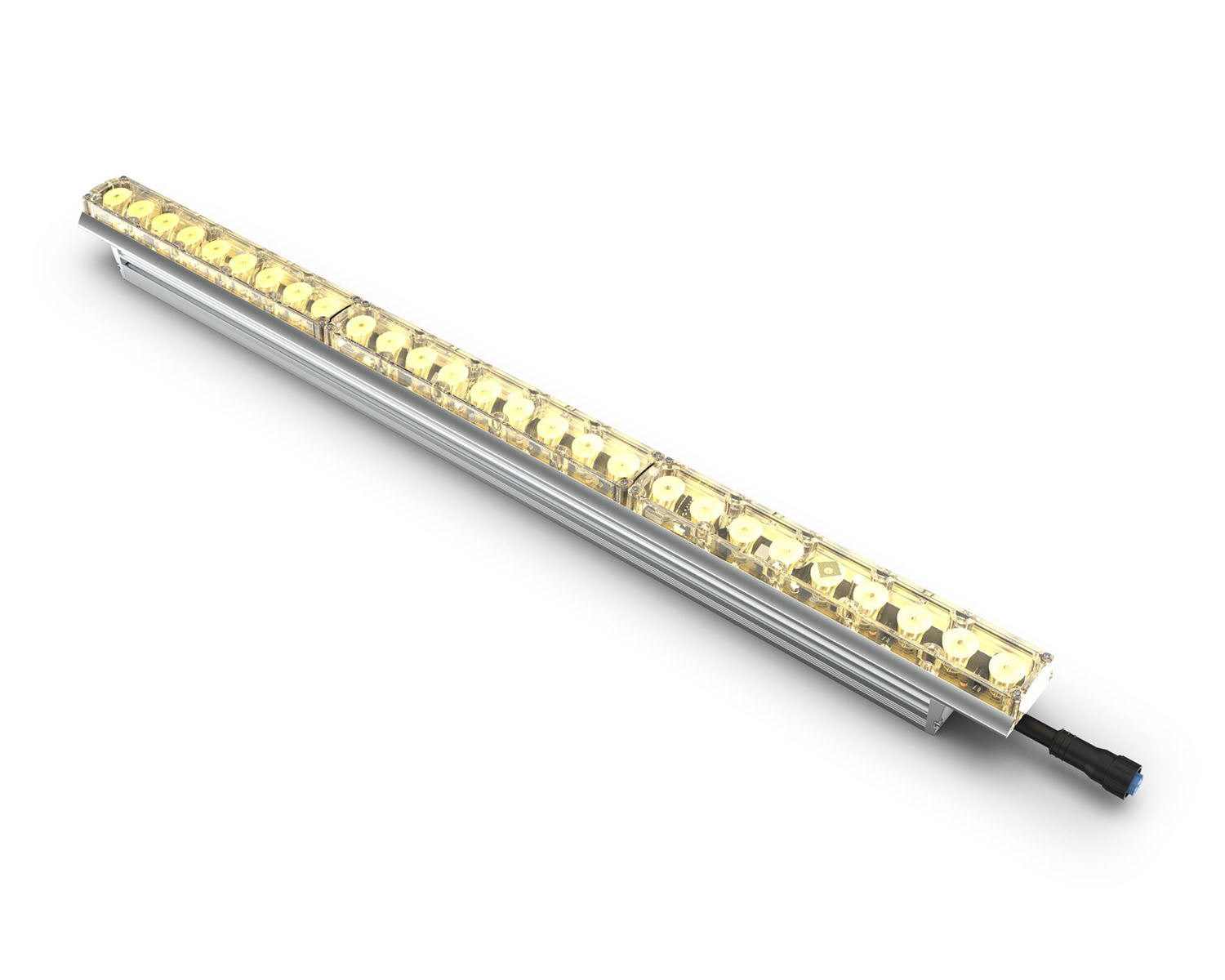

Ilumiline ML is an outdoor-rated linear battens with a sleek, low profile and RGBL color mixing. Like all Ilumi series products, it features plug-and-play installation with an optical system that delivers stunning, fully-mixed colors. The three-foot version is perfect for fitting into available space, while interchangeable, easy-to-install beam spread filters to help the fixture adapt to various applications and throw distances. Additionally, the lime emitter allows Ilumiline ML to create not only brilliant saturated colors, but crisp and clear whites to beautify any building, in any weather conditions.

Product Features

• 4-in-1 RGBL Colour Mixing
• Three Feet in Length
• 50,000 hour LED Lifespan
• Beam angle: 13.3°, or change with optional Beam Filters
• Illuminance: 752 lux @ 5 m
• IP Rating: 66
• Optional Beam Spread Filters can be applied without breaking IP Seal

Product Specifications

Light Source and Optical Specifications

• Light Source: 27 LEDs (quad-colour RGBL) 3.5 W, (200 mA)
• Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
• Installed Optics: 12°
• Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
• Beam Angle: 13.3°
• Field Angle: 29.7°
• Cutoff Angle: 49.9°
• Lumens: 2,432
• Base Illuminance: 752 lux @ 5 m
• Efficacy @ Full: 34 lm/W (installed optics)
• Colour Temperature Presets: 1,800K – 10,000 K

Construction & Physical Specifications

• Dimensions: 36 x 3.03 x 3.43 in (915 x 77 x 87 mm)
• Weight: 8.2 lb (3.8 kg)
• Fixture Colour: Brushed aluminium
• Housing Material: Extruded aluminium
• Lens Cover: ABS plastic
• Mounting Options: 2 Brackets

Control Specifications

• Control Protocol: USITT DMX-512a, RDM
• Operating Modes: Selectable personalities
  • Solid (1-Channel)
  • Arc 1 (3-Channel)
  • Arc 1+D (4-Channel)
  • Arc 2 (4-Channel)
  • Arc 2+D (5-Channel)
  • Arc Full (8-Channel)
  • Special 1 (15-Channel)
  • Special 2 (9-Channel)
• Standalone Control: Yes
• Fixture setup: RDM Only
• Data Connection: 3.7 ft (1.13 m) proprietary waterproof cable

Electrical System Specifications

• Input Voltage: 100 to 277 VAC, 50/60Hz (auto-ranging)
• Power and Current:
  • 66 W, .569 A @ 120 V, PF: 96
  • 64 W, .338 A @ 230 V, PF: 83
  • 65 W, .321 A @ 277 V, PF: 73
• Power Supply: Electronic internal
• Dimmer: Electronic
• Power Linking: 18 units @ 120 V, 30 units @ 230 V, 32 units @ 277 V
• Power Connection: 3.7 ft (1.13 m) Hardwire to Proprietary Waterproof cable
• Recommended Power Cable: Power and Data Interface (14 AWG)
• Total Max Cable Length (Interface to final fixture): 262 ft. (80 m)
• Cable Connector Max Diameter: 1.18 in (30 mm)

Thermal Specifications

• Cooling: Convection
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature Range: -40 °F to 113 °F (-40°C to 45 °C)
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance to Illuminated Surface: 3.28 ft (1 m)
• Minimum Distance to Flammable Surface: .98 ft (.3 m)
• BTU at various voltages:
  • 225 BTUs/hr @ 120 V, 60 Hz
  • 222 BTUs/hr @ 208 V, 60 Hz
  • 218 BTUs/hr @ 230 V, 50 Hz
  • 222 BTUs/hr @ 277 V, 60 Hz

Regulatory & Voluntary Qualification

• Certification Listings: UL, MET, CE, RoHS, FCC
• Impact Resistance Rating: IK10
• Vibration Rating: 3G
• Wind Load Rating – EPA: .592 ft²
• Environment: Dry/Damp/Wet location, IP66, All indoor and limited outdoor permanent installations.
  • Please refer to the User Manual for more detailed information on installation.
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Installation Orientation: Any, Vertical only, Horizontal only

What's in the Box?

• Ilumiline ML
• Quick Reference Guide

Accessories

• Required
  • RDM Device
  • Power and Data Interface
• Optional
  • Medium Filter (20°)
  • Wide Filter (40°)
  • Very Wide Filter (55°)
  • Asymmetrical Filter (60° x 10°)
  • Power and Data extension cable
